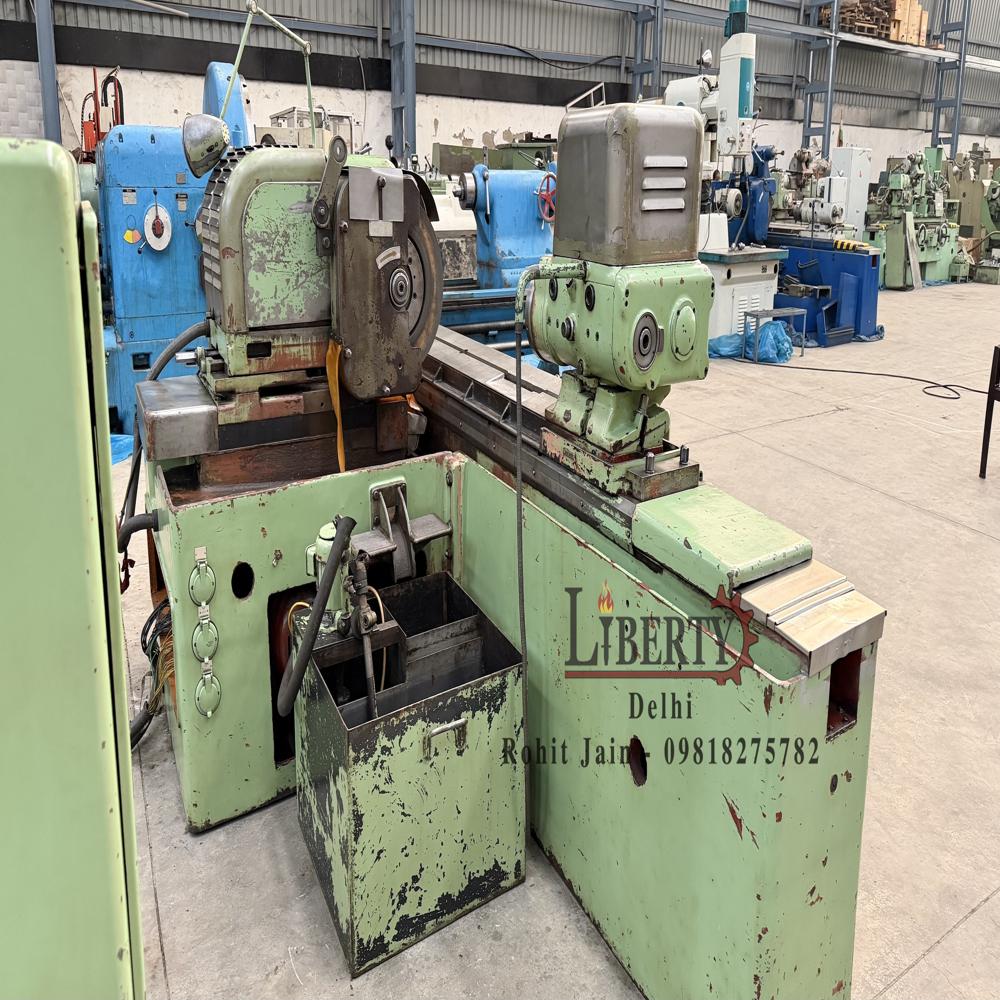

TOS Czech B40U / 1500 mm Heavy Duty Cylindrical Grinder Machine

Name: TOS Czech B40U / 1500 mm Heavy Duty Cylindrical Grinder Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS Czech B40U / 1500 mm Heavy Duty Cylindrical Grinder Machine Specification

Product Type
Heavy Duty Cylindrical Grinding Machine made by TOS (Czech Republic) in excellent working condition. The model of this machine is B40U/1500 and it is complete with 2 x Job Steady, Angular Wheel Dresser, Straight Wheel Dresser, Radius Wheel Dresser, spare Wheel Flange, Leveling Pads, Coolant Tank, Coolant Pump etc. The Center Height of the machine is 205 mm and the Maximum Length of Job is 1500 mm. The technical details are as follows -

General Use
Precision cylindrical grinding applications in industrial and manufacturing environments.

Material
Cast iron body; High-grade steel components.

Type
Heavy Duty Cylindrical Grinder

Capacity
Maximum Length of Job 1500 mm

Weight (kg)
Approximately 6000 7000 kg (estimated)

Computerized
No

Automatic
Semi-Automatic

Control System
Conventional manual and electrical controls

Drive Type
Belt driven

Grinding Diameter
Max Swing Diameter: 410 mm

Grinding Length
1500 mm

Spindle Speed
40 - 560 RPM (Spindle speed range)

Grinding Wheel Size
500 x 80 x 203 mm

Voltage
380 - 415 V, 3 Phase AC

Dimension (L*W*H)
Approx. 4000 x 2000 x 1700 mm

Feature
Includes 2 x Job Steady, Angular Wheel Dresser, Straight Wheel Dresser, Radius Wheel Dresser, spare Wheel Flange, Leveling Pads, Coolant Tank, Coolant Pump

Color
Industrial Green (as shown in image)

Tailstock Quill Travel
50 mm

Workhead Taper
Morse Taper No. 5

Distance Between Centers
1500 mm

Center Height
205 mm

Accessories Included
Job Steadies, Wheel Dressers, Spare Wheel Flange, Leveling Pads, Coolant Equipment

Coolant System
Integrated with Tank and Pump

Max. Workpiece Weight Between Centers
Up to 500 kg (approx)

Made In
Czech Republic (TOS Brand)

Grinding Wheel Peripheral Speed
Up to 50 m/s

Tailstock Taper
Morse Taper No. 4

Model
B40U / 1500

Machine Condition
Excellent working condition

About TOS Czech B40U / 1500 mm Heavy Duty Cylindrical Grinder Machine

Make - TOS (Czech Republic)

Model - B40U / 1500

Center Height - 205 mm

Max. Diameter of Job - 400 mm

Max. Length of Job - 1500 mm

Grinding Wheel Size - Diameter 500 mm x 80 mm Width

Least Count of the Machine - 5 Microns (0.005 mm)

Work-Head Speed - 15 rpm to 375 rpm

- Features like Delay, Auto-Slow, Automatic Depth Adjustment, Plunge Grinding etc.

- Complete with 2 x Job Steady, many types of Wheel Dressers, spare Wheel Flange etc.

- Complete with Coolant Tank & Pump, Splash Guards, Leveling Pads etc.

- Machine is in excellent working condition.

Video of the Machine -

https://youtu.be/eMwg0v2zlXA

Precision and Performance for Industrial Applications

The TOS B40U / 1500 delivers high-precision cylindrical grinding for large and heavy workpieces up to 1,500 mm in length and 500 kg in weight. Its robust construction, made from high-grade cast iron and steel, ensures stability and accuracy. The machine is ideal for manufacturing, repair, and toolroom environments where consistent results are required.

Comprehensive Accessory Package

This grinder includes a suite of valuable accessories, such as two job steadies, a variety of wheel dressers, a spare wheel flange, leveling pads, and a fully integrated coolant system. These features streamline the grinding process and help operators achieve superior finishes efficiently.

User-Friendly Semi-Automatic Controls

While the TOS B40U / 1500 is equipped with powerful grinding capabilities, it remains accessible with conventional manual and electrical controls. The semi-automatic operation strikes a balance between hands-on oversight and automation, making it reliable and easy for skilled operators to achieve precision results.

FAQ's of TOS Czech B40U / 1500 mm Heavy Duty Cylindrical Grinder Machine:

Q: How does the TOS B40U / 1500 cylindrical grinder support heavy-duty workpieces?

A: This machine is engineered to handle workpieces up to 500 kg and 1,500 mm in length, thanks to its robust frame, high-grade steel components, and sturdy accessories like job steadies. The maximum swing diameter of 410 mm further supports large, heavy parts common in industrial settings.

Q: What benefits does the integrated coolant system provide?

A: The integrated coolant system with a tank and pump helps maintain optimal grinding temperatures, reduces wheel wear, and improves workpiece finish by preventing overheating during prolonged operation.

Q: Where is the TOS B40U / 1500 manufactured and what is its build quality?

A: The machine is manufactured in the Czech Republic by TOS, a reputable brand known for its durable, high-quality machines. It features a cast iron body with high-grade steel components, ensuring long-lasting reliability and performance.

Q: When is this grinder most effectively used?

A: This cylindrical grinder is best used in industrial and manufacturing environments that require high-precision grinding of large components, such as automotive, aerospace, and general machining applications.

Q: What accessories are included with the grinder?

A: Included are two job steadies, an angular wheel dresser, a straight and radius wheel dresser, a spare wheel flange, leveling pads, and an integrated coolant tank and pump to cover a wide range of grinding needs.

Q: How does the machine's control system function?

A: The TOS B40U / 1500 operates with conventional manual and electrical controls, allowing semi-automatic operation for efficient workflow while retaining hands-on oversight for precision adjustments.

Q: What is the setup and installation process for this grinder?

A: With its substantial weight (approx. 6,000-7,000 kg) and size (approx. 4,000 x 2,000 x 1,700 mm), professional installation with proper leveling pads is recommended. It requires a three-phase 380-415V AC power supply and should be set up in an adequately sized industrial space.
