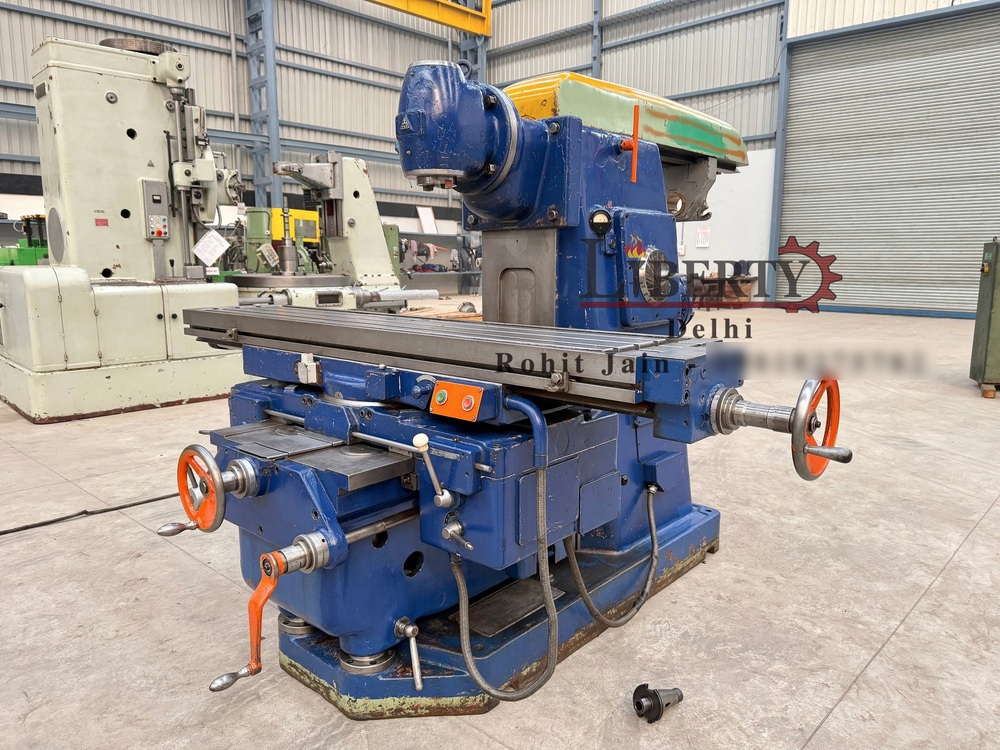

TOS Czech FA5U Heavy Duty Universal Milling Machine

Name: TOS Czech FA5U Heavy Duty Universal Milling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS Czech FA5U Heavy Duty Universal Milling Machine Specification

Model
FA5U

Rotation
Main Spindle Both Directions

Product Type
Universal Milling Machine

General Use
Heavy Duty Milling

Material
Cast Iron body, Steel components

Type
Horizontal/Vertical Universal

Capacity
Heavy duty

Weight (kg)
3250 kg

Computerized
No

Automatic
Semi-Automatic mechanically

CNC Or Not
Not CNC

Control System
Manual

Table Size
1600 mm x 400 mm

Table Slide Way
Double V flat guideways

Floor Space
2750 mm x 2370 mm

Spindle Speed
28 - 1400 rpm (12 steps)

Power
7.5 kW motor

Voltage
400 V

Dimension (L*W*H)
Approx. 2750 mm x 2370 mm x 1900 mm

Feature
Universal swiveling table, vertical and horizontal milling, robust construction, high rigidity, precision feed mechanism

Color
Standard TOS Blue-Grey

Main Spindle Motor Power
7.5 kW

Max. Load on Table
800 kg

WorkingSpeed
Variable, table feed 12630 mm/min

Lubrication
Centralized automatic lubrication

Spindle Taper
ISO 50

T-Slot (Number x Size x Distance)
3 x 18 mm x 80 mm

Longitudinal Table Travel (X)
1120 mm

Vertical Table Travel (Z)
400 mm

Transversal Table Travel (Y)
300 mm

Table Swivel Range
45

Main Spindle Bore Diameter
40 mm

Feed Range (X/Y/Z)
8400 mm/min

Rapid Traverse (X/Y/Z)
1600/1600/1300 mm/min

Coolant System
Integrated

TOS Czech FA5U Heavy Duty Universal Milling Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About TOS Czech FA5U Heavy Duty Universal Milling Machine

Make - TOS (Czech Republic)

Model - FA5U

Table Size - 2000 mm x 400 mm

XYZ Travels - 1250 mm x 400 mm x 400 mm

Spindle Speeds - 18 rpm to 1400 rpm

Spindle Taper - ISO 50

Table Feed Rates - 10 mm/min to 1250 mm/min

Spindle Motor Power - 11 kW

- With Bracket for Horizontal Milling operations.

- Rotating type Universal Table.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/cl9jHraZXDE

Versatile Milling Performance

The TOS Czech FA5U stands out with its universal swiveling table, capable of 45 rotation and both vertical and horizontal operations. Its 1600 x 400 mm table, multiple feed rates, and precision guideways make it ideal for a wide range of milling applications, including those demanding intricate angles and heavy-duty workloads. This flexibility streamlines processes and enhances production capabilities for manufacturers.

Robust and Reliable Construction

Manufactured with a solid cast iron body and premium steel components, the FA5U ensures exceptional rigidity and longevity, even under sustained heavy-duty use. Centralized automatic lubrication and an integrated coolant system safeguard the key mechanisms, reducing downtime and extending the machine's operational lifespan. The 7.5 kW motor and variable spindle speed offer ample power for rigorous machining tasks.

Precision at Every Step

Engineered for accurate and repeatable results, the FA5U features a precision feed mechanism and mechanically semi-automatic controls. It delivers smooth, consistent table movements (with travels up to 1120 mm longitudinally) and supports up to 800 kg loads, making it a trusted choice for applications requiring detailed, high-quality milling of various materials.

FAQ's of TOS Czech FA5U Heavy Duty Universal Milling Machine:

Q: How does the universal swiveling table benefit heavy-duty milling operations?

A: The universal swiveling table, with a 45 range, allows for angled milling and the machining of complex parts without repositioning the workpiece. This increases efficiency and expands the machine's application versatility, ideal for toolrooms and manufacturing environments handling varied workpiece geometries.

Q: What are the maximum table travels for the FA5U, and how do they affect usability?

A: The FA5U offers longitudinal (X) travel up to 1120 mm, transversal (Y) travel up to 300 mm, and vertical (Z) travel up to 400 mm. Such generous movement capacity accommodates larger workpieces and complex multi-directional milling, enhancing productivity and reducing the need for frequent repositioning.

Q: When should the integrated coolant and automatic lubrication systems be used?

A: These systems run automatically during machine operation, ensuring consistent cooling and lubrication for key moving parts. They prevent overheating, minimize wear, and significantly extend the life and reliability of the milling machine, which is especially important during sustained heavy-duty use.

Q: What types of materials and tasks is the FA5U best suited for?

A: Thanks to its solid cast iron and steel construction, powerful spindle, and heavy load capacity, the FA5U excels at milling tough or large metal components, including steel, cast iron, and alloy parts. Its versatility makes it suitable for both production machining and custom fabrications.

Q: How is table feed controlled, and what speed options are available?

A: Table feed is managed manually via a mechanical system, with feed rates adjustable between 12-630 mm/min. Rapid traverse options are up to 1600 mm/min for X/Y axes and 1300 mm/min for Z, offering both fine feed control for precision work and swift movement when needed.

Q: Where is the TOS Czech FA5U typically installed or suitable for use?

A: The FA5U's durable design and substantial floor footprint (approx. 2750 x 2370 mm) make it best suited for industrial workshops, manufacturing plants, and toolrooms that require reliable, heavy-duty milling solutions for a variety of applications.

Q: What are the primary benefits of choosing the FA5U for your workshop?

A: The FA5U delivers precise, versatile milling with robust construction, integrated low-maintenance features, and high load capacity. Its universal functionality reduces setup times and increases throughput, providing excellent value and long-term reliability for demanding machining environments.
