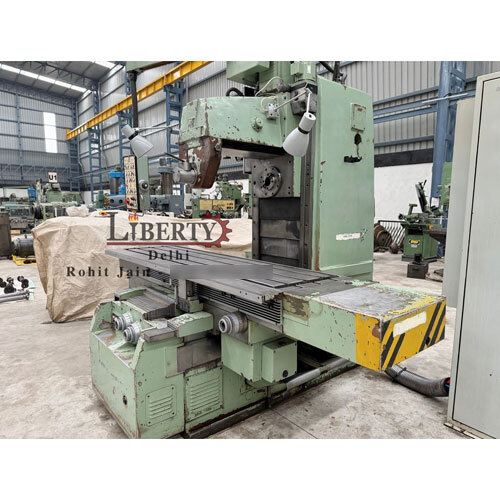

TOS FC50H Horizontal Bed Milling Machine

Name: TOS FC50H Horizontal Bed Milling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 1200.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS FC50H Horizontal Bed Milling Machine Specification

Rotation
Spindle Rotation: Clockwise/Anti-Clockwise

Model
TOS FC50H

Product Type
Horizontal Bed Milling Machine

General Use
Heavy Duty Horizontal Milling Operations

Material
Cast Iron

Type
Horizontal

Capacity
Approx. 2000 kg Workpiece

Weight (kg)
Approx. 4500 kg

Computerized
No

Automatic
No

CNC Or Not
No

Control System
Manual

Table Size
2000 mm x 500 mm

Table Slide Way
Box Type

Floor Space
3500 mm x 2800 mm

Spindle Speed
30 1400 rpm (12 Steps)

Power
Main Motor: 7.5 kW

Voltage
415 V

Dimension (L*W*H)
3500 mm x 2800 mm x 2100 mm

Feature
Robust Construction, Precision Guideways, Easy Operation

Color
Blue & White

Lubrication Type
Centralized Lubrication

Rapid Traverse Rate
3000 mm/min

Maximum Spindle Center to Table Surface
630 mm

Spindle Taper
ISO 50

T-Slot Number/Width/Distance
5 / 18 mm / 90 mm

Coolant Pump Motor
0.09 kW

Main Motor Speed
1440 rpm

Application
Steel, Iron, Non-Ferrous Metal Milling

Maximum Spindle Nose to Table Center
200 mm

Table Cross Travel
630 mm

Table Load Capacity
2000 kg

Table Longitudinal Travel
1800 mm

Table Vertical Travel
500 mm

TOS FC50H Horizontal Bed Milling Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About TOS FC50H Horizontal Bed Milling Machine

Make - TOS (Czech Republic)

Model - FC50H

Table Size - 2000 mm x 500 mm

XYZ Travels - 1250 mm x 500 mm x 560 mm

Spindle Taper - ISO 50

Spindle Speeds - 35 rpm to 1120 rpm

Spindle Motor - 15 kW

Table Feed Rates - 10 mm/min to 2000 mm/min

- Operating Manuals & Electrical Drawings are available.

- Complete with Arbour, Bracket and its support.

- Complete with lots of Tool Holders, Cutters etc.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/2ik7hVei4IQ

Superior Heavy-Duty Performance

Designed for demanding milling operations, the TOS FC50H handles workpieces up to 2000 kg with ease. Its box-type slideways provide outstanding stability and longevity, while centralized lubrication ensures smooth, low-maintenance operation. The spindle achieves up to 1400 rpm in 12 steps, accommodating a broad spectrum of milling tasks on steel, iron, and non-ferrous metals.

Manual Precision, Robust Construction

The FC50H puts reliability and ease of use at the forefront. A manual control system limits complexity and downtime, ensuring users can focus on precision work. Rigid cast iron construction minimizes vibration, further enhancing machining accuracy and operator confidence.

Flexible and Versatile Milling Capabilities

With longitudinal, cross, and vertical table travel capabilities, the FC50H adapts to various industrial and manufacturing requirements. The ISO 50 spindle taper supports a wide range of tooling, making the machine suitable for small production runs, toolrooms, and heavy-duty job shops alike.

FAQ's of TOS FC50H Horizontal Bed Milling Machine:

Q: How does the TOS FC50H milling machine enhance operational efficiency in heavy-duty environments?

A: The TOS FC50H is built with a strong cast iron frame, robust table load capacity up to 2000 kg, and centralized lubrication. These features allow for stable, vibration-free milling, reduced maintenance, and consistent machining performance even in long production runs.

Q: What materials can be processed using the TOS FC50H?

A: This horizontal bed milling machine is ideal for milling steel, iron, and non-ferrous metals, handling a wide range of materials encountered in manufacturing, fabrication, and repair workshops.

Q: When is it recommended to use the TOS FC50H instead of a CNC milling machine?

A: The TOS FC50H is particularly suitable for applications where manual control offers flexibility, and advanced programming is unnecessary. It excels in settings that demand high rigidity, precision, and versatility without requiring the complexity or cost of CNC actuated operations.

Q: Where can the TOS FC50H be installed and what are its space requirements?

A: With overall dimensions of 3500 mm x 2800 mm x 2100 mm, the TOS FC50H requires substantial floor space, typically in well-equipped industrial workshops or manufacturing plants. Ensure the floor is capable of supporting the approximate 4500 kg machine weight.

Q: What is the process for changing spindle speeds on the TOS FC50H?

A: Spindle speeds (from 30 to 1400 rpm) are adjusted manually in 12 discrete steps. Operators use the machine's control levers to select the appropriate speed, allowing them to tailor the cutting conditions to the material and tooling in use.

Q: How does the machine ensure longevity and consistent milling precision?

A: Centralized lubrication distributes oil to all critical moving parts, reducing wear and prolonging the lifespan of guideways and bearings. Combined with its solid cast iron structure, this assists in maintaining high accuracy over time.
