TOS Czech SK-16 Vertical Turning Lathe (VTL) Machine

Name: TOS Czech SK-16 Vertical Turning Lathe (VTL) Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS Czech SK-16 Vertical Turning Lathe (VTL) Machine Specification

Motor Power
Main Motor: 18 kW

Operating Temperature
5C to 45C

Production Capacity
Large Diameter Workpieces

Noise Level
Low to Moderate (<80 dB)

Frame Type
Monolithic Cast Iron Frame

Accuracy
High Machining Precision (as per industrial standards)

Model No
SK-16

Machine Type
Vertical Turning Lathe

Power Rating
18 kW

Frequency
50 Hz

Voltage
380 - 415 V, 3 Phase

Features
Heavy-duty frame, Robust construction, Precise feed mechanisms

Drive
Electric Geared Drive

Connectivity Options
None / Optional

Control System
Manual Control with Electrical Panel

Cooling System
Integrated Coolant System

Lubricating System
Centralized Automatic Lubrication

Product Type
Vertical Turning Lathe (VTL) Machine

Technology
Conventional

Power Source
Electric

Operating Type
Manual / Semi-Automatic

Power
Approx. 18 - 25 kW

Surface Treatment
Painted / Coated

Dimension (L*W*H)
Approx. 4600 x 3200 x 3900 mm

Weight (kg)
Approx. 26000 kg

Color
Industrial Blue & Cream

Usage & Applications
Turning, Facing, Boring, Grooving of Large Components

Hydraulic System
Optional

Tool Holder Type
Standard ISO

Spindle Speed Range
1 - 80 rpm

Safety Features
Overload Protection, Emergency Stop, Chuck Guard

Workpiece Material
Cast Iron, Steel, Alloys

Main Motor Type
AC Electric Motor

Number of Tool Posts
2

Lighting
Integrated Machine Lamp

Operator Panel Type
Push Button Station

Cross Rail Travel
1000 mm

Floor Space Required
Approx. 6.5 x 5.0 m

Maximum Workpiece Height
1250 mm

Maximum Load on Table
6000 kg

Clamping System
Manual or Hydraulic (Optional)

Table Diameter
1600 mm

Maintenance
Low, Simple Serviceable Design

Maximum Turning Diameter
1800 mm

Chuck Type
4-Jaw Independent

Vertical Travel of Tool Post
900 mm

Feed Rate
0.2 - 12 mm/rev

About TOS Czech SK-16 Vertical Turning Lathe (VTL) Machine

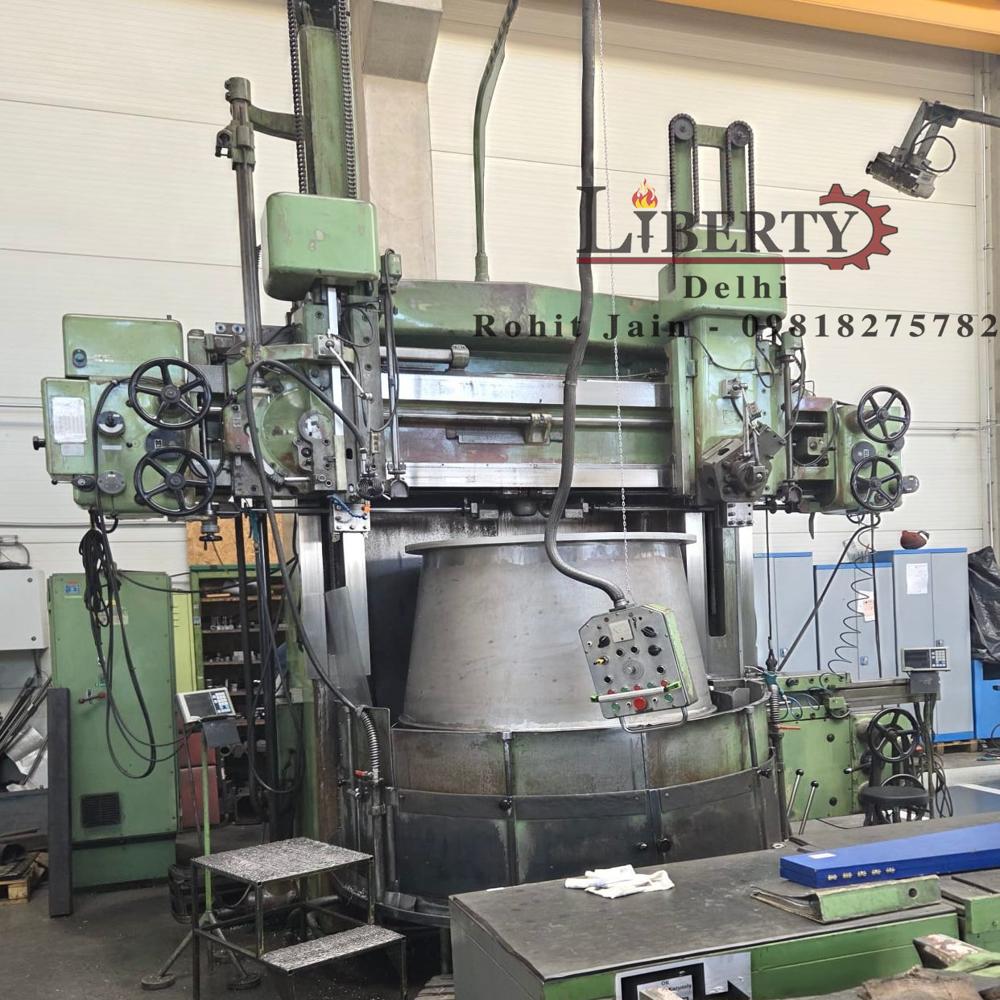

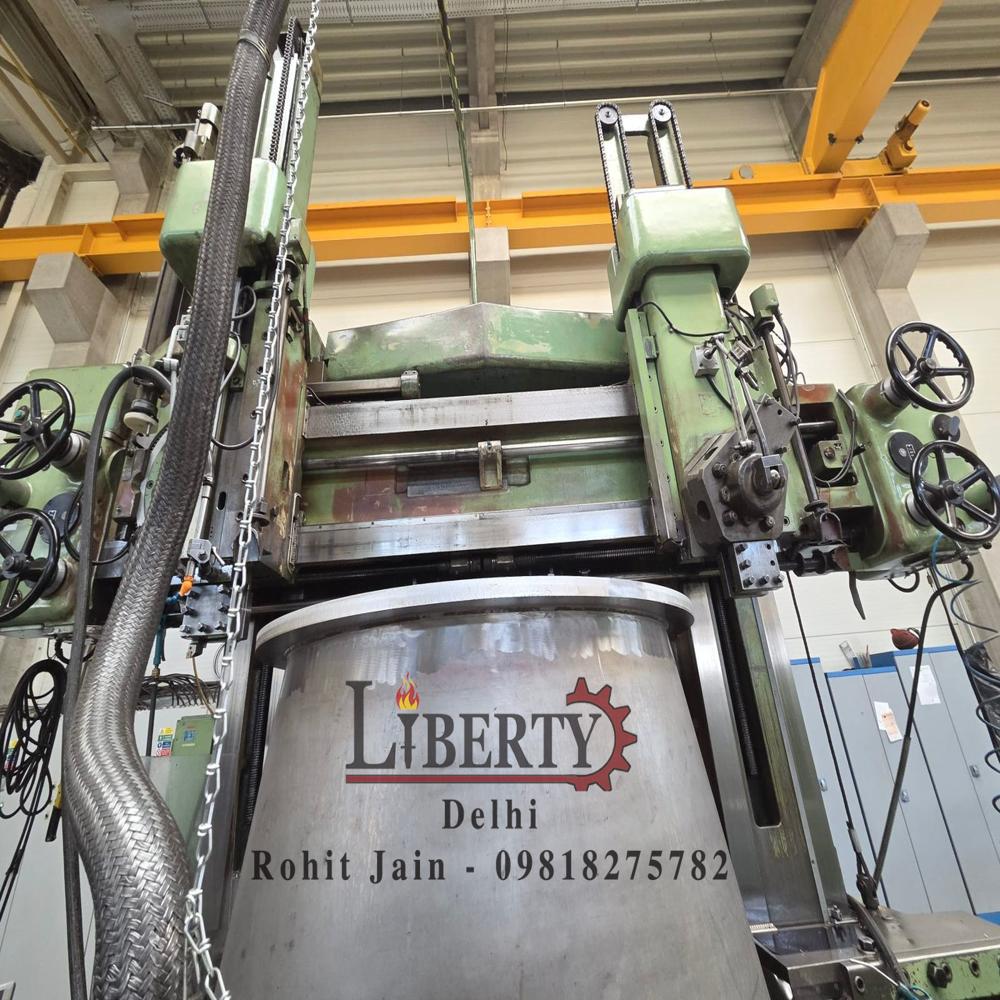

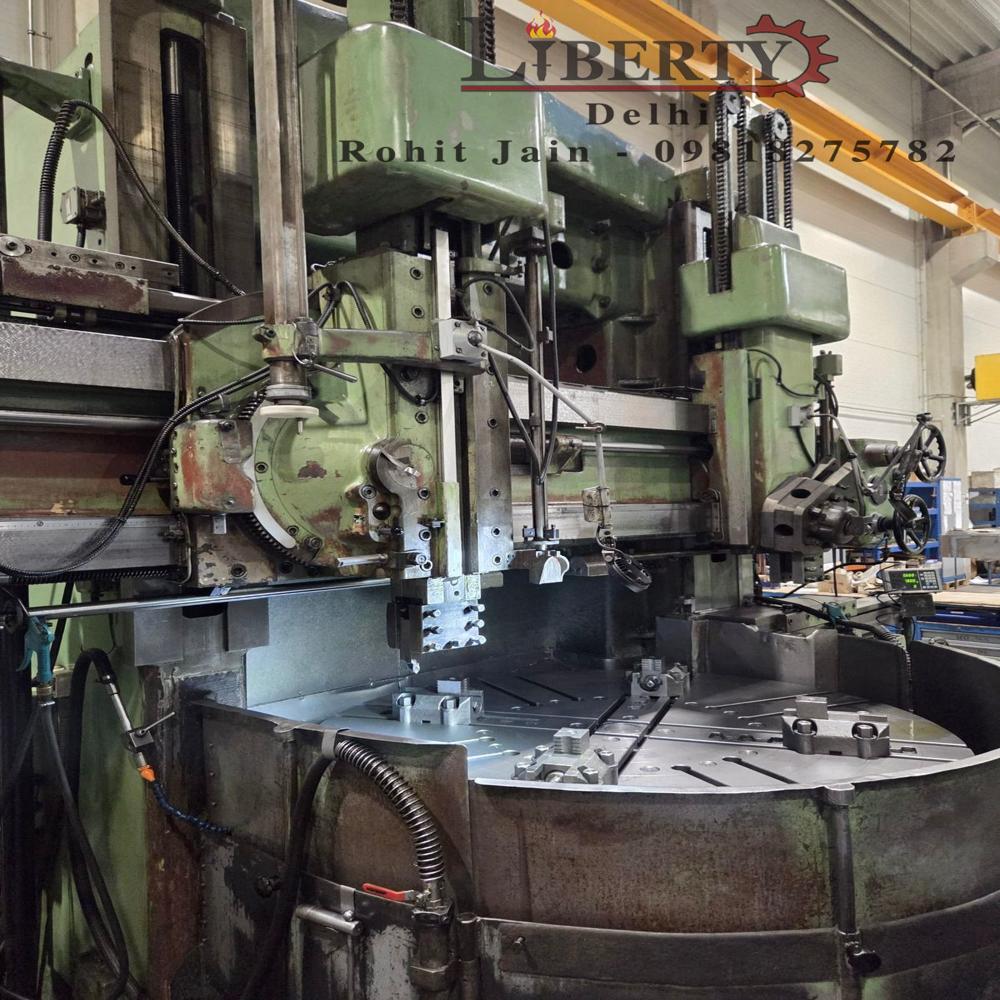

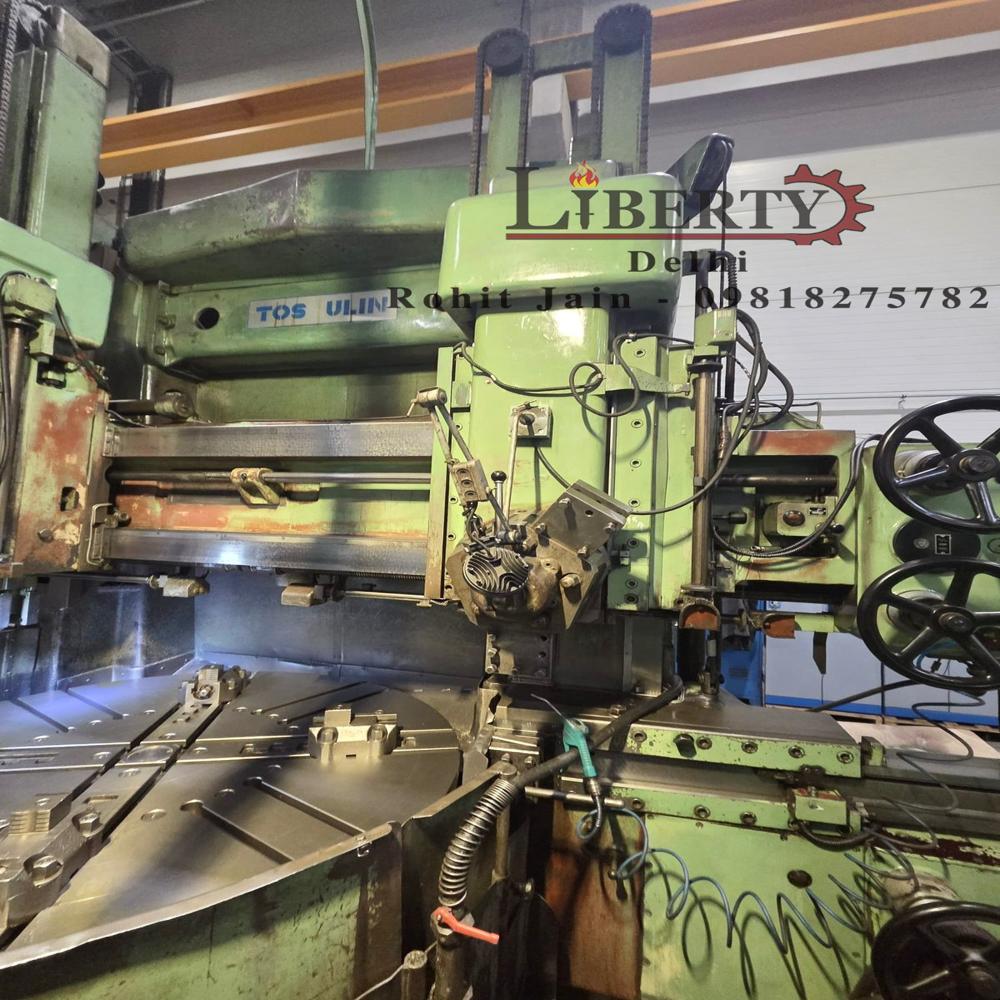

Heavy Duty Vertical Turning Lathe (VTL) made by TOS (Czech Republic), Model SK-16, available in excellent working condition. The machine is suitable for operations like turning, facing, boring, and grooving etc. The technical details are as follows -

Make - TOS (Czech Republic)

Model - SK-16

Table Diameter - 1620 mm

Max. Turning Diameter - 1700 mm

Max. Job Height - 1380 mm

Table Load Capacity - 5000 kg

Machine Weight - 20 Tons (Approximately)

- Equipped with 3 tool heads.

- 1 Ram Type, 1 Turret Type, and 1 Side Tool Head.

- With DRO.

- Machine is in excellent working condition.

High-Capacity Precision

Engineered for demanding operations, the SK-16 excels in machining large and heavy workpieces with its strong cast iron frame and high power electric geared drive. Its advanced feed mechanism and high precision capabilities enable accurate turning and finishing on a variety of industrial materials. This VTL is tailored for workshops requiring consistent output and dependable performance.

Operator-Friendly Design

Thoughtfully designed for ease-of-use, the SK-16 incorporates a push button operator station, integrated machine lighting, and simple yet robust clamping systems. Low maintenance and a serviceable layout ensure operators can focus on productivity, while built-in safety features and low to moderate noise levels ensure a safe, comfortable working environment.

FAQ's of TOS Czech SK-16 Vertical Turning Lathe (VTL) Machine:

Q: How does the TOS Czech SK-16 support heavy-duty turning applications?

A: The SK-16 features a monolithic cast iron frame and a powerful AC electric motor (18 kW), supporting table loads up to 6000 kg. Its robust build, combined with precise feed mechanisms and high machining accuracy, makes it ideal for turning, facing, boring, and grooving large and heavy components.

Q: What materials can be processed on this vertical turning lathe?

A: The SK-16 is designed to machine a wide range of materials including cast iron, steel, and various steel alloys. Its high rigidity and precision make it suitable for diverse industrial applications requiring large-diameter workpiece processing.

Q: When should the centralized lubrication and cooling systems be serviced?

A: The integrated centralized lubrication and coolant systems are designed for low maintenance and continuous service, but it's recommended to follow the manufacturer's routine service schedule or inspect these systems after extended operation to ensure optimal machine performance and longevity.

Q: Where can the SK-16 be installed, and what floor space does it require?

A: The machine requires a floor space of approximately 6.5 x 5.0 meters and should be installed on a stable and level area within industrial settings. Proper installation ensures safety, easy access for operation, and straightforward maintenance.

Q: What is the process for clamping and adjusting workpieces?

A: Workpieces can be clamped manually with the 4-jaw independent chuck system, or optionally using a hydraulic clamping mechanism. This allows for secure, flexible workpiece mounting and adjustment during setup to accommodate various component sizes safely.

Q: How does the operator control the SK-16's functions?

A: Operators use a manual control system with a clearly labeled push button station, giving them straightforward access to all major functions. The electrical panel is equipped for ease-of-use and integrates key safety features like overload protection, emergency stop, and a chuck guard.

Q: What benefits does the SK-16 provide to manufacturers and exporters?

A: Manufacturers, exporters, and suppliers benefit from the SK-16's large production capacity, high machining precision, durable construction, and reliable safety features. Its versatility and ease of maintenance ensure efficient processing of oversized components, increasing productivity and minimizing downtime.
