TOS Czech W100A Horizontal Boring Machine

Name: TOS Czech W100A Horizontal Boring Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS Czech W100A Horizontal Boring Machine Specification

Production Capacity
Approx. 1 unit per cycle

Control System
Conventional mechanical with manual controls

Drive
Geared mechanical drive

Lubricating System
Centralized lubrication

Operating Temperature
Ambient, typically 5C to 45C

Accuracy
High precision, typically 0.01 mm repeatability

Connectivity Options
None (conventional model)

Cooling System
Integrated coolant system

Noise Level
Moderate, standard for heavy industrial use

Features
Adjustable spindle, rotary table, strong structure, high rigidity

Model No
W100A

Power Rating
7.5 kW

Frame Type
Cast iron base and frame

Frequency
50 Hz

Machine Type
Horizontal boring and milling

Motor Power
7.5 kW

Voltage
415 V, 3 Phase

Product Type
Horizontal Boring Machine

Technology
Conventional Mechanical

Power Source
Electric

Operating Type
Manual / Semi-automatic

Power
7.5 kW

Surface Treatment
Painted

Dimension (L*W*H)
~4,500 mm x 2,500 mm x 2,500 mm

Weight (kg)
approx. 9,000 kg

Color
Green / Light Blue

Usage & Applications
Heavy-duty precision boring, milling, drilling in industrial sectors

Spindle Travel (Quill Stroke)
900 mm

Table Load Capacity
3000 kg

Rapid Traverse
2000 mm/min

Vertical Travel (Z-Axis)
1120 mm

Spindle Taper
ISO 50

Feed Range
2 - 900 mm/min

Working Speed
Spindle: 10 - 1250 RPM

Table Size
1250 x 1120 mm

Rotary Table Movement
360

Table Transverse Travel (X-Axis)
1400 mm

Max Boring Diameter
320 mm

Electrical Cabinet
Fitted with Overload Protection

Spindle Diameter
100 mm

Table Longitudinal Travel (Y-Axis)
1600 mm

Condition
Used / Excellent Working

About TOS Czech W100A Horizontal Boring Machine

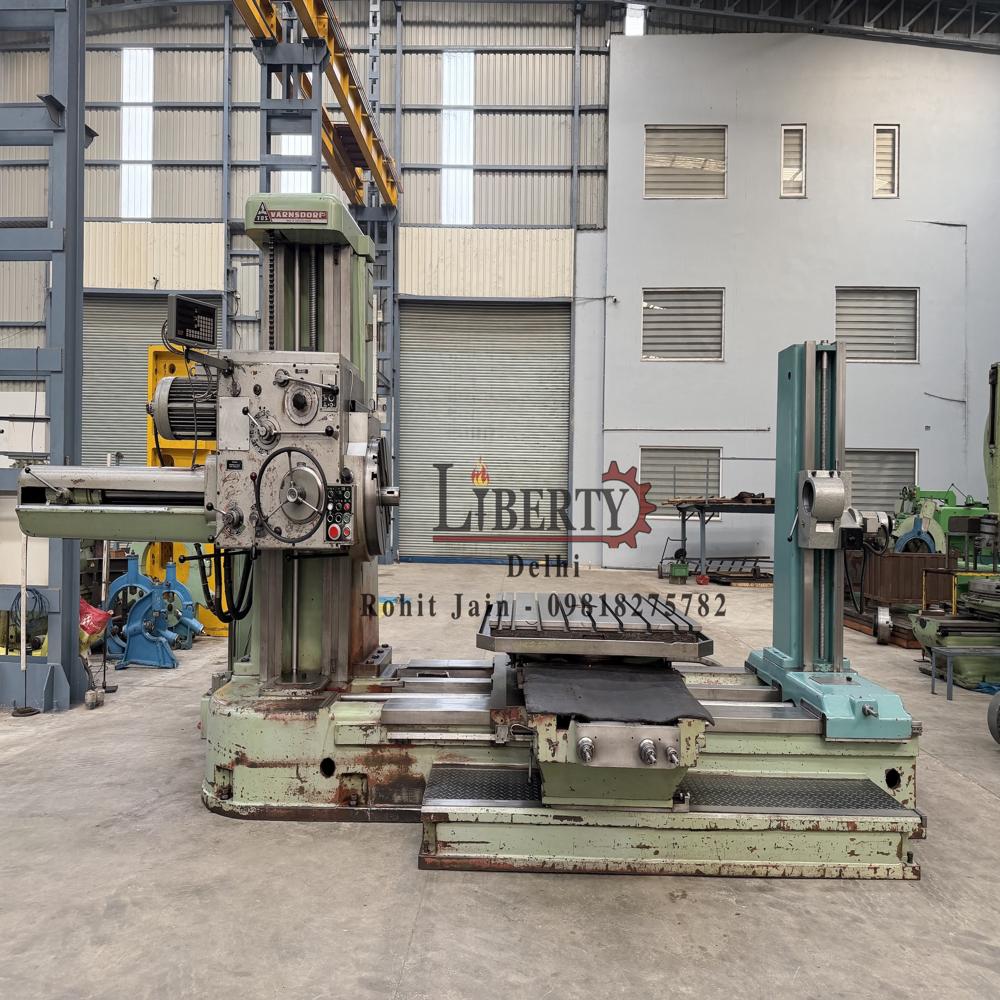

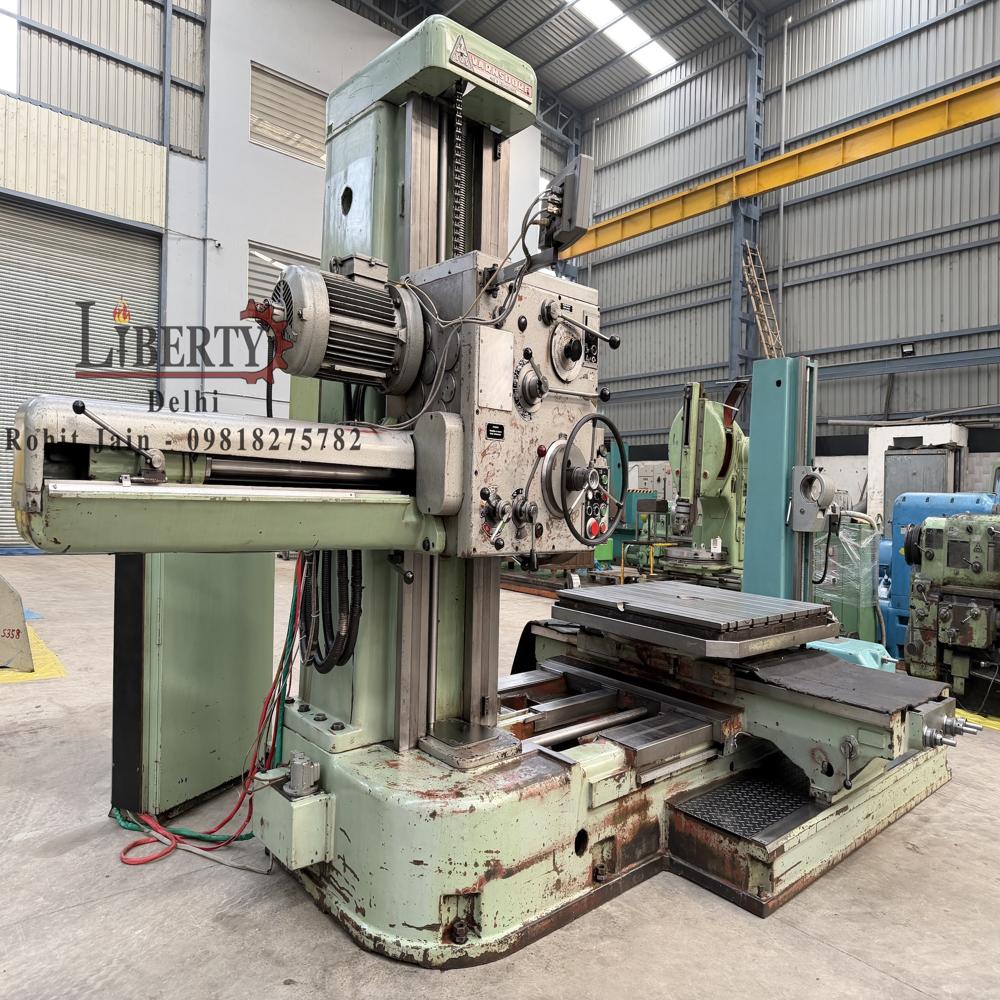

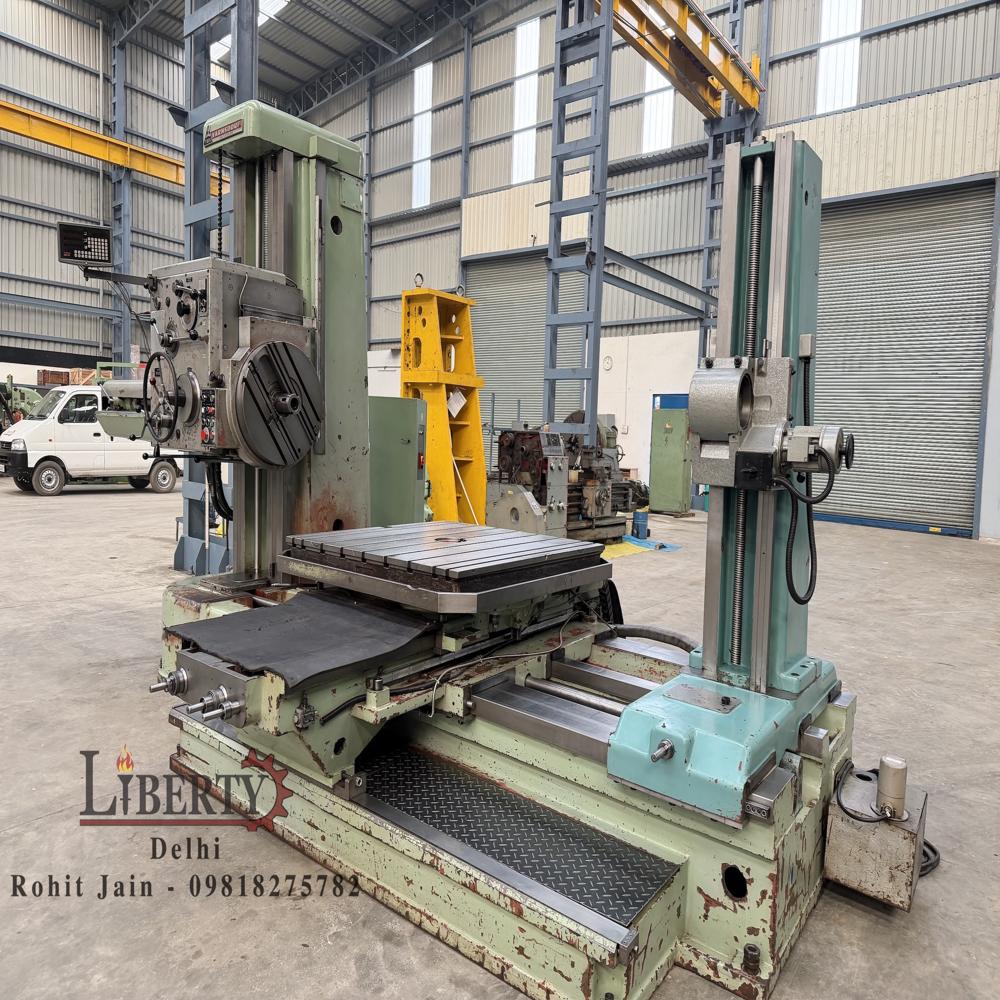

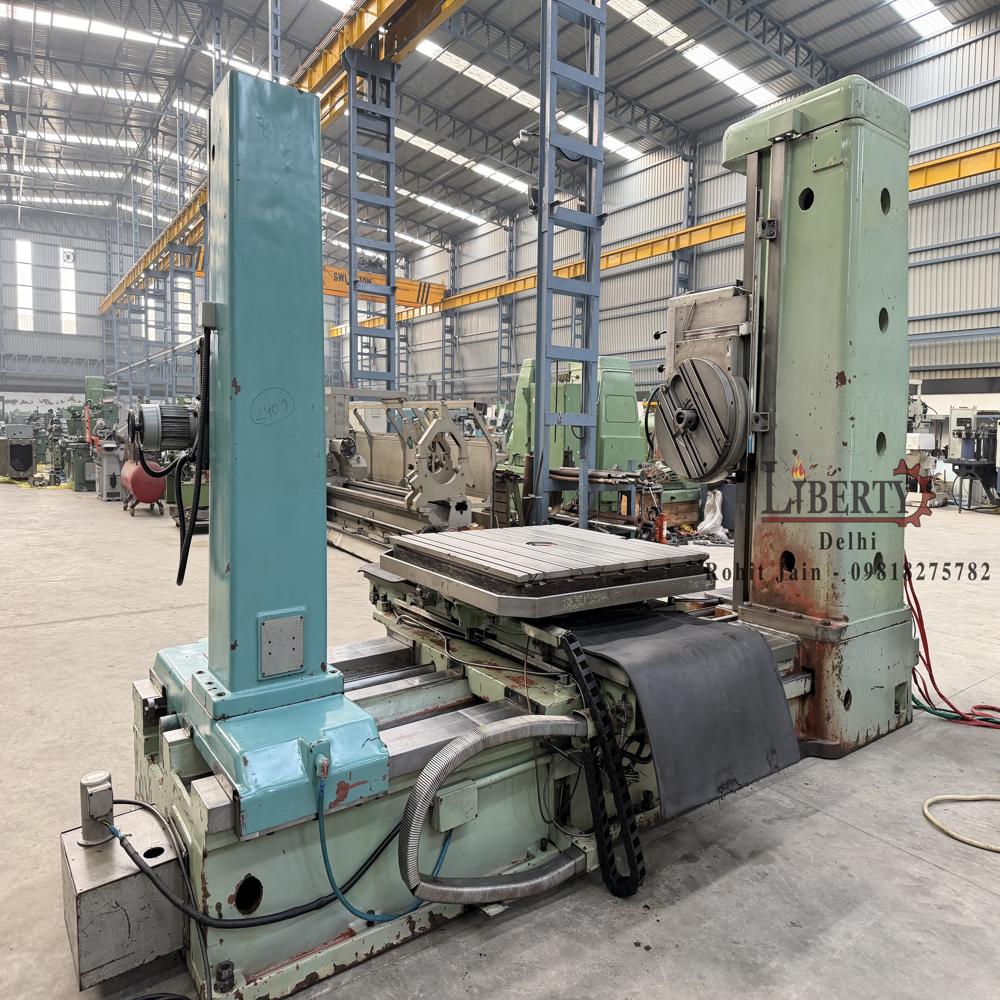

Table Type Horizontal Boring Machine made by TOS (Czech Republic) in excellent working condition. The model of the machine is W100A and the Table Size is 1250 mm x 1250 mm. The machine is complete with its Facing Chuck, Tail-Stock and 3-Axis DRO. It is the latest model of the conventional Table type Horizontal Boring made by TOS Czech company. The technical details are as follows -

Make - TOS (Czech Republic)

Model - W100A

Spindle Diameter - 100 mm

Table Size - 1250 mm x 1250 mm

Cross Travel - 1600 mm

Vertical Travel - 1120 mm

Longitudinal Travel - 1250 mm (with Tail-Stock equipped)

Spindle Travel - 900 mm

Facing Chuck Diameter - 600 mm

Spindle Taper - MT-6

Spindle Speeds - 7.1 rpm to 1120 rpm

Facing Chuck Speeds - 7.1 rpm to 224 rpm

- Complete with Facing Chuck, Tailstock & equipped with 3-Axis DRO.

- Operating Manual & Electrical Drawings are available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/_YDRinnLwNI

Powerful and Precise Performance

The W100A ensures high-precision tasks with an impressive repeatability of 0.01 mm, supported by an adjustable 100 mm spindle and 900 mm travel. Its robust construction and mechanical drive system offer stability even during the most demanding applications.

Sturdy Table and Versatile Movement

Accommodating heavy workpieces up to 3,000 kg, the machine's 360 manually indexed rotary table simplifies complex setups. Rapid traverse on all axes and multiple travel directions grant greater flexibility during operations.

Practical Design and Operator Safety

Engineered for both usability and safety, the W100A features manual mechanical clamps, emergency stops, and mechanical locks. Its centralized lubrication system and coolant integration reduce maintenance effort, ensuring reliable long-term operation.

FAQ's of TOS Czech W100A Horizontal Boring Machine:

Q: How is the TOS Czech W100A suitable for heavy-duty industrial applications?

A: With its cast iron frame, high table load capacity, and precise spindle control, the W100A is engineered to handle large, heavy components and demanding machining tasks, common in heavy industry environments.

Q: What types of machining operations can be performed on this machine?

A: The W100A is ideal for precision boring, milling, and drilling, providing versatility for varied machining requirements in manufacturing and fabrication sectors.

Q: When should the machine be serviced to ensure optimal accuracy and longevity?

A: Routine maintenance, including checking the centralized lubrication and integrated cooling systems, should be performed regularly as per the usage frequency-typically part of preventive maintenance schedules in industrial settings.

Q: Where can the W100A be installed and what are the requirements for transport?

A: This machine is suited for installation in spacious, well-ventilated industrial workshops. Due to its weight and dimensions, a forklift or crane is necessary for safe relocation or placement on site.

Q: What benefits do manual mechanical clamps and safety features provide?

A: Manual clamps secure workpieces firmly, reducing movement during machining for greater accuracy, while safety features like emergency stop and mechanical locks help protect operators and machinery.

Q: How does the rapid traverse on all axes enhance the machining process?

A: Rapid traverse capability decreases setup and repositioning time, improving workflow efficiency especially when working on complex or multi-sided jobs.
