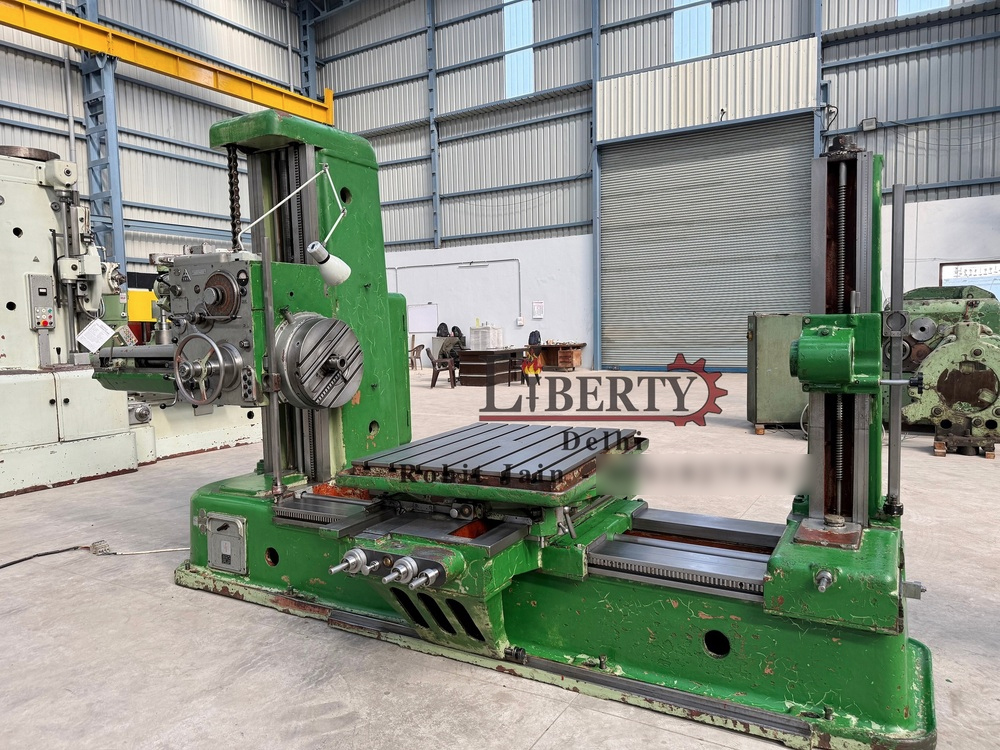

TOS H-80 Horizontal Boring Machine

Name: TOS H-80 Horizontal Boring Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS H-80 Horizontal Boring Machine Specification

Accuracy
0.02 mm

Control System
Manual control, optional digital display

Machine Type
Horizontal Boring

Operating Temperature
0-45C

Drive
Electric motor

Lubricating System
Automatic centralized lubrication

Model No
TOS H-80

Frequency
50 Hz

Noise Level
Below 80 dB

Voltage
400V

Frame Type
Solid cast iron frame

Cooling System
Inbuilt coolant system

Motor Power
10 HP

Production Capacity
High - varies by operation

Power Rating
10 HP

Features
Heavy-duty column, robust bed, adjustable work table

Product Type
Horizontal Boring Machine

Technology
Conventional

Power Source
Electric

Operating Type
Semi-Automatic

Power
10 HP (Approx)

Pressure
Hydraulic / Mechanical, as per operation

Surface Treatment
Rust-resistant coating

Dimension (L*W*H)
3900 x 2100 x 2200 mm

Weight (kg)
Approx. 7000 kg

Color
Industrial Blue/Green

Usage & Applications
Precision boring and drilling in heavy manufacturing

Spindle travel
500 mm

Electrical protection
CE standard

Main spindle speed range
18-1800 RPM

Coolant tank capacity
100 Liters

Max. boring depth
1000 mm

Spindle taper
ISO 50

Table cross travel
900 mm

Lubrication oil reservoir
50 Liters

Spindle diameter
80 mm

Safety interlocks
Integrated

Table longitudinal travel
1000 mm

Operator panel
Ergonomic design

Feed range
Longitudinal/cross, 6-1120 mm/min

Table size
1000 x 1120 mm

Tool clamping type
Manual

Bed type
Box type reinforced

Chuck type
Standard plain type

Max. load on table
3000 kg

TOS H-80 Horizontal Boring Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About TOS H-80 Horizontal Boring Machine

Make - TOS (Czech Republic)

Model - H-80

Spindle Diameter - 80 mm

Table Size - 1120 mm x 900 mm

Cross Travel - 1000 mm

Vertical Travel - 900 mm

Longitudinal Travel - 1100 mm (with Tail-Stock)

Spindle Travel - 700 mm

Facing Chuck Diameter - 480 mm

Spindle Taper - MT 5

Spindle Speeds - 5.6 rpm to 1000 rpm

Chuck Speeds - 5.6 rpm to 150 rpm

Max. Job Weight - 2.4 Tons

- Complete with Facing Chuck and Tail-Stock.

- Complete with many Tools, Cutters, Boring Bars, Angle Plate, etc.

- Operating Manual of the machine is available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/ht_afasIAmc

Heavy-Duty Precision Engineering

Constructed with a solid cast iron frame and heavy-duty column, the TOS H-80 provides exceptional stability during high-load operations. The precision-ground worktable and robust bed facilitate accurate results even under maximum load conditions, making it ideal for demanding manufacturing tasks.

Advanced Mechanical Features

The TOS H-80 is designed with an ISO 50 spindle taper, an adjustable worktable, and a manual tool clamping system for versatility. Its hydraulic/mechanical pressure system adapts to various operations, while the box-type reinforced bed and automatic lubricating system extend service life and maintain accuracy.

User-Friendly and Safe Operation

Safety and convenience are prioritized with integrated safety interlocks, CE-compliant electrical protection, and an ergonomic operator panel. The inbuilt coolant system and ample lubrication oil reservoir enhance machine performance and reduce maintenance downtime, ensuring consistent productivity.

FAQ's of TOS H-80 Horizontal Boring Machine:

Q: How does the TOS H-80 ensure precise and consistent boring operations?

A: The TOS H-80 boasts a rigid cast iron frame and a box-type reinforced bed, minimizing vibrations for high-precision work. With an accuracy of 0.02 mm and an automatic centralized lubrication system, it maintains consistent performance during extended use.

Q: What types of applications is the TOS H-80 Horizontal Boring Machine suitable for?

A: This machine is ideal for precision boring and drilling tasks in heavy manufacturing industries, handling components requiring deep, accurate bores and high load-bearing capacity, up to 3000 kg.

Q: When should I use the inbuilt coolant system, and what is its capacity?

A: Use the inbuilt coolant system during high-speed boring or extended operations to prevent heat buildup. The coolant tank holds 100 liters, ensuring effective cooling throughout demanding machining tasks.

Q: Where can the TOS H-80 be installed?

A: With industrial-grade construction and dimensions of 3900 x 2100 x 2200 mm, the machine is best installed in well-ventilated workshop environments with adequate space and a 400V, 50 Hz power supply.

Q: What safety features are included with this boring machine?

A: The TOS H-80 is outfitted with CE-standard electrical protection, integrated safety interlocks, and an ergonomic operator panel to promote user safety during operation.

Q: How is tool clamping handled on the TOS H-80?

A: Tool clamping is performed manually on this model, streamlining tool changeovers and maintenance while supporting a wide range of tool sizes with its ISO 50 spindle taper.

Q: What are the primary benefits of using the TOS H-80 machine?

A: Operators benefit from high accuracy, robust construction for heavy loads, versatility in machining operations, user-focused safety features, and reliable performance ensured by advanced lubrication and cooling systems.
