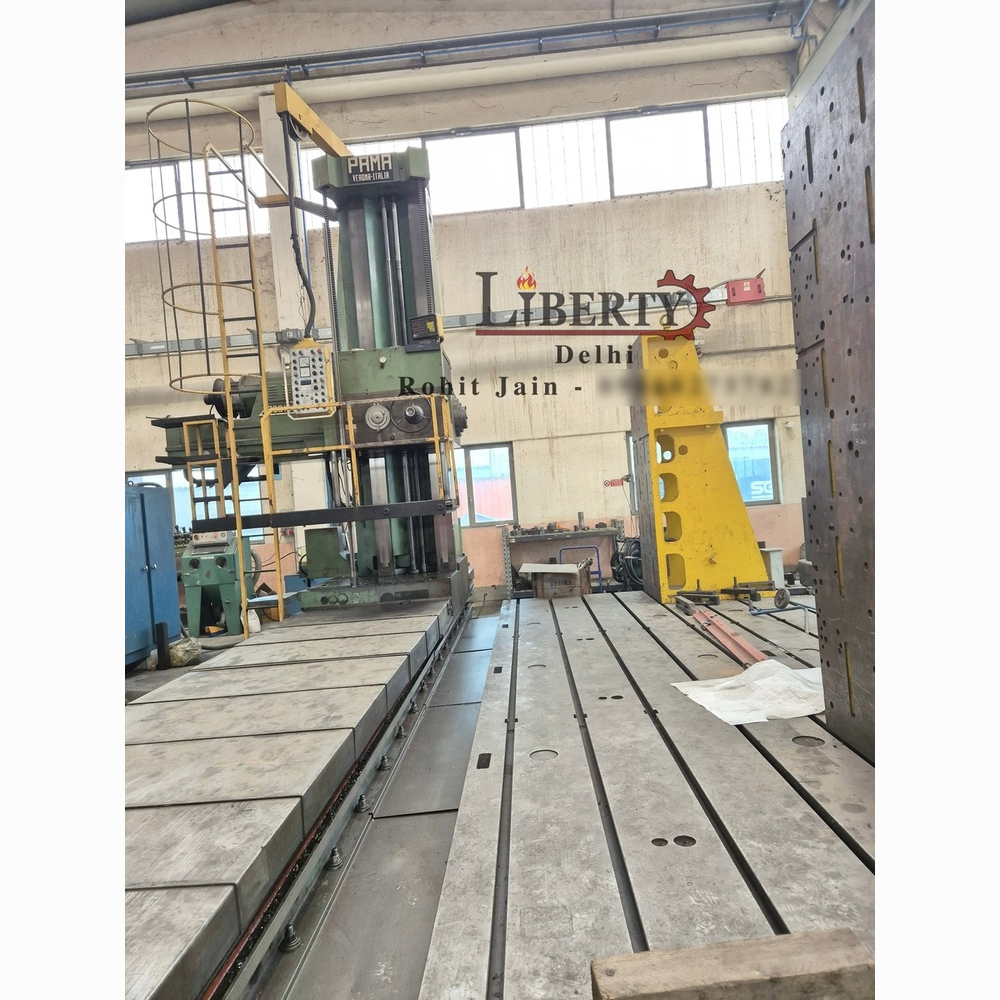

Pama ACC 152/330 Floor Boring Machine

Name: Pama ACC 152/330 Floor Boring Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Pama ACC 152/330 Floor Boring Machine Specification

Machine Type
Floor Type Boring Machine

Features
Robust base, gear-driven spindle, large table

Control System
Manual/Digital Readout

Frequency
50 Hz

Accuracy
High precision, gear-driven

Connectivity Options
Optional digital output

Power Rating
30 kW

Lubricating System
Automatic centralized lubrication

Frame Type
Heavy-duty cast iron

Cooling System
Integrated coolant system

Model No
ACC 152/330

Noise Level
<80 dB

Voltage
380-415 V

Operating Temperature
5C - 45C

Production Capacity
Custom/Project Based

Drive
Gear Drive

Motor Power
30 kW

Product Type
Floor Boring Machine

Technology
Conventional/Manual

Power Source
Electric

Operating Type
Semi-Automatic

Power
Approx. 30 kW

Surface Treatment
Painted

Dimension (L*W*H)
Approx. 8,000 x 3,000 x 3,000 mm

Weight (kg)
Approx. 25,000 kg

Color
Green

Usage & Applications
Heavy Machining, Large Workpiece Boring, Industrial Fabrication

Year of Manufacture
As per stock

Cross Travel (X-Axis)
4000 mm

Spindle Travel (Z-Axis)
2500 mm

Safety Features
Emergency stop, overload protection

Spindle Diameter
152 mm

Installation Requirements
Level foundation, three-phase power supply

Longitudinal Travel (Y-Axis)
3300 mm

Quick Tool Change
Optional

Max Table Load
25,000 kg

Main Spindle Taper
ISO 50

Table Size
2500 x 2500 mm

Rotary Table
Manual/Powered

Pama ACC 152/330 Floor Boring Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Pama ACC 152/330 Floor Boring Machine

Make - Pama (Italy)

Model - ACC 152/330

Spindle Diameter - 152 mm

Longitudinal Travels (X-Axis) - 6000 mm

Vertical Travels (Y-Axis) - 3000 mm

Spindle Travels (W-Axis) - 1220 mm

Spindle Taper - ISO 50

RAM Diameter - 330 mm

RAM Travels (Z-Axis) - 350 mm

Spindle Speeds - 1.5 rpm to 800 rpm (Infinitely Variable)

Floor Plate Sizes - 7000 mm x 2000 mm (2 pieces)

Angle Plate Sizes - Width 1080 mm x 3000 mm Height (2 pieces)

Facing Chuck Diameter - 750 mm

- Equipped with 3-Axis DRO.

- Complete with Milling Head, Facing Chuck, Angle Plates, Floor Plates etc.

- Operating Manual, Electrical Drawings, Foundation Drawings etc. are available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/9XbtkVNWOZs

Engineered for Heavy-Duty Performance

The ACC 152/330's gear-driven spindle, robust base, and heavy-duty cast-iron frame enable it to handle demanding machining jobs with ease. Its large, stable table supports workpieces up to 25,000 kg, accommodating not just size but also weight and complexity in industrial applications.

Flexible Machining for Large Workpieces

Equipped with a 152 mm spindle and table dimensions of 2500 x 2500 mm, the ACC 152/330 allows for cross, longitudinal, and spindle travel suited to a wide variety of large-scale machining needs. The manual or powered rotary table offers further versatility for complex boring jobs.

Precision, Safety, and User-Friendly Features

With high-precision gearing, integrated overload protection, emergency stop, and an automatic centralized lubrication system, this machine prioritizes operational safety and reliability. Optional digital readout connectivity enhances user control and monitoring efficiency.

FAQ's of Pama ACC 152/330 Floor Boring Machine:

Q: How do I install and set up the Pama ACC 152/330 Floor Boring Machine?

A: Installation requires a level foundation and an adequate three-phase power supply (380-415 V, 50 Hz). It's recommended to engage professional technicians for setup, ensuring proper alignment and safe electric connections due to the machine's large dimensions and weight.

Q: What types of workpieces and industries benefit most from this machine?

A: The ACC 152/330 is ideal for heavy machining, large workpiece boring, and industrial fabrication. It is well-suited for manufacturers, exporters, importers, and suppliers handling custom or project-based production in sectors requiring high precision and large-scale capabilities.

Q: When should I use the manual versus powered rotary table function?

A: Use the manual rotary table for basic positioning or lighter workpieces when frequent rotation isn't needed. The powered option is preferable for heavier loads or applications requiring precise, repeatable, or continuous table movements during machining.

Q: Where can I access digital output or advanced monitoring with this machine?

A: Digital output and monitoring options are available as configurable add-ons. These options enable enhanced control and real-time data on machining processes when upgraded with digital readout connectivity.

Q: What safety features protect operators during machine use?

A: Operator safety is ensured through integrated emergency stop buttons and overload protection systems, which promptly halt machine operation in the event of abnormal current or load situations.

Q: How is maintenance managed on the ACC 152/330?

A: Maintenance is streamlined by an automatic centralized lubrication system, which ensures consistent machine lubrication. Regular checks of coolant, lubrication oil levels, and safety systems are part of standard upkeep.

Q: What are the key benefits of the ACC 152/330's heavy-duty design and features?

A: The robust base, heavy-duty frame, and gear-driven spindle combine to offer reliable stability, minimal vibrations, and consistent precision-even during intensive machining on large, heavy components.
