TOS W100A 100 mm Spindle Horizontal Boring Machine

Send Inquiry

Request To Call Back

TOS W100A 100 mm Spindle Horizontal Boring Machine

Name: TOS W100A 100 mm Spindle Horizontal Boring Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS W100A 100 mm Spindle Horizontal Boring Machine Specification

Noise Level
Standard Industrial Noise Level

Accuracy
High precision (Standard for TOS W100A)

Frequency
50 Hz

Drive
Electric Motor with Gear Drive

Voltage
380/415 V, 3-Phase

Lubricating System
Automatic Forced Lubrication

Production Capacity
Depends on operation

Frame Type
Heavy Duty Cast Iron

Motor Power
11 kW

Operating Temperature
Ambient/Standard Workshop Condition

Machine Type
TOS W100A Horizontal Boring

Model No
W100A

Features
Robust construction, reliable performance, adjustable worktable, easy operation

Cooling System
Integrated Coolant System

Control System
Manual with Electric Controls

Power Rating
11 kW

Product Type
Horizontal Boring Machine

Technology
Conventional

Power Source
Electric

Operating Type
Semi-Automatic

Power
Approx. 11 kW

Surface Treatment
Painted

Dimension (L*W*H)
Approx. 4250 x 2050 x 2350 mm

Weight (kg)
~9000 kg

Color
Green

Usage & Applications
Precision Boring, Milling, Drilling & Threading Operations

Table Size
1250 x 1120 mm

Max. Distance Spindle Nose to Base
1400 mm

Max. Workpiece Weight
3000 kg

Number of Spindle Speeds
18

Spindle Axis Travel
900 mm

Spindle Taper
ISO 50

Table Transversal Travel (Y)
900 mm

Fixture Mounting
T-Slots on Table

Rotary Table
360° manual rotation

Number of Feeds
18

Table Longitudinal Travel (X)
1250 mm

Rapid Traverse
4 m/min (varies as per axis)

Spindle Diameter
100 mm

Required Floor Space
Approx. 5 x 3 m

Clamping Type
Manual / Hydraulic Option

Max. Distance Spindle Center to Table
1120 mm

Main Spindle Motor
11 kW AC

Spindle Travel (Z)
900 mm

Work Table Indexing
Manual

Floor Plate
Optional

Max. Boring Diameter
300 mm

Quill Travel
900 mm

TOS W100A 100 mm Spindle Horizontal Boring Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About TOS W100A 100 mm Spindle Horizontal Boring Machine

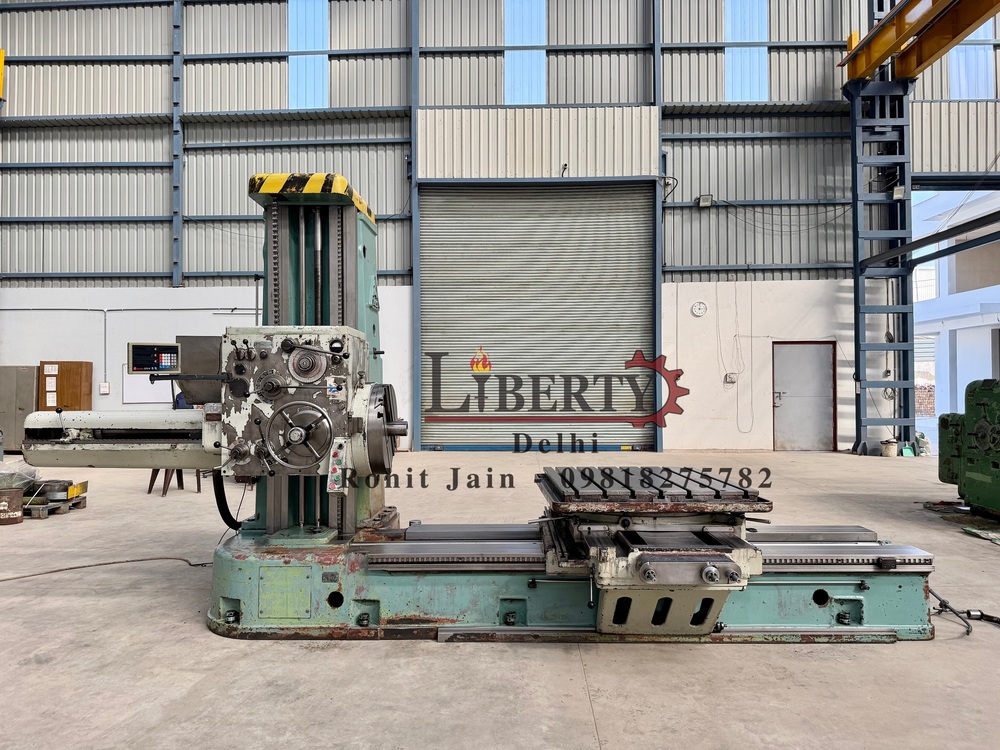

Make - TOS (Czech Republic)

Model - W100A

Spindle Diameter - 100 mm

Table Size - 1250 mm x 1250 mm

Cross Travel - 1600 mm

Vertical Travel - 1120 mm

Longitudinal Travel - 1250 mm (with Tailstock equipped)

Spindle Travel - 900 mm

Facing Chuck Diameter - 600 mm

Spindle Taper - MT 6

Spindle Speeds - 7 rpm to 1120 rpm

- Complete with Facing Chuck & Tailstock.

- Operating Manual & Electrical Drawings are available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/m-8dVPwETdA

Precision Engineering for Diverse Applications

The TOS W100A Horizontal Boring Machine is ideally suited for tasks requiring exactness, such as precision boring, milling, drilling, and threading. Its robust construction, with a 100 mm spindle diameter and a heavy-duty cast iron frame, ensures high accuracy and stability even during intensive machining of large or heavy components. Featuring adjustable settings and user-friendly controls, it adapts seamlessly to varying operational requirements in tool rooms and manufacturing plants.

Heavy-Duty Performance and Versatility

Equipped with a 1250 x 1120 mm rotary table and up to 3000 kg workpiece capacity, the W100A machine supports manual table indexing and 360 table rotation. Its 18 spindle speeds and feeds, combined with rapid traverse capabilities and hydraulic/manual clamping, allow operators to tackle a wide range of projects. The machines dimensions and integrated coolant and lubrication systems guarantee smooth, safe, and reliable functioning in demanding workshop conditions.

FAQs of TOS W100A 100 mm Spindle Horizontal Boring Machine:

Q: How can I operate and control the TOS W100A horizontal boring machine?

A: The TOS W100A operates through manual controls paired with electric systems. Its table and spindle movements are controlled directly at the operator station, while 18 selectable spindle speeds and feeds allow precise adjustment based on the workpiece and operation, ensuring high accuracy during boring, milling, or threading tasks.

Q: What types of workpieces and operations is the TOS W100A suitable for?

A: This machine is designed for heavy and complex workpieces up to 3000 kg. It excels in precision boring, milling, drilling, and threading applications thanks to its robust spindle, adjustable worktable, and variable feed settingsmaking it ideal for tool rooms, heavy machinery manufacturing, and repair workshops.

Q: When should I use the hydraulic clamping option versus manual clamping?

A: Hydraulic clamping is beneficial when you need to securely fasten larger or heavier workpieces quickly and with consistent force, improving efficiency and safety. Manual clamping is suitable for lighter or simpler jobs where frequent adjustment or lower clamping force suffices.

Q: Where can the TOS W100A be installed and what are the space requirements?

A: This machine is intended for standard industrial workshops, requiring approximately 5 x 3 meters of floor space. It should be installed on a flat, stable surface with access to a 380/415V, 3-phase, 50 Hz power supply. Designed for ambient workshop temperatures, it operates efficiently in conventional machining environments.

Q: What is the process for maintaining the TOS W100As precision and performance?

A: Regular maintenance includes checking and topping up the automatic forced lubrication system, ensuring the integrated coolant system is functional, inspecting wear parts, and keeping the table and spindle clear of debris. Periodic calibration and scheduled servicing will maintain optimal accuracy and prolong machine life.

Q: How does the machine ensure high accuracy and repeatability?

A: The W100A provides high precision through its sturdy cast iron structure, ISO 50 spindle taper, and rigid gear-driven transmission. The combination of selectable speeds/feeds, manual and hydraulic clamping, and accurate table movement ensures repeatable positioning and consistent machining results, even on challenging tasks.

Q: What are the main benefits of using the TOS W100A for my machining operations?

A: Operators benefit from its robust construction, versatility across several applications, ability to handle large workpieces, and user-friendly adjustment options. The integrated coolant, lubrication systems, and safety features ensure efficient and reliable machining while minimizing downtime and operator fatigue.
