TOS WD130A Floor Boring Machine

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS WD130A Floor Boring Machine Specification

Voltage
400-415 V

Drive
Gear-driven, mechanical

Control System
Electromechanical Panel Controls

Operating Temperature
5C-45C

Features
Rotary table, Adjustable feed speeds, Robust cast-iron body

Accuracy
High Precision, <0.02 mm

Power Rating
30 kW

Connectivity Options
Manual/Electric, No external digital connectivity

Lubricating System
Automatic Lubrication

Model No
WD130A

Cooling System
Integrated Coolant System

Noise Level
80 dB

Motor Power
30 kW Main Drive

Production Capacity
Continuous

Frame Type
Floor Type

Machine Type
Boring Machine

Frequency
50 Hz

Product Type
Horizontal Floor Boring Machine

Technology
Conventional Mechanical

Power Source
Electric

Operating Type
Semi-Automatic

Power
Approx. 30 kW

Surface Treatment
Painted / Coated

Dimension (L*W*H)
Approx. 8000 x 4000 x 3500 mm

Weight (kg)
Approx. 24,000 kg

Color
Industrial Green

Usage & Applications
For precision boring, milling, and drilling of heavy workpieces in machine building and repair workshops

Clamping Type
Manual/Automatic clamping

Main Application Materials
Steel, Iron, Non-ferrous Metals

Spindle Diameter
130 mm

Y-Axis Travel (Vertical Headstock)
2000 mm

Auxiliary Equipment
Coolant tank, Chip conveyor (optional)

Rotary Table Size
1800 x 1800 mm

Machine Condition
Used/Good Working Condition

X-Axis Travel (Longitudinal Table)
5600 mm

Feed Range
5 - 2500 mm/min

Spindle Travel (W-axis)
1000 mm

Rapid Traverse Speed
Up to 6,000 mm/min

Table Travel
2500 mm

Max Table Load
20,000 kg

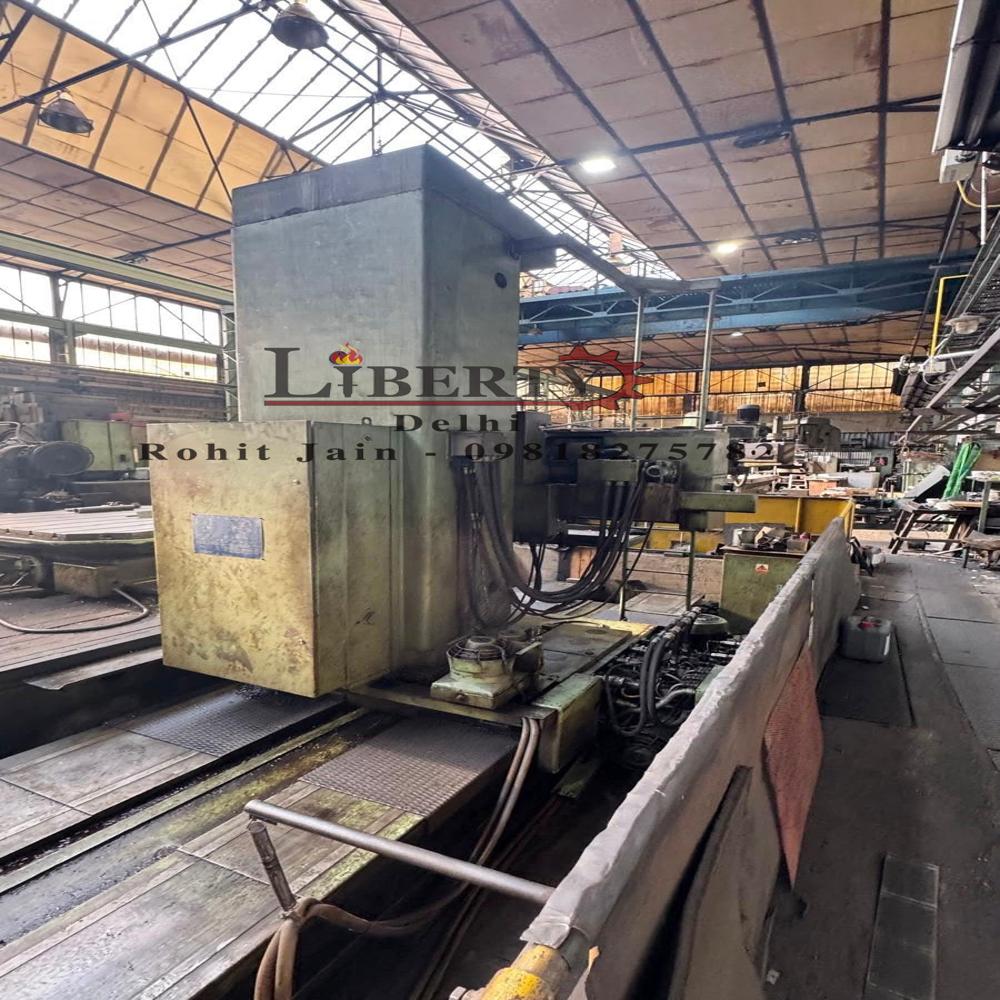

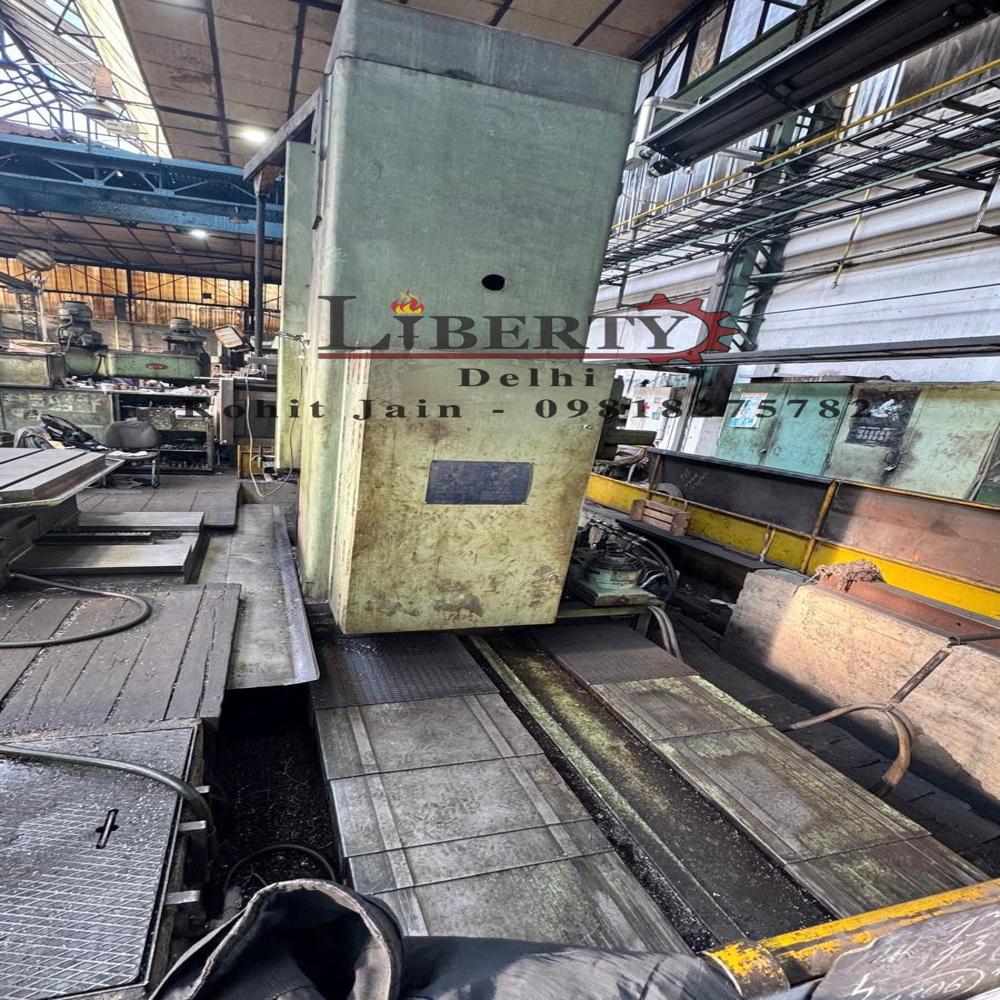

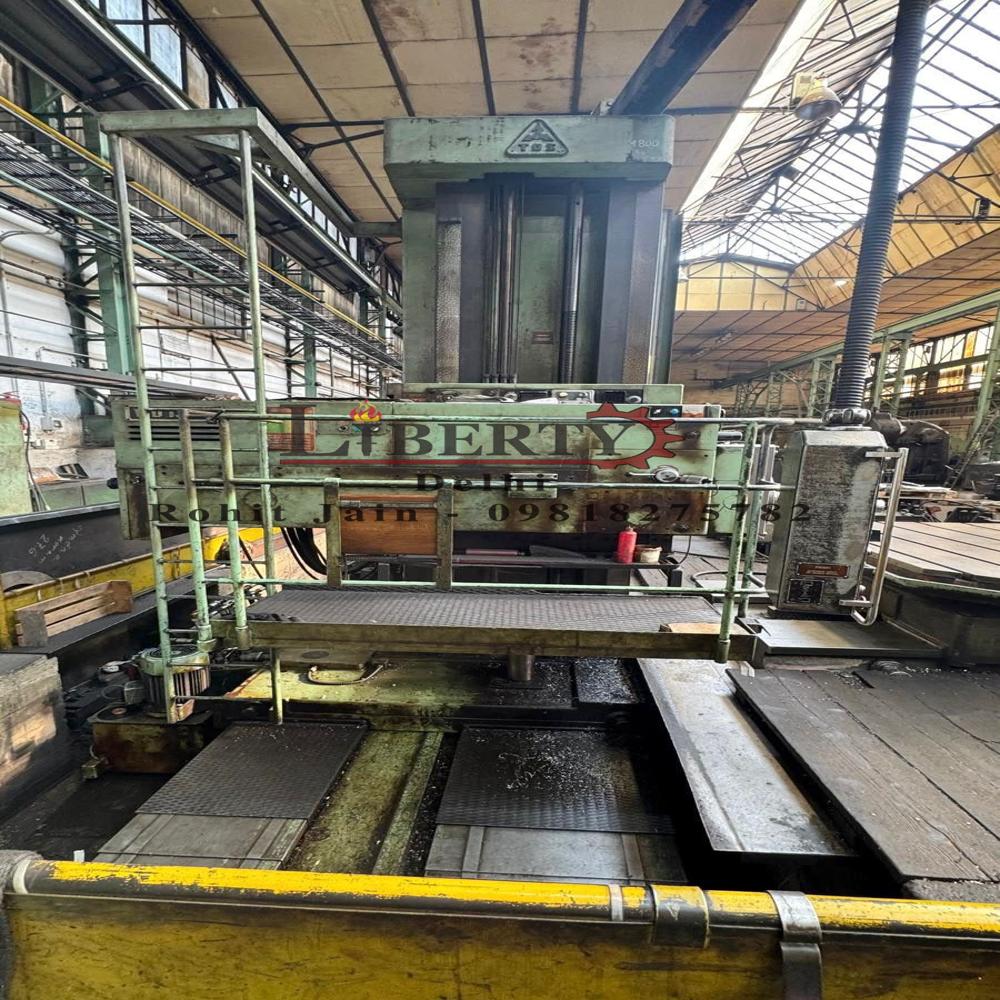

About TOS WD130A Floor Boring Machine

Heavy-Duty Floor Boring Machine manufactured by TOS (Czech Republic) in excellent working condition. The machine is a TOS WD130A RAM Type Floor Horizontal Boring Machine, featuring a 130 mm spindle, 3200 mm longitudinal travel, 2300 mm vertical travel, 450 mm RAM travel, and 1120 mm spindle (quill) travel. It is complete with a Skoda E20 Rotary Table, Floor Plate, 2 Milling Heads, Facing Chuck, Operating Manuals, Electrical Drawings, and other documentation. The technical details are as follows -

Make - TOS (Czech Republic)
Model - WD130A
Spindle Diameter - 130 mm
Longitudinal Travel (X) - 3200 mm
Vertical Travel (Y) - 2300 mm
RAM Travel (Z) - 450 mm
Spindle (Quill) Travel (W) - 1120 mm
Spindle Taper - Metric 80
Spindle Speed Range - 2.8 rpm to 900 rpm
Floor Plate Size - 4000 mm x 1890 mm (1 piece)
Rotary Table Skoda E20, 2000 x 2000 mm
Approx. Machine Weight - 40 Tons
- Complete with 2 x Milling Heads, Facing Chuck, Floor Plate, Rotary Table, etc.
- Complete with Operating Manuals, Electrical Drawings, and other documentation.
- Machine is in excellent working condition.

Exceptional Performance and Precision

Equipped with a high-precision spindle and extensive axis travel, the WD130A ensures consistently accurate results for complex boring, drilling, and milling tasks. Its robust cast-iron body enhances stability, while automatic lubrication and integrated cooling optimize operational efficiency during prolonged use.

Versatile Machining Capabilities

Designed to handle a wide range of workpieces, the WD130A accommodates materials including steel, iron, and non-ferrous metals. Its rotary table and adjustable feed speeds allow for versatile setups and fine-tuned machining, making it suitable for both production and repair applications across various industries.

User-Friendly Controls and Durability

With electromechanical panel controls and both manual and automatic clamping options, the operator experiences intuitive handling and secure clamping. The machine's durable painted exterior, efficient chip management, and powerful 30 kW drive ensure longevity and reliable service, even under demanding workshop conditions.

FAQ's of TOS WD130A Floor Boring Machine:

Q: What types of materials can the TOS WD130A Floor Boring Machine process?

A: The WD130A is suited for machining steel, cast iron, and various non-ferrous metals, making it highly versatile for heavy-duty industrial applications.

Q: How does the machine ensure high precision during operation?

A: Thanks to its robust cast-iron construction, high-precision spindle system, and adjustable feed speeds, the WD130A maintains machining accuracy within <0.02 mm, even when handling large workpieces.

Q: Where is the TOS WD130A typically used?

A: This floor boring machine is commonly found in machine building facilities, heavy equipment repair workshops, and other environments requiring precision boring, milling, or drilling of large or heavy components.

Q: What are the main benefits of the rotary table and large axis travels?

A: The 1800 x 1800 mm rotary table with 2500 mm travel, combined with 5600 mm X-axis and 2000 mm Y-axis movement, offers excellent accessibility and flexibility for machining oversized parts and complex geometries.

Q: How is the clamping of workpieces managed?

A: Workpieces can be secured using either manual or automatic clamping mechanisms, allowing for both flexibility and safety depending on the project requirements.

Q: What auxiliary systems support the operation of this machine?

A: The WD130A comes with an integrated coolant tank and offers an optional chip conveyor, ensuring effective cooling and easy chip disposal during demanding operations.

Q: How does the electromechanical panel control system benefit the operator?

A: The control system features straightforward manual and electric interfaces, offering operators reliable command of feed rates, spindle speeds, and operational settings for smooth, semi-automatic workflow.
