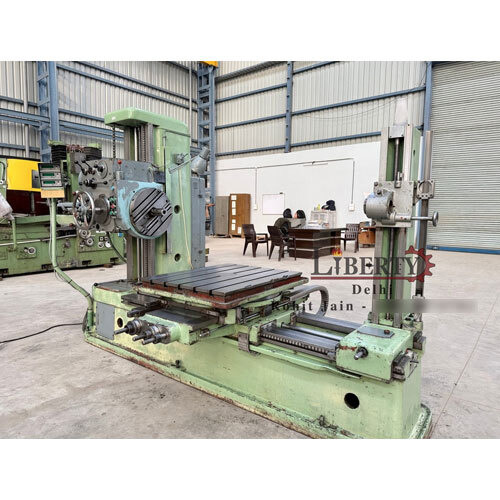

TOS Czech H-63 Horizontal Boring Machine

Name: TOS Czech H-63 Horizontal Boring Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS Czech H-63 Horizontal Boring Machine Specification

Power Rating
11 kW

Accuracy
0.01 mm

Control System
Manual/Feed Gearbox

Frequency
50 Hz

Operating Temperature
5C-40C

Cooling System
Integrated coolant pump

Drive
Geared drive

Voltage
415 V

Frame Type
Cast iron monoblock

Motor Power
15 HP

Lubricating System
Centralized lubrication

Production Capacity
Application based

Model No
H-63

Noise Level
80 dB

Machine Type
Horizontal Boring

Features
Robust construction, heavy-duty spindle, high precision

Product Type
Horizontal Boring Machine

Technology
Conventional

Power Source
Electric

Operating Type
Automatic / Semi-Automatic

Power
15 HP

Pressure
Hydraulic 24 kgs/cm

Surface Treatment
Painted

Dimension (L*W*H)
Approx. 4500 x 2600 x 2500 mm

Weight (kg)
8500 kg

Color
Green

Usage & Applications
Boring, drilling, milling and facing of heavy industrial components

Working Speed
Table: 4-80 rpm, Spindle: 28-1120 rpm

Safety Standards
CE marking as per European norms

Main Spindle Taper
ISO 50

Tools Holding
Morse Taper No.5

Spindle Diameter
63 mm

Coolant Pump Motor
0.12 kW

Spindle Travel
900 mm

Vertical Travel (Z-Axis)
1100 mm

Feed Motor
2.2 kW

Rapid Traverse Speed
4 m/min

Clamping Surface
T-slotted iron

Longitudinal Travel (X-Axis)
1200 mm

Max Boring Diameter
400 mm

Electrical Supply
3 Phase, 50 Hz

Table Rotation
360°

Max Table Load
2000 kg

Main Drive Motor
11 kW

Coolant Tank Capacity
100 liters

Quill Travel
900 mm

Table Size
1250 x 1400 mm

Operating Panel
Ergonomic layout with emergency stop

Transverse Travel (Y-Axis)
900 mm

TOS Czech H-63 Horizontal Boring Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About TOS Czech H-63 Horizontal Boring Machine

Make - TOS (Czech Republic)

Model - H-63

Spindle Diameter - 63 mm

Table Size - 905 mm x 710 mm

Cross Travel - 800 mm

Vertical Travel - 710 mm

Longitudinal Travel - 1100 mm

Spindle Travel - 600 mm

Facing Chuck Diameter - 410 mm

Spindle Taper - MT 4

Spindle Speeds - 8 rpm to 1400 rpm

Chuck Speeds - 8 rpm to 180 rpm

- Complete with Facing Chuck and Tail-Stock.

- Equipped with 3-Axis DRO.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/L6yU4ymXIv4

Precision and Power for Industrial Applications

The TOS Czech H-63 Horizontal Boring Machine combines a powerful 11 kW main drive motor with an advanced feed gearbox for seamless machining tasks. Thanks to its cast iron monoblock construction and Morse Taper No.5 tool holding, the H-63 guarantees excellent rigidity and high-precision boring, drilling, and milling, meeting accuracy needs up to 0.01 mm. Operators benefit from a large clamping surface and a maximum table load of 2,000 kg, making this machine suitable for heavy, complex components.

User-Centric Design, Rigorous Safety Standards

Designed for operator comfort and safety, the H-63 features an ergonomic operating panel with an emergency stop, intuitive manual and automatic controls, and CE-marked compliance with European safety regulations. With a maximum noise level of 80 dB and operating temperature range of 5C-40C, it offers a safe, efficient work environment suitable for both large-scale manufacturing and smaller shops.

FAQ's of TOS Czech H-63 Horizontal Boring Machine:

Q: How does the TOS Czech H-63 Horizontal Boring Machine enhance machining precision and efficiency?

A: The H-63 provides high precision with an accuracy of 0.01 mm, thanks to its heavy-duty construction, geared drive, robust spindle, and central lubrication system. Its automatic and semi-automatic modes, alongside rapid traverse speeds up to 4 m/min, significantly increase productivity for complex machining operations.

Q: What types of industrial components and processes is this machine best suited for?

A: This machine excels in boring, drilling, milling, and facing heavy industrial parts such as engine blocks, machine frames, and large structural elements. Its large table, high load capacity, and 360 rotation make it ideal for handling oversized workpieces with intricate requirements.

Q: When is the optimal time to perform routine maintenance on the H-63?

A: Routine maintenance should be performed at regular intervals as outlined in the operator's manual, typically after set operating hours or production cycles. The centralized lubrication and integrated coolant systems help simplify and extend maintenance schedules, ensuring consistent performance and reduced downtime.

Q: Where can the TOS Czech H-63 Horizontal Boring Machine be installed for optimal usage?

A: It is best installed in industrial workshops or manufacturing facilities with sufficient space, as its dimensions are approximately 4500 x 2600 x 2500 mm. Ensure the installation site has a stable foundation and an electrical supply of 415 V, 3-phase, 50 Hz to support optimal performance and safety.

Q: What is the process for changing tools on this machine?

A: Tool changes are facilitated by the Morse Taper No.5 system and manual feed gearbox. Operators should ensure the spindle is stopped, follow standard safety procedures, and select compatible accessories or tools based on the intended machining operation before securely mounting them in the spindle.

Q: How does the H-63 ensure operator safety during machine operation?

A: Safety is ensured through CE-compliant design, an ergonomic control panel with a clearly marked emergency stop, noise reduction (80 dB), and robust machine guarding. The operating panel's layout allows immediate response in case of emergencies or operational adjustments.

Q: What are the main benefits of using the TOS Czech H-63 in a manufacturing setting?

A: Key benefits include its heavy-duty, durable construction suitable for large workpieces, advanced features for high precision and reliability, automated and manual operation options, and a user-friendly interface. This provides manufacturers with enhanced flexibility, efficiency, and confidence in maintaining quality production standards.
