Trennjaeger VC 260 Circular Saw Machine
Trennjaeger VC 260 Circular Saw Machine

Trennjaeger VC 260 Circular Saw Machine

Price 100000 INR/ Piece

MOQ : 1 Piece

Trennjaeger VC 260 Circular Saw Machine Specification

  • Features
  • Robust construction, tiltable saw head, vice with quick clamping
  • Frame Type
  • Welded steel frame
  • Frequency
  • 50 Hz
  • Lubricating System
  • Central lubrication
  • Operating Temperature
  • 0°C to 45°C
  • Noise Level
  • <80 dB
  • Power Rating
  • 2.2 kW
  • Voltage
  • 400 V
  • Motor Power
  • 2.2 kW
  • Production Capacity
  • Suitable for light to medium-duty cutting
  • Control System
  • Manual Switch Controls
  • Drive
  • Belt drive
  • Cooling System
  • Integrated coolant system
  • Machine Type
  • Circular Sawing Machine
  • Model No
  • VC 260
  • Accuracy
  • High cutting precision
  • Product Type
  • Circular Saw Machine
  • Technology
  • Conventional
  • Power Source
  • Electric
  • Operating Type
  • Semi-automatic
  • Power
  • 2.2 kW
  • Pressure
  • Manual Clamping
  • Surface Treatment
  • Painted
  • Dimension (L*W*H)
  • 900 x 700 x 1600 mm
  • Weight (kg)
  • Approx. 320 kg
  • Color
  • Grey/Blue
  • Usage & Applications
  • Metal cutting for pipes, profiles, and bars
  • Cutting Capacity (at 90°)
  • 85 mm round/ 75 x 130 mm rectangular
  • Standard Accessories
  • Saw blade, coolant system, tool kit
  • Operator Skill Level
  • Skilled/Trained Operator Recommended
  • Clamping Type
  • Quick-action vice
  • Miter Cutting Range
  • -45° to +45°
  • Blade Speed Adjustment
  • 2-step mechanical
  • Maintenance Interval
  • As per manufacturer guidelines
  • Working Speed
  • 40/80 rpm (2-speed)
  • Cutting Capacity (at 45°)
  • 70 mm round/ 70 x 90 mm rectangular
  • Material Compatibility
  • Steel, Stainless Steel, Non-ferrous metals
  • Installation Type
  • Free-standing
  • Saw Blade Diameter
  • 260 mm
  • Main Shaft Rotation
  • Clockwise and Counterclockwise
  • Safety Features
  • Blade guard, safety interlock


Trennjaeger VC 260 Circular Saw Machine Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Main Domestic Market
  • All India


About Trennjaeger VC 260 Circular Saw Machine

Make - Trennjaeger (Germany)

Model - VC 260

Blade Diameter - 275 mm

Cutting Capacity (for Round) - 90 mm Diameter

Cutting Capacity (for Square) - 120 mm x 50 mm

Cutting Angle - 90 degree to 40 degree

No. of Blade Speeds - 6 Speeds

Motor Power - 1.1 kW / 1.4 kW

- Complete with Coolant Tank & Pump.

- Machine is in excellent working condition.


Video of The Machine -

https://youtu.be/k6hkIMzFGxI



Precision and Flexibility in Metal Cutting

The Trennjaeger VC 260 excels in delivering accurate, versatile cuts, thanks to its tiltable saw head and mitering range from -45 to +45. This adaptability makes it suitable for both straight and angled cuts on a variety of materials, including steel, stainless steel, and non-ferrous metals. Its robust welded steel frame and quick-action vice ensure stability and efficiency during operation.


Enhanced Safety and Operator Comfort

With features like a blade guard, safety interlock, and manual quick-action vice, operator safety is prioritized. The integrated coolant system helps maintain optimal blade performance and temperature. Designed for semi-automatic use, it allows skilled operators to maintain high levels of productivity and accuracy with reduced physical strain.


Efficient Operation and Maintenance

The VC 260 offers a two-speed blade system (40/80 rpm) to accommodate various materials and thicknesses. Central lubrication and mechanical components ensure smooth operation and low maintenance. Regular service intervals, as specified by the manufacturer, help maintain long-term machine reliability and performance.

FAQs of Trennjaeger VC 260 Circular Saw Machine:


Q: How does the quick-action vice improve the cutting process on the Trennjaeger VC 260?

A: The quick-action vice enables fast and secure clamping of different workpiece shapes and sizes, minimizing setup time and allowing for efficient adjustment between cuts. This enhances productivity and ensures the workpiece remains stable during cutting, resulting in precise, repeatable outcomes.

Q: What materials can be processed with the VC 260 circular saw machine?

A: The Trennjaeger VC 260 is designed to cut steel, stainless steel, and non-ferrous metals. Its adjustable blade speed and robust build accommodate a range of metal pipes, profiles, and bars commonly used in industrial applications.

Q: When should routine maintenance be performed on the VC 260?

A: Maintenance should be carried out following the manufacturers recommended intervals, which typically include regular inspection, lubrication of moving parts, and checking coolant levels. This ensures long-term performance, accuracy, and safety.

Q: Where is the Trennjaeger VC 260 typically installed and operated?

A: This circular saw machine is intended for installation in workshops, fabrication plants, or industrial settings where skilled operators require reliable, precise metal cutting. Its free-standing design and compact footprint allow flexibility in positioning within various workspace layouts.

Q: What are the benefits of the integrated coolant and lubrication systems?

A: The integrated coolant system reduces blade temperature, extending blade life and minimizing heat-related distortion during cutting. Central lubrication ensures smooth mechanical operation, reducing wear and the need for frequent maintenance.

Q: How does the miter cutting feature enhance versatility?

A: The miter cutting range from -45 to +45 allows users to perform angled cuts without repositioning the workpiece, streamlining complex fabrication tasks and improving overall efficiency.

Q: What level of operator skill is recommended for using the VC 260?

A: A skilled or trained operator is recommended to safely and effectively use the VC 260, ensuring proper handling of its manual controls, understanding of safety features, and execution of precise cutting operations.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Miscellaneous Machines Category

Stanko 750 mm Stroke Heavy Duty Shaper Machine

Stanko 750 mm Stroke Heavy Duty Shaper Machine

Price 50000 INR / Piece

Minimum Order Quantity : 1 Piece

Machine Type : Heavy Duty Mechanical Shaper

Accuracy : 0.02 mm (High, for industrial use)

Surface Treatment : Other, Paint Coated

Power : 7.5 HP (Approximate)

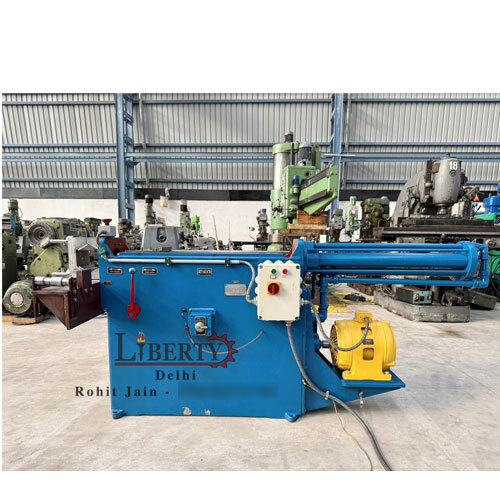

Magnaghi Horizontal Broaching Machine
