Wmw Upw 12.5 Thread Rolling Machine

Name: Wmw Upw 12.5 Thread Rolling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 3500 INR
Availability: InStock

Price 3500 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Wmw Upw 12.5 Thread Rolling Machine Specification

Capacity
12.5 ton

Output
Up to 600 pieces/hour

Color
Grey

Dimension (L*W*H)
2450 mm x 1400 mm x 1500 mm

Power
7.5 kW

Condition
Used

Voltage
400 V

Machine Type
Thread Rolling Machine

Feature
High precision and efficiency, heavy-duty cast construction

Used For
Thread rolling operations on metal parts

Weight
3200 kg

Manufacturing Year
2014

Coolant System
Integrated

Control System
Manual / Semi-automatic

Thread Diameter Range
5 mm to 36 mm

Noise Level
Less than 80 dB

Spindle Speed
up to 60 rpm

Accessories Included
Standard tool set, base cabinet

Max Rolling Length
110 mm

Country of Export
Germany

Die Size (Max)
120 mm diameter

Hydraulic Pressure
up to 110 bar

About Wmw Upw 12.5 Thread Rolling Machine

Wmw Upw 12.5 Thread Rolling Machine

WMW (Germany) make Hydraulic Thread Rolling Machine in excellent working condition. The model of the machine is UPW 12.5.1 and the machine is complete with lots of accessories with it. The technical details are as follows -

Make - WMW (Germany)

Model - UPW 12.5.1

Max. Rolling Force - 12.5 Tons

Job Diameter Range - 3 mm to 70 mm

Max. Thread Length - 8000 mm

Max. Thread Length (in Plunge Method) - 125 mm

Maximum Pitch - 4 mm

Thread Roll Size - Width 125 mm x 195 mm Diameter

Spindle Speeds - 20 rpm to 90 rpm

Type - Hydraulic

- With a total of 33 sets (~ 850 kg) of Thread Rollers.

- With Center-to-Center Attachment, supports, lots of new rest plates etc.

- Lots of other Accessories with the Machine.

- The Machine can work in auto-cycle mode (with automatic counter).

- The Machine is in excellent working condition.

Video Link - https://youtu.be/4o-xiyjo9UQ

Robust German Engineering

Manufactured in Germany, the Wmw Upw 12.5 Thread Rolling Machine reflects high standards of engineering. Its cast construction promotes longevity and reliable performance, even under continuous, heavy-duty use. Precision components and a thoughtful design make it suitable for various metal threading operations across the globe, catering to exporters, importers, manufacturers, suppliers, and traders.

Versatile Thread Rolling Capability

Designed for thread diameters between 5 mm and 36 mm, and a rolling length of up to 110 mm, this machine supports a wide range of threading requirements. The customizable die capacity and adjustable hydraulic pressure allow users to confidently process both small and large metal parts, enhancing flexibility in production lines.

Efficient Operation & High Productivity

Operating at a spindle speed of up to 60 rpm with a maximum output of 600 pieces per hour, the machine offers exceptional throughput. Integrated coolant and semi-automatic/manual controls optimize performance and minimize downtime. The noise level stays below 80 dB, providing a comfortable working environment.

FAQs of Wmw Upw 12.5 Thread Rolling Machine:

Q: How does the Wmw Upw 12.5 Thread Rolling Machine operate?

A: The machine utilizes a combination of hydraulic pressure, controlled spindle speeds, and precision dies to shape threads on metal parts. Users can manage operations manually or switch to semi-automatic mode for improved efficiency, while the integrated coolant system maintains optimal operating temperatures.

Q: What types of materials and thread sizes can this machine handle?

A: It accommodates metal parts with thread diameters ranging from 5 mm to 36 mm and rolling lengths up to 110 mm. The heavy-duty construction lets users roll threads on a variety of ferrous and non-ferrous materials, making it suitable for diverse industrial applications.

Q: When is the best time to use the Wmw Upw 12.5 Thread Rolling Machine?

A: This machine is ideal for batch and high-volume production runs when consistent, high-precision threads are required on metal parts. It is also beneficial in manufacturing environments where efficiency and durability are key priorities.

Q: Where is the Wmw Upw 12.5 Thread Rolling Machine exported from?

A: This thread rolling machine is exported from Germany, ensuring reliable build quality and compliance with high European manufacturing standards. It is supplied by exporters, importers, manufacturers, and traders serving global markets.

Q: What is the process for thread rolling with this machine?

A: The operator secures the metal workpiece and selects the appropriate die. The machine then applies hydraulic pressure, rotating the spindle up to 60 rpm, to roll threads accurately along the workpiece up to a maximum length of 110 mm. Integrated coolant helps maintain tool life and thread quality throughout the process.

Q: How can users benefit from the integrated coolant and low noise features?

A: The built-in coolant system extends die life by reducing thermal stress, while the sub-80 dB noise level creates a safer and more comfortable workspace, enhancing employee productivity and satisfaction.

Q: What accessories come standard with this machine?

A: Each Wmw Upw 12.5 Thread Rolling Machine comes equipped with a standard tool set and a base cabinet, enabling easy setup and organization of necessary tools and components for operation and maintenance.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

More Products in Thread Rolling Machine Category

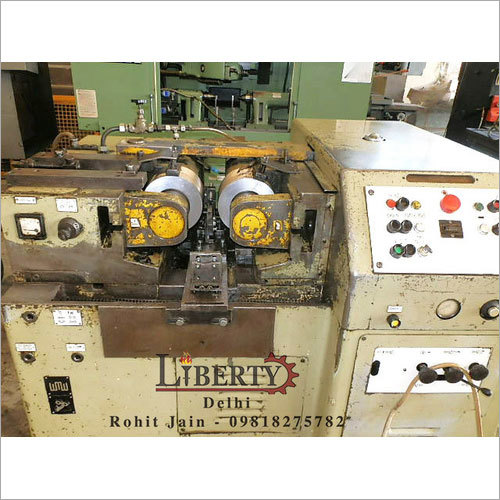

WMW 25 Tons Thread Rolling

Minimum Order Quantity : 1 Piece

Machine Type : Thread Rolling Machine

Weight : Approx. 6200 kg

Used For : Rolling threads onto metallic components

Feature : High precision threading, durable structure, hydraulic operation

Get a Price/Quote

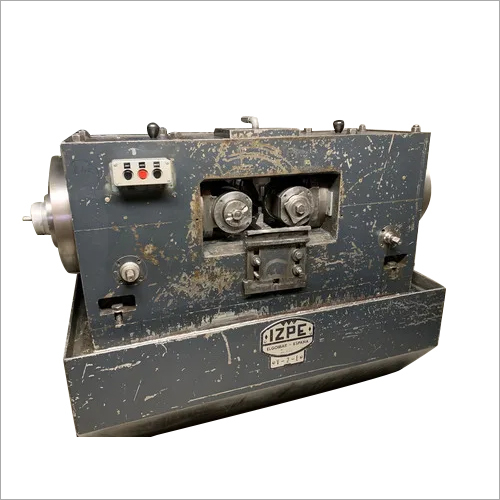

IZPE Thru-Feed Thread Rolling
