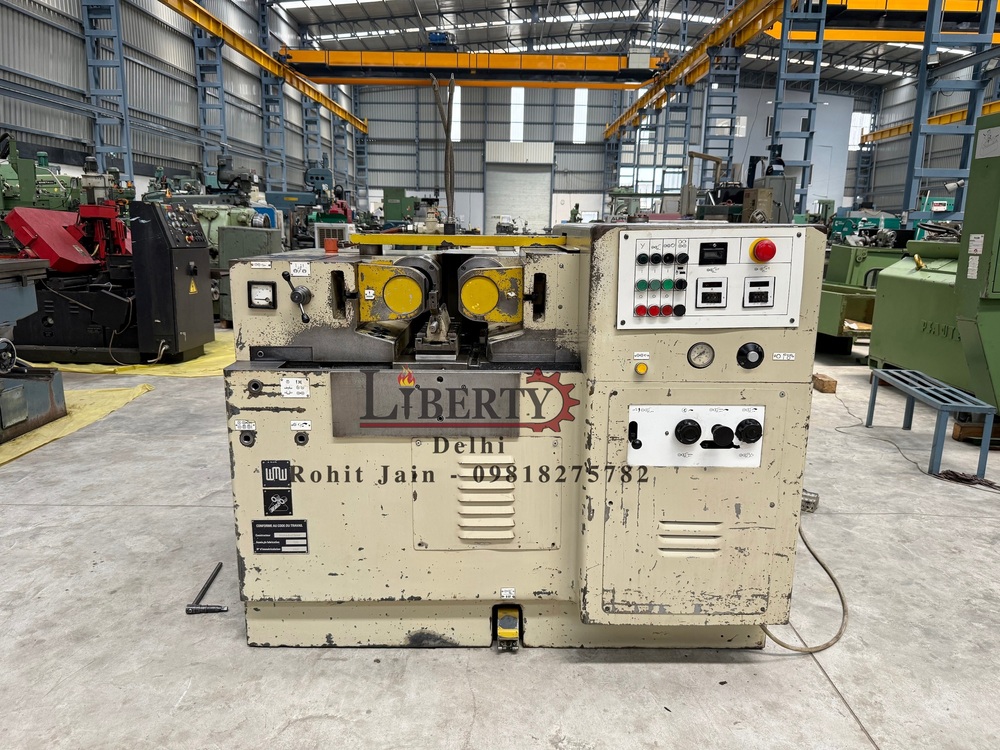

WMW UPW 25.1 Thread Rolling Machine

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

WMW UPW 25.1 Thread Rolling Machine Specification

Feature
Hydraulic powered, rigid frame, precision thread rolling

Machine Type
Thread Rolling Machine

Voltage
380 V, 3-phase

Output
High-precision threading

Dimension (L*W*H)
2430 x 2100 x 1800 mm

Capacity
Max thread diameter 25 mm

Used For
Thread rolling on shafts and round workpieces

Power
7.5 kW

Weight
Approx. 3500 kg

Condition
Used

Color
Industrial Grey

Thread Pitch Range
0.5 to 6 mm

Spindle Speed
2080 rpm

Noise Level
<72 dB

Lubrication System
Centralized automatic

Feed System
Hydraulic

Roller Width
50 mm (max)

Main Drive Type
Electro-hydraulic

Rolling Force
Up to 150 kN

Control System
Manual/Automatic semi-automatic cycles

Roller Diameter
120 mm (max)

Tool Clamping
Quick clamp

Center Height
110 mm

Max Workpiece Length
120 mm

Transport Dimensions
2500 x 2200 x 2000 mm

Floor Space Required
Approximately 5.5 m

WMW UPW 25.1 Thread Rolling Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About WMW UPW 25.1 Thread Rolling Machine

Make - WMW (Germany)

Model - UPW 25.1

Max. Rolling Force - 25 Tons

Job Diameter Range - 10 mm to 100 mm

Maximum Pitch - 8 mm

Thread Roll Size - Diameter 230 mm x 180 mm Width

Max. Thread Length - 8000 mm

Max. Thread Length (in Plunge Method) - 180 mm

Spindle Speeds - 20 rpm to 90 rpm

Spindle Diameter (ID of Thread Roll) - 69.85 mm

Distance between Centers of Spindles - 150 mm to 325 mm

- Machine can work in Auto-Cycle as well as Manual mode.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/OK31Zz9kmmc

Precision Thread Rolling for Versatile Applications

The WMW UPW 25.1 delivers high-precision thread formation on various shafts and round workpieces. Its robust design and reliable electro-hydraulic drive make it suitable for both small and large-scale production. The hydraulic feed system and quick-clamp mechanism ensure fast and repeatable setups, reducing downtime and improving output quality.

User-Friendly Control and Operation

Featuring manual and semi-automatic cycles, the machine offers flexibility to meet diverse production needs. Operators benefit from straightforward controls and automatic centralized lubrication, while the low-noise design ensures a comfortable and safe workspace. Routine maintenance is simplified by easy access to key components.

Engineered for Efficiency and Durability

With a maximum rolling force of 150 kN and robust construction, the UPW 25.1 is built to withstand continuous industrial operation. It occupies a compact 5.5 m2 footprint, making it easy to integrate into most workshop environments. German engineering ensures long-term reliability, accuracy, and minimal vibration during high-precision threading tasks.

FAQ's of WMW UPW 25.1 Thread Rolling Machine:

Q: How does the feed system in the WMW UPW 25.1 Thread Rolling Machine operate?

A: The machine is equipped with a hydraulic feed system, offering smooth and controlled movement of workpieces during thread rolling. This ensures consistent thread quality and reduces the risk of slippage or deformation.

Q: What types of workpieces can be processed with this machine?

A: The UPW 25.1 is designed for threading shafts and round workpieces, accommodating workpieces up to 120 mm in length and a maximum thread diameter of 25 mm. It is ideal for applications in automotive, construction, and general manufacturing industries.

Q: When should I use the manual versus the semi-automatic cycle control?

A: Manual mode is suitable for single-piece or custom threading requirements, while the semi-automatic cycle is recommended for repeated operations or batch production, ensuring enhanced productivity and consistent results.

Q: Where can the WMW UPW 25.1 be integrated in a production facility?

A: With its compact floor space requirement (approximately 5.5 m2), the machine can be easily integrated into new or existing production lines or workshops, providing flexible installation options.

Q: What is the thread rolling process on this machine?

A: Thread rolling involves pressing rollers against the rotating workpiece under high hydraulic force. This cold forming process produces precise, durable threads without material removal, enhancing the strength and finish of the threads.

Q: How does the centralized automatic lubrication benefit the machine's operation?

A: The centralized automatic lubrication system reduces maintenance requirements and maximizes machine life by ensuring all critical components receive adequate lubrication during operation, minimizing wear and downtime.

Q: What makes the WMW UPW 25.1 advantageous compared to other thread rolling machines?

A: Key benefits include its rigid hydraulic frame, high rolling force (up to 150 kN), versatile control options, rapid tool changing with quick clamp, and low operating noise, making it a reliable and efficient choice for precision thread rolling tasks.
