Alpa Italy 300 x 600 Surface Grinding Machine

Send Inquiry

Request To Call Back

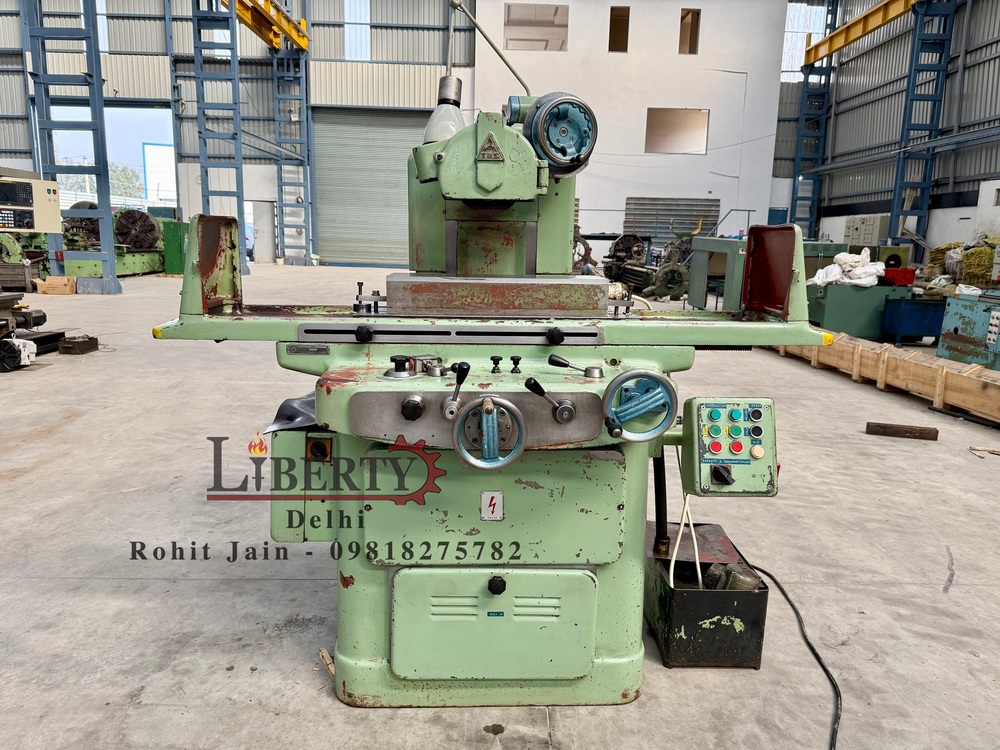

Alpa Italy 300 x 600 Surface Grinding Machine

Name: Alpa Italy 300 x 600 Surface Grinding Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Alpa Italy 300 x 600 Surface Grinding Machine Specification

Model
300 x 600

Rotation
Clockwise

Product Type
Surface Grinding Machine

General Use
Precision surface grinding of metal components

Material
Cast Iron

Type
Manual Surface Grinder

Capacity
Standard

Weight (kg)
1600 kg

Computerized
No

Automatic
No

CNC Or Not
No

Control System
Manual

Table Size
300 x 600 mm

Table Slide Way
V & Flat guideways

Magnetic Chuck Size
300 x 600 mm

Grinding Wheel Size
250 x 25 x 76.2 mm

Grinding Wheel Speed
2850 rpm

Grinding Length
600 mm

Floor Space
2000 x 1600 mm

Fuel Tank Capacity
50 L

Spindle Speed
2850 rpm

Power
3 HP

Voltage
415 V

Dimension (L*W*H)
2000 x 1600 x 1800 mm

Feature
High rigidity, Precise finishing

Color
Light Grey

Table Longitudinal Travel
700 mm

Working Table T-Slot
3 slots

Hydraulic Power Pack
Included

Minimum Feed
0.005 mm

Max Workpiece Height
350 mm

Lubrication
Centralized

Grinding Accuracy
0.002 mm

Surface Finish Achievable
Ra 0.2 m

Coolant System
Provided

Table Cross Travel
350 mm

WorkingSpeed
Variable

Packing Type
Export Standard Packing

Alpa Italy 300 x 600 Surface Grinding Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Alpa Italy 300 x 600 Surface Grinding Machine

Make - Alpa (Italy)

Model - RT 600

Grinding Capacity - 300 mm x 600 mm

Longitudinal Travel of Table - 700 mm

Cross Travel of Table - 350 mm

Grinding Wheel Size - Diameter 400 mm X 50 mm Width

Current Electro-Magnet Size - 200 mm x 600 mm

Max. Distance between Table Top to Wheel Center - 500 mm

- Features like Automatic Depth Adjustment "Auto-Cut".

- Equipped with Wheel-top mounted Hydraulic Wheel Dresser.

- Complete with Coolant Tank, Pump and spare Wheel Flange.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/k_NVxUKwngY

Precision Grinding for Superior Results

Engineered for exceptional surface quality, the Alpa Italy 300 x 600 Surface Grinding Machine delivers ultra-fine finishes and dimensional consistency on a variety of metal components. With a minimum feed of 0.005 mm and advanced guideways, it ensures reliable precision for demanding applications.

Robust Construction and Advanced Features

Crafted from high-grade cast iron, this manual surface grinder stands out for its sturdy design, enhancing longevity and vibration absorption. Features like a hydraulic power pack, centralized lubrication, and variable working speed optimize productivity, while the included coolant system preserves tool and workpiece integrity.

Versatile Applications and User-Friendly Design

Designed for easy operation and maintenance, this machine suits both seasoned technicians and workshop newcomers. Its sizable magnetic chuck and three T-slots accommodate diverse workpieces, making it perfect for precision grinding tasks in toolrooms, workshops, or manufacturing plants.

FAQ's of Alpa Italy 300 x 600 Surface Grinding Machine:

Q: How do you operate the Alpa Italy 300 x 600 Surface Grinding Machine for optimal precision?

A: To ensure optimal precision, set up the workpiece on the magnetic chuck, select the required feed and speed, and use the manual control system to guide the table. Engage the hydraulic system for smooth motion, and monitor lubrication and coolant to maintain performance and accuracy.

Q: What types of metal components can this surface grinder process effectively?

A: The machine is designed for precision surface grinding of various ferrous and non-ferrous metal components, including tooling parts, machine bases, dies, and plates, where tight tolerances and fine finishes are essential.

Q: When is the ideal time to use this grinding machine in your production process?

A: Use the Alpa Italy Surface Grinding Machine during the final finishing phase, after rough and semi-finish machining, to achieve the required flatness, surface finish, and dimensional accuracy on metal parts.

Q: Where can this manual surface grinder be installed?

A: Thanks to its compact footprint (2000 x 1600 mm) and export-standard packing, the machine can be installed in toolrooms, maintenance workshops, or production facilities that require high-accuracy surface finishing.

Q: What process ensures high surface finish and grinding accuracy in this machine?

A: The combination of a stable cast iron frame, precise V & Flat guideways, centralized lubrication, hydraulic power pack, and efficient coolant system all contribute to steady, accurate grinding and a consistent Ra 0.2 m surface finish.

Q: How does the included hydraulic power pack benefit the grinding operation?

A: The hydraulic power pack ensures smooth, consistent table motion, reducing operator fatigue and minimizing manual errors, which leads to higher quality finishes and increased efficiency.

Q: What are the main benefits of using this manual surface grinding machine?

A: Users benefit from high rigidity, precise surface finishing, variable working speed, and robust reliability for demanding applications-all with simple manual controls and convenient maintenance features.
