Azeta Italy 700 mm x 3100 mm Gap-Bed Lathe Machine

Name: Azeta Italy 700 mm x 3100 mm Gap-Bed Lathe Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Azeta Italy 700 mm x 3100 mm Gap-Bed Lathe Machine Specification

Material

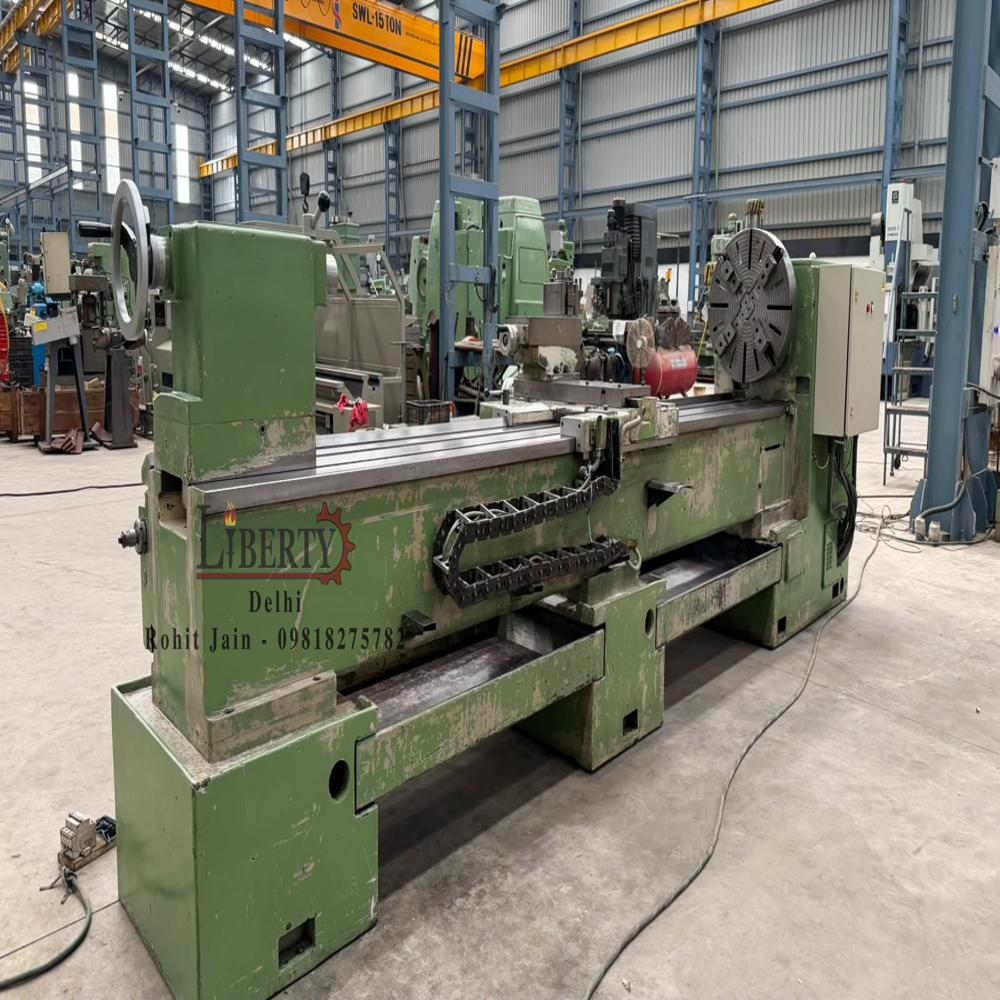

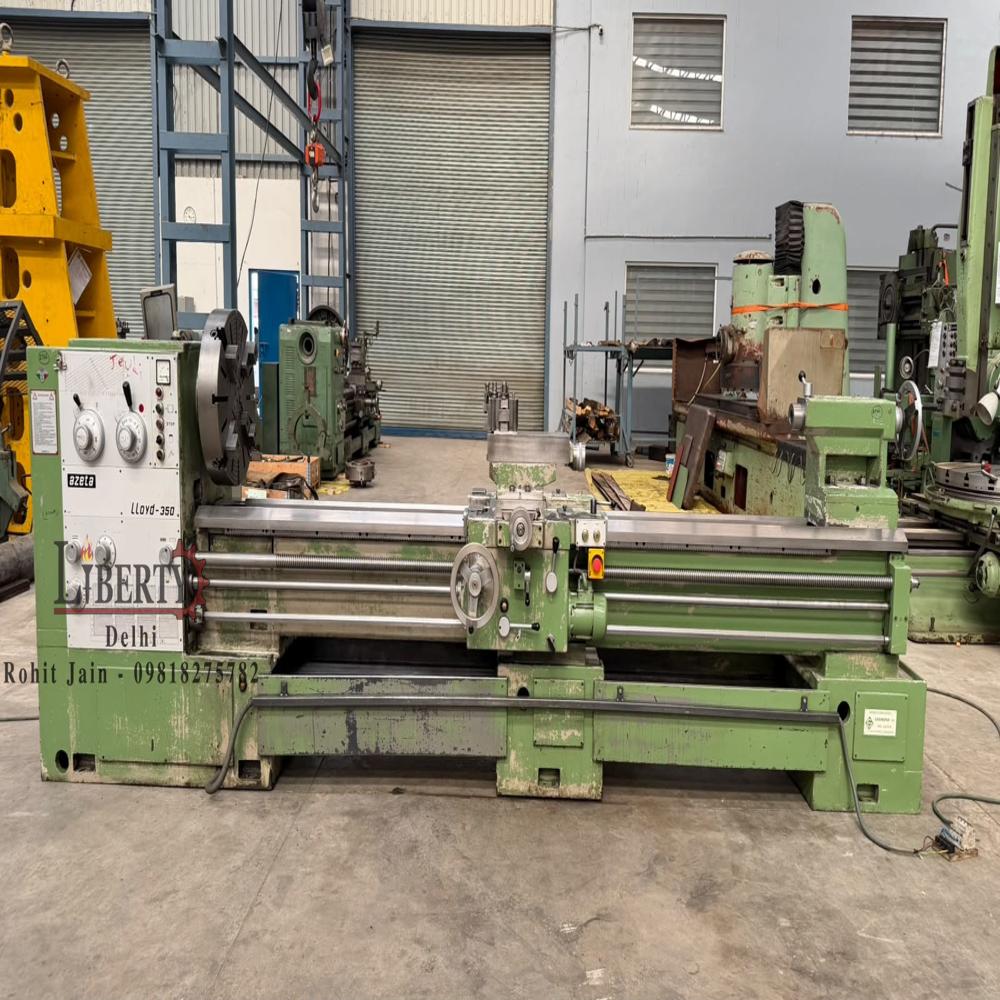

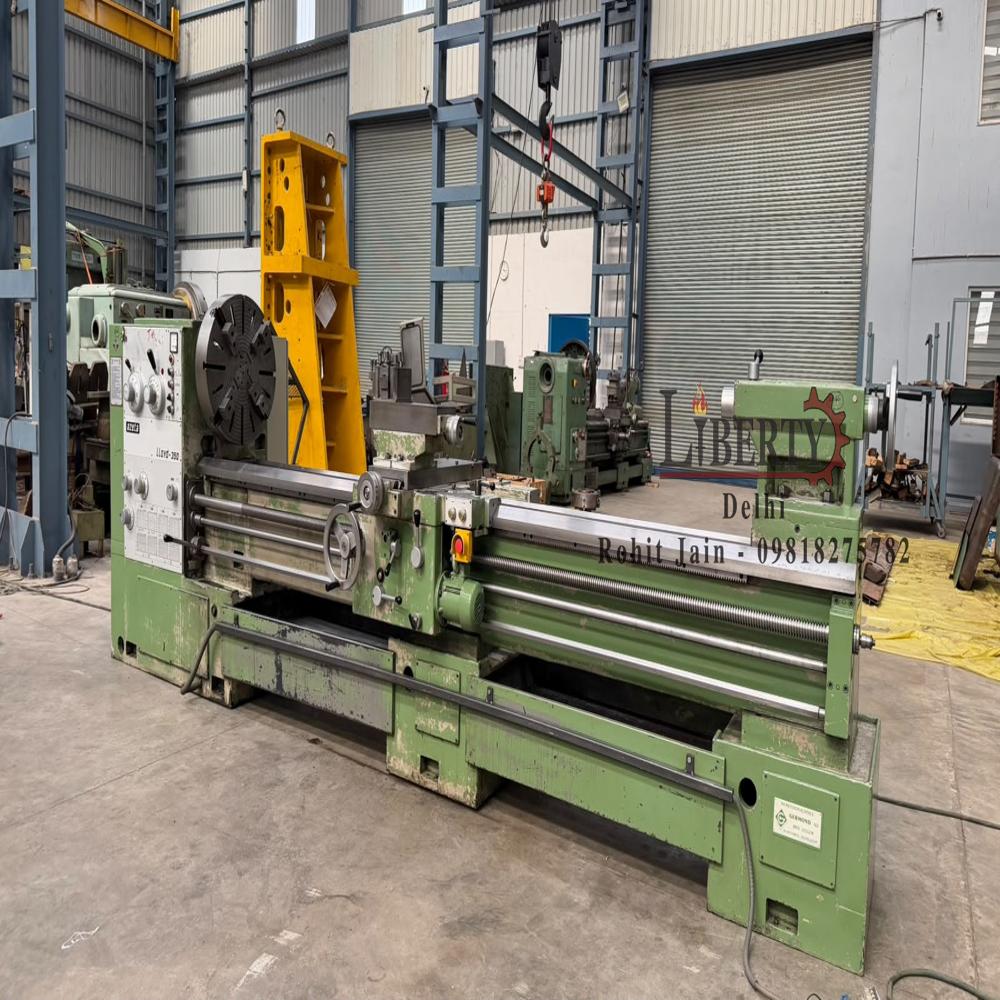

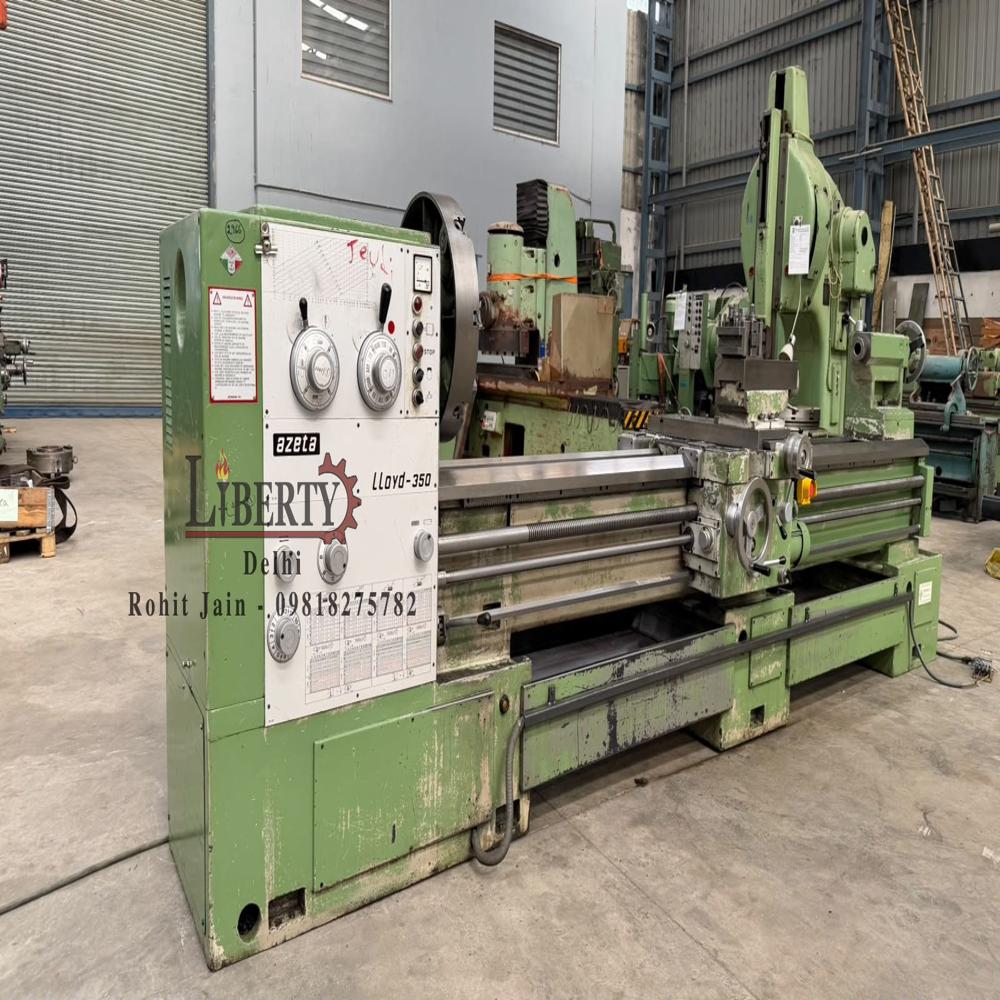

Gap-Bed Center Lathe made by Azeta (Italy), Model Lloyd-350, available in excellent working condition. This is a heavy-duty, all-geared center lathe with a Distance Between Centers of 3100 mm, Swing Over Bed of 700 mm, and Maximum Job Diameter over Cross-Slide of 480 mm. The technical details are as follows -

About Azeta Italy 700 mm x 3100 mm Gap-Bed Lathe Machine

Make - Azeta (Italy)

Model - Lloyd-350

Center Height - 350 mm

Max. Length of Job - 3100 mm

Max. Job Diameter over Cross-Slide - 480 mm

Max. Job Diameter over Bed - 700 mm

Max. Job Diameter in Gap - 1000 mm

Spindle Speeds - 25 to 1500 RPM

Bed Width - 485 mm

4-Jaw Chuck Diameter - 560 mm

Spindle Bore - 75 mm

Machine Weight - 4.50 Tons (approximately)

- Complete with Steady Rest, Tool Holders, and Coolant Pump.

- Motorised Rapid Travels of the Carriage and Cross-Slide.

- Electrical Drawings of the machine are available.

- Machine is in excellent working condition.

Video of the Machine -

https://youtu.be/Mfd5A5KKjC0

Engineered for Versatility and Strength

This gap-bed center lathe from Azeta Italy is constructed to tackle a wide range of turning applications. The heavy-duty, all-geared mechanism ensures reliable power and consistent performance, even during continuous operation. Its gap-bed design allows for the machining of oversized and complex parts, offering flexibility to industries such as manufacturing, repair workshops, and fabrication units.

Precision and Performance Guaranteed

With a large swing over bed and substantial distance between centers, the Azeta Lloyd-350 makes precision turning of long or bulky materials possible. The machine supports intricate tasks and heavy workpieces without compromising on accuracy, making it a dependable choice for businesses aiming to enhance both productivity and quality in their machining operations.

FAQ's of Azeta Italy 700 mm x 3100 mm Gap-Bed Lathe Machine:

Q: How is the Azeta Italy Gap-Bed Lathe Machine primarily used in manufacturing?

A: This lathe is used for turning, facing, and threading long or heavy workpieces in metalworking industries, providing excellent capability for producing shafts, bushings, and custom machined parts.

Q: What makes the gap-bed design beneficial compared to standard lathes?

A: The gap-bed design allows operators to remove a section of the bed, enabling machining of large-diameter workpieces that would not fit on standard lathes, thus increasing the machine's versatility.

Q: When should you choose a center lathe with a 3100 mm distance between centers?

A: You should select this lathe model when your applications require turning or supporting extended-length materials, ensuring efficient handling of long components without the need for additional supports.

Q: Where can the Azeta Lloyd-350 be installed for maximum utility?

A: This lathe is best suited for installation in heavy engineering workshops, manufacturing plants, and metal fabrication facilities that frequently handle larger workpieces or varied machining tasks.

Q: What is the process for operating the all-geared center lathe safely?

A: Operators should familiarize themselves with the controls, ensure workpieces are securely clamped, select appropriate spindle speeds and feeds, and always use protective gear to maintain safe operation.

Q: What are the main benefits of using this heavy-duty lathe in your production line?

A: The primary benefits include increased machining capacity for large jobs, improved precision, and versatile handling of a wide range of workpiece sizes, all contributing to greater efficiency and product quality.
