Binns & Berry England 700 mm x 4500 mm Heavy-Duty CNC Lathe

Get a Price/Quote

MOQ : 1 Piece

Binns & Berry England 700 mm x 4500 mm Heavy-Duty CNC Lathe Specification

Product Type

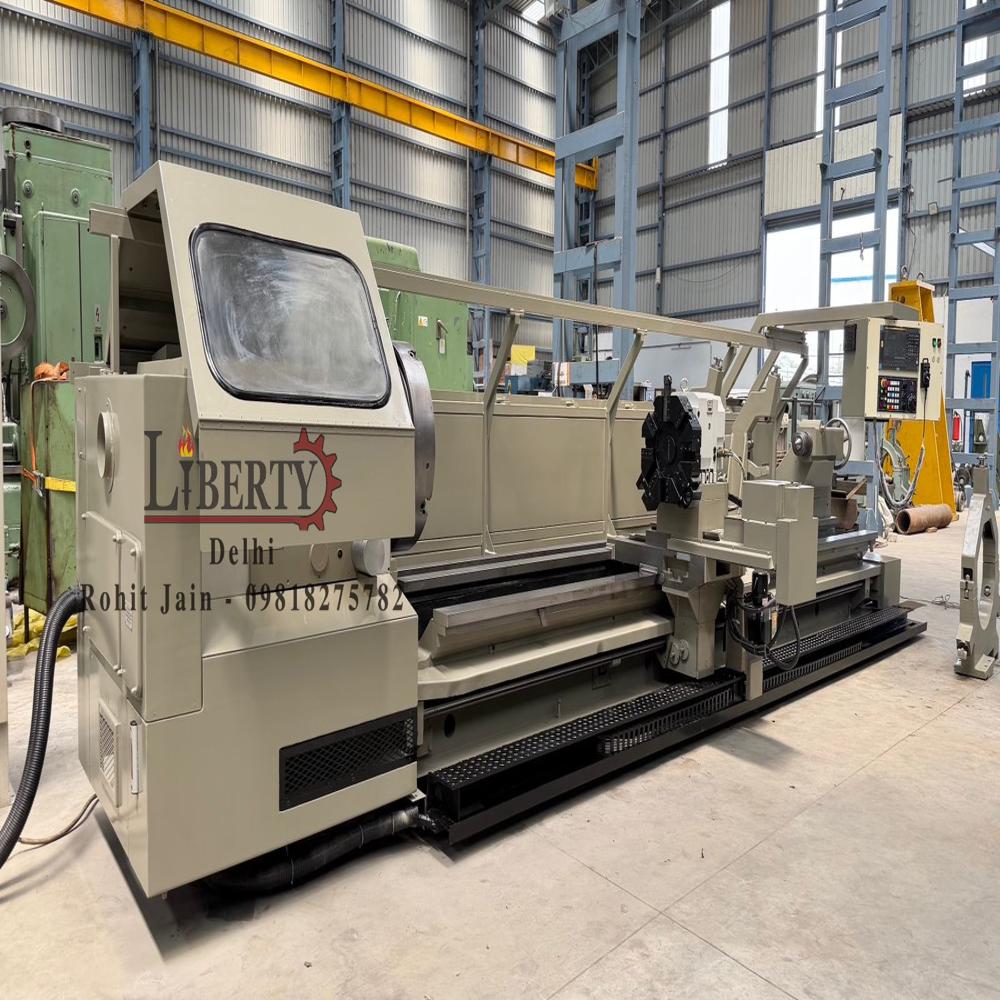

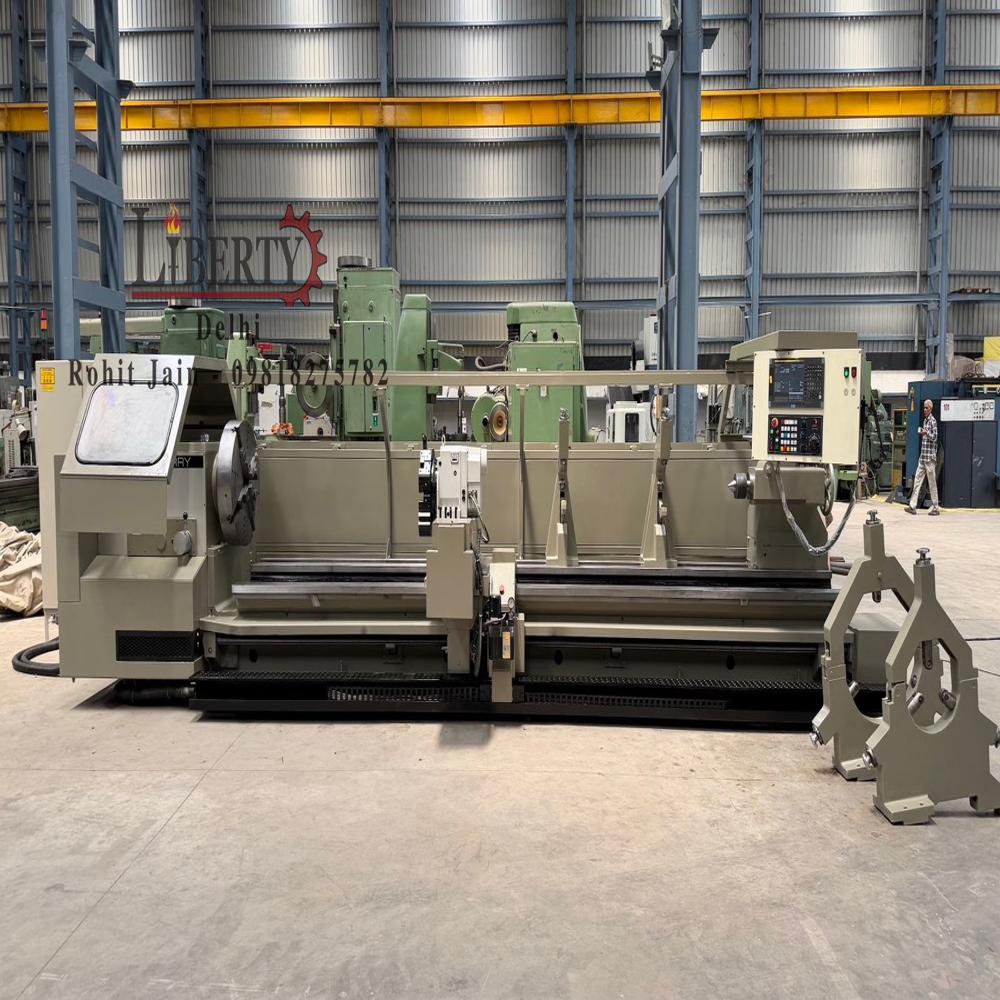

Heavy-duty CNC Lathe made by Binns & Berry (England), fully retrofitted in 2026, available in excellent working condition. The machine features a robust 3-bedway construction and is equipped with a new Fanuc 0i-TF Plus CNC controller, new servo motors & drives, and a new Pragati BTP-125 turret (all installed during the retrofit). With a maximum turning diameter of 700 mm and a maximum job length of 4500 mm, the machine is ideal for heavy shaft machining, roll turning, threading operations, and other large component machining. The technical details are as follows -

General Use
Precision Metal Turning, Heavy Components Machining

Material
Cast Iron Bed, Hardened Steel Components

Type
CNC Lathe

Capacity
700 mm Max Swing x 4500 mm Between Centres

Weight (kg)
Approx. 8000 kg

Computerized
Yes

Automatic
Yes

PLC Control
Yes, Fanuc/Siemens

Bar Feeder
Optional

Power Source
Electric

Power Consumption
15 kW

Rigidity
High

Voltage
415 V AC, 3 Phase

Motor
Main Spindle Motor 22 kW

Table Size
700 mm Swing over Bed

Spindle Speed
Variable, up to 900 rpm

Axial Choice
2 Axis (X, Z)

Dimension (L*W*H)
Approx. 6500 mm x 1700 mm x 1700 mm

Feature
Electronic Handwheel, Automatic Lubrication, Chip Conveyor

Color
Industrial Grey/Blue

Chuck Size
400 mm (3 or 4 Jaw)

Positioning Accuracy
0.010 mm

Spindle Bore
105 mm

Lighting
Internal LED Work Light

Tailstock Quill Diameter
100 mm

Tailstock Quill Travel
250 mm

Coolant System
Integrated

Hydraulic System
Included for Chuck and Tailstock

Guideways
Hardened & Ground

Control System
Fanuc 0i/Siemens 828D (as per order)

Bed Width
600 mm

Noise Level
<80 dB(A) at full operation

Rapid Traverse Rate
8 m/min (X/Z axes)

Repeatability
0.005 mm

Floor Space Required
7000 mm x 2200 mm

About Binns & Berry England 700 mm x 4500 mm Heavy-Duty CNC Lathe

Make - Binns & Berry (England)

Center Height - 425 mm

Max. Length of Job - 4500 mm

Max. Job Diameter over Cross-Slide - 700 mm

Max. Job Diameter over Bed - 850 mm

4-Jaw Chuck Diameter - 650 mm

Spindle Bore - 105 mm

Spindle Speeds - 4 to 1250 RPM (3-step gearbox)

Bed Width - 750 mm

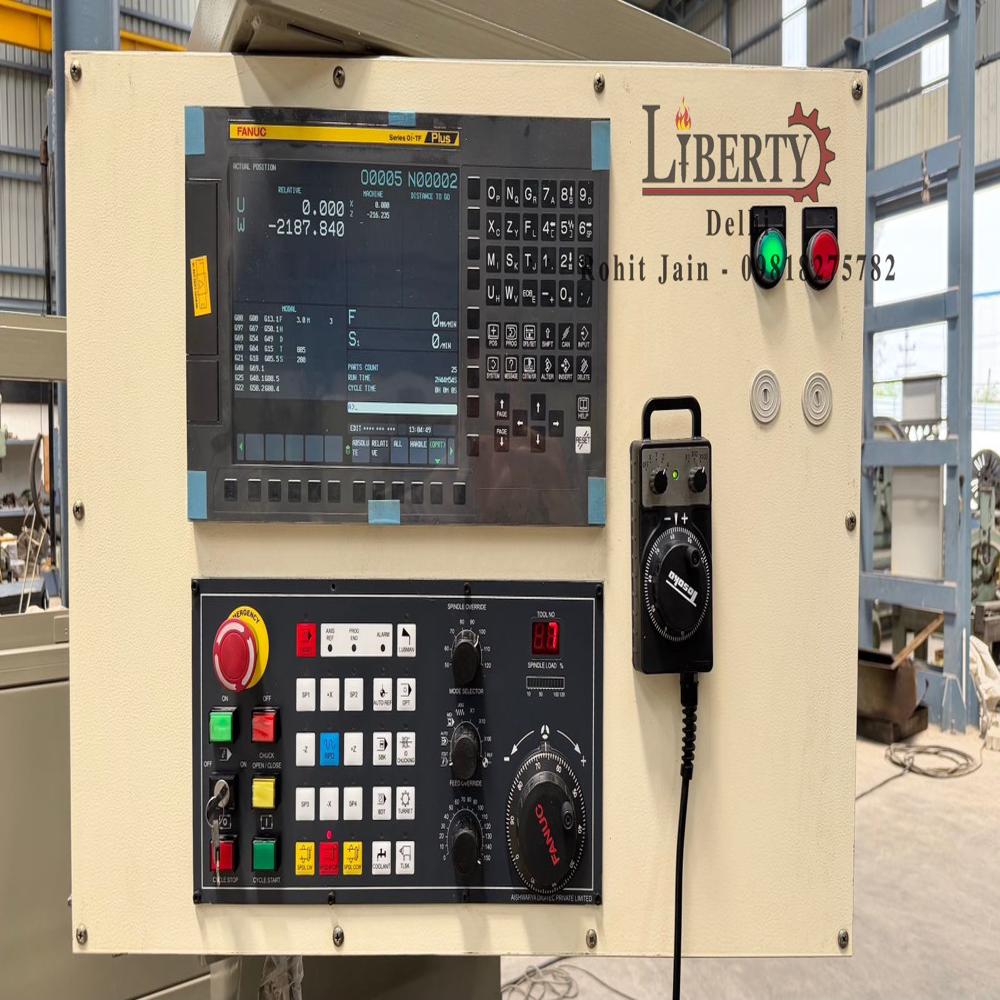

CNC Controller - Fanuc 0i-TF Plus

Turret Type - Pragati BTP-125 (8 Tool Stations)

X-Axis Servo Motor - 11 Nm (with 1:3 Timing Belt Ratio)

Z-Axis Servo Motor - 36 Nm (with 1:3 Timing Belt Ratio)

Spindle Motor Power - 26 / 22 kW

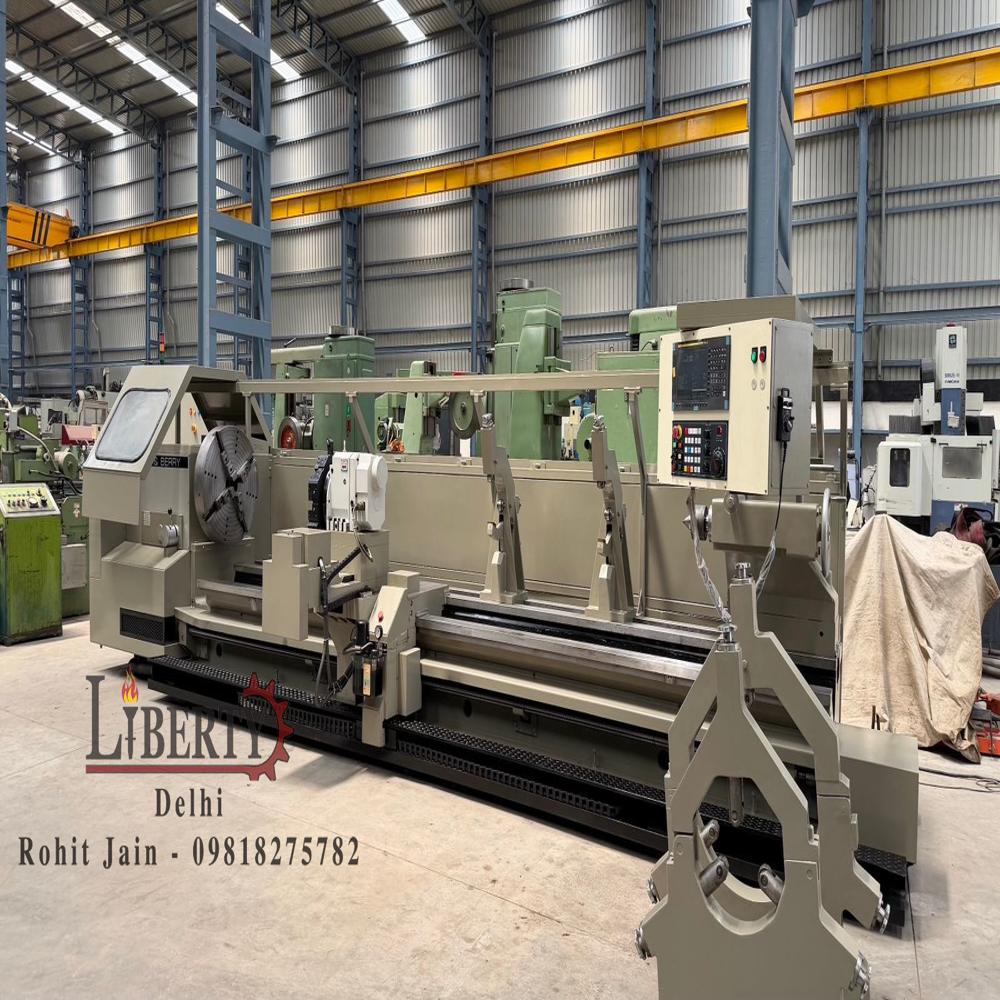

- Complete with 2 x Follow Rests and 2 x Steady Rests.

- New Fanuc 0i-TF Plus CNC system.

- New servo motors & drives (X & Z axes).

- New Pragati BTP-125 turret.

- Spindle driven by servo motor with VFD and encoder feedback.

- Machine is in excellent working condition.

Video of the Machine -

https://youtu.be/MIdDyPpGhz0

Superior Construction for Heavy-Duty Performance

Designed with a 700 mm swing over bed and a substantial 4500 mm distance between centres, this CNC lathe boasts a cast iron bed and hardened steel guideways to ensure stability during heavy turning operations. The high rigidity structure effectively minimizes vibrations and enhances machining accuracy, making it ideal for tough, large-diameter workpieces.

Advanced Control and Automation Features

Operators benefit from the latest Fanuc or Siemens controls, available as per order, ensuring seamless programming and integration. Automated systems such as the chip conveyor, hydraulic chuck and tailstock, internal LED lighting, and auto lubrication elevate productivity while reducing manual intervention and downtime.

Energy Efficiency and Safety Considerations

Operating at a noise level below 80 dB(A) and consuming just 15 kW, the lathe ensures efficient performance with minimal environmental impact. Its integrated coolant system maintains optimal cutting conditions, while robust industrial-grade construction contributes to long-term operational safety and reduced maintenance.

FAQ's of Binns & Berry England 700 mm x 4500 mm Heavy-Duty CNC Lathe:

Q: How does the Binns & Berry 700 mm x 4500 mm CNC Lathe ensure precision during heavy-duty machining?

A: This lathe features a hardened and ground guideway system, high rigidity cast iron bed, and a positioning accuracy of 0.010 mm with repeatability of 0.005 mm. These characteristics minimize deflection and vibration, guaranteeing high precision even with large, heavy workpieces.

Q: What types of workpieces can this CNC lathe accommodate?

A: With its maximum swing over bed of 700 mm and 4500 mm between centres, this lathe is ideal for turning heavy components used in industries like automotive, aerospace, and large-scale manufacturing. The robust spindle bore (105 mm) also supports machining various bar stock sizes.

Q: When should I choose the optional bar feeder for this machine?

A: The optional bar feeder is beneficial for operations requiring continuous or automatic feeding of bar stock, especially in high-volume manufacturing environments. It enables unattended machining, thus improving efficiency and throughput.

Q: Where can the Binns & Berry CNC Lathe be installed, considering its size and requirements?

A: The machine requires a floor space of 7000 mm x 2200 mm and should be installed in industrial workshops with access to a 415 V AC, 3-phase power supply. Ample room is necessary for safe operation, maintenance, and ease of material handling.

Q: What benefits does the integrated hydraulic system offer for chuck and tailstock operations?

A: The hydraulic system provides consistent and reliable actuation of the chuck and tailstock, ensuring secure clamping and reducing manual effort. This results in improved machining safety and efficiency, especially when handling heavy or awkwardly shaped workpieces.

Q: How does the internal LED work light and automatic lubrication system enhance user experience?

A: The internal LED lighting ensures optimal visibility of the work area, promoting safe and precise operations. The automatic lubrication system keeps critical components well-oiled, reducing wear, preventing breakdowns, and minimizing maintenance intervals.

Q: What process advantages does the PLC control and variable spindle speed provide?

A: PLC control offers advanced automation capabilities, simplifying complex operations and integrating seamlessly into production lines. The variable spindle speed up to 900 rpm allows operators to adjust cutting speeds for different materials, ensuring optimal surface finish and tool life.
