Mori Seiki AL-22 CNC Turning Lathe Machine

Send Inquiry

Request To Call Back

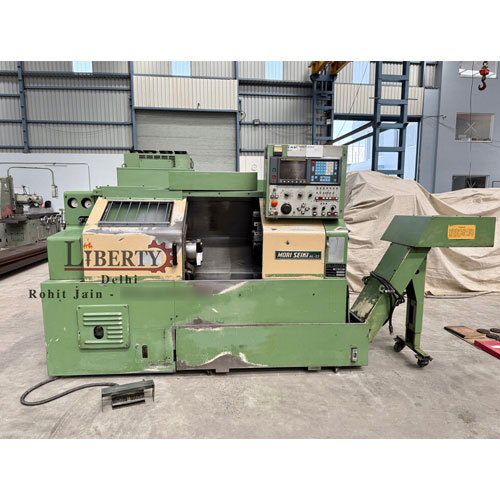

Mori Seiki AL-22 CNC Turning Lathe Machine

Name: Mori Seiki AL-22 CNC Turning Lathe Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Mori Seiki AL-22 CNC Turning Lathe Machine Specification

Product Type
CNC Turning Lathe Machine

General Use
Industrial Metal Turning

Material
Cast iron base, Metal components

Type
Horizontal CNC Lathe

Capacity
Swing over bed: 430 mm, Max turning diameter: 220 mm

Weight (kg)
3600 kg

Computerized
Yes (Fanuc, Mitsubishi, or equivalent)

Automatic
Fully Automatic

PLC Control
Available

Bar Feeder
Optional attachment

Power Source
Electric

Power Consumption
7 kVA

Rigidity
High (Cast iron bed structure)

Voltage
220/380 V (Three Phase)

Motor
Main Spindle Motor: 15 HP

Spindle Speed
453500 rpm

Axial Choice
2 Axis (X, Z)

Dimension (L*W*H)
2760 mm 1640 mm 1620 mm

Feature
Heavy duty, Precision machining, High rigidity, Programmable

Color
Standard Industrial Grey/Blue

Max Turning Length
450 mm

Hydraulic System
Hydraulic chuck and tailstock

Repeatability
0.005 mm

Chuck Type
Hydraulic chuck standard

Coolant System
Integrated

Tailstock
Manual tailstock

Chuck Size
210 mm (8.3 inch)

Year of Make
Varies (typically 1990searly 2000s)

Rapid Traverse Rate
X: 20 m/min, Z: 24 m/min

Control System
CNC (Fanuc / Mitsubishi / equivalent)

Distance Between Centers
550 mm

Spindle Bore
62 mm

Turret Stations
8 tool station turret

Lubrication System
Automatic lubrication system

Mori Seiki AL-22 CNC Turning Lathe Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Mori Seiki AL-22 CNC Turning Lathe Machine

Make - Mori Seiki (Japan)

Model - AL-22

Max. Machining Diameter - 250 mm

Distance between Centers - 550 mm

Max. Swing Diameter over Bed - 480 mm

Max. Swing Diameter over Carriage - 310 mm

Max. Longitudinal Travels - 500 mm

Spindle Speeds - 40 rpm to 3500 rpm (2 x Geared Speed Ranges)

Spindle Bore - 56 mm

Chuck Diameter - 208 mm

CNC Controller - Fanuc 0-TC (MF-T4)

Automatic Tool Changer (ATC) - 8 Tools

- Machine is equipped with Tool Presetter.

- Complete with Step Down Transformer, Chip Conveyor, other accessories etc.

- All Documentations - Operation, Maintenance, Electrical manuals are available.

- Machine is in excellent working condition.

Video of the Machine -

https://youtu.be/q4tcnLTg2M4

Precision and Performance

Mori Seiki AL-22 delivers exceptional repeatability of 0.005 mm, ensuring high accuracy in demanding production runs. With rapid traverse rates of 20 m/min (X-axis) and 24 m/min (Z-axis), it speeds up operations without sacrificing precision. The 8-station turret allows for quick tool changes, contributing further to productivity and efficiency.

Robust Design & Heavy-Duty Capability

Constructed with a cast iron base and bed, this lathe guarantees impressive rigidity and vibration damping. Its hydraulic chuck and tailstock improve workpiece handling and positioning, making it especially suited for machining tough metals in industrial settings. The machine's 15 HP spindle motor supports consistent, powerful metal turning operations.

Advanced Control Systems

The AL-22 is computerized and programmable, supporting PLC control. It typically uses CNC systems from Fanuc, Mitsubishi, or similar brands renowned for reliability and easy integration. Operators can efficiently manage workflows, setup procedures, and production cycles for a wide variety of metal turning tasks.

FAQ's of Mori Seiki AL-22 CNC Turning Lathe Machine:

Q: How do you operate the Mori Seiki AL-22 CNC Turning Lathe safely?

A: To operate the AL-22 safely, familiarize yourself with its Fanuc or Mitsubishi CNC interface, ensure all guards are in place, and verify that hydraulic and lubrication systems are functioning. Always follow manufacturer guidelines and wear appropriate personal protective equipment.

Q: What materials can the Mori Seiki AL-22 lathe machine process?

A: This lathe is designed for heavy-duty, precision turning of different metals, including steel, aluminum, and cast iron, making it suitable for industrial metalworking applications.

Q: When should the lubrication and coolant systems be checked or maintained?

A: Regular checks on the automatic lubrication and integrated coolant system should be made before each shift and after intensive use to ensure continued smooth operation and to prevent wear or overheating.

Q: Where is the Mori Seiki AL-22 typically used?

A: The AL-22 is primarily found in industrial workshops, metal fabrication plants, and manufacturing floors, especially where high-precision and high-duty cycle turning is required.

Q: What benefits does the manual tailstock provide?

A: The manual tailstock enhances versatility, allowing users to support longer workpieces and perform high-accuracy operations such as drilling or reaming along the lathe's centerline.

Q: How does the programmable control system contribute to productivity?

A: With CNC (Fanuc/Mitsubishi) and PLC capabilities, operators can automate complex tasks, reduce setup times, maintain consistent part quality, and efficiently manage production runs.

Q: What is the process for installing an optional bar feeder?

A: To attach a bar feeder, ensure compatibility with the machine's chuck and spindle bore (62 mm), follow the manufacturer's installation procedure, and program your CNC system to synchronize with automated loading for continuous production.
