Blohm Simplex 75 700 mm x 500 mm Automatic Hydraulic Surface Grinder

Send Inquiry

Request To Call Back

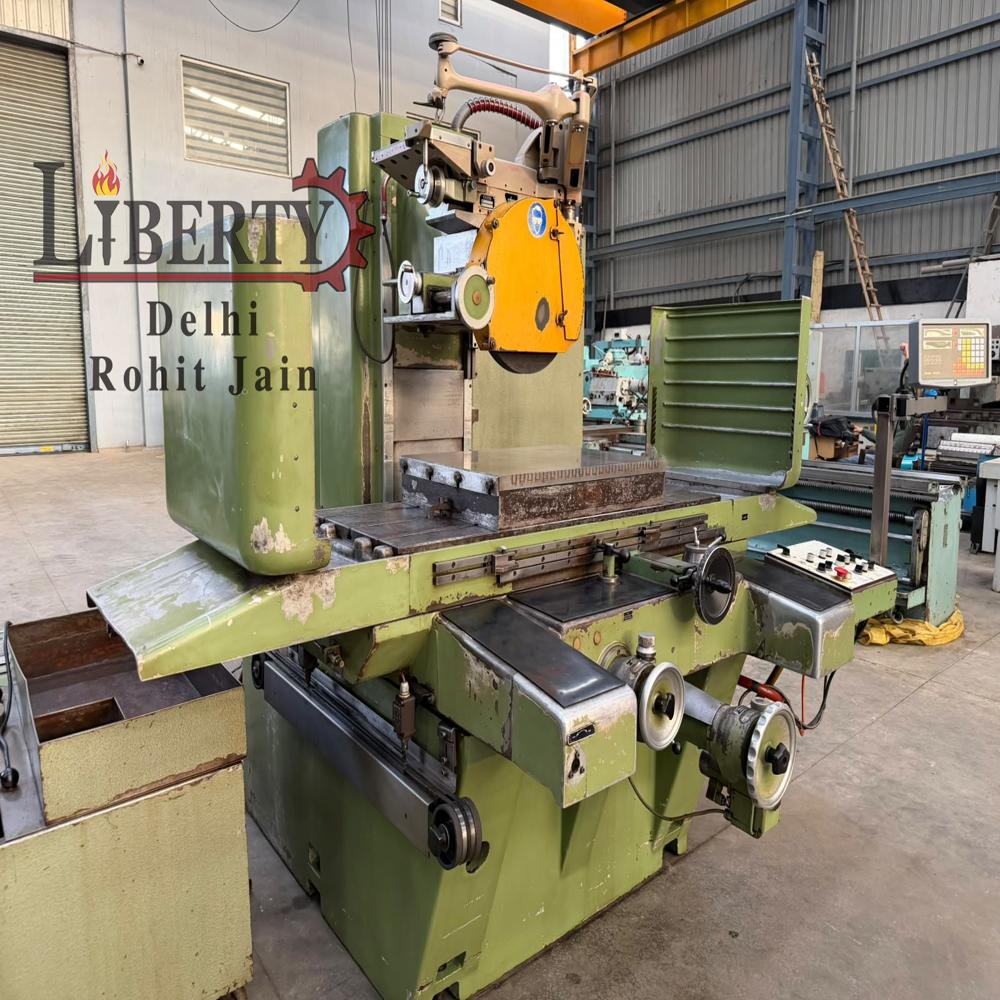

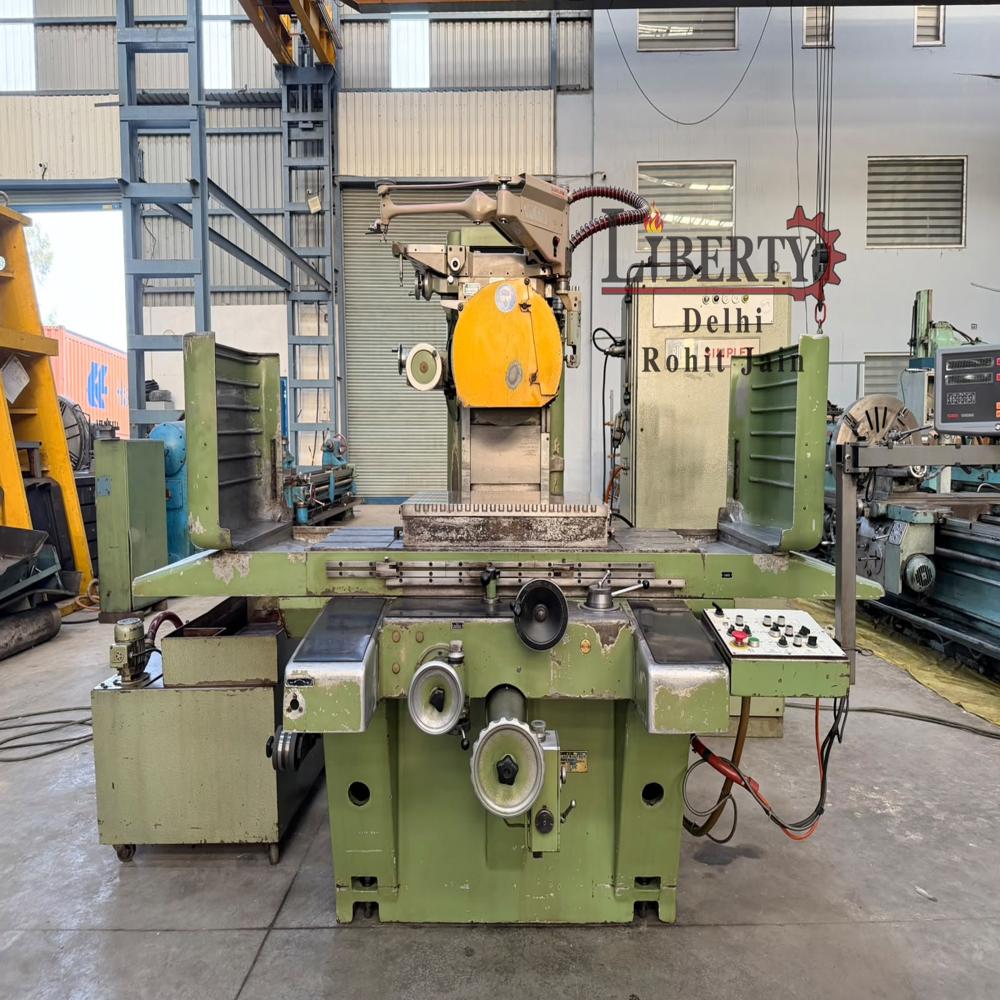

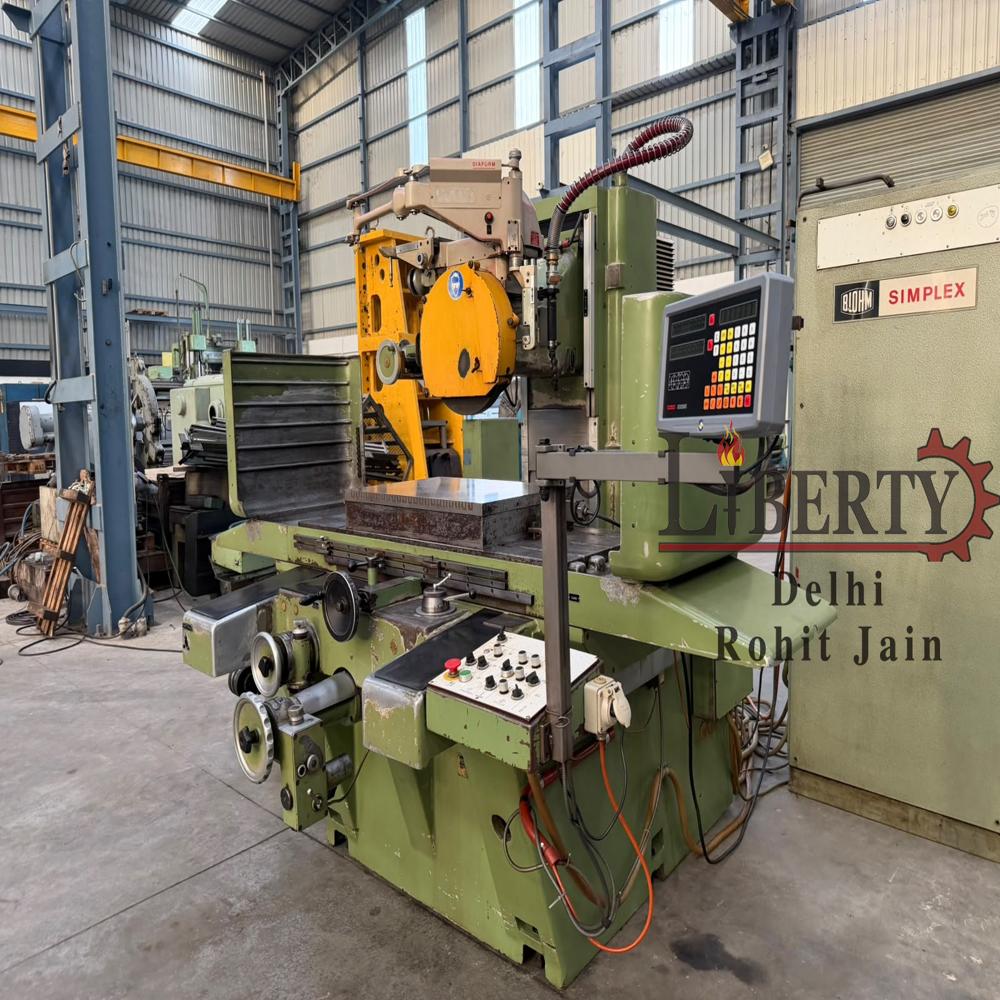

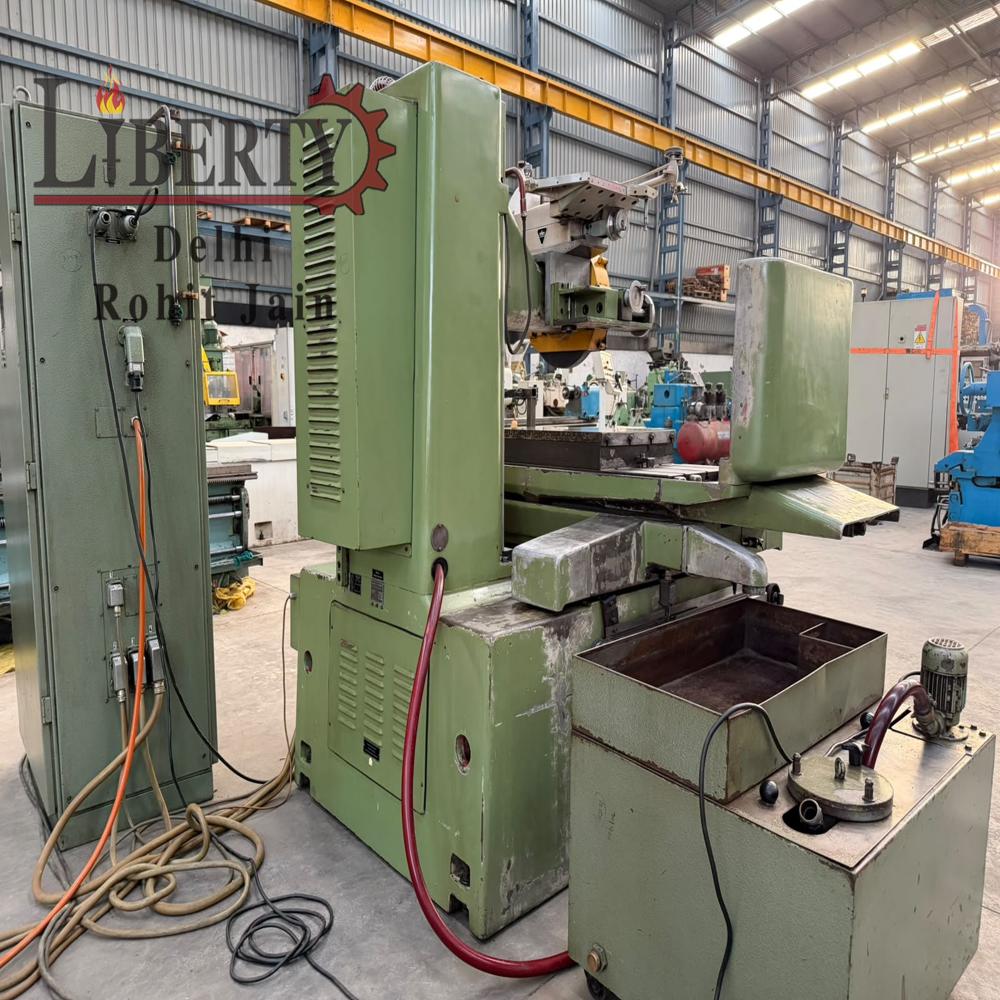

Blohm Simplex 75 700 mm x 500 mm Automatic Hydraulic Surface Grinder

Name: Blohm Simplex 75 700 mm x 500 mm Automatic Hydraulic Surface Grinder
Brand: Liberty Metal & Machines Private Limited
Price: 110000.0 INR
Availability: InStock

Price 110000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Blohm Simplex 75 700 mm x 500 mm Automatic Hydraulic Surface Grinder Specification

Model
Simplex 75

Product Type
- Equipped with a Top-Mounted Straight Wheel Dresser. - Equipped with a Top-Mounted Diaform Profile Wheel Dresser. - Equipped with a 2-Axis DRO on Vertical and Cross Travels. - Features Automatic Depth Adjustment (Auto-Cut) and Automatic Wheel Retraction. - Features Micro-Feed Adjustment on Cross Travel and Vertical Travel with 1 Micron Least Count. - Complete with Coolant Tank, Coolant Pump, and Splash Guards. - Complete with Spare Wheel Flange and various other accessories. - Operating Manual and Electrical Drawings are available. - Machine is in excellent working condition.

General Use
Automatic Hydraulic Surface Grinding Machine manufactured by Blohm (Germany), Model Simplex 75, available in excellent working condition. The machine has a Grinding Capacity of 500 mm 700 mm, a 400 mm Diameter Grinding Wheel with 50 mm Width, and features Automatic Cycles with Automatic Depth Adjustment (Auto-Cut) and Automatic Wheel Retraction. It is a High-Precision Hydraulic Surface Grinding Machine featuring Micro-Feed Adjustment on both Cross Travel and Vertical Travel, with a Least Count of 1 Micron (0.001 mm) on both axes. The machine is also equipped with a Top-Mounted Straight Wheel Dresser and a Diaform Profile Wheel Dresser. It is complete with a 2-Axis DRO, Coolant Tank, Coolant Pump, Splash Guards, Spare Wheel Flange, Operating Manual, Electrical Drawings, and other accessories. The technical details are as follows -

Type
Surface Grinding Machine

Automatic
Yes

CNC Or Not
Normal

Table Size
500 mm x 700 mm

Magnetic Chuck Size
500 mm x 700 mm

Grinding Wheel Size
400 mm Diameter x 50 mm Width

Feature
High Performance

Warranty
no

About Blohm Simplex 75 700 mm x 500 mm Automatic Hydraulic Surface Grinder

Make - Blohm (Germany)

Model - Simplex 75

Grinding Capacity - 500 mm x 700 mm

Magnetic Chuck Size - 500 mm x 700 mm

Grinding Wheel Size - 400 mm Diameter x 50 mm Width

Maximum Height between Magnet and Wheel Centre - 400 mm

Longitudinal Travel - 900 mm

Cross Travel - 500 mm

Least Count of Cross Travel - 1 Micron (0.001 mm)

Least Count of Vertical Travel - 1 Micron (0.001 mm)

Approx. Machine Weight - 4.17 Tons

- Equipped with a Top-Mounted Straight Wheel Dresser.

- Equipped with a Top-Mounted Diaform Profile Wheel Dresser.

- Equipped with a 2-Axis DRO on Vertical and Cross Travels.

- Features Automatic Depth Adjustment (Auto-Cut) and Automatic Wheel Retraction.

- Features Micro-Feed Adjustment on Cross Travel and Vertical Travel with 1 Micron Least Count.

- Complete with Coolant Tank, Coolant Pump, and Splash Guards.

- Complete with Spare Wheel Flange and various other accessories.

- Operating Manual and Electrical Drawings are available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/bI3O2_g0oVM
