Colchester Triumph 760 mm Length Gap-Bed Lathe Machine

Name: Colchester Triumph 760 mm Length Gap-Bed Lathe Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Colchester Triumph 760 mm Length Gap-Bed Lathe Machine Specification

Product Type
Gap-Bed Centre Lathe

Material

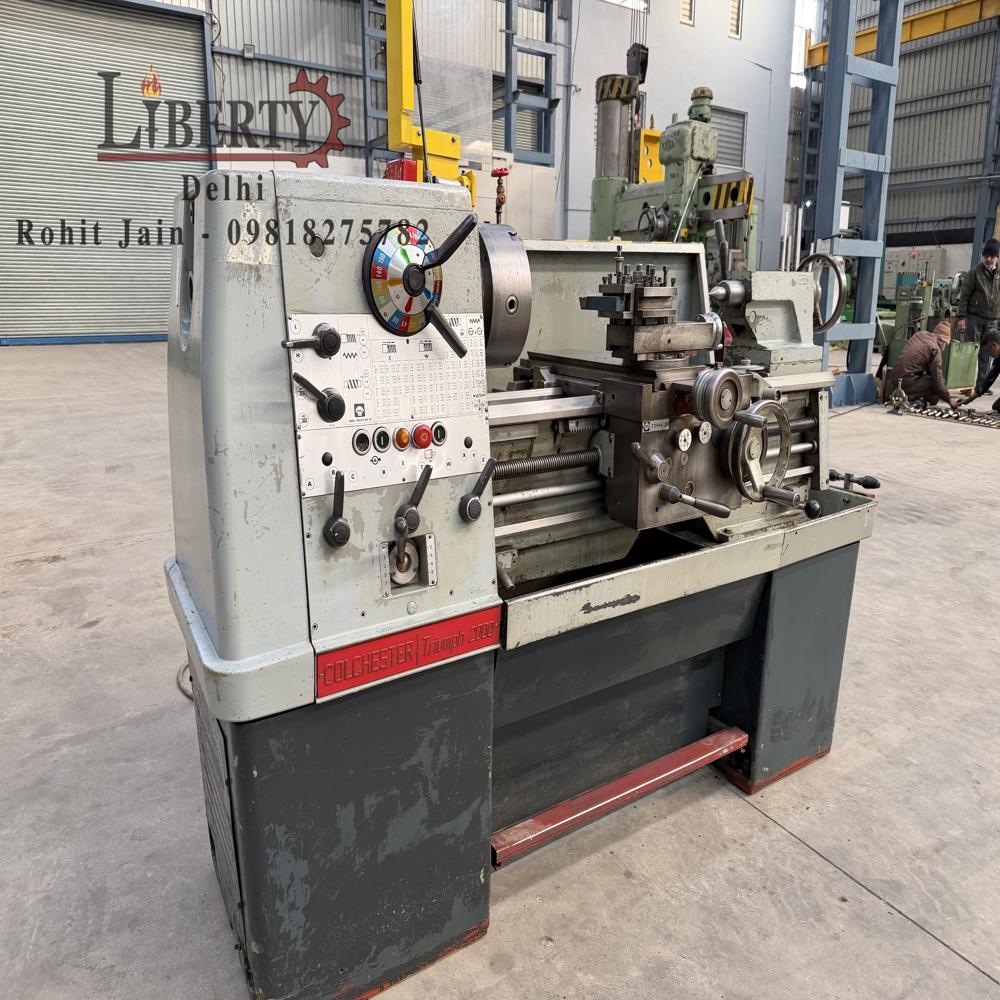

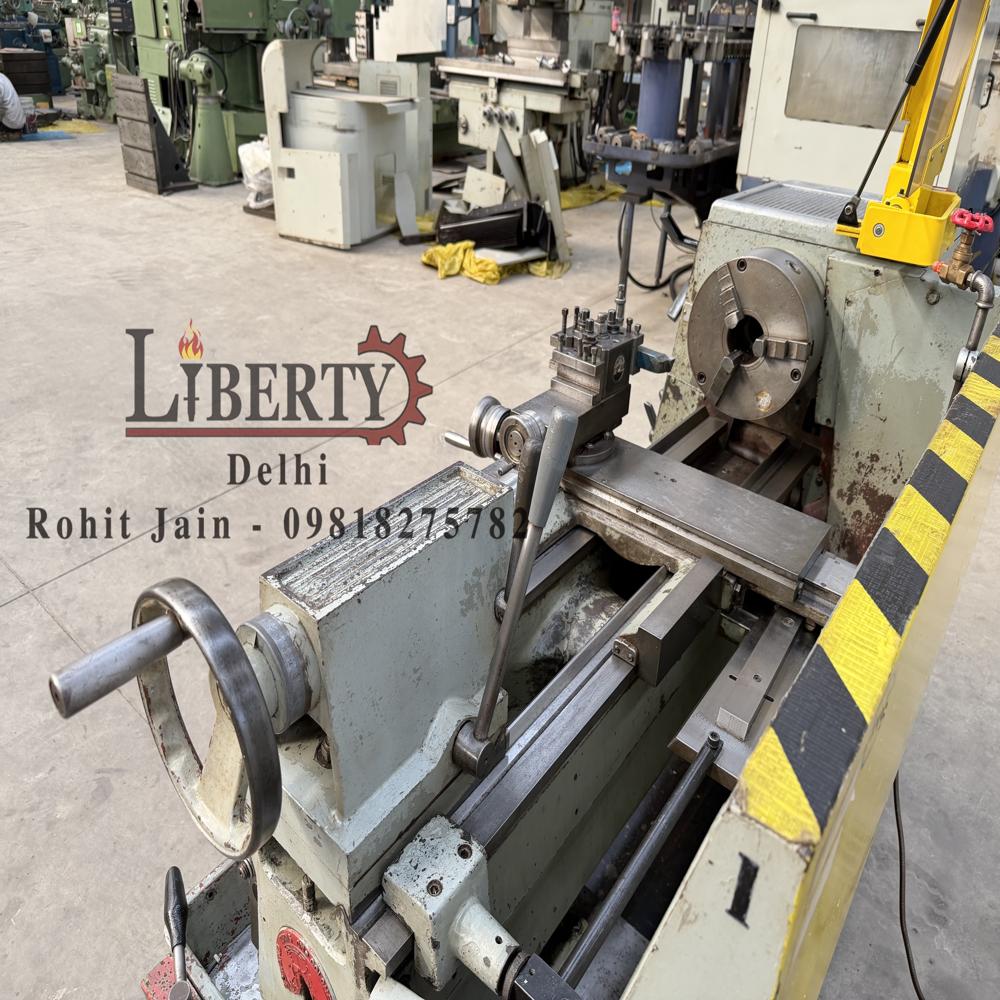

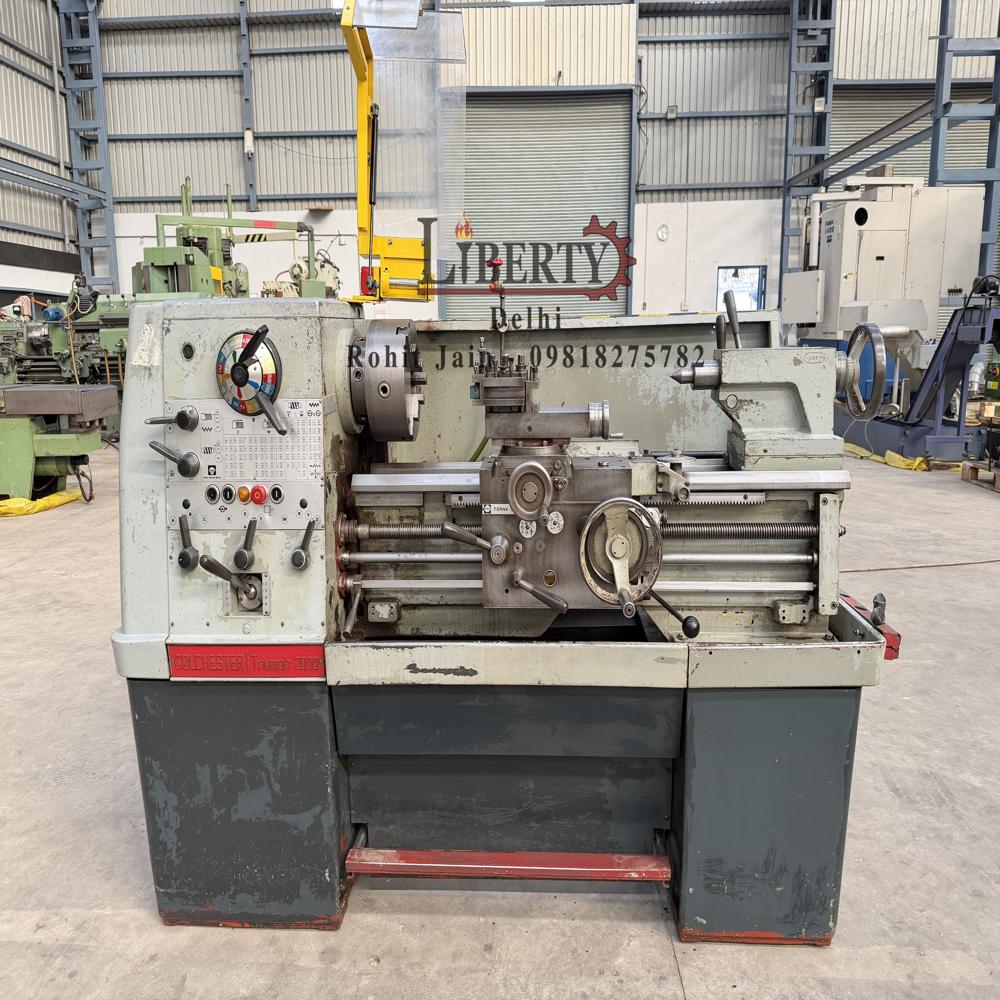

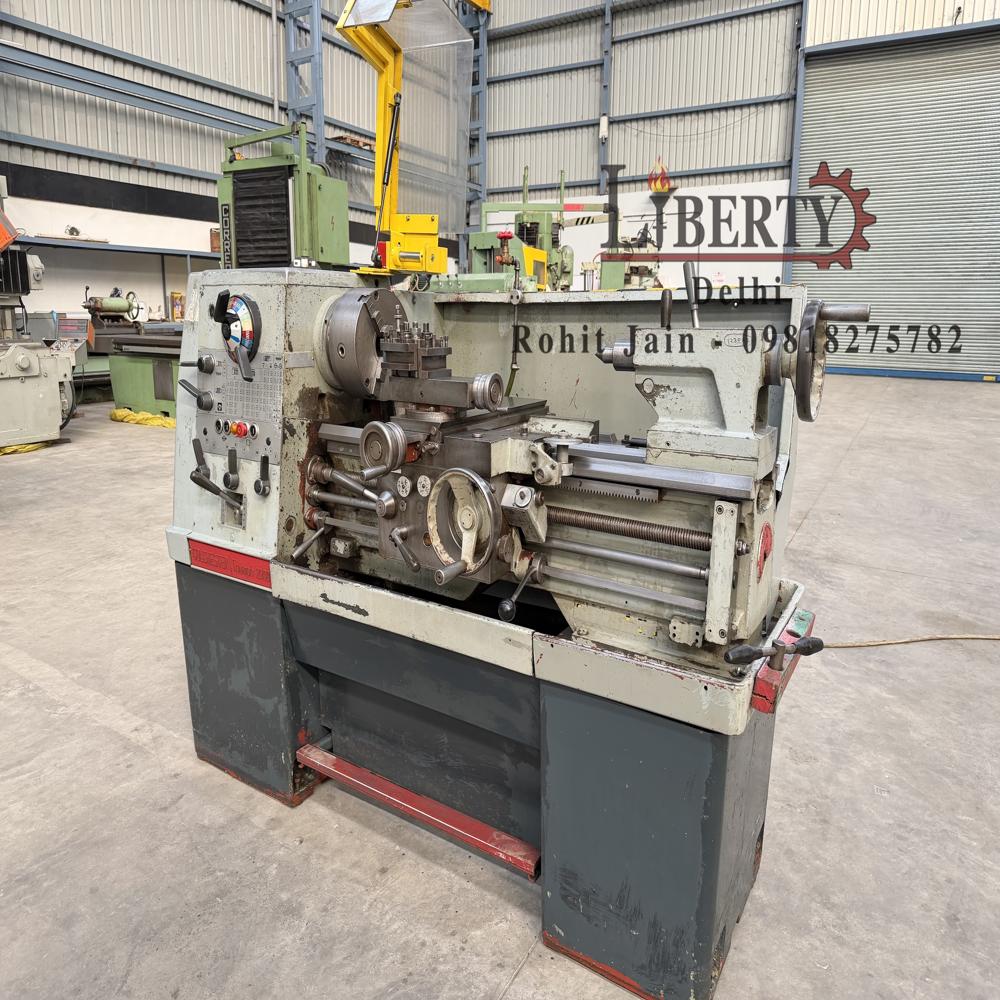

Colchester (England) make Gap-Bed type Lathe Machine in excellent working condition. The model of the machine is Triumph 2000 and the Max. Length of Job is 760 mm. The machine is equipped with its Automatic Taper Turning Attachment as well. The technical details are as follows -

Cutting Thickness
Depends on Tool and Setup

Cutting Speed
20 - 2000 rpm (variable)

CNC Or Not
No, Manual Lathe

Automatic Grade
Manual

Control System
Manual with Gearbox Controls

Max. Swing Diameter
400 mm over bed, 570 mm in gap

Voltage
415 V, 3 Phase, 50 Hz

Weight (kg)
Approx. 1300 kg

Dimension (L*W*H)
Approx. 1940 mm x 1000 mm x 1300 mm

Capacity
760 mm Centre Distance

Feature
Induction hardened bed ways, Back gear arrangement, Removable gap

Color
Industrial Grey with Blue elements

Bed Width
250 mm

Lead Screw Diameter / Pitch
32 mm / 4 mm

Tailstock Quill Travel
150 mm

Tailstock Quill Diameter
60 mm

Number of Spindle Speeds
12

Longitudinal Feed Range
0.031 to 1.7 mm/rev

Spindle Bore
54 mm

Chuck Size
250 mm (10")

Spindle Nose
Camlock D1-6

Distance Between Centres
760 mm

Cross Feed Range
0.015 to 0.85 mm/rev

Threads Imperial Range
2 - 72 TPI

Threads Metric Range
0.2 - 14 mm

About Colchester Triumph 760 mm Length Gap-Bed Lathe Machine

Make - Colchester (England)

Model - Triumph 2000

Center Height - 195 mm

Length of Job - 760 mm

Max. Diameter of Job over Bed - 390 mm

Max. Diameter of Job over Cross-Slide - 235 mm

Max. Diameter of Job in Gap - 600 mm

Bed Width - 280 mm

Chuck Diameter - 250 mm

Spindle Speeds - 25 rpm to 2000 rpm

Spindle Bore - 55 mm

- Equipped with Automatic Taper Turning Attachment.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/R0GTscmOB4Q

Precision Engineering with Versatility

The Triumph 2000 offers versatile machining for various components, supporting both metric and imperial threading. Its removable gap extends capacity, enabling work on larger diameters while maintaining tight tolerances. Industry professionals rely on its robust construction, ensuring durability and accuracy in demanding environments.

Designed for Robust Performance

Equipped with induction hardened bed ways and a dependable back gear arrangement, the lathe provides smoother operation and reduced wear. The 12-speed gear-driven spindle accommodates a wide range of materials and cutting requirements, supporting both high-speed fine work and slow-speed heavy-duty tasks.

Ease of Use and Practical Features

This manual lathe features a clear, easy-to-use gearbox control system, a large 250 mm (10") chuck, and automatic taper turning attachment. Its ergonomic design and clear layout simplify setup and operation, making it suitable for both experienced machinists and those newer to lathe work.

FAQ's of Colchester Triumph 760 mm Length Gap-Bed Lathe Machine:

Q: How can the removable gap benefit my machining operations on the Colchester Triumph Lathe?

A: The removable gap in the Triumph 2000 allows operators to work on pieces with larger diameters that would not fit over the bed, increasing the machine's versatility for a wide range of turning applications.

Q: What materials can be machined using this lathe?

A: Thanks to its robust construction, induction hardened bed, and variable spindle speed range (20 - 2000 rpm), this lathe can handle a variety of materials including steel, aluminum, brass, and hard plastics.

Q: When should I utilize the automatic taper turning attachment provided with the machine?

A: Use the automatic taper turning attachment when you require precise, consistent tapers on your workpieces, such as in the manufacture of shafts or specialized components where manual tapering would be less accurate.

Q: Where do I control the longitudinal and cross feed ranges on this lathe?

A: Both the longitudinal (0.031 to 1.7 mm/rev) and cross feed (0.015 to 0.85 mm/rev) settings are managed via the gearbox controls, located conveniently on the carriage assembly for real-time adjustments during operation.

Q: What process should I follow for switching spindle speeds?

A: To change spindle speeds, simply adjust the gearbox levers as indicated in the machine's manual. Always stop the spindle before changing speeds to avoid unnecessary wear or damage.

Q: Is this lathe suitable for high-precision jobs?

A: Yes, the Colchester Triumph 2000 provides high accuracy thanks to its induction hardened ways, precise lead screw, and rigid construction, making it well-suited for intricate and precision-critical machining tasks.
