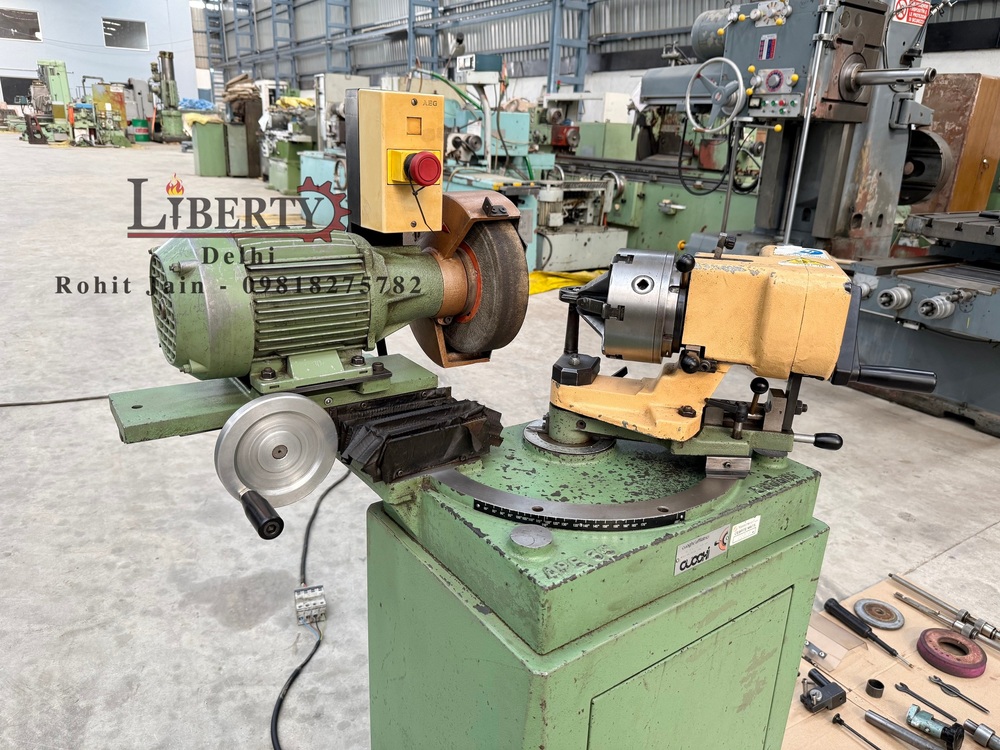

Cuoghi Italy APE-35 Tool Sharpening Machine

Name: Cuoghi Italy APE-35 Tool Sharpening Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cuoghi Italy APE-35 Tool Sharpening Machine Specification

Tool Type
Universal Tool Sharpening Machine

Machine Type
APE-35 Universal Tool Grinder / Sharpening Machine

Hardness
Suitable for HSS and carbide tools

Features
Graduated scale, coolant system, micrometric settings, adjustable head

Shape
Rectangular Base with Rotary Fixture

Operation Type
Manual

Cutting Speed
Variable by operator

Operate Method
Hand wheel operation with rotary fixture

Cutting Accuracy
High precision by micrometric adjustment

Material
Cast Iron Frame, Hardened Steel Components

Length
Up to 300 mm

Cutting Force
Manual adjustable

Cutting Capacity
Twist drills 235 mm

Drill Bits Types
Universal for twist drills, step drills, center drills, countersinks, core drills, taps, reamers

Cutter Type
End mill, Twist drill, Reamers

Diameter
2 mm to 35 mm

Processing Type
Tool Sharpening

Weight
Approx. 120 kg

Motor Power
0.55 kW (approx. 0.75 HP)

Dimensions
Approx. 850 x 710 x 770 mm

Application
Suitable for sharpening drills, end mills, reamers, taps, and other cutting tools

Power Supply
3 Phase, 400V, 50Hz

Tilting Head
Tilts ±90° for versatility

Noise Level
<70 dB(A)

Fixture Movement
Rack and pinion longitudinal movement

Grinding Wheel Size
125 mm diameter

Clamp Type
Universal multi-position clamp

Spindle Speed
4200 RPM

Coolant System
Integrated coolant tank and pump

Cuoghi Italy APE-35 Tool Sharpening Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Cuoghi Italy APE-35 Tool Sharpening Machine

Make - Cuoghi (Italy)

Model - APE-35

Diameter Range - 2 mm to 35 mm

Min. & Max. Drill Angle - 40 degree to 180 degree

Grinding Wheel Size - Diameter 200 mm x 32 mm Width

Chuck Diameter - 130 mm (6-jaw type).

- Complete with spare Cams, Wheels, & many other accessories.

- Operating Manual & Electrical Drawings are available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/2EZiuZWHZ84

Versatile Tool Compatibility

The APE-35 can sharpen a wide variety of cutting tools including twist drills, center drills, step drills, core drills, countersinks, taps, reamers, and end mills. Its universal clamp and graduated scale support accurate alignment for numerous tool shapes and sizes.

High Precision and Ease of Use

This sharpening machine incorporates micrometric adjustments, a rack and pinion longitudinal movement, and a hand wheel operation. These features ensure consistent cutting accuracy and enable efficient tool sharpening even for delicate or complex tasks.

Integrated Coolant System

An integrated coolant tank and pump help to keep both the tools and grinding surfaces at optimal temperatures during operation. This reduces wear, prevents overheating, and prolongs the lifespan of tools and the machine itself.

FAQ's of Cuoghi Italy APE-35 Tool Sharpening Machine:

Q: How does the tilting head feature on the APE-35 Tool Sharpening Machine enhance versatility?

A: The tilting head can be adjusted 90, allowing operators to easily sharpen tools at various angles, making it suitable for diverse cutting profiles and complex geometries.

Q: What types of cutting tools can be sharpened with the APE-35 machine?

A: The APE-35 is designed to sharpen twist drills (2-35 mm diameter), step drills, center drills, countersinks, core drills, end mills, taps, and reamers, accommodating both HSS and carbide materials.

Q: When is coolant used during the tool sharpening process, and how is it supplied?

A: Coolant is used consistently during sharpening via the machine's integrated coolant tank and pump. This prevents overheating and maintains the integrity of both the cutting tool and grinding wheel.

Q: Where is the APE-35 Tool Sharpening Machine typically installed for optimal operation?

A: It is best installed in manufacturing workshops, tool rooms, or maintenance areas where precision tool sharpening is routinely required, maximizing its productivity and convenience.

Q: What is the process for adjusting cutting accuracy on the APE-35?

A: Cutting accuracy is achieved through micrometric adjustment mechanisms and a graduated scale that enable precise control over the sharpening angle and positioning for dependable high-precision results.

Q: How does the universal multi-position clamp contribute to the machine's usability?

A: The universal clamp securely holds a variety of tool shapes and sizes, making it easy to switch between different tool types without additional fixtures, optimizing workflow and enhancing operator efficiency.
