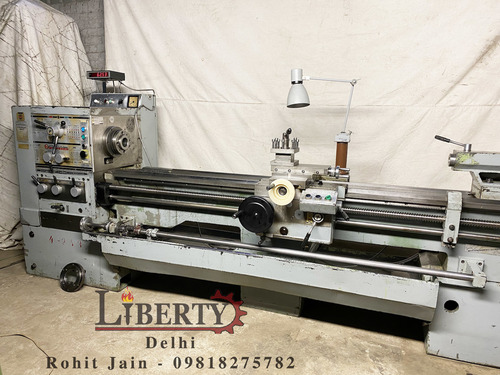

Dalian CDL6251 1500 mm Lathe Machine

Price 35000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Dalian CDL6251 1500 mm Lathe Machine Specification

Product Type
Lathe Machine

Material
Cast Iron

Cutting Thickness
As per tool and job specification

Cutting Speed
141400 rpm (variable)

CNC Or Not
Not CNC (Conventional Lathe)

Automatic Grade
Manual

Control System
Manual

Max. Swing Diameter
500 mm

Voltage
380 V / 415 V, 3 Phase

Weight (kg)
2050 kg

Dimension (L*W*H)
2970 x 1140 x 1328 mm

Capacity
1500 mm between centers

Feature
Heavy-Duty, Hardened Bedways

Color
Standard Machine Grey

Tool Post Type
Four-way

Spindle Bore
52 mm

Tailstock Quill Travel
150 mm

Distance Between Centers
1500 mm

Thread Range (Inch)
248 T.P.I.

Lead Screw Diameter and Pitch
28 mm, 5 mm Pitch

Bed Width
400 mm

Swing Over Cross Slide
300 mm

Main Motor Power
7.5 HP (5.5 kW)

Thread Range (Metric)
0.524 mm

Tailstock Quill Diameter
75 mm

Cross Slide Travel
300 mm

Spindle Speed
18 steps

Chuck Size
315 mm (3-jaw or 4-jaw optional)

Coolant System
Equipped

Dalian CDL6251 1500 mm Lathe Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Dalian CDL6251 1500 mm Lathe Machine

Make - Dalian (China)

Model - CDL6251

Center Height - 255 mm

Max. Length of Job - 1500 mm

Max. Job Diameter over Bed - 510 mm

Max. Job Diameter over Cross-Slide - 330 mm

Spindle Speeds - 16 rpm to 1600 rpm

Bed Width - 300 mm

Spindle Bore - 82 mm

Max. Job Diameter in Gap - 730 mm

Chuck Diameter - 250 mm

- Complete with a 3-Point Steady.

- Equipped with a 2-Axis DRO.

- Equipped with Taper Turning Attachment.

- Equipped with Foot Operated Spindle Brake.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/JjC50MpkHOc

Precision Machining Capabilities

The Dalian CDL6251 lathe delivers precise operations for turning, threading, and facing applications. Its 7.5 HP motor ensures consistent power delivery, while its 1500 mm bed length allows for complex tasks on larger metallic parts. Machinists benefit from both metric and inch threading ranges, making the lathe suitable for diverse industrial requirements.

Versatile and Durable Design

Built with heavy-duty, hardened cast iron bedways, this lathe offers long-term durability and stability. Its four-way tool post enhances your workflow, granting quick tool changes and adaptable functionality. The manual control system gives operators full command over every machining process for specialized results.

Enhanced User Experience

A dedicated coolant system prevents overheating, prolonging tool life and improving surface finish quality. The machines ergonomic design, including an easy-to-access control panel and spacious work area, ensures comfortable and safe usage in any workshop environment.

FAQs of Dalian CDL6251 1500 mm Lathe Machine:

Q: How do I operate the Dalian CDL6251 lathe machine for threading and turning?

A: The Dalian CDL6251 is manually operated and features a four-way tool post. To perform threading or turning, secure your workpiece in the 315 mm chuck, select the appropriate speed from its 18-step spindle, and adjust the lead screw and cross slide for metric or inch threading as needed. Refer to the manual for precise settings.

Q: What are the benefits of the hardened bedways and heavy-duty design in this lathe machine?

A: Hardened bedways and robust cast iron construction ensure high resistance to wear and deformation, contributing to the machines long service life. They maintain accuracy even during intensive machining tasks, making it well-suited for continuous industrial use.

Q: When should the coolant system be used during machining?

A: Activate the coolant system during high-speed turning, threading, or when working with hard materials. It helps prevent tool overheating, improves surface finish, and increases tool lifespan, especially during prolonged or heavy-duty operations.

Q: Where can I utilize the Dalian CDL6251 lathe machine?

A: This lathe is suitable for manufacturing facilities, repair workshops, and educational institutions needing advanced metalworking capabilities. Its robust design accommodates industrial and heavy-duty environments.

Q: What is the process for changing between 3-jaw and 4-jaw chucks?

A: To swap chucks, first ensure the machine is powered off. Then loosen and remove the existing chuck from the spindle nose and securely fix the alternative chuck using recommended procedures outlined in the machines manual. This adaptability enables quick changes for varied workpiece shapes.

Q: How does the manual control system benefit operators compared to CNC lathes?

A: Manual control permits hands-on adjustments during machining, creating greater flexibility for custom jobs and prototyping. Operators maintain complete control over each machining step, allowing for personalized settings tailored to unique workpiece requirements.

Q: What is the maximum workpiece size the CDL6251 can accommodate?

A: The machine supports workpieces up to 1500 mm in length between centers, with a maximum swing diameter of 500 mm and swing over the cross slide of 300 mm, allowing it to handle a wide variety of large components.
