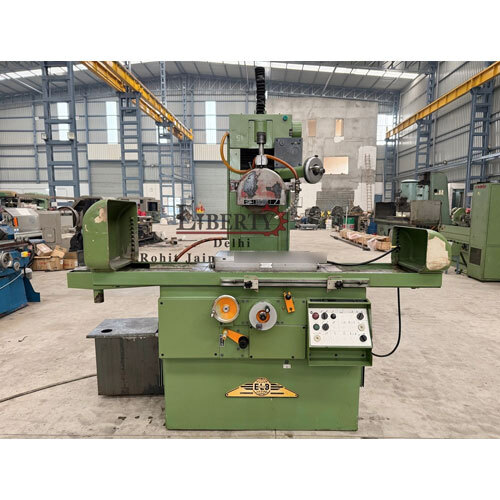

ELB Germany High Precision Surface Grinder Machine

Name: ELB Germany High Precision Surface Grinder Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ELB Germany High Precision Surface Grinder Machine Specification

Rotation
Right/Left

Model
ELB

Product Type
High Precision Surface Grinder Machine

General Use
Surface Grinding of Metal Parts

Material
Cast Iron Body

Type
Hydraulic

Capacity
600 x 300 mm

Weight (kg)
3200 kg

Computerized
No

Automatic
Semi-Automatic

CNC Or Not
NC

Control System
Siemens

Table Size
600 x 300 mm

Table Slide Way
Hardened and Ground

Magnetic Chuck Size
600 x 300 mm

Grinding Wheel Size
350 x 40 x 127 mm

Grinding Wheel Speed
1800 rpm

Grinding Length
600 mm

Floor Space
2200 x 1600 mm

Fuel Tank Capacity
60 Liters

Spindle Speed
1450 rpm

Power
7.5 kW

Voltage
380-415 V

Dimension (L*W*H)
2200 x 1600 x 1800 mm

Feature
High Precision, Low Vibration, Robust Structure

Color
Standard Industrial Grey

Cross Feed
Manual/Automatic

Installation Service
Available on request

Max Workpiece Height
325 mm

Lubrication System
Automatic centralized lubrication

Vertical Feed
Fine Adjustment by Handwheel

Max Workpiece Weight
350 kg

Working Speed
Variable, up to 25 m/min

Surface Finish Accuracy
Up to 0.2 micron

Table Feed
Hydraulic and manual

Wheel Motor Power
7.5 kW

Noise Level
Max 75 dB(A)

Standard Accessories
Diamond dresser, coolant tank, magnetic separator, levelling pads

Coolant System
Integrated with magnetic separator

ELB Germany High Precision Surface Grinder Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About ELB Germany High Precision Surface Grinder Machine

Make - ELB (Germany)

Model - Ambassador 65/3

Grinding Capacity - 300 mm x 650 mm

Longitudinal Travel of Table - 740 mm

Cross Travel of Table - 350 mm

Grinding Wheel Size - Diameter 300 mm x 50 mm Width

Electro-Magnet Size - 300 mm x 600 mm

Height between Magnet Top to Wheel Center - 440 mm

Least Count of Vertical Travels - 1 Micron (0.001 mm)

Grinding Wheel Speeds - 1500 rpm / 3000 rpm

- Micro-Feed Travels on both the Vertical & Cross Movements.

- Equipped with a Top Mounted Wheel Dresser.

- Operating Manual of the machine is available.

- Complete with coolant tank, pump and splash guards etc.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/mQp2cZY44F0

Exceptional Precision and Performance

Achieve superior surface finishes with the ELB High Precision Grinder, capable of producing accuracy up to 0.2 micron. Driven by a robust 7.5 kW wheel motor, this machine offers dependable performance for high-volume metal part production. Its hardened and ground table slide way ensures minimal vibration, while variable working speeds (up to 25 m/min) enable tailored operations for different tasks.

Smart Cooling and Lubrication Solutions

Equipped with an integrated coolant system, complete with a magnetic separator and a generous 60-liter tank, the grinder effectively manages heat and debris during operations. The automatic centralized lubrication safeguards all critical moving parts, minimizing maintenance and extending the system's service life, even under demanding workloads.

User-Friendly Operation and Robust Build

Operators benefit from both manual and automatic control options, including fine vertical adjustment by handwheel for intricate jobs. The semi-automatic setup and Siemens NC control system allow for easy programming. Constructed with a sturdy cast iron body and low noise output (maximum 75 dB(A)), this machine promises reliable, safe, and ergonomic use in any industrial setting.

FAQ's of ELB Germany High Precision Surface Grinder Machine:

Q: How does the integrated coolant system with magnetic separator benefit grinding operations?

A: The coolant system keeps the grinding area at optimal temperature and flushes away metal particles, preventing overheating and damage. The magnetic separator ensures fine metal debris is efficiently removed, which enhances surface finish quality and prolongs both grinding wheel and machine lifespan.

Q: What types of workpieces can the ELB High Precision Surface Grinder accommodate?

A: This machine can handle metal parts up to 325 mm in height and 350 kg in weight, making it suitable for a wide variety of industrial surface grinding applications. Its table and magnetic chuck size of 600 x 300 mm support numerous component shapes and dimensions.

Q: When should I opt for manual versus automatic cross feed operation?

A: Manual cross feed is ideal for precise, controlled grinding in custom jobs or finishing touches, while the automatic mode saves time and ensures consistency during repetitive or bulk processes, making it efficient for production environments.

Q: Where should the ELB Surface Grinder be installed for best performance?

A: Install the machine on a solid, level foundation in a well-ventilated industrial workshop. Leveling pads (included as a standard accessory) ensure correct machine setup and alignment, which are critical for achieving top precision and minimizing vibration.

Q: What is the process for using the vertical fine adjustment by handwheel?

A: The handwheel allows operators to make fine incremental adjustments to the grinding head's vertical position, enabling precise depth control for enhanced accuracy during surface finishing or when working with sensitive tolerances.

Q: How does the automatic centralized lubrication system work?

A: This feature automatically dispenses the correct amount of lubricant to all critical moving parts at regular intervals, reducing wear, ensuring smooth movement, and increasing the overall service life of the grinder.

Q: What are the primary benefits of using this high precision grinder?

A: Key benefits include exceptional surface finish accuracy, reduced operator fatigue thanks to semi-automatic controls, robust construction for low vibration, efficient cooling and chip removal, and long-term reliability with minimal maintenance requirements.
