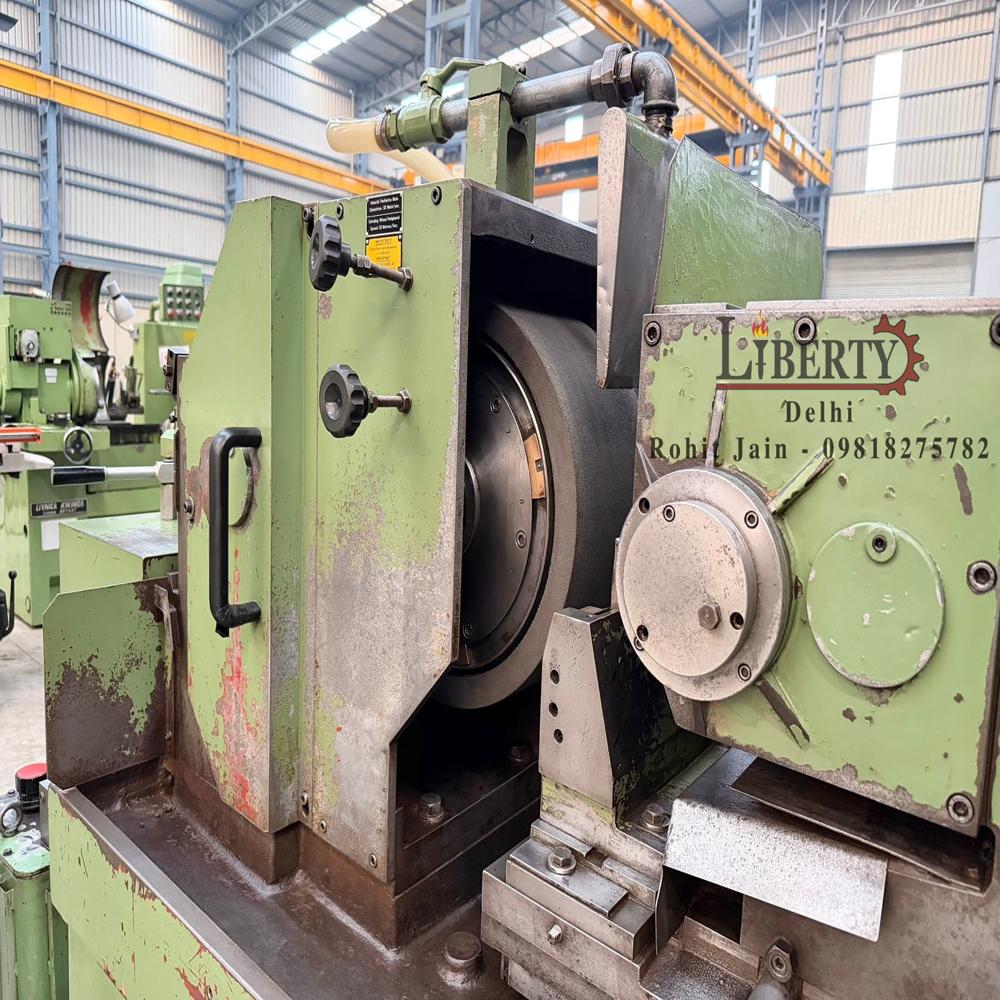

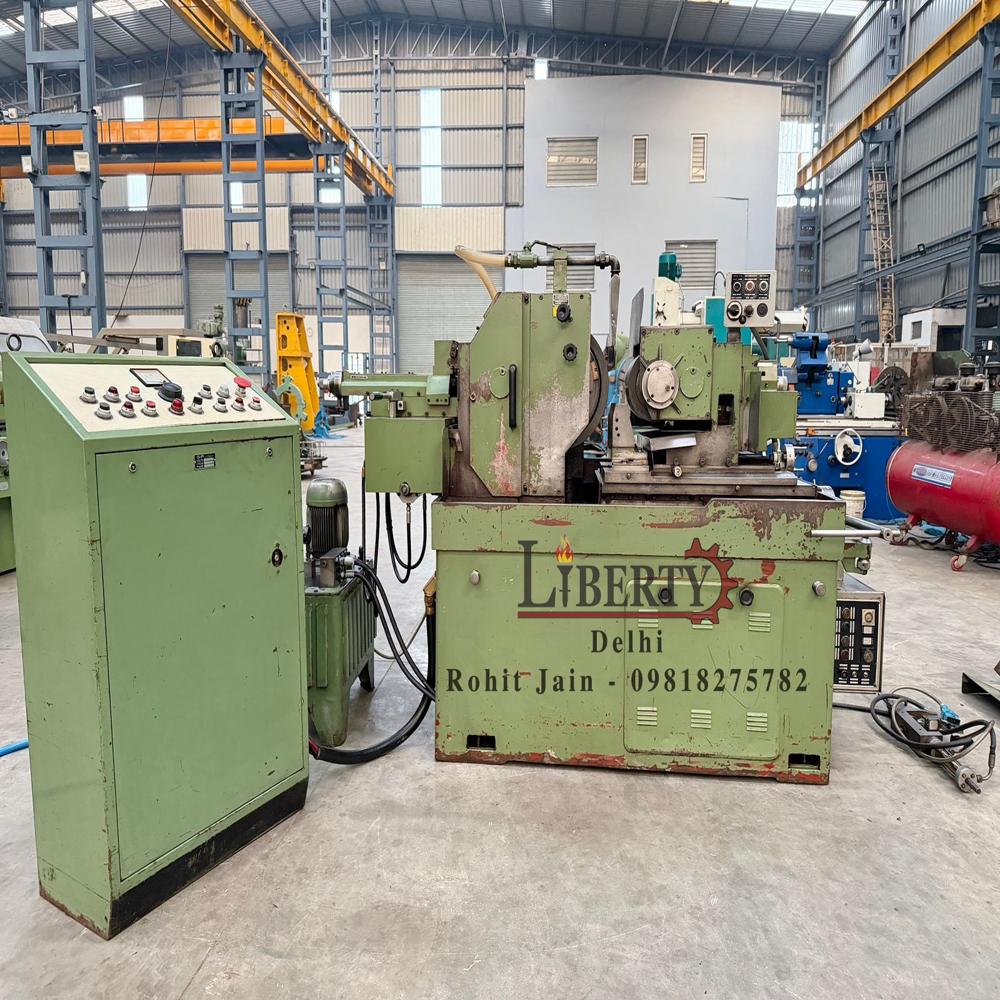

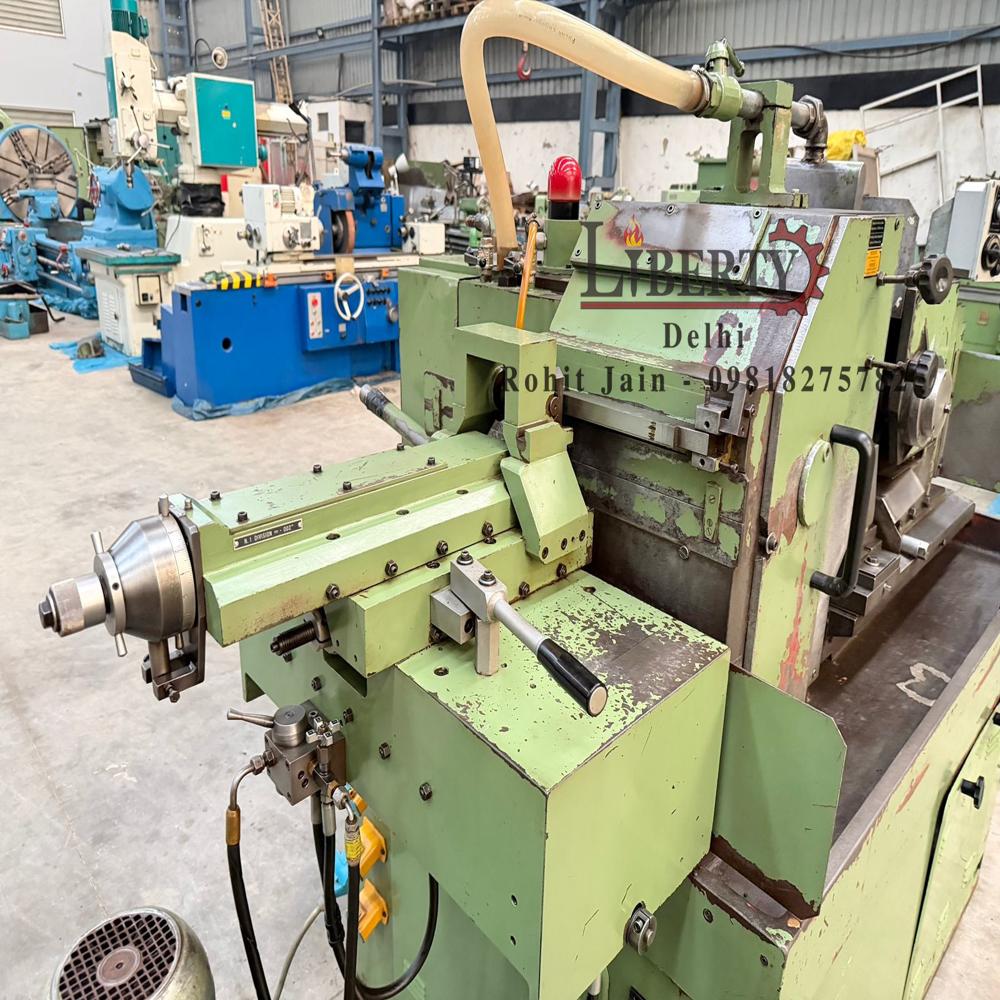

Ghiringhelli Italy Fully-Automatic Centerless Grinding Machine

Name: Ghiringhelli Italy Fully-Automatic Centerless Grinding Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Ghiringhelli Italy Fully-Automatic Centerless Grinding Machine Specification

Rotation
Variable

Model
Ghiringhelli Italy FA Series

Product Type
Fully-Automatic Centerless Grinding Machine

General Use
Ghiringhelli (Italy) make Centerless Grinding Machine in excellent working condition. The model of the machine is 200 and it is a Fully Auto-Cycle type Machine having features like Automatic Rapid Travels, Automatic Feed Travels, Spark-Out etc. The machine can be used in Automatic Mode, Semi-Automatic Mode as well as in Manual Mode. The technical details are as follows -

Material
High-grade Cast Iron & Alloy Steel

Type
Centerless Grinding Machine

Capacity
Up to 100 mm Diameter

Weight (kg)
3500 kg

Computerized
Yes

Automatic
Fully Automatic

CNC Or Not
CNC

Control System
PLC Based

Table Size
Standard 600 mm x 300 mm

Table Slide Way
Linear

Magnetic Chuck Size
Standard 200 mm

Grinding Wheel Size
500 mm x 250 mm x 203 mm

Grinding Wheel Speed
30 m/s

Grinding Length
200 mm

Floor Space
2200 mm x 1500 mm

Fuel Tank Capacity
70 L

Spindle Speed
1500 RPM

Power
13 kW

Voltage
400V/3Ph/50Hz

Dimension (L*W*H)
2200 mm x 1500 mm x 1800 mm

Feature
High Productivity, Low Maintenance, Consistent Accuracy, Hydraulic System

Color
Industrial Grey

Loading/Unloading
Robotic arm and infeed/outfeed automation

Min Workpiece Diameter
3 mm

Lubrication System
Centralized automatic lubrication

Grinding Accuracy
0.001 mm

Noise Level
<75 dB

Working Speed
0.5 - 7 m/min

Hydraulic System
Automatic lubrication with overload protection

Coolant System
Integrated high-efficiency system

Max Workpiece Diameter
100 mm

Operator Interface
7" Touch Screen Panel

Safety Features
Emergency stop, Interlock guards, Overload protection

About Ghiringhelli Italy Fully-Automatic Centerless Grinding Machine

Make - Ghiringhelli (Italy)

Model - 200

Grinding Wheel Diameter - 500 mm

Wheel Width - 200 mm

Control Wheel Diameter - 300 mm

Control Wheel Feed Angle - +5 degree to -5 degree

Control Wheel Slide Swivel Angle - +5 degree to -5 degree (for Taper Jobs)

Main Spindle Motor - 15 kW

- Feature of Fully Automatic & Semi-Automatic In-Feed Grinding Cycles.

- The Machine can work in Manual Mode as well.

- Equipped with Hydraulic Wheel Dressers.

- Control Wheel can be titled for Through-Feed Grinding.

- Control Wheel can be rotated for Taper Grinding Operations.

- Infinitely Variable Speeds of the Control Wheel.

- Complete with a Hydraulic type Automatic Job Ejector Unit.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/0joWdvQs5XA

Advanced Precision and Versatility

The Ghiringhelli FA Series excels in delivering grinding accuracy as fine as 0.001 mm, catering to a broad range of diameters from 3 mm up to 100 mm. Whether you operate the machine in automatic, semi-automatic, or manual modes, it guarantees superior results for intricate and high-volume production needs.

Integrated Automation for Efficiency

The centerless grinding machine features robotic arms for loading and unloading, boosting productivity and minimizing manual intervention. Its automated lubrication and overload protection systems reduce maintenance requirements, thereby ensuring smooth and reliable long-term operation.

Operator-Friendly and Safe

Equipped with a large 7-inch touch screen interface, the Ghiringhelli FA Series provides intuitive control and monitoring. Advanced safety mechanisms, including interlock guards and emergency stops, secure the workplace for operators, ensuring compliance and peace of mind.

FAQ's of Ghiringhelli Italy Fully-Automatic Centerless Grinding Machine:

Q: How does the Ghiringhelli FA Series ensure high grinding accuracy?

A: The Ghiringhelli Centerless Grinding Machine is engineered for exceptional grinding precision, achieving accuracies up to 0.001 mm thanks to its CNC control, robust mechanical design, and automatic feed systems. This ensures repeatable, high-quality results in production environments.

Q: What types of workpieces can be processed with this machine?

A: This machine is designed to handle cylindrical workpieces with diameters ranging from 3 mm to 100 mm, making it suitable for automotive parts, shafts, and similar components that require centerless grinding.

Q: When is it beneficial to use the fully automatic mode over manual operation?

A: The fully automatic mode is ideal for high-volume, repetitive production where operator involvement should be minimized. For prototype work, setup changes, or special jobs, semi-automatic or manual modes offer greater flexibility and control.

Q: Where can this machine be installed for optimal performance?

A: The Ghiringhelli FA Series should be installed on a stable, vibration-free floor space of at least 2200 mm x 1500 mm x 1800 mm with adequate access for robotic arm movement, electrical connections (400V/3Ph/50Hz), and ventilation for efficient operation.

Q: What is the typical process workflow for this centerless grinder?

A: The process begins with robotic loading of workpieces, followed by precise centerless grinding using adjustable wheel speeds (up to 30 m/s) and programmed feed rates (0.5-7 m/min). After grinding, parts are automatically unloaded, reducing manual intervention and maximizing throughput.

Q: How does the integrated coolant and lubrication system benefit operations?

A: The machine's high-efficiency coolant system and centralized automatic lubrication minimize wear, control thermal expansion, enhance grinding quality, and reduce routine maintenance, ensuring longevity and continuous productivity.

Q: What safety features are included to protect operators?

A: For operator safety, the machine is equipped with emergency stop buttons, interlock safety guards, an overload protection system, and a noise level below 75 dB, ensuring a secure work environment.
