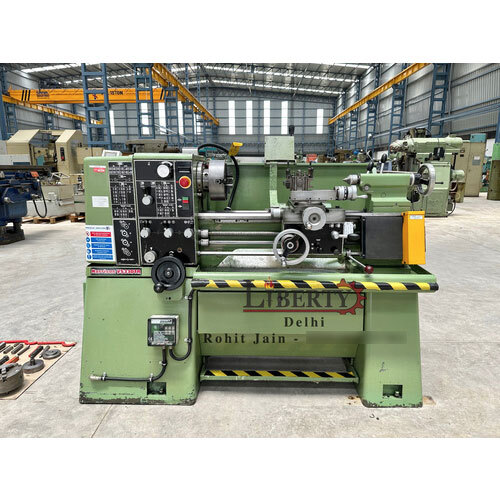

Harrison England Precision Lathe Machine

Name: Harrison England Precision Lathe Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Harrison England Precision Lathe Machine Specification

Product Type
Precision Lathe Machine

Material
Cast Iron Body, Hardened Steel Components

Cutting Thickness
Up to 10 mm (Depending on tool and material)

Cutting Speed
Variable, up to 2000 RPM

CNC Or Not
No, Conventional Lathe

Automatic Grade
Manual

Control System
Manual Gear & Lever Operation

Max. Swing Diameter
330 mm

Voltage
415 V (Three Phase)

Weight (kg)
Approx 900 kg

Dimension (L*W*H)
1700 mm x 950 mm x 1500 mm (Approx)

Capacity
Medium Duty

Feature
Precision Grinding Bed, Sturdy Construction, Smooth Operation

Color
Grey / Blue

Bed Type
Hardened and Ground (Precision Bedways)

Chuck Size
200 mm (3 or 4-jaw optional)

Headstock Spindle Taper
MT 4

Distance Between Centers
1000 mm

Surface Finish
Powder Coated

Condition
Used / Refurbished

Carriage Movement
Manual/Automatic (Leadscrew-driven)

Number of Spindle Speeds
8 or more (Variable)

Power Requirement
2 HP Motor

Spindle Bore
38 mm

Tailstock Quill Taper
MT 3

Tailstock
Adjustable, Hardened Quill

Harrison England Precision Lathe Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Harrison England Precision Lathe Machine

Make - Harrison (England)

Model - VS-330-TR

Center Height - 165 mm

Max. Length of Job - 635 mm

Max. Job Diameter over Bed - 330 mm

Max. Job Diameter over Cross-Slide - 210 mm

4-Jaw Chuck Diameter - 205 mm

3-Jaw Chuck Diameter - 160 mm

Bed Width - 205 mm

Spindle Speeds - 35 rpm to 3000 rpm

Spindle Bore - 44 mm

- Complete with Follow Rest, spare Chucks, Jaws etc.

- Complete with many accessories like tools, centers etc.

- Complete with Coolant Tank and Pump.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/EwumTZ75VGQ

Engineered for Accuracy and Strength

Constructed from a sturdy cast iron body with hardened steel components, the Harrison England Precision Lathe delivers precision and stability during extended use. Its bedways are meticulously ground and hardened, ensuring minimal wear and exceptional accuracy over time. Variable spindle speeds and customizable chuck options perfectly suit the demands of medium-duty, high-precision tasks.

Versatile & User-Friendly Design

This lathe accommodates a range of metalworking operations with a distance between centers of 1000 mm and a maximum swing diameter of 330 mm. Its adjustable tailstock with a hardened quill and manual or automatic carriage movement enable both beginners and experienced operators to handle complex turning, facing, and boring tasks smoothly and safely.

Ideal for Multiple Industrial Applications

Exported and supplied worldwide from the United Kingdom, the Harrison England Precision Lathe is favored by manufacturers, repair shops, and educational institutions for its reliability, flexibility, and consistent finish. Its three-phase 2 HP motor, manual controls, and durable construction make it a trusted choice for professional and industrial usage.

FAQ's of Harrison England Precision Lathe Machine:

Q: How can the Harrison England Precision Lathe Machine improve machining accuracy?

A: The lathe features a hardened and ground bed with precision bedways, minimizing wear and ensuring consistently accurate results even after prolonged use. Its sturdy construction and expertly matched components also contribute to stable and precise operations.

Q: What types of workpieces and applications is this lathe suitable for?

A: With a distance between centers of 1000 mm, maximum swing diameter of 330 mm, and variable spindle speeds reaching up to 2000 RPM, this lathe is ideal for turning, facing, and boring medium-sized metallic parts for manufacturing, repair, or educational projects.

Q: When should the lathe's automatic carriage movement be used instead of manual?

A: The automatic leadscrew-driven carriage is recommended for repetitive or long production runs, ensuring uniform feed rates and higher efficiency. Manual operation is more suitable for custom, intricate, or single-piece tasks that require operator control and flexibility.

Q: Where is the Harrison England Precision Lathe typically used?

A: This machine is widely used in machine shops, manufacturing plants, educational institutions, and maintenance facilities in the United Kingdom and globally, due to its medium-duty capacity and precise performance.

Q: What is the process of adjusting the tailstock and its benefits?

A: Adjustment is performed via the tailstock's manual handwheel, allowing accurate alignment for drilling, reaming, or supporting long workpieces. Its hardened quill ensures lasting accuracy and smooth movement, enhancing job quality and tool longevity.

Q: How does the robust cast iron body and powder-coated finish benefit the lathe?

A: The cast iron body ensures vibration damping and structural rigidity, vital for precision machining. The powder-coated finish provides excellent corrosion resistance, extending the machine's operational lifespan and maintaining its professional appearance.
