Hofmann Germany Heavy-Duty Universal Dividing Head

Name: Hofmann Germany Heavy-Duty Universal Dividing Head
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Hofmann Germany Heavy-Duty Universal Dividing Head Specification

Drive
Manual

Accuracy
High precision mechanical indexing

Model No
Not specified in image

Control System
Manual, mechanical indexing

Production Capacity
(Duplicate) N/A

Noise Level
Minimal, manual operation

Operating Temperature
Room temperature

Machine Type
Universal Dividing Head

Lubricating System
Manual lubrication as required

Features
Heavy-duty construction, hardened precision gears, adjustable indexing, comes with tailstock and index plates

Frame Type
Rigid Cast Iron

Product Type
Universal Dividing Head

Technology
Conventional Mechanical

Power Source
Manual

Operating Type
Manual

Surface Treatment
Precision ground and hardened surfaces

Dimension (L*W*H)
Approximately 600 mm x 400 mm x 350 mm (with tailstock)

Weight (kg)
Approx. 70-90 kg (including tailstock, estimated)

Color
Metallic/Silver

Usage & Applications
Gear cutting, precision indexing, milling operations, engineering workshops

Material Compatibility
Steel, Cast Iron, Non-ferrous metals

Indexing Plates
Supplied with Multiple Plates for Various Indexing Angles

Application Industry
Tool Room, Manufacturing, Precision Engineering

Mounting
Base slots for firm attachment to Milling Table

Maintenance
Periodic Cleaning and Oiling Recommended

Chuck Size
Approx. 200 mm 3-jaw Chuck (estimated visually)

Tailstock Included
Yes

Centre Height
Approx. 180 - 200 mm

Swivel Range
0 to 90 (Universal adjustment possible)

Hofmann Germany Heavy-Duty Universal Dividing Head Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
7 Days

About Hofmann Germany Heavy-Duty Universal Dividing Head

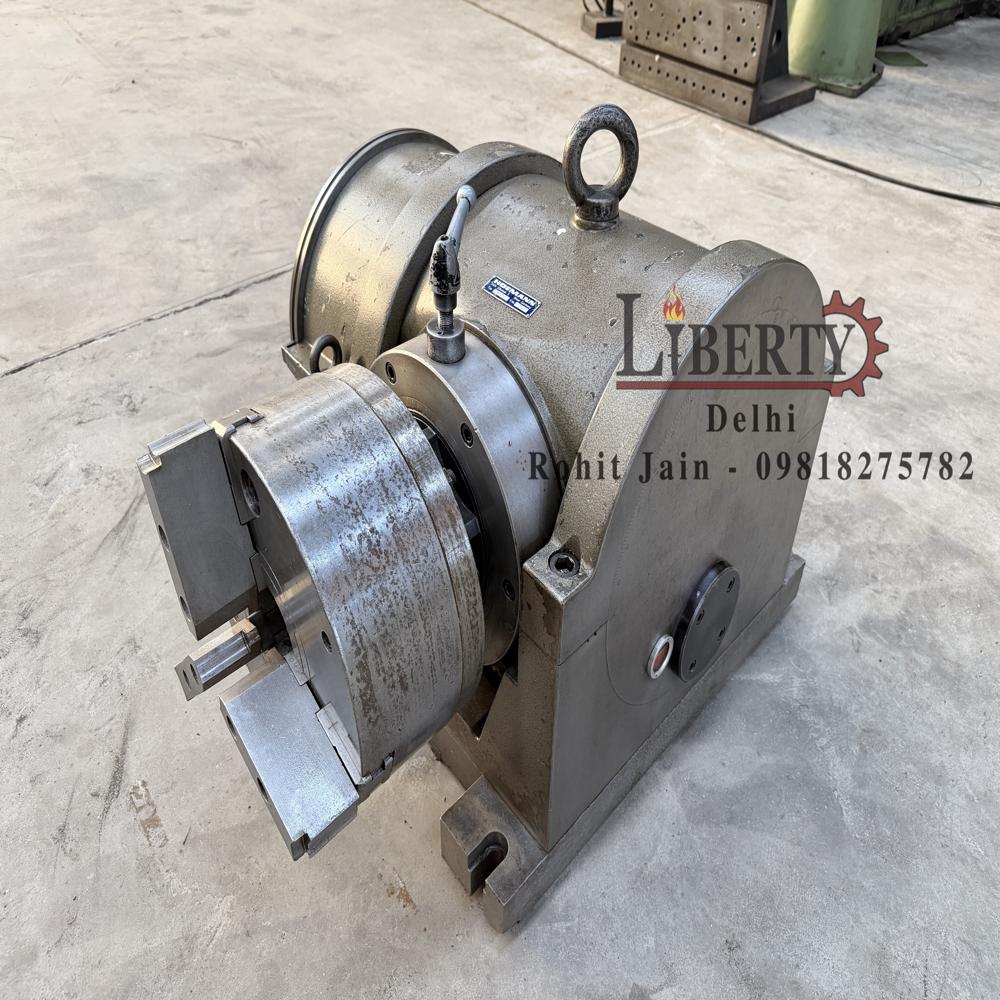

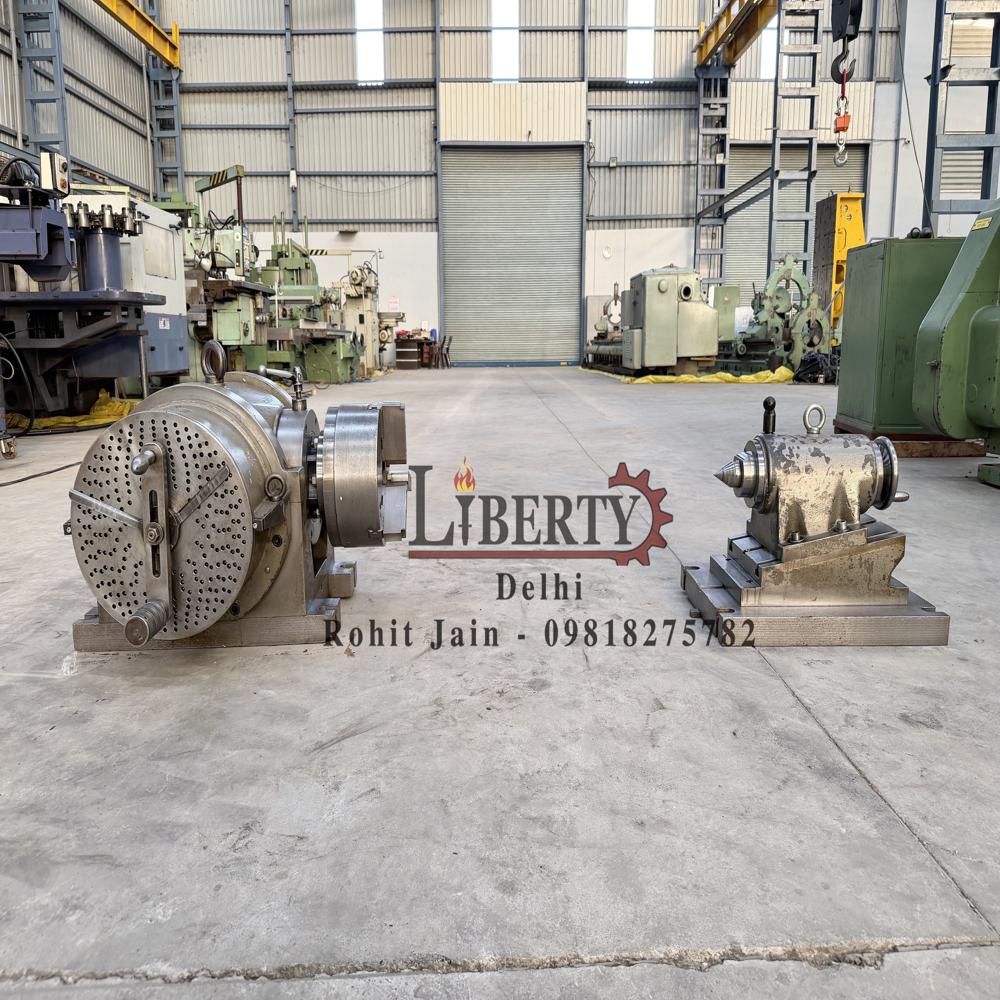

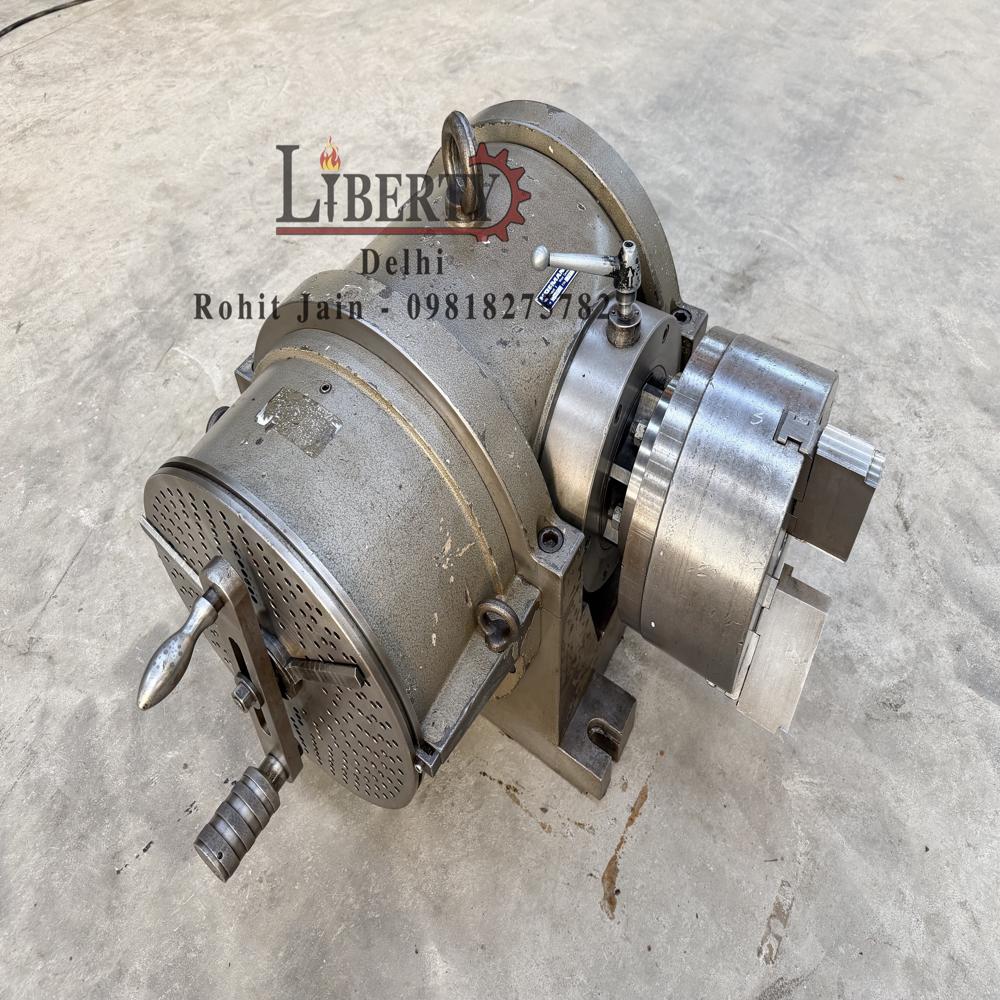

Hofmann (Germany) make Heavy-Duty Universal Dividing Head in excellent working condition. The Center Height is 310 mm and it is complete with its Tail-Stock, 2 x Dividing Plates and spare Jaws for the Chuck. It is a very Heavy Duty Tilting type Dividing Head with a combined total weight of 1.05 Tons (approximately). The technical details are as follows -

Make - Hofmann (Germany)

Model - HTH-250S

Center Height - 310 mm

Chuck Diameter - 315 mm

Spindle Bore - 100 mm

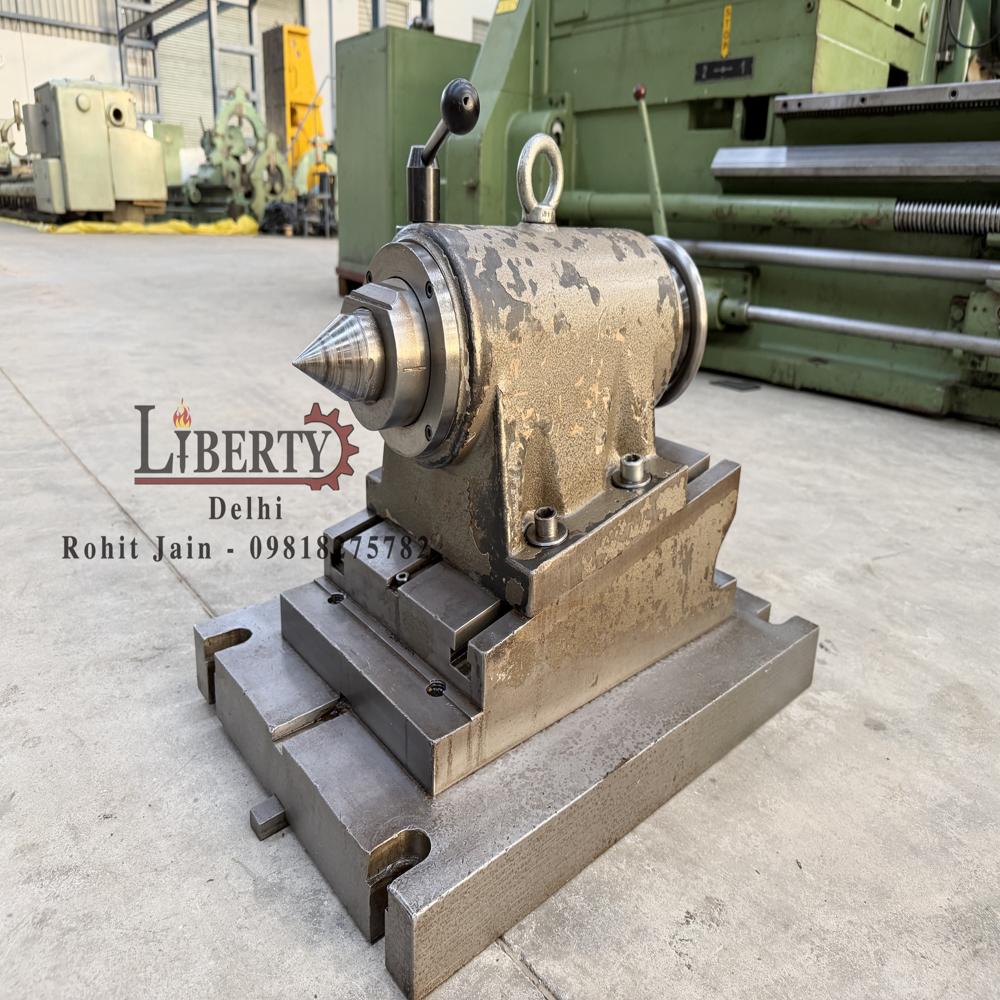

Spindle Taper of Tail-Stock - MT-6

Angle of Tilting (Vertical Axis) - 0 degree to 90 degree

One Rotation of Handle - 9 degree Rotation of Chuck

Total Weight - 1.05 tons (Approximately)

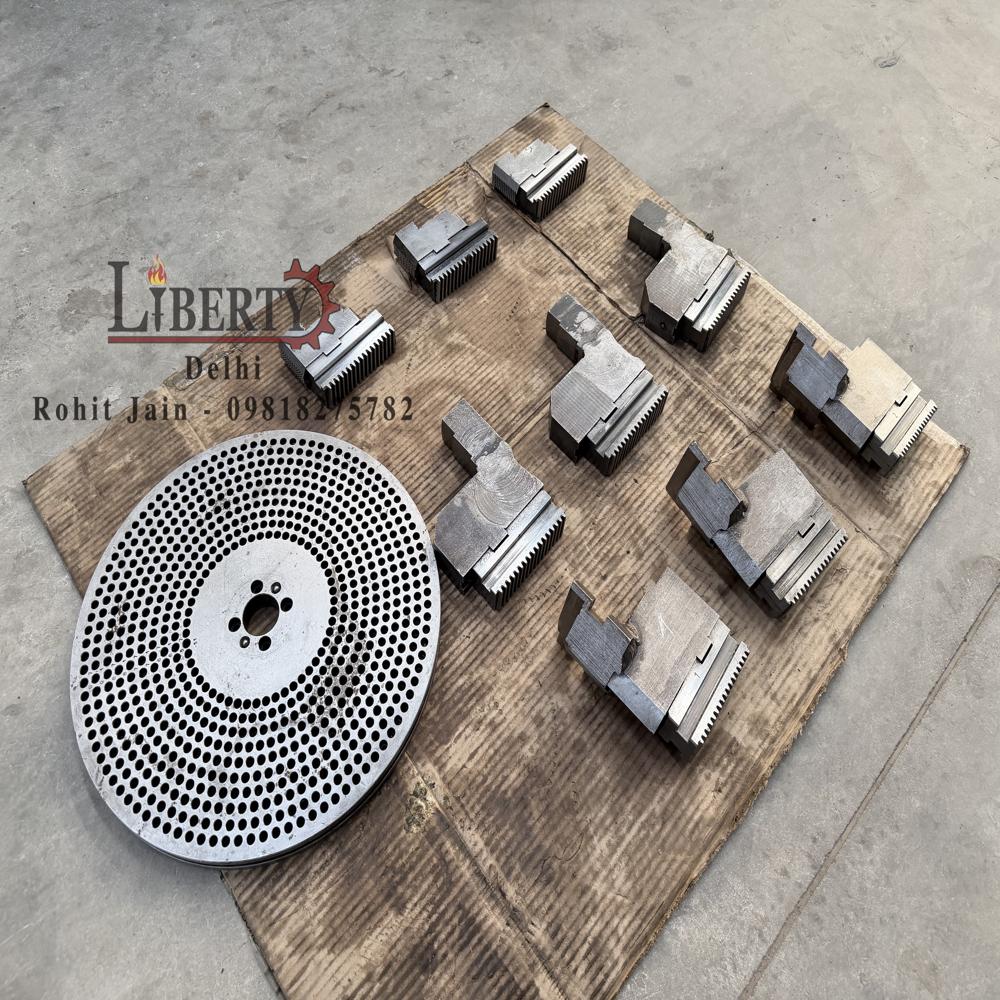

- Complete with its Tail-Stock and 2 x Dividing Plates.

- Complete with many spare Jaws of the Chuck.

- Dividing Head is in excellent working condition.

Video of The Machine -

https://youtu.be/7shgWflPVas

Versatile Indexing for Precision Tasks

With multiple included index plates and an adjustable headstock that tilts up to 90, the Hofmann Universal Dividing Head allows machinists to handle gear cutting, precision indexing, and complex milling with confidence. The manual, high-precision mechanical indexing makes it an indispensable tool for both standard and custom milling operations.

Built for Reliability and Durability

Crafted from rigid cast iron and treated with hardened, anti-rust surfaces, this dividing head ensures long-term performance in busy workshop environments. Its solid construction and easy manual lubrication system help maintain smooth operation and extend service life, making it suitable for heavy-duty, repeat-use scenarios.

Comprehensive Set for Enhanced Usability

This unit comes complete with a 160 mm 3-jaw chuck, several index plates, a heavy-duty tailstock, and an estimated spindle bore of 35-40 mm, making it compatible with a variety of workshop setups. The manual spindle lock and likely Morse taper spindle (MT3/MT4) add further flexibility, convenience, and safety to your operations.

FAQ's of Hofmann Germany Heavy-Duty Universal Dividing Head:

Q: How is the Hofmann Universal Dividing Head typically used in a milling workshop?

A: The Hofmann Universal Dividing Head is used to accurately rotate workpieces to specific angles or divisions during milling, gear cutting, and precision machining operations. Its versatility allows it to perform standard and angular indexing seamlessly.

Q: What is the process for changing index plates on this dividing head?

A: To change index plates, simply release the retaining screws, remove the current plate, and fit the required plate for your operation. Ensuring the dividing head is locked and stationary while changing plates enhances both safety and accuracy.

Q: When should the manual lubrication be performed?

A: Manual lubrication should be carried out at regular intervals, depending on the frequency and intensity of use. Keeping the moving parts well-lubricated ensures optimal smoothness, reduces wear, and prolongs the device's operational lifespan.

Q: Where can this dividing head be installed or used?

A: The Hofmann Universal Dividing Head is designed for milling machines and is suitable for engineering workshops, machine shops, and manufacturing environments where high-precision mechanical indexing is required.

Q: What are the main benefits of using this dividing head?

A: Key benefits include high precision in indexing, flexibility with multiple index plates, robust heavy-duty construction, compatibility with a range of milling operations, and the inclusion of a tailstock for enhanced workpiece support.

Q: How does the tilting headstock enhance machining capabilities?

A: The headstock tilts up to 90, allowing for angular indexing and machining at various angles. This expands the range of operations achievable, including complex gear cutting or spiral milling tasks.
