Kingsland England Multi-80 Hydraulic Ironworker Machine

Send Inquiry

Request To Call Back

Kingsland England Multi-80 Hydraulic Ironworker Machine

Name: Kingsland England Multi-80 Hydraulic Ironworker Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Kingsland England Multi-80 Hydraulic Ironworker Machine Specification

Cooling System
Air/Oil Cooling

Production Capacity
Varies by operation; suitable for continuous industrial use

Power Rating
7.5 kW

Accuracy
High Precision

Features
Multi-station operation, Quick tool change, Robust frame, Minimal maintenance required

Drive
Hydraulic

Model No
Multi-80

Operating Temperature
5C to 45C

Noise Level
Low

Machine Type
Ironworker

Motor Power
7.5 kW

Control System
Electrical Control Panel

Voltage
415 Volt

Frequency
50 Hz

Lubricating System
Centralized lubrication

Frame Type
Rigid Mono-Block Frame

Connectivity Options
Footswitch Operation

Product Type
Ironworker Machine

Technology
Hydraulic Technology

Power Source
Hydraulic

Operating Type
Semi Automatic

Power
7.5 kW

Pressure
80 Ton

Surface Treatment
Paint Coated

Dimension (L*W*H)
1970 mm x 880 mm x 1950 mm

Weight (kg)
1950 Kg

Color
Grey & Yellow

Usage & Applications
Steel fabrication, Punching, Shearing, Notching, Angle & Bar Cutting

Standard Accessories
Punch & Die Set, Worktable, Operation Manual

Portability
Stationary

Optional Accessories
Special tools, Angle notching attachment, LED Worklight

Throat Depth
355 mm

Max Shearing Capacity (Angle)
120 mm x 12 mm

Applicable Materials
Mild Steel, Stainless Steel, Aluminum

Operation Stations
5

Installation Requirement
Level floor, 3-phase power supply

Max Notching Capacity
80 mm x 12 mm

Max Shearing Capacity (Flat Bar)
300 mm x 15 mm

Max Punching Capacity
25 mm (diameter) x 18 mm (thickness)

Hydraulic Oil Volume
60 Liters

Foot Pedal Control
Standard

Working Speed
Up to 30 strokes per minute (depending on process)

Safety Features
Emergency stop, Safety guards, Two-hand operation

Oil Tank Capacity
60 Liters

Simplicity of Tooling Change
Quick release system for swift tool swaps

Kingsland England Multi-80 Hydraulic Ironworker Machine Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5-7 Days

About Kingsland England Multi-80 Hydraulic Ironworker Machine

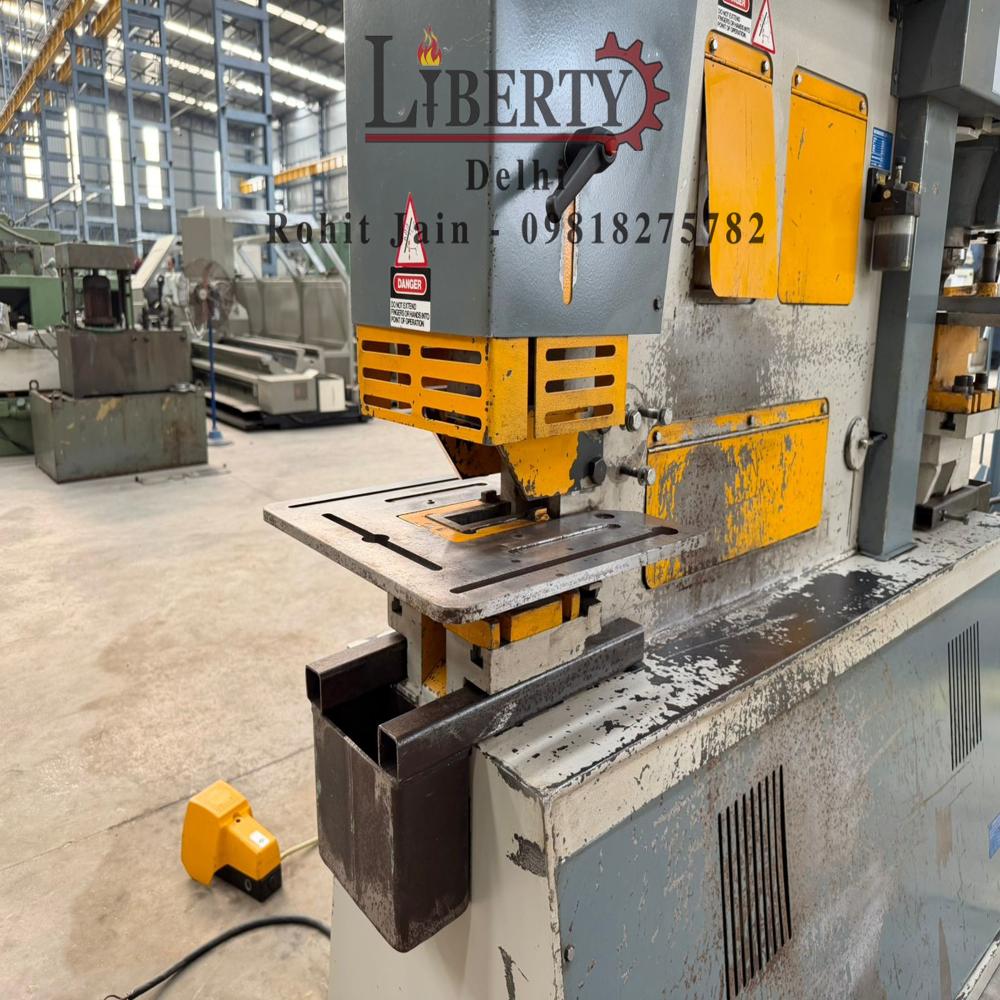

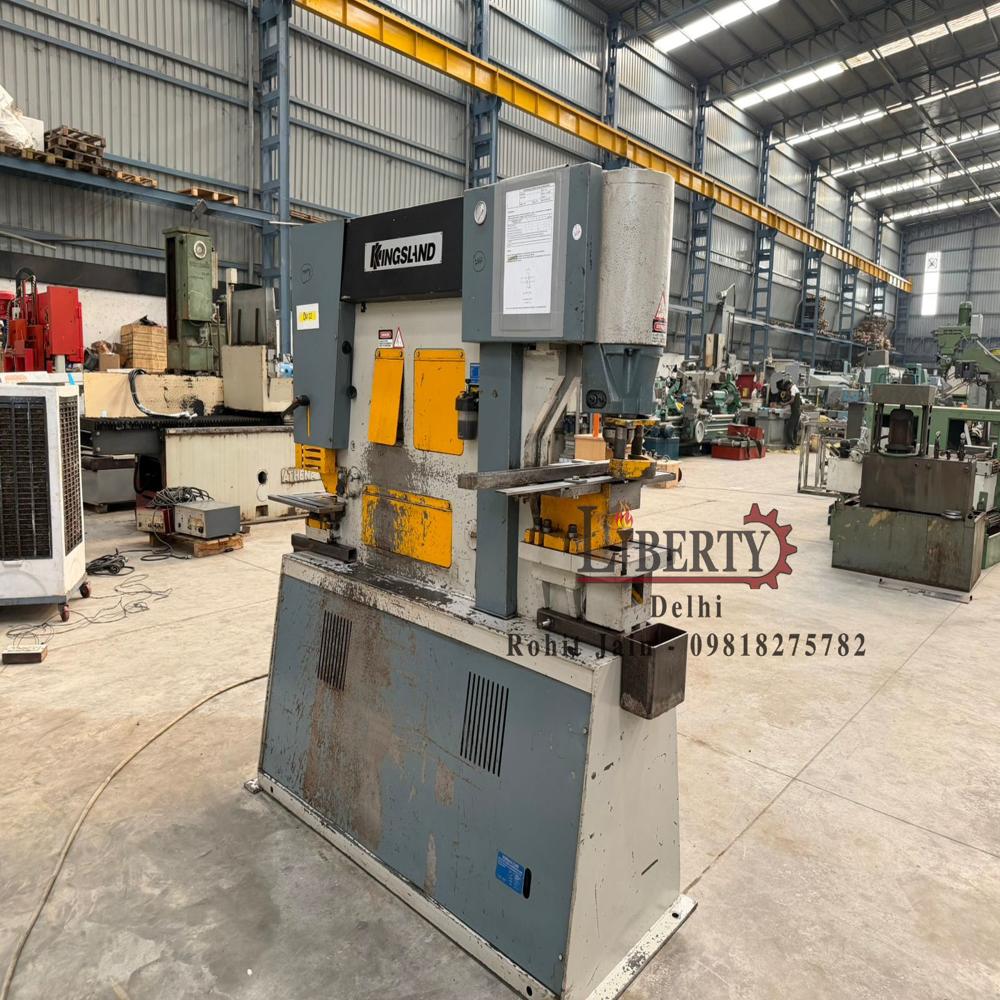

Hydraulic Ironworker Machine made by Kingsland (England), Model Multi 80, available in excellent working condition. It is a versatile fabrication machine suitable for Section Cutting, Flat Bar Shearing, Punching, Notching, Angle Cutting and other fabrication applications. The machine has a Round Bar Cutting Capacity of 45 mm and an Angle Cutting Capacity of 150 mm x 150 mm x 13 mm. The machine is complete with accessories and tooling. The technical details are as follows -

Make - Kingsland (England)

Model - Multi 80

Round Bar Cutting Capacity - 45 mm

Square Bar Cutting Capacity - 45 mm x 45 mm

Angle Cutting Capacity - 150 mm x 150 mm x 13 mm

Flat Bar Shearing Capacity - 300 mm x 20 mm

Punching Capacity - 28 mm x 20 mm

Rectangular Notching Capacity - 90 mm x 45 mm x 10 mm

Machine Weight - 1.90 Tons (Approx.)

Type - Hydraulic

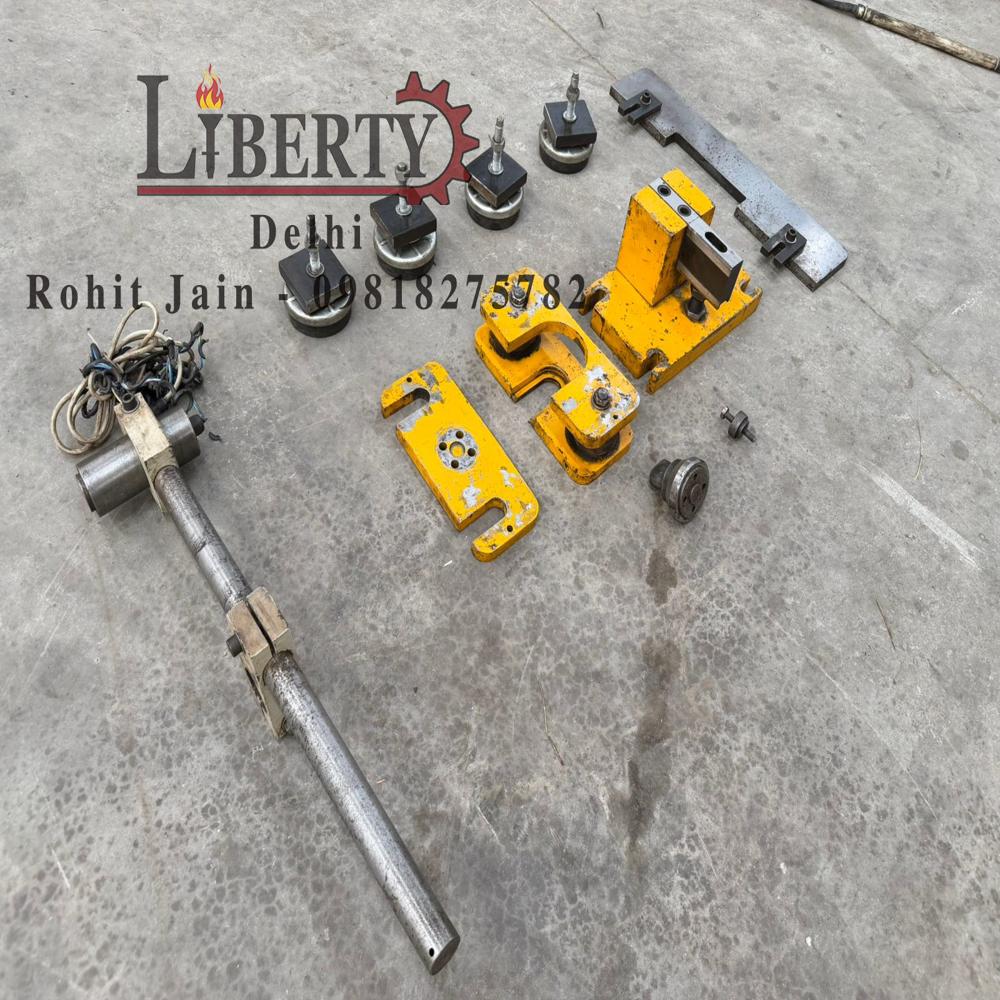

- Complete with accessories.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/P1XBoLqO06c

Versatile Multi-Station Operation

Equipped with five independent workstations, the Multi-80 Hydraulic Ironworker enables seamless transitions between punching, shearing, notching, and angle cutting operations. This versatility streamlines steel fabrication workflows, reducing downtime and boosting productivity for fabricators handling diverse materials.

Advanced Safety & User-Friendly Controls

Safety is paramount with the Multi-80, featuring emergency stops, sturdy safety guards, two-hand operation, and foot pedal control for operational ease. The electrical control panel ensures intuitive machine management, while the quick release tooling system lets operators swap tools rapidly and securely.

Durable and Efficient Engineering

Built with a rigid mono-block frame and finished with a high-quality paint coating, the Multi-80 is designed for long-term reliability in demanding industrial environments. Its centralized lubrication, air/oil cooling, and low-noise operation contribute to minimal maintenance and extended machine life.

FAQ's of Kingsland England Multi-80 Hydraulic Ironworker Machine:

Q: How does the quick release tooling system improve workflow efficiency?

A: The quick release tooling system on the Multi-80 allows operators to swiftly swap out tools between operations. This minimizes downtime, boosts productivity, and enables fast adaptation to different fabrication needs without complex adjustments.

Q: What materials can be processed with the Kingsland Multi-80 Ironworker?

A: The Multi-80 Ironworker can efficiently process mild steel, stainless steel, and aluminum, making it ideal for a range of steel fabrication, construction, and manufacturing applications.

Q: When should the hydraulic oil be checked and replaced?

A: Hydraulic oil levels should be checked regularly as part of routine maintenance. The 60-liter oil tank should be refilled or changed according to the operator's manual, generally after extensive use or if the oil shows signs of contamination.

Q: Where is the best location to install the Multi-80 Ironworker?

A: The machine should be installed on a level floor in a well-ventilated industrial setting with access to a 3-phase, 415 Volt, 50 Hz power supply, ensuring stability and optimal performance.

Q: What are the benefits of the centralized lubrication system?

A: Centralized lubrication ensures consistent delivery of oil to all critical moving parts, reducing wear, lowering maintenance frequency, and helping to maintain optimal operating conditions for the lifespan of the machine.

Q: How is operator safety addressed during machine use?

A: Operator safety is maximized with integrated emergency stops, protective guards around moving parts, two-hand operation controls, and a foot pedal to reduce hand exposure during workflows.

Q: What type of industries or tasks is the Multi-80 Ironworker best suited for?

A: The Multi-80 is ideal for metal fabrication shops, industrial manufacturers, and construction firms needing reliable, precise punching, shearing, notching, and angle/bar cutting on a continuous basis.
