Induma Italy NL-63 Universal Milling Machine

Name: Induma Italy NL-63 Universal Milling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Induma Italy NL-63 Universal Milling Machine Specification

Model
NL-63

Rotation
Horizontal and Vertical Spindle

Product Type
Universal Milling Machine

General Use

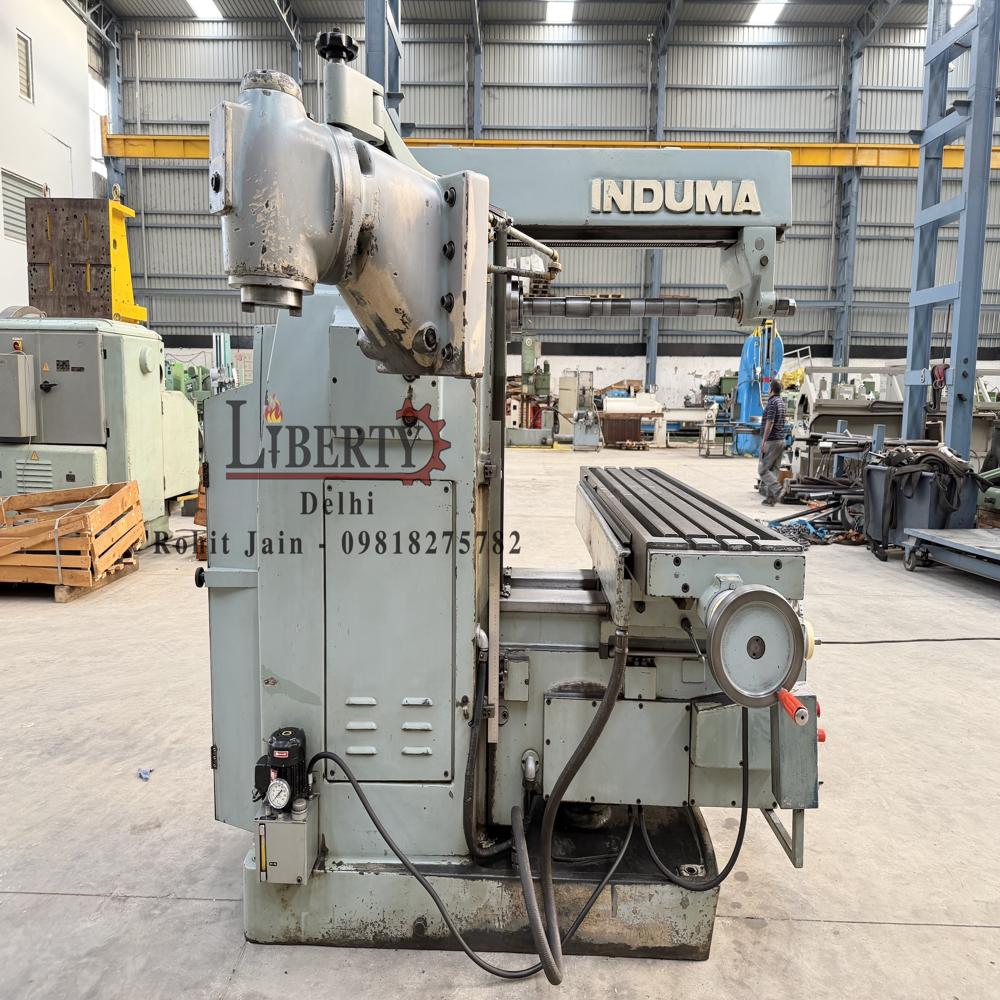

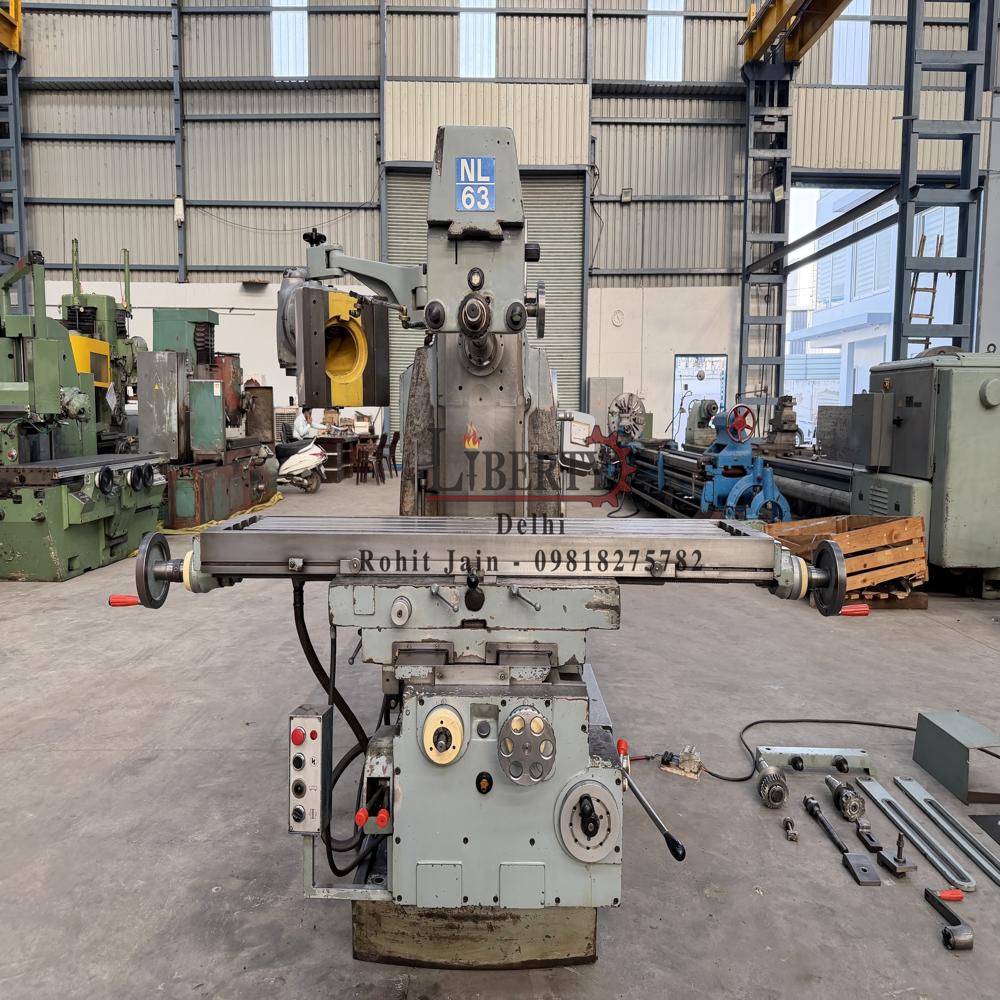

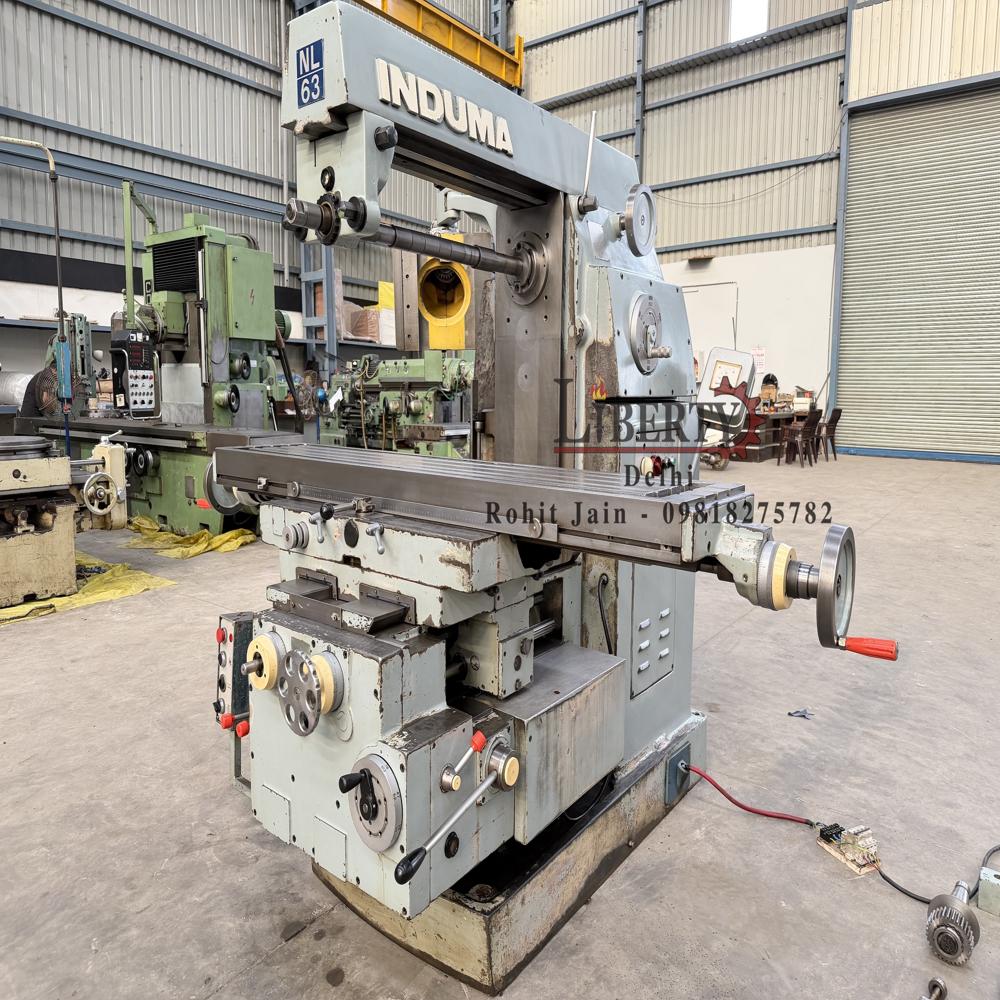

Universal Milling Machine made by Induma (Italy) in excellent working condition. The model of the machine is NL-63 and the Table Size is 1700 mm x 350 mm. The machine is complete with Arbour, Bracket & its support for Horizontal Milling Operations. The machine is also complete with its Parking-type Vertical Milling Head. The technical details are as follows -

Material
Cast Iron Body, Hardened Steel Components

Type
Universal

Capacity
Heavy Duty Industrial

Weight (kg)
Approx. 3200 kg

Computerized
No

Automatic
No

CNC Or Not
Not CNC

Control System
Manual

Table Size
1600 x 400 mm (Approx.)

Table Slide Way
Box Type

Floor Space
Approx. 2200 x 2500 mm

Spindle Speed
Variable, up to 1800 RPM (Approx.)

Power
Main motor approx. 5 HP

Voltage
415V, 3 Phase (Standard industrial supply)

Dimension (L*W*H)
Approx. 2500 x 2200 x 1800 mm

Feature
Swiveling Table, Vertical & Horizontal Milling, Robust Construction

Color
Industrial Grey

Max Cross Table Travel
400 mm

Working Speed
Variable, as per spindle speed

Number of Table T Slots
3

Feed Range (mm/min)
Variable, manual and mechanical

Max Vertical Travel
450 mm

Table T Slot Size
18 mm

Max Longitudinal Table Travel
1200 mm

Spindle Taper
ISO 50

Induma Italy NL-63 Universal Milling Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
7 Days

About Induma Italy NL-63 Universal Milling Machine

Make - Induma (Italy)

Model - NL-63

Table - 1700 mm x 350 mm

XYZ Travel - 1250 mm x 350 mm x 500 mm

Spindle Speed - 45 rpm to 1500 rpm

Spindle Taper - ISO-50

Feed Rates of Travel - 10 mm/min to 800 mm/min

- Rotating Type Universal Table.

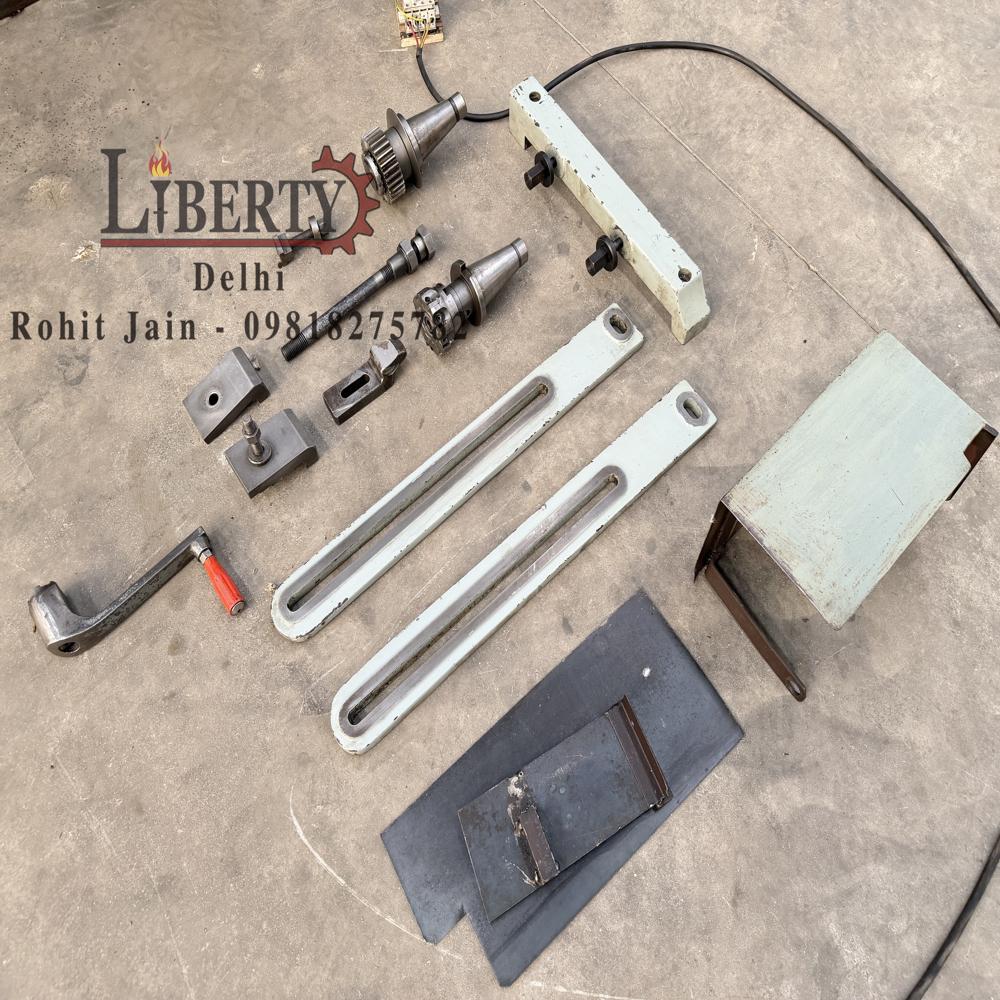

- Complete with Arbour & Bracket for Horizontal Milling Operations.

- Equipped with a Parking type Vertical Milling Head.

- Machine is in excellent working condition.

Video of the Machine -

https://youtu.be/aLZxy74FQR4

Heavy-Duty Universal Milling

Designed for demanding industrial environments, the Induma NL-63 excels in both horizontal and vertical milling applications. Its sturdy cast iron body and hardened components ensure stable operation and long-term durability, while its large worktable and multiple T-slots provide versatility for diverse production requirements.

Precision and Flexibility

Equipped with manual feed and rapid traverse, the NL-63 offers operators precise control over machining operations. The table allows for a maximum travel of 1200 mm longitudinally and 420 mm vertically, with a table swivel capacity of 45 to both the left and right, making it suitable for intricate and angled cuts.

Fully Equipped and Ready for Use

This milling machine is delivered complete with essential tooling, including an arbour, bracket and parking-type vertical milling head, facilitating immediate setup for both horizontal and vertical milling tasks. Its box-type table slideway further enhances performance and operational smoothness.

FAQ's of Induma Italy NL-63 Universal Milling Machine:

Q: How is the Induma NL-63 Universal Milling Machine operated?

A: The NL-63 operates with a manual feed system and rapid traverse, providing the operator with direct, hands-on control over all milling actions. The machine does not use CNC or computerized controls.

Q: What are the main applications of this universal milling machine?

A: This machine is suitable for a wide range of milling tasks, including precision horizontal and vertical milling. Its robust build and flexible configuration make it ideal for manufacturing industries, tool rooms, and metalworking workshops.

Q: When should I use the swiveling table feature?

A: You should use the table's 45 left and right swivel capability when milling angular surfaces or performing complex cuts that require the workpiece to be positioned at specific angles without repositioning it on the machine.

Q: Where can the Induma NL-63 be installed?

A: Given its substantial size and weight-about 3200 kg-and standard 415V, 3-phase power requirement, the NL-63 should be installed in a dedicated workshop or factory space designed to accommodate heavy-duty machinery and industrial operations.

Q: What is the process for switching between horizontal and vertical milling?

A: The NL-63 is equipped with an arbour and support bracket for horizontal milling and a parking-type vertical milling head for vertical operations. Switching involves mounting the required head or arbour and ensuring all attachments are securely locked in place before starting the process.

Q: How does the variable spindle speed enhance usage?

A: With spindle speeds up to approximately 1800 RPM across 12 steps, operators can select the optimal speed for various materials and milling operations, thus improving the efficiency and finish quality of the machining process.

Q: What are the benefits of using the Induma NL-63 for heavy-duty industrial work?

A: The machine's heavy construction, large table load capacity, and versatile milling options offer durability, stability, and the ability to handle demanding jobs, making it a valuable asset for manufacturers requiring precision and reliability in their production processes.
