Jones & Shipman 540 Automatic Precision Surface Grinder

Send Inquiry

Request To Call Back

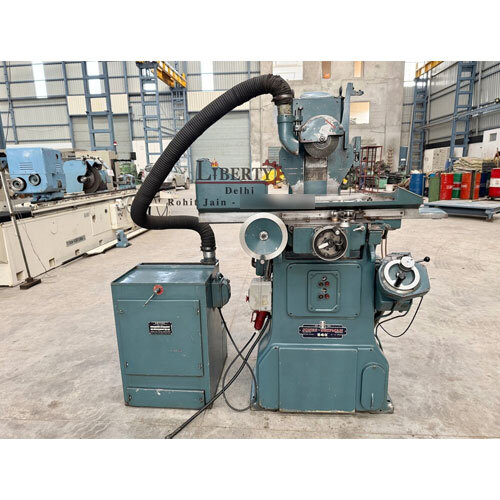

Jones & Shipman 540 Automatic Precision Surface Grinder

Name: Jones & Shipman 540 Automatic Precision Surface Grinder
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Jones & Shipman 540 Automatic Precision Surface Grinder Specification

Model
Jones & Shipman 540

Rotation
Clockwise (looking at spindle end)

Product Type
Surface Grinder

General Use
Precision Surface Grinding

Material
Cast Iron Base, Hardened Steel Components

Type
Automatic Precision Surface Grinder

Capacity
Standard for 540 range

Weight (kg)
Approx. 1000 kg

Computerized
No

Automatic
Yes

CNC Or Not
No, Conventional

Control System
Automatic with Manual Override

Table Size
540 x 240 mm

Table Slide Way
V and Flat Ways

Magnetic Chuck Size
460 x 150 mm

Grinding Wheel Size
180 mm x 13 mm x 31.75 mm

Grinding Wheel Speed
2850 RPM

Grinding Length
450 mm

Floor Space
1500 x 1300 mm

Fuel Tank Capacity
Approx. 22 Litres (Hydraulic oil)

Spindle Speed
2850 RPM

Power
1.1 kW / 1.5 HP Main Motor

Voltage
415 V / 3 Phase / 50 Hz

Dimension (L*W*H)
1500 x 1300 x 1700 mm

Feature
Hydraulic Table Traverse, Fine Feed, Magnetic Chuck

Color
Industrial Grey/Blue

Spindle Motor Type
Precision Ball Bearing

Cross Feed Travel
230 mm

WorkingSpeed
VariableTable 5-25 m/min

Usage Industry
Tool Room, Die and Mould, Precision Engineering

Coolant System
Integrated with Machine

Chuck Holding
Electromagnetic

Table Speed Adjustment
Hydraulic with Stepless Control

Max Distance from Table to Spindle Center
340 mm

Operator Safety
Integral Safety Guards and Emergency Stop

Surface Finish Achievable
Ra 0.2 m possible

Lubrication
Automatic Centralized Lubrication

Imported From
United Kingdom (original manufacturer)

Noise Level
<80 dB under normal load

Longitudinal Table Travel
Up to 600 mm

Packing Type
Export Wooden Box Standard

Jones & Shipman 540 Automatic Precision Surface Grinder Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

Jones & Shipman 540 Automatic Precision Surface Grinder About

Make - Jones & Shipman (England)

Model - 540

Capacity - 6" x 18" (150 mm x 450 mm)

Longitudinal Travel - 19" (480 mm)

Cross Travel - 6.75" (170 mm)

Grinding Wheel Diameter - 7" (178 mm)

Current Magnet Size - 6" x 16.5" (150 mm x 420 mm)

Least Count of Vertical Travel - 0.0001" (0.0025 mm)

Least Count of Cross Travel - 0.0001" (0.0025 mm)

- Motorised Rapid Vertical Travel of the Wheel-Head.

- Automatic Feed Travel of the Wheel-Head (Auto-Cut).

- Micro Feed Adjustments in both Vertical & Cross Travel.

- Complete with a Dust Collector Unit.

- Machine is in excellent working condition.

Video of the Machine -

https://youtu.be/cfa-nijIc3w

Exceptional Precision and Reliability

The Jones & Shipman 540 is built for premium surface grinding with automatic features that guarantee consistent results. Its robust cast iron base and hardened steel components provide long-term performance, while the electromagnetic chuck and variable table speeds facilitate optimal job handling. It's an ideal solution for tool rooms, die and mould shops, and any precision engineering requirement.

Integrated Safety and Ease of Use

Comprehensive operator safety is ensured through integral safety guards and an emergency stop. The automatic centralized lubrication and manual override controls make maintenance and operation simple, reducing downtime. With a working noise level below 80 dB and a user-friendly layout, this machine prioritizes both productivity and operator comfort.

FAQ's of Jones & Shipman 540 Automatic Precision Surface Grinder:

Q: How does the automatic lubrication system benefit daily operation?

A: The automatic centralized lubrication system ensures all critical moving parts are consistently lubricated, which minimizes wear, reduces maintenance intervals, and helps maintain long-term accuracy.

Q: What is the process for adjusting table speed on the Jones & Shipman 540?

A: Table speed can be adjusted hydraulically using a stepless control system, allowing you to select any speed between 5 and 25 m/min for optimal grinding performance based on material and application.

Q: When should the hydraulic oil tank be refilled?

A: The hydraulic oil tank, with a capacity of approximately 22 litres, should be refilled when oil levels fall below the manufacturer's recommended mark. Routine checks are advised and should be scheduled according to usage intensity.

Q: Where is the Jones & Shipman 540 manufactured and supplied from?

A: This precision surface grinder is originally manufactured in the United Kingdom and is available from authorized exporters, importers, manufacturers, suppliers, and traders worldwide, typically shipped in standard export wooden crates.

Q: What industries benefit most from using this surface grinder?

A: Industries such as tool room operations, die and mould manufacturing, and precision engineering benefit the most from this grinder due to its fine surface finish, reliable performance, and versatile capacity.

Q: How does the electromagnetic chuck enhance the grinding process?

A: The electromagnetic chuck facilitates rapid and strong workpiece holding, reducing setup time while ensuring stable positioning throughout the grinding cycle, resulting in improved efficiency and quality.
