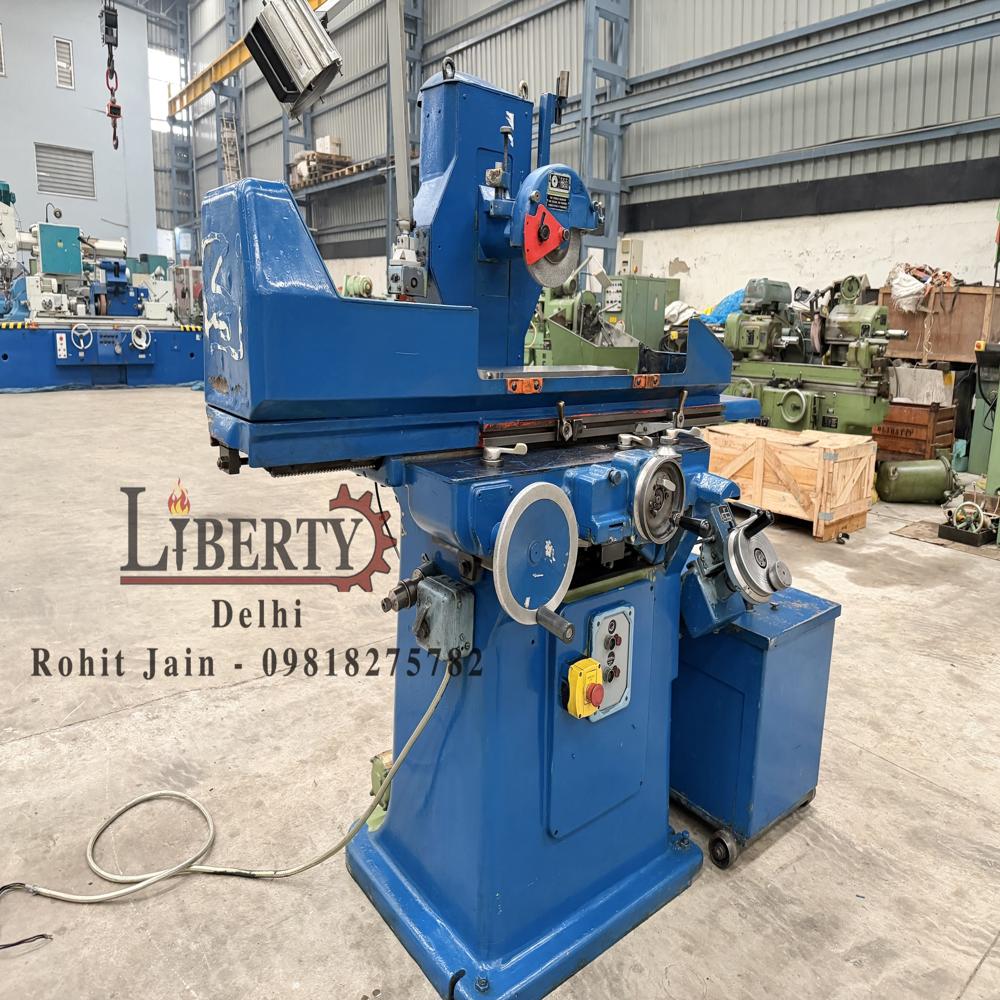

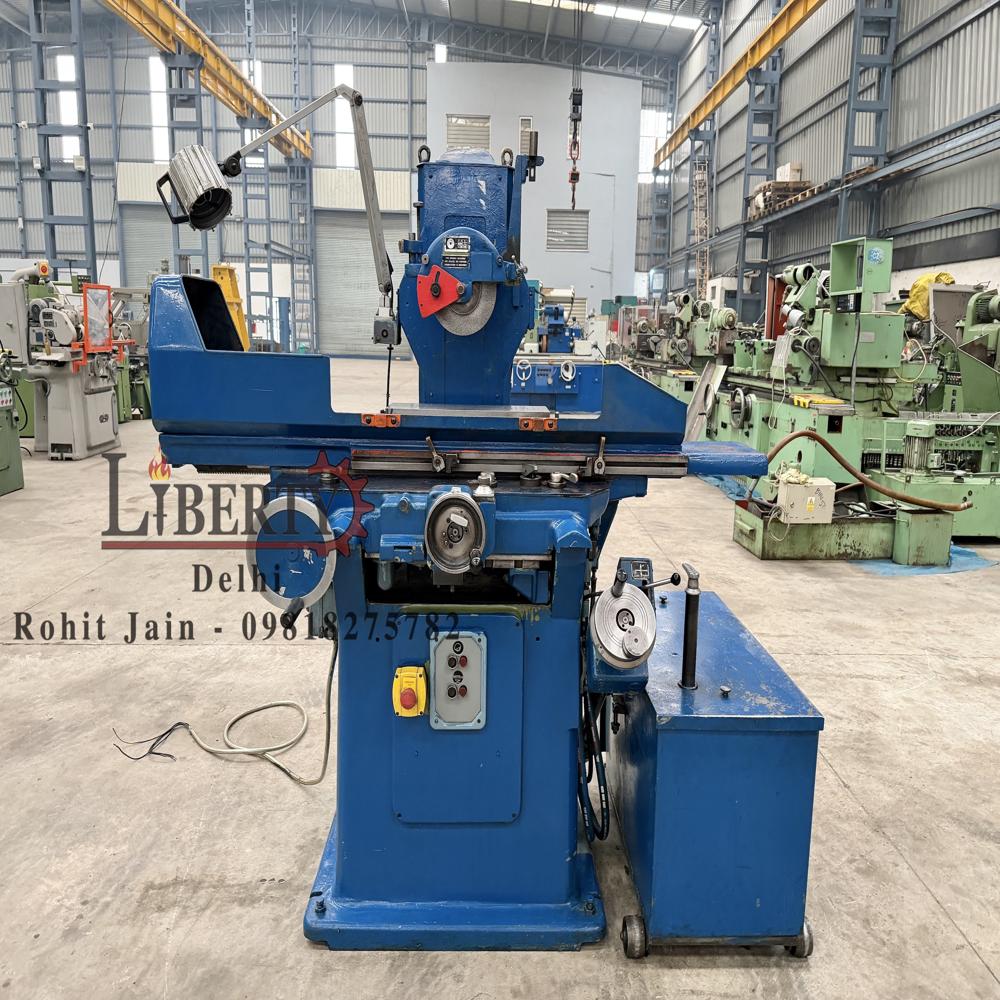

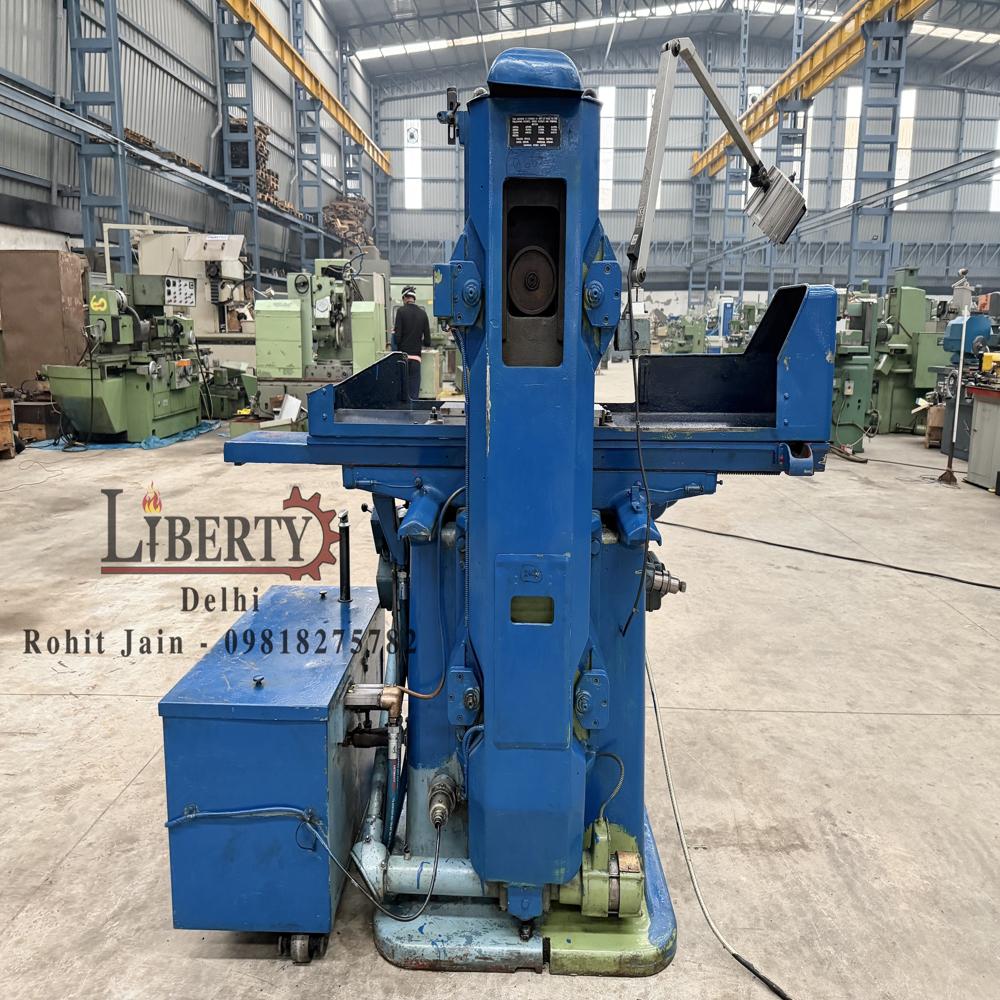

Jones & Shipman England 1400 Precision Surface Grinder

Name: Jones & Shipman England 1400 Precision Surface Grinder
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Jones & Shipman England 1400 Precision Surface Grinder Specification

Rotation
Manual / Hydraulic

Model
1400

Product Type
Precision Surface Grinder

General Use
High-Precision Surface Grinding Machine made by Jones & Shipman (England) in excellent working condition. The model of the machine is 1400 and the Grinding Capacity is 204 mm x 610 mm. The technical details are as follows -

Material
Cast Iron / Hardened Steel Components

Type
Hydraulic Surface Grinding Machine

Capacity
Medium Duty

Weight (kg)
1,450 kg

Computerized
No

Automatic
Semi Automatic

CNC Or Not
No

Control System
Manual

Table Size
18 x 6 (457mm x 152mm)

Table Slide Way
V and Flat / Hardened & Ground

Magnetic Chuck Size
18 x 6 (457mm x 152mm)

Grinding Wheel Size
8 x 0.5 x 1.25 (203mm x 13mm x 32mm)

Grinding Wheel Speed
2850 RPM

Grinding Length
18 (457mm)

Floor Space
1740mm x 1400mm

Fuel Tank Capacity
40 Liters (Hydraulic Tank)

Spindle Speed
2850 RPM

Power
1.5 HP (1.1 kW)

Voltage
415V / 3 Phase

Dimension (L*W*H)
Approx. 1740mm x 1400mm x 1780mm

Feature
High Precision, Rigid Construction, Smooth Operation

Color
Machine Tool Grey & Green

Spindle Motor
1.1 kW (1.5 HP), 2800 RPM

Longitudinal Feed
Hydraulic

Accuracy
0.002 mm

Vertical Feed Graduation
0.01mm per division

Cross Feed Graduation
0.02mm per division

Max Height Under Wheel
355mm (14")

Cross Feed Travel
8" (203mm)

Longitudinal Table Travel
20" (508mm)

Lubrication System
Automatic Lubrication

Table Load Capacity
120 kg

Handwheel Increments
Fine and accurate

Coolant Pump Motor
0.13 kW (0.18 HP), 2800 RPM

Jones & Shipman England 1400 Precision Surface Grinder Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
10 Days

About Jones & Shipman England 1400 Precision Surface Grinder

Make - Jones & Shipman (England)

Model - 1400

Grinding Capacity - 204 mm x 610 mm

Current Magnet Size - 150 mm x 450 mm

Grinding Wheel Size - Diameter 204 mm x 20 mm Width

Max. Height between Table Top to Wheel Center - 360 mm

Least Count of Vertical Travel - 2.5 Micron (0.0001")

Least Count of Cross Travel - 2.5 Micron (0.0001")

Graduations on Dials - Imperial (in inches)

- Micro-Feed Travels for both Cross Travels and Vertical Travels.

- Feature of Motorised Vertical Travel of the Wheel-Head.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/KSpxqEMcVc0

Superior Precision and Performance

The Jones & Shipman 1400 is engineered to achieve remarkable accuracy, with a tolerance of up to 0.002 mm. The machine's V and Flat, hardened and ground table slideways ensure consistent movement, while fine feed graduations provide meticulous control over every operation. Grinding operations are supported by a robust cast iron construction and advanced hydraulic features.

Designed for Operator Convenience and Durability

Ergonomically arranged controls, semi-automatic functionality, and automatic lubrication minimize operator fatigue and prolong machine life. The hydraulic longitudinal feed and finely graduated handwheels facilitate precise and repeatable adjustments, ensuring optimal operation for both novice and experienced machinists alike.

Versatile Applications and Usage

Able to accommodate a wide range of workpieces, the 1400 model suits toolrooms, maintenance shops, and manufacturing environments. Its durable build, smooth operation, and substantial table capacity make it ideal for grinding flat surfaces on a variety of metals, including hardened steel. Its reliable manual and hydraulic operation ensures adaptability to diverse and demanding tasks.

FAQ's of Jones & Shipman England 1400 Precision Surface Grinder:

Q: How does the automatic lubrication system benefit the Jones & Shipman 1400 surface grinder?

A: The automatic lubrication system continually provides oil to critical machine components, reducing wear, minimizing maintenance intervals, and extending machine longevity, ensuring smooth and consistent performance during prolonged use.

Q: What types of materials can be processed on this surface grinder?

A: The Jones & Shipman 1400 is designed to handle a broad range of materials, including cast iron and hardened steel components, enabling precision grinding for toolroom and industrial applications.

Q: When should the hydraulic fluid in the surface grinder's tank be replaced?

A: Hydraulic fluid should generally be replaced according to the manufacturer's schedule, typically every 6-12 months or after extensive use. Regular checks ensure that the 40-liter hydraulic tank operates at optimal efficiency and prevents premature component wear.

Q: Where is this precision surface grinder most commonly used?

A: This model is commonly found in tool rooms, manufacturing facilities, and maintenance departments where fine surface finish and high dimensional accuracy are required for machined components.

Q: What is the process for adjusting the grinding wheel height or cross feed on the machine?

A: Operators adjust the grinding wheel height and cross feed using handwheels, which feature fine graduations of 0.01 mm (vertical) and 0.02 mm (cross). These enable highly precise manual settings for accurate material removal.

Q: How does the hydraulic longitudinal feed enhance the grinding process?

A: The hydraulic longitudinal feed delivers consistent and smooth table movement throughout the operation, allowing for uniform surface finishing and reducing operator workload compared to manual-only machines.

Q: What are the primary benefits of using the Jones & Shipman 1400 for surface grinding tasks?

A: Key benefits include outstanding precision (up to 0.002 mm accuracy), rigid construction for stability, semi-automatic operation for efficiency, and a user-friendly design tailored for repeatable, high-quality grinding results.
