Lorenz Germany SNJ-5 Gear Shaping Machine

Name: Lorenz Germany SNJ-5 Gear Shaping Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Lorenz Germany SNJ-5 Gear Shaping Machine Specification

Machine Type

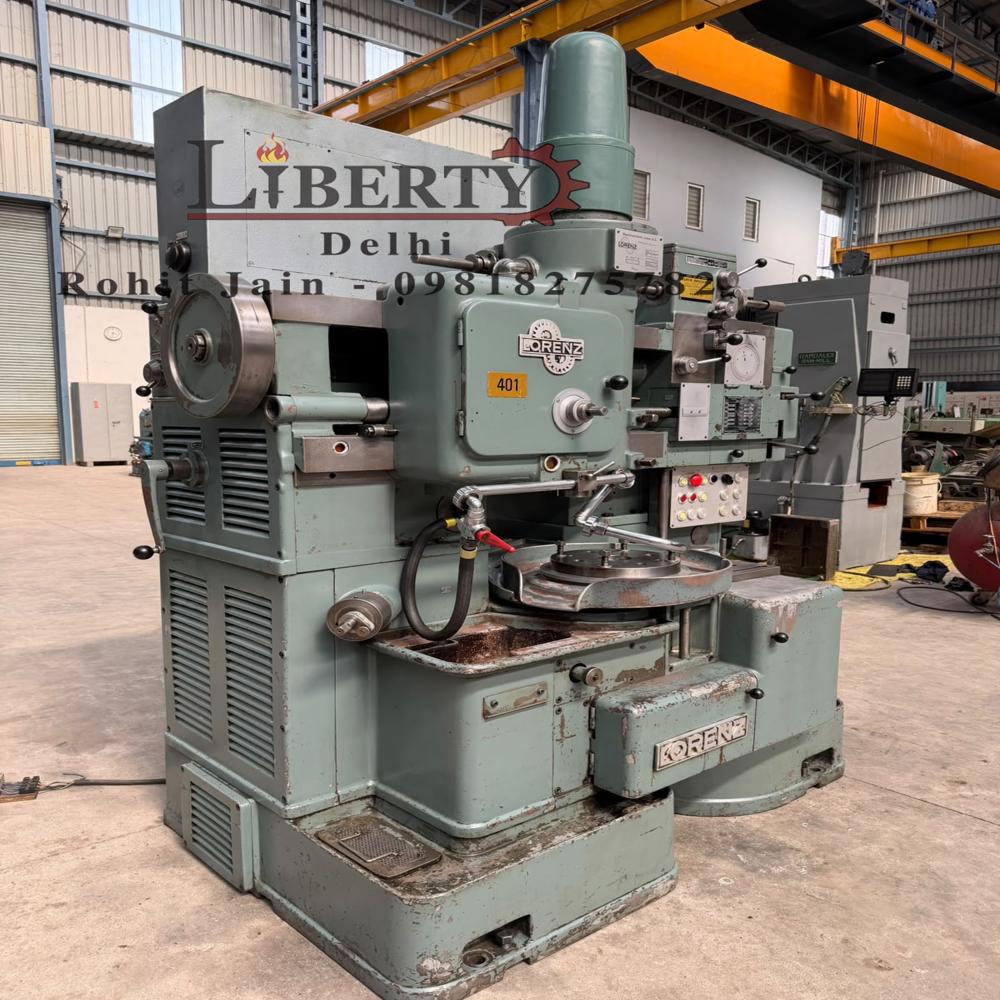

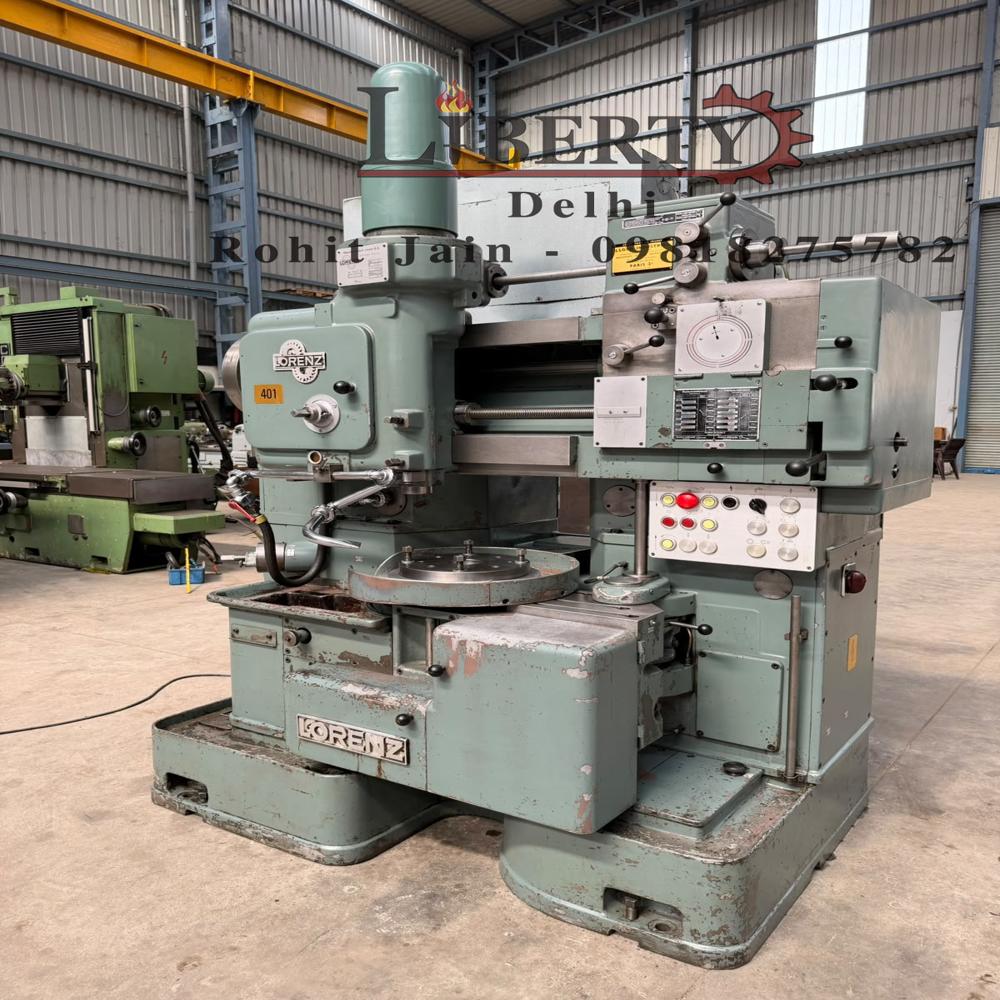

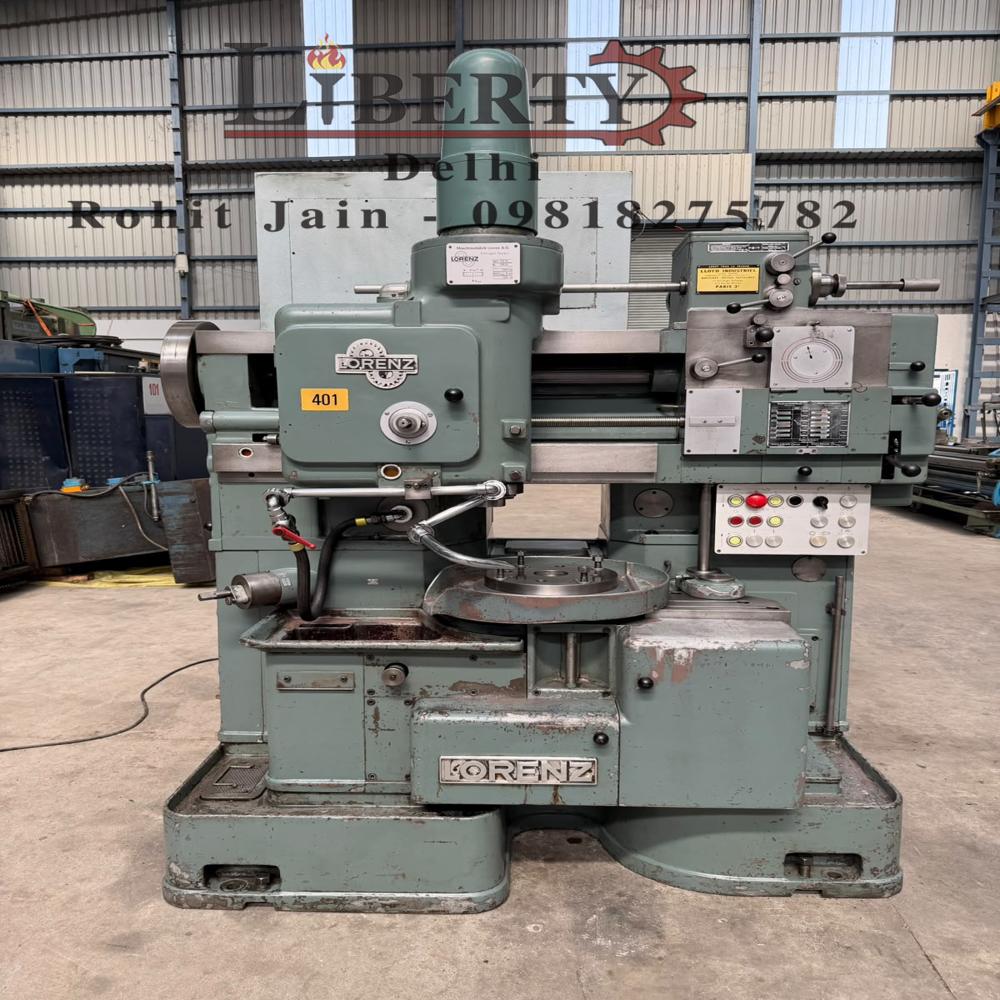

Lorenz (Germany) Gear Shaping Machine, Model SNJ-5, available in excellent working condition. This is one of the most advanced conventional mechanical gear shapers manufactured by Lorenz, known for its precision & improved productivity. It has a maximum module capacity of 5 modules and can cut gears up to 500 mm diameter. It is equipped with the feature of motorised rapid rotation of both the spindle and table, enabling faster setup. The machine is complete with Change Gears and additional accessories. The technical details are as follows -

About Lorenz Germany SNJ-5 Gear Shaping Machine

Make - Lorenz (Germany)

Model - SNJ-5

Max. Module Capacity - 5 Modules

Max. Gear Diameter - 500 mm

Max. Stroke Length - 75 mm

Stroke Rates - 45 to 424 strokes/min

Spindle Diameter - 78 mm

Spindle Type - Hollow

Height between Table & Spindle Body - 265 mm

Table Bore Diameter - 120 mm

Max. Swing Diameter of Job - 600 mm

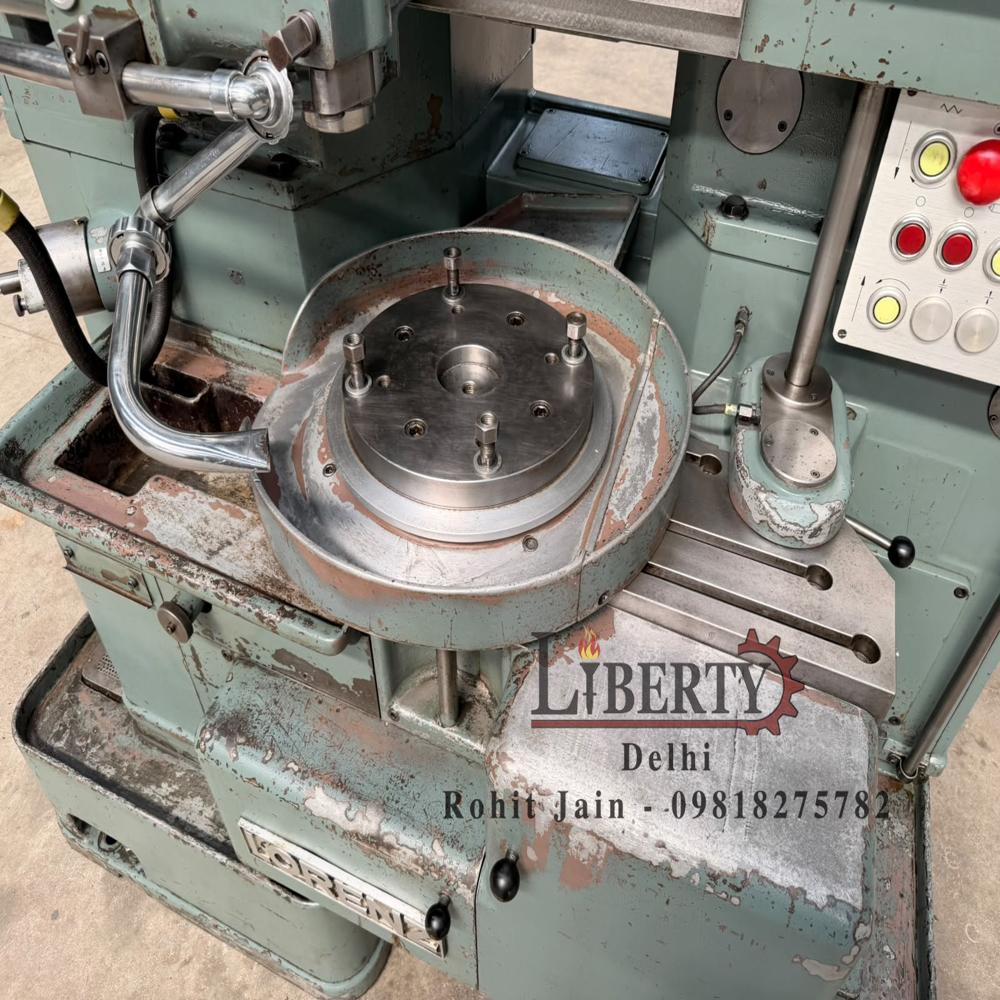

- Feature of Motorised Rapid Rotation of Spindle & Table.

- Complete with Change Gears and other accessories.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/WR2mX7kFKkk

Precision Engineering and Performance

The Lorenz SNJ-5 sets the benchmark for mechanical gear shapers, offering unmatched accuracy in gear cutting. Its advanced mechanics and motorised rotations enhance operational speed and flexibility, making it an indispensable asset for production facilities requiring high-quality gear shaping.

Comprehensive Accessory Set Included

This machine is supplied with Change Gears and a suite of additional accessories, allowing users to take on a wide range of gear shaping tasks. These accessories ensure the SNJ-5 can be adapted quickly for different gear specifications and production requirements, maximising efficiency.

FAQ's of Lorenz Germany SNJ-5 Gear Shaping Machine:

Q: How does the motorised rapid rotation feature benefit the Lorenz SNJ-5 Gear Shaping Machine?

A: The motorised rapid rotation of both spindle and table allows for faster setup and adjustment, significantly reducing downtime between jobs and enhancing overall productivity.

Q: What types of gears can be manufactured using the Lorenz SNJ-5?

A: This machine is capable of shaping gears with up to 5 modules and a maximum diameter of 500 mm, making it suitable for a wide variety of industrial gear applications.

Q: When is the Lorenz SNJ-5 Gear Shaping Machine most beneficial to use?

A: The SNJ-5 is particularly advantageous in scenarios that demand high precision and efficiency in gear production, especially in medium to high-volume manufacturing environments.

Q: Where can this gear shaping machine be installed or utilized?

A: It is suitable for installation in manufacturing plants, workshops, and gear production facilities looking for a reliable and advanced conventional gear shaper.

Q: What is the process of gear shaping with the SNJ-5?

A: Gear blanks are mounted on the table, then shaped using the hardened cutters as the spindle and table rotate in synchrony, controlled by the machine's rapid rotation mechanism and change gears for precise tooth profiles.

Q: What accessories are included with the Lorenz SNJ-5?

A: The machine is supplied with a full set of Change Gears and various additional accessories required for versatile and efficient gear manufacturing.
