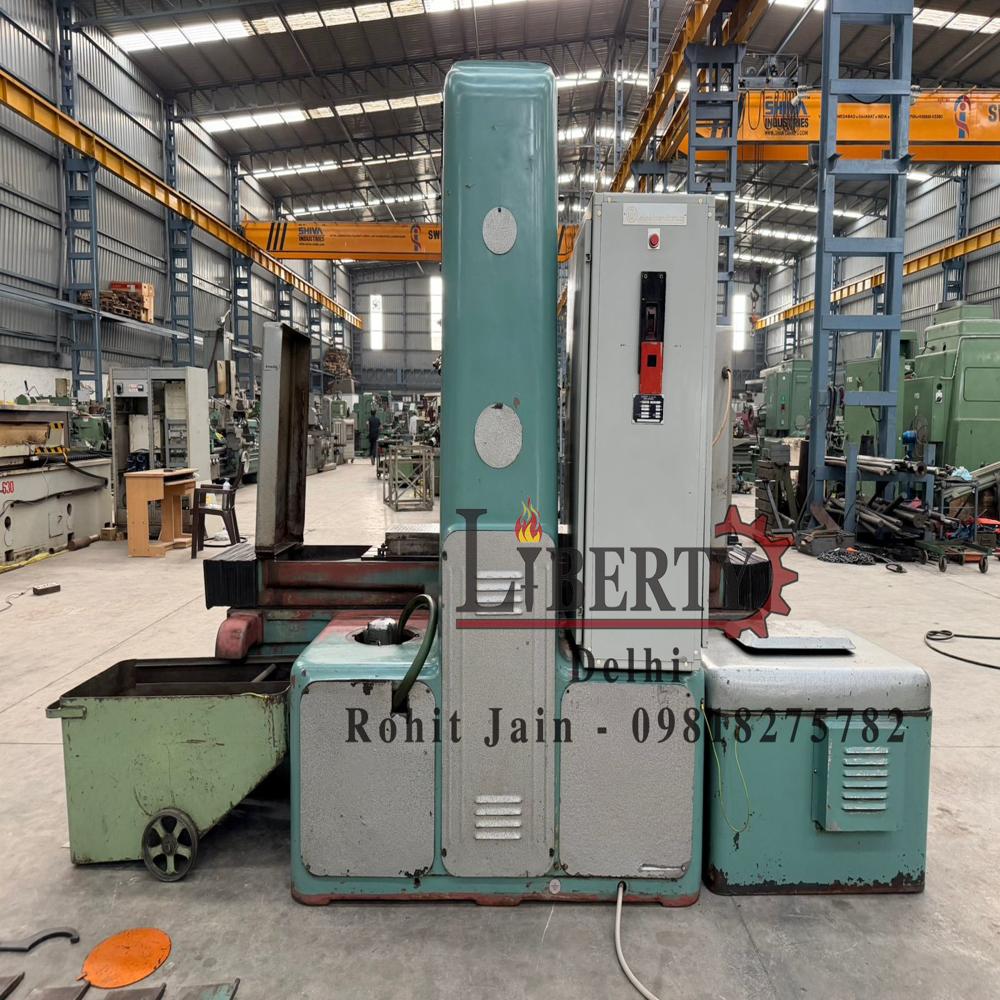

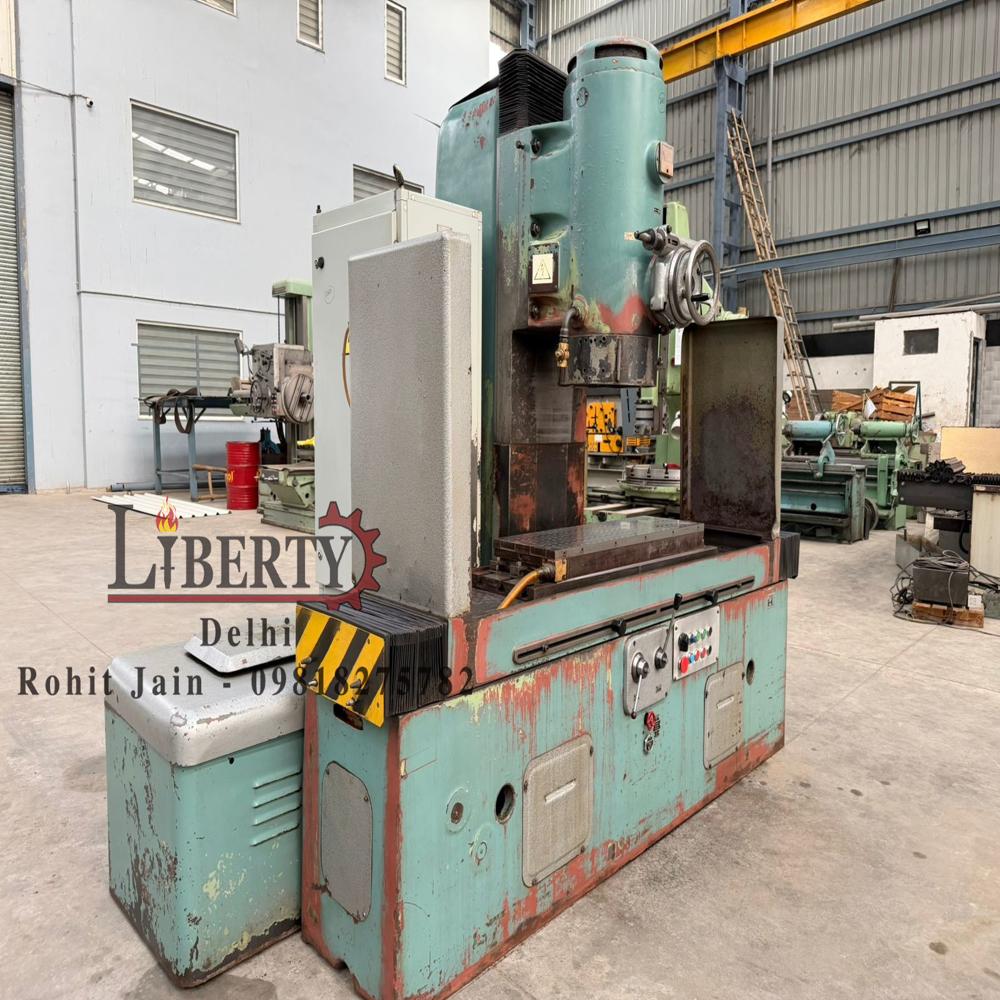

MAS BPV-300/1 Vertical Surface Grinding Machine

Send Inquiry

Request To Call Back

MAS BPV-300/1 Vertical Surface Grinding Machine

Name: MAS BPV-300/1 Vertical Surface Grinding Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MAS BPV-300/1 Vertical Surface Grinding Machine Specification

Model
BPV-300/1

Rotation
Unidirectional

Product Type
Vertical Surface Grinding Machine

General Use
MAS (Czech Republic) make Vertical Surface Grinding Machine, Model BPV-300/1, available in excellent working condition. The machine is equipped with a 300 mm x 1000 mm Magnetic Chuck and is complete with Coolant Tank, Pump & Splash Guards. The technical details are as follows -

Material
Cast Iron, Steel

Type
Surface Grinding Machine

Capacity
High Precision Grinding

Weight (kg)
Approx. 950 kg

Computerized
No

Automatic
No

CNC Or Not
Normal (Not CNC)

Control System
Manual

Table Size
300 x 150 mm

Table Slide Way
V-Flat & Flat

Magnetic Chuck Size
300 x 150 mm

Grinding Wheel Size
200 x 20 x 31.75 mm

Grinding Wheel Speed
2800 RPM

Grinding Length
300 mm

Floor Space
900 x 950 x 1600 mm

Fuel Tank Capacity
35 Litres

Spindle Speed
2800 RPM

Power
1.5 kW

Voltage
415 V

Dimension (L*W*H)
900 x 950 x 1600 mm

Feature
Rigid Construction, Accuracy, Easy Operation

Color
White & Blue

Working Speed
Up to 25 m/min

Vertical Feed (Manual/Automatic)
210 mm

Lubrication System
Centralized

Hydraulic Power Pack
Provided

Surface Finish Quality
High (Ra < 0.2 m)

Max Distance from Table to Spindle Center
280 mm

Noise Level
Low

Table Cross Movement (Manual)
180 mm

Grinding Accuracy
Within 0.01 mm

Clamping Type
Magnetic and Mechanical Options

Vibration Level
Minimal

Coolant Pump
Included

Application
Tool Rooms, Machine Shops, Production Workshops

Chuck to Spindle Center Distance
Max 300 mm

About MAS BPV-300/1 Vertical Surface Grinding Machine

Make - MAS (Czech Republic)

Model - BPV-300/1

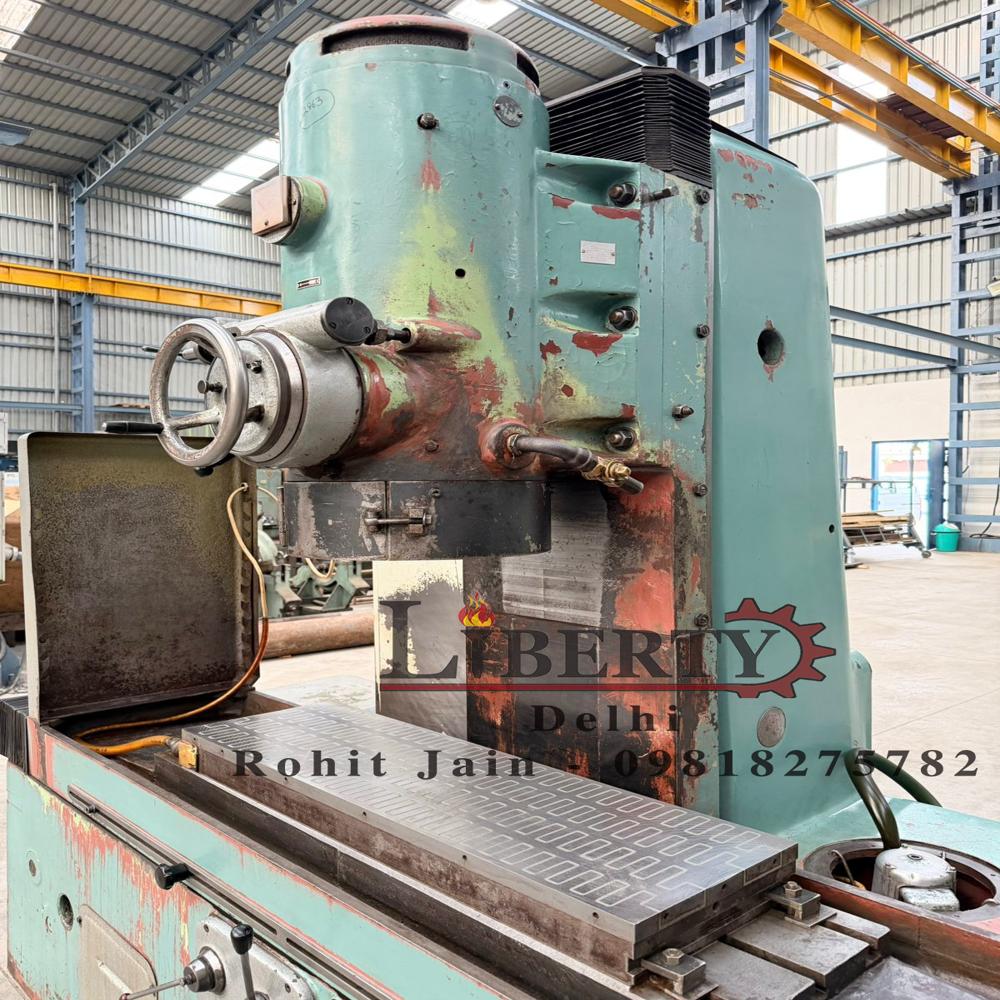

Magnet Size - 300 mm x 1000 mm

Segmented Cup Wheel Diameter - 315 mm

No. of Segments - 8 pcs.

Max. Height of Job - 400 mm

Spindle Motor - 15 kW

- Features Automatic Depth Adjustment "Auto-Cut".

- Complete with Coolant Tank, Pump and Splash Guards.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/qvXRbAJRPbI

High Precision and Surface Quality

Engineered to achieve grinding accuracy within 0.01 mm, the MAS BPV-300/1 guarantees a consistently fine finish (Ra < 0.2 m). The robust cast iron and steel body, combined with minimal vibration and a low-noise environment, make it suitable for the tightest tolerance requirements in tool rooms and machine shops.

Versatile Clamping and Flexible Operation

Equipped with both magnetic and mechanical clamping options, the machine's magnetic chuck (300 x 150 mm) supports a broad range of workpieces, while the manual and automatic feeds ensure flexibility in operation. The process is facilitated by straightforward manual controls and a centralized lubrication system for consistent performance.

Complete System with User-Friendly Features

This model includes a hydraulic power pack, coolant tank and pump, and splash guards for efficiency and safety. Its ergonomic design and easy-to-understand manual controls ensure smooth operation, ideal for users needing reliable, repeatable grinding in general and precision applications.

FAQ's of MAS BPV-300/1 Vertical Surface Grinding Machine:

Q: How does the MAS BPV-300/1 ensure high precision in surface grinding?

A: The BPV-300/1 is engineered for precise surface grinding, with an accuracy of up to 0.01 mm and a fine surface finish (Ra < 0.2 m). Its rigid construction, minimal vibration, and stable unidirectional spindle rotation at 2800 RPM contribute to consistently high-quality results.

Q: What types of clamping options are available with this machine?

A: The MAS BPV-300/1 offers both magnetic and mechanical clamping options. The included 300 mm x 150 mm magnetic chuck enables quick setup and secure holding of ferrous materials, while mechanical clamping suits a wider range of workpiece types and shapes.

Q: When is it most beneficial to use this surface grinding machine?

A: This machine is ideal for situations where high accuracy, repeatability, and excellent surface finishes are required, such as in tool rooms, production workshops, and general machine shop environments. Its capabilities support both individual component finishing and small-batch production.

Q: Where can this machine be effectively deployed?

A: The MAS BPV-300/1 is suitable for installation in tool rooms, precision engineering facilities, machine shops, and production workshops that demand close tolerances and high-quality surface finishes on cast iron and steel components.

Q: What is the process for operating the vertical feed on this model?

A: The machine offers both manual and automatic vertical feed with a range of 210 mm. Operators can choose manual adjustment for delicate jobs or use the automatic mode for consistent, repeatable results in larger production runs.

Q: How does the lubrication system benefit machine operation?

A: A centralized lubrication system ensures all critical sliding surfaces and moving parts receive consistent lubrication, reducing wear and maintenance while improving the overall longevity and reliability of the machine.
