Oerlikon Switzerland 3000 mm Length Lathe Machine

Name: Oerlikon Switzerland 3000 mm Length Lathe Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Oerlikon Switzerland 3000 mm Length Lathe Machine Specification

Product Type
Conventional Lathe Machine

Material

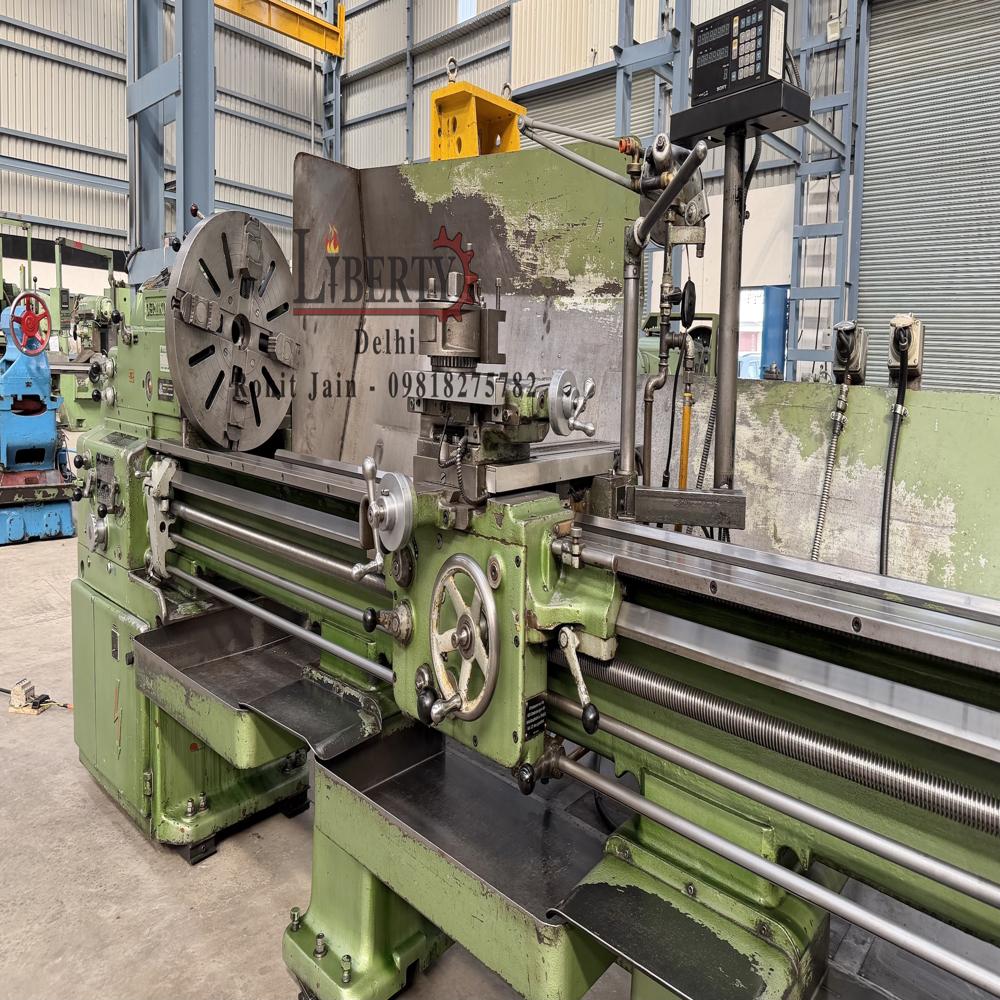

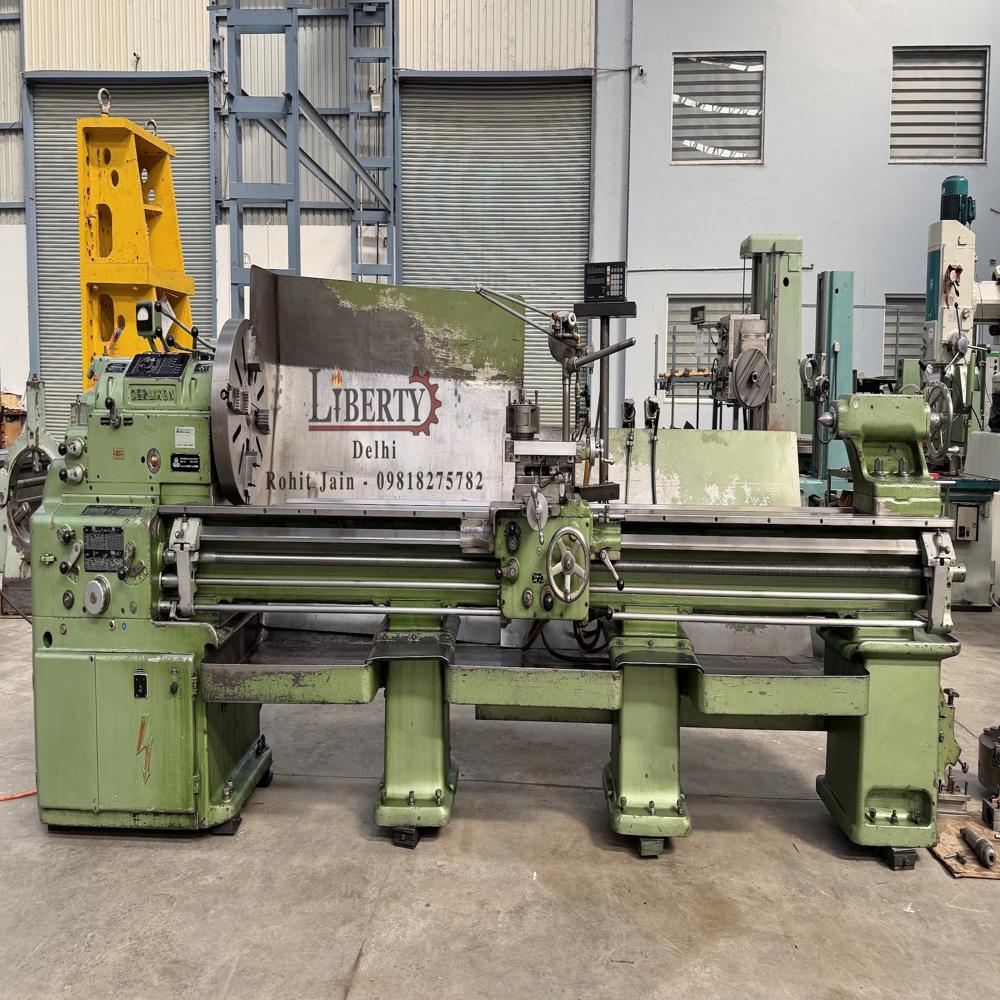

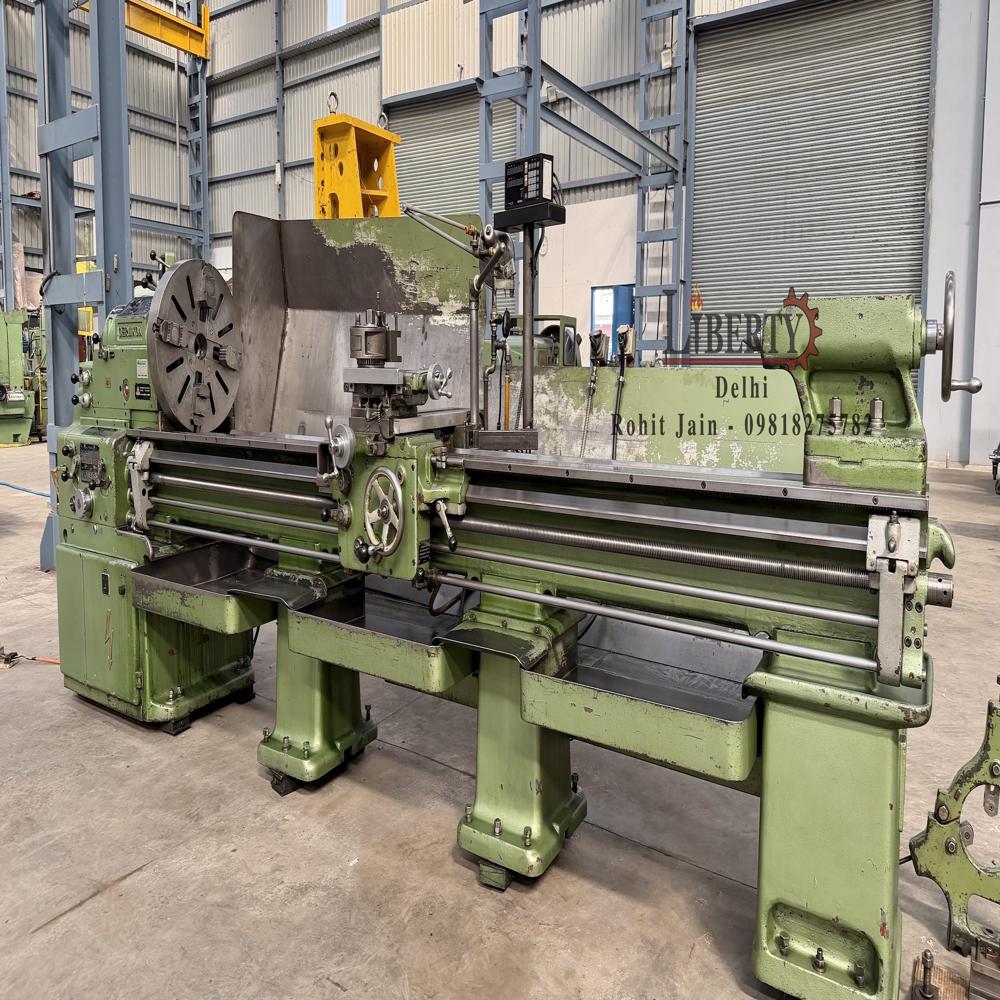

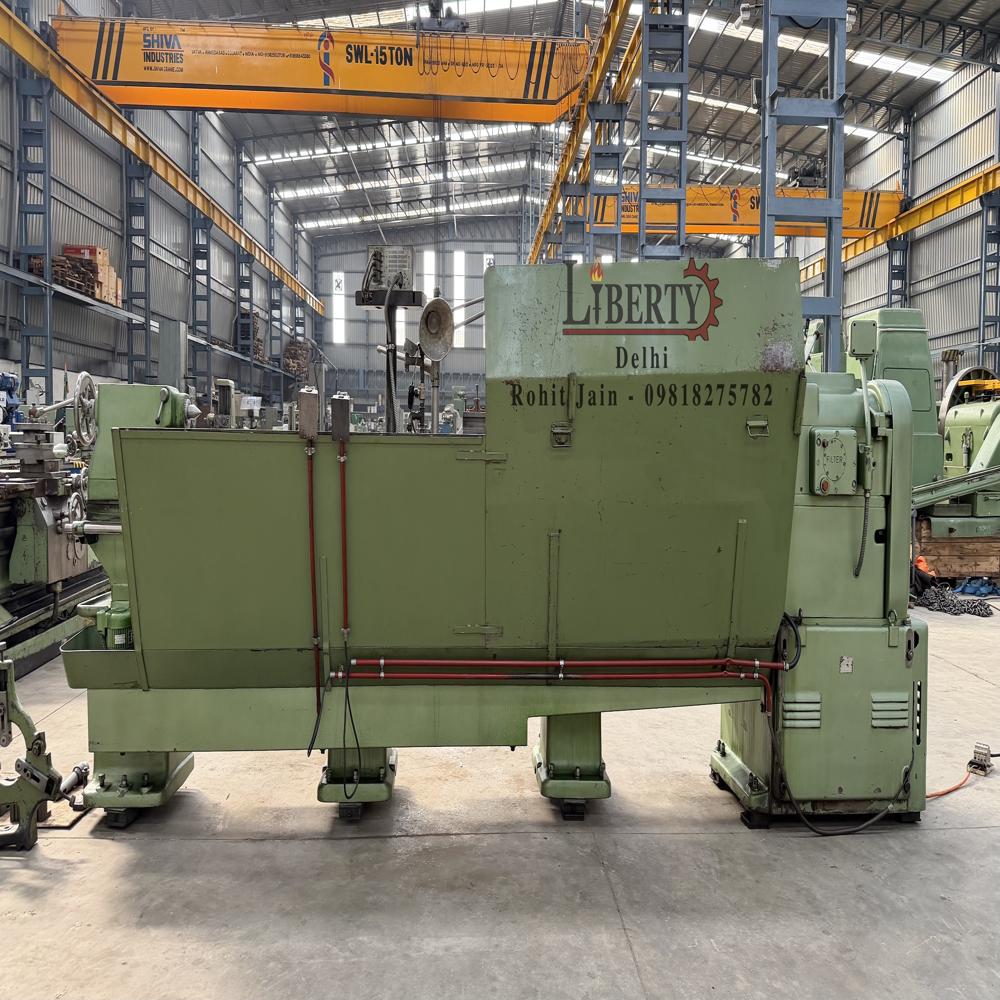

Oerlikon (Switzerland) make All-Geared Lathe Machine in excellent working condition. The machine's model is DMo1 and the Max. Job Length is 3000 mm. The machine's center height is 265 mm and its Bed Width is 355 mm. The machine is complete with a 4-Jaw Chuck, a 4-Jaw Self-Centering Chuck, a Job-Steady, Tool Holders, and other accessories etc. The machine is also equipped with a 3-Axis DRO. The technical details are as follows -

Cutting Thickness
Up to 20 mm

Cutting Speed
Variable, up to 1600 RPM

CNC Or Not
No, manual operation

Automatic Grade
Manual

Control System
Manual gears and levers

Max. Swing Diameter
600 mm

Voltage
415 V, 3 Phase

Weight (kg)
Approx. 3800 kg

Dimension (L*W*H)
4150 mm x 1100 mm x 1450 mm

Capacity
High-duty metalworking

Feature
Precision ground bed, hardened gears, robust construction, flood coolant system

Color
Industrial Blue/Grey

Lead Screw Pitch
6 mm

Feed Range
0.03 - 1.5 mm/rev

Power Consumption
7.5 kW main motor

Tailstock Quill Stroke
180 mm

Surface Finish
0.012 mm/rev

Bed Length
3000 mm

Distance Between Centers
3000 mm

Chuck Size
400 mm 3-jaw scroll chuck

Spindle Speed Range
32 - 1600 RPM (12 steps)

Spindle Bore
80 mm

Tailstock Quill Diameter
75 mm

Steady Rest Capacity
25 mm to 200 mm

Coolant System
Integrated flood coolant

Spindle Nose
D1-8 (Camlock)

About Oerlikon Switzerland 3000 mm Length Lathe Machine

Make - Oerlikon (Switzerland)

Model - DMo1

Center Height - 265 mm

Max. Length of Job - 3000 mm

Max. Job Diameter over Bed - 520 mm

Max. Job Diameter over Cross-Slide - 340 mm

Max. Job Diameter near Chuck - 620 mm

4-Jaw Chuck Diameter - 550 mm

4-Jaw Self-Centering Chuck Diameter - 315 mm

Bed Width - 355 mm

Spindle Speeds - 20 rpm to 1250 rpm

Spindle Bore - 44 mm

- Equipped with a 3-Axis DRO.

- Complete with Job Steady, Tool Holders, & other accessories.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/UpifSj1ITtU

Precision and Robust Construction

This lathe's industrial-grade build combines a precision-ground bed, hardened gears, and heavy-duty frame to ensure consistent accuracy in metalworking projects. The Oerlikon Switzerland lathe is engineered for longevity and optimal performance, making it particularly suitable for demanding metal fabrication tasks.

Exceptional Performance and Versatility

With a maximum spindle speed of 1600 RPM, variable cutting speeds, and a wide feed range (0.03-1.5 mm/rev), this manual lathe can handle a variety of materials and cutting requirements. Its large swing diameter and steady rest capacity extend its versatility for various workpiece sizes.

Intuitive Manual Operation

A fully manual control system using gears and levers puts precision in the operator's hands. Operators can efficiently manage speed, feed, and settings for high-quality results. The integrated flood coolant system helps maintain optimal cutting temperatures and prolongs tool life.

FAQ's of Oerlikon Switzerland 3000 mm Length Lathe Machine:

Q: How do I operate the Oerlikon Switzerland 3000 mm Length Lathe Machine?

A: This machine is manually operated using gears and levers, allowing the operator to control spindle speed, feed rate, and tool movement. The intuitive manual system makes it suitable for experienced machinists seeking precise, hands-on results.

Q: What types of projects is this lathe best suited for?

A: The machine is ideal for high-duty, precision metalworking projects that require long bed lengths and large workpieces. It is commonly used in manufacturing, maintenance, repair, and production environments where robust construction and accuracy are vital.

Q: When should I use the integrated flood coolant system?

A: The flood coolant system should be used during extended cutting sessions or when working with materials that generate significant heat, such as steel or other hard metals. It helps maintain cutting temperatures, protects the tool, and improves the finish on machined parts.

Q: Where can I install this lathe machine?

A: Due to its size (4150 mm x 1100 mm x 1450 mm) and substantial weight (approximately 3800 kg), it should be installed in an industrial workshop with adequate floor space, a solid foundation, and a three-phase 415 V power supply.

Q: What is the process for adjusting spindle speed and feed range?

A: Spindle speed and feed are adjusted manually through designated gears and levers on the control panel. With 12 speed options ranging from 32 to 1600 RPM and feed rates from 0.03 to 1.5 mm/rev, operators can fine-tune machining for specific material requirements.

Q: How does the lathe machine benefit metalworking operations?

A: The Oerlikon lathe offers robust precision, reliable manual control, and the flexibility to handle complex, heavy-duty jobs. Its high-quality construction and integrated systems maximize productivity and ensure excellent surface finish and longevity in demanding environments.
