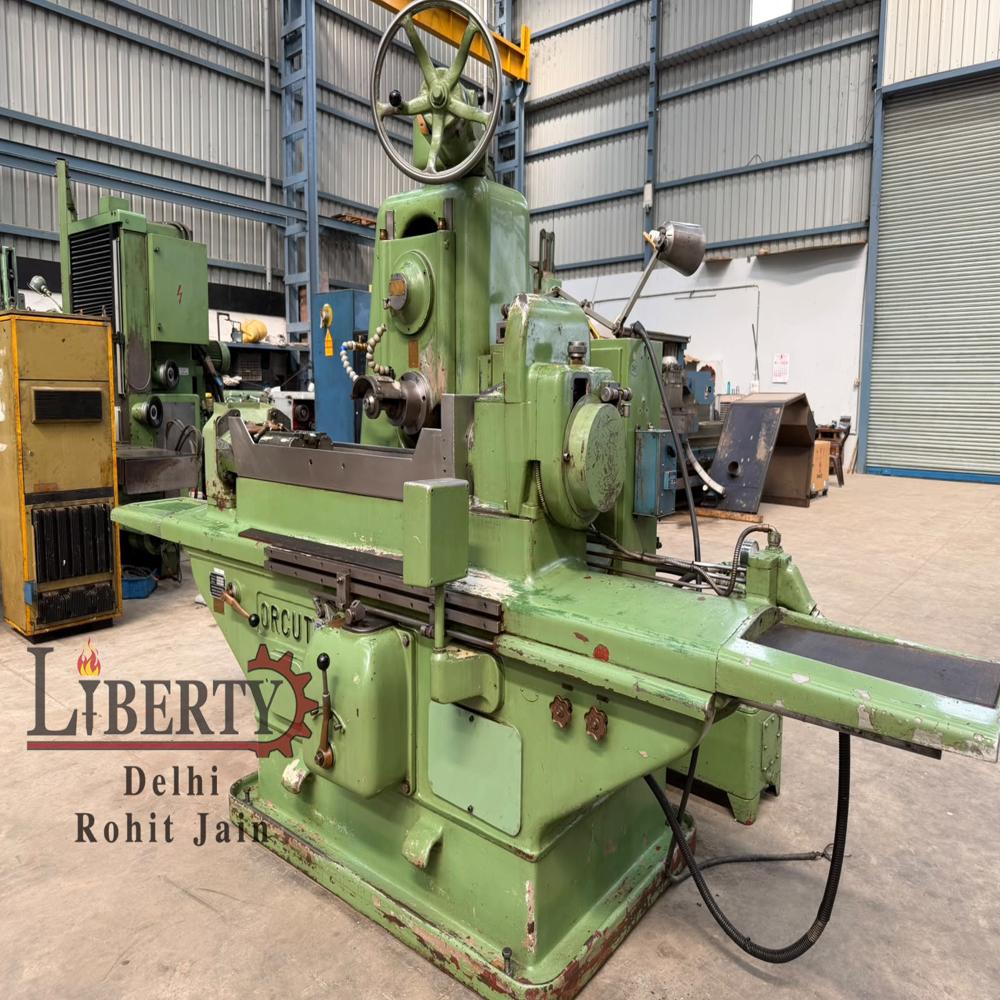

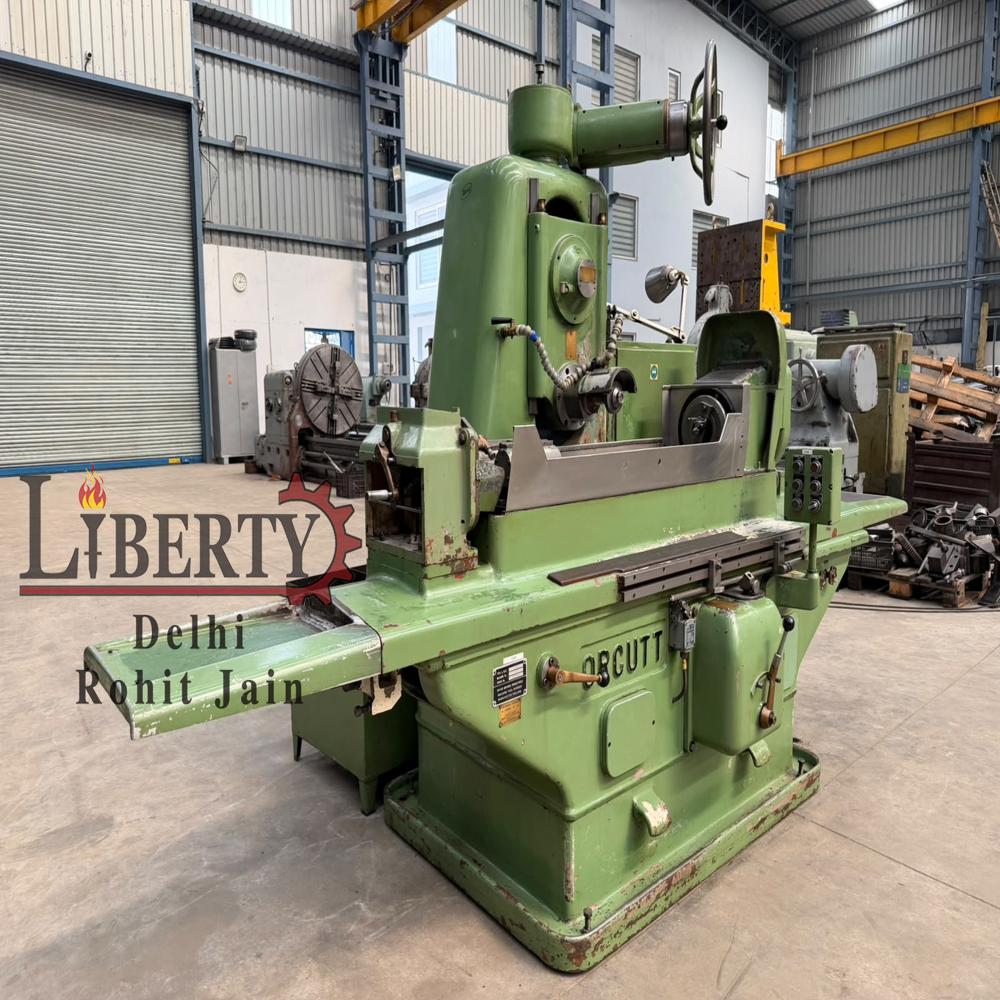

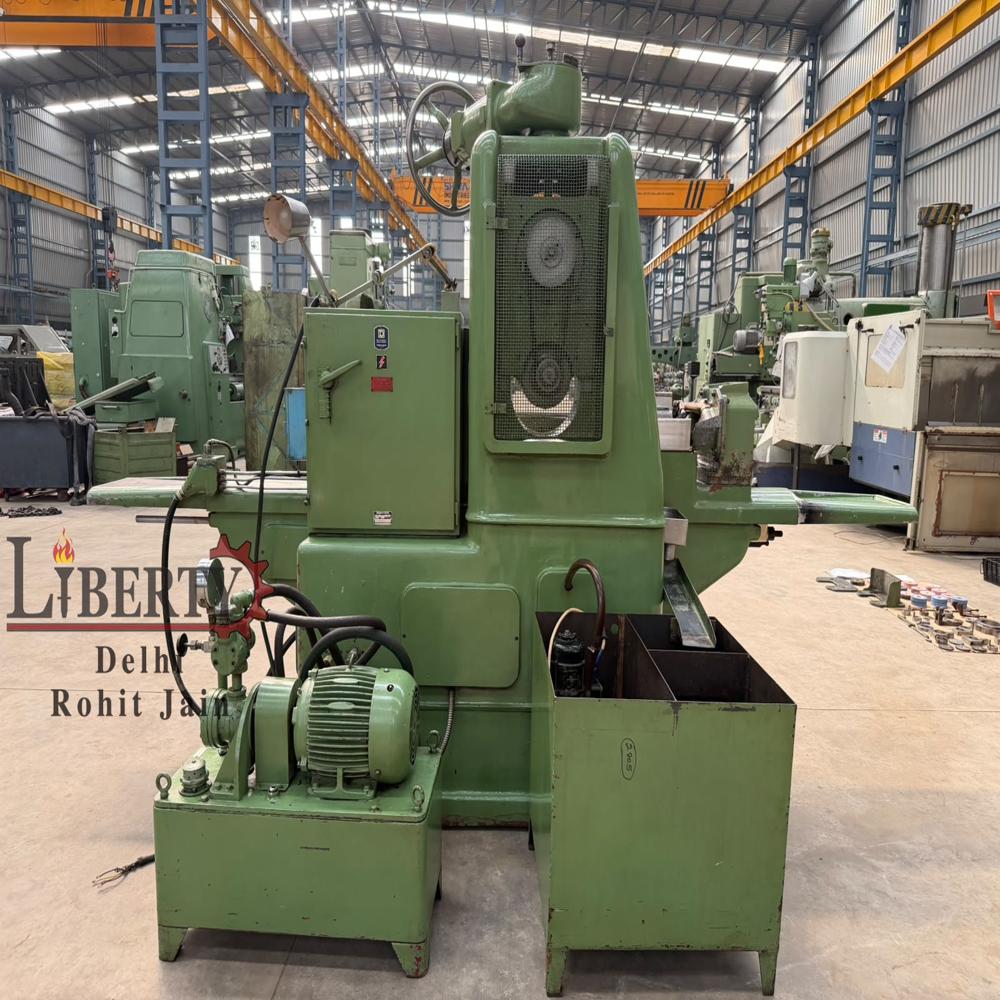

Orcutt / David Brown England S.B.II Spline Shaft Grinder Machine
Orcutt / David Brown England S.B.II Spline Shaft Grinder Machine
Orcutt / David Brown England S.B.II Spline Shaft Grinder Machine
Orcutt / David Brown England S.B.II Spline Shaft Grinder Machine
Orcutt / David Brown England S.B.II Spline Shaft Grinder Machine
Orcutt / David Brown England S.B.II Spline Shaft Grinder Machine
Orcutt / David Brown England S.B.II Spline Shaft Grinder Machine
Orcutt / David Brown England S.B.II Spline Shaft Grinder Machine

Orcutt / David Brown England S.B.II Spline Shaft Grinder Machine

Price 55000.0 INR/ Piece

MOQ : 1 Piece

Orcutt / David Brown England S.B.II Spline Shaft Grinder Machine Specification

  • Warranty
  • no
  • Condition
  • Machine is in excellent working condition.
  • Machine Type
  • Spline Shaft Grinding Machine manufactured by Orcutt David Brown (England), Model S.B.II, available in excellent working condition. The machine has a Maximum Job Diameter of 250 mm and Maximum Job Length of 750 mm and features Automatic Indexing and Hydraulic Table Travel. The machine is complete with its Wheel Dresser, Index Plates, Spare Grinding Wheels, Job Carriers, and various other accessories. The technical details are as follows -
  • Feature
  • - Features Automatic Indexing. - Equipped with its Wheel Dresser. - Complete with Spare Grinding Wheels, Index Plates, Job Carriers, and other accessories.



About Orcutt / David Brown England S.B.II Spline Shaft Grinder Machine

Make - Orcutt David Brown (England)
Model - S.B.II
Centre Height - 125 mm
Max. Job Diameter - 250 mm
Max. Job Length - 750 mm
Grinding Wheel Diameter - 100 mm
Grinding Wheel Speed - 7,500 RPM
Table Travel - Hydraulic
- Features Automatic Indexing.
- Equipped with its Wheel Dresser.
- Complete with Spare Grinding Wheels, Index Plates, Job Carriers, and other accessories.
- Machine is in excellent working condition.

Video of The Machine -


Designed for Precision Spline Shaft Grinding

The S.B.II Spline Shaft Grinder Machine offers consistent accuracy for jobs up to 250 mm in diameter and 750 mm in length. Thanks to features like Automatic Indexing and Hydraulic Table Travel, users can expect reliable and repeatable results, even on complex spline geometries. Its sturdy construction and thoughtfully supplied accessories further streamline complex grinding processes.


Comprehensive Accessory Package Included

Delivered with everything needed for immediate operation, this machine features a Wheel Dresser, multiple Index Plates, a selection of Spare Grinding Wheels, and Job Carriers. These components support a wide range of spline grinding requirements, ensuring flexibility and minimal downtime for tool changes or adjustments.

FAQ's of Orcutt / David Brown England S.B.II Spline Shaft Grinder Machine:


Q: How is the automatic indexing feature utilized in the S.B.II Spline Shaft Grinder Machine?

A: The automatic indexing feature allows the machine to quickly and accurately rotate the workpiece to each required position during the spline grinding process, significantly enhancing productivity and precision in creating uniform splines.

Q: What kind of jobs can be processed on this Spline Shaft Grinding Machine?

A: This machine is designed for grinding spline shafts with a maximum diameter of 250 mm and a maximum length of 750 mm, accommodating a range of industrial applications requiring precise spline profiles.

Q: When is hydraulic table travel particularly beneficial in shaft grinding?

A: Hydraulic table travel is especially useful for operations involving long or heavy workpieces, as it provides smooth and controlled movement, ensuring consistent contact between the grinding wheel and the work surface throughout the operation.

Q: Where can this machine be efficiently deployed within a production environment?

A: This grinder is well-suited for heavy engineering workshops, gear manufacturing plants, and repair facilities that require reliable, high-accuracy spline shaft grinding capabilities.

Q: What is the process for changing grinding wheels or accessories on the S.B.II model?

A: Changing grinding wheels or accessories is straightforward due to the machine's accessible design and the inclusion of all necessary fittings. Supplied spare wheels and job carriers allow for minimal downtime during setup or maintenance.

Q: How does the included Wheel Dresser enhance machine operation?

A: The Wheel Dresser enables users to maintain the optimal condition and profile of the grinding wheel, ensuring consistent and high-quality finishes on each spline shaft processed.

Q: What are the key usage benefits of this machine for manufacturers or repair shops?

A: Its precise automatic indexing, robust construction, included accessories, and hydraulic table control allow for efficient, repeatable, and high-quality spline grinding, making it a dependable asset for boosting throughput and product quality.
