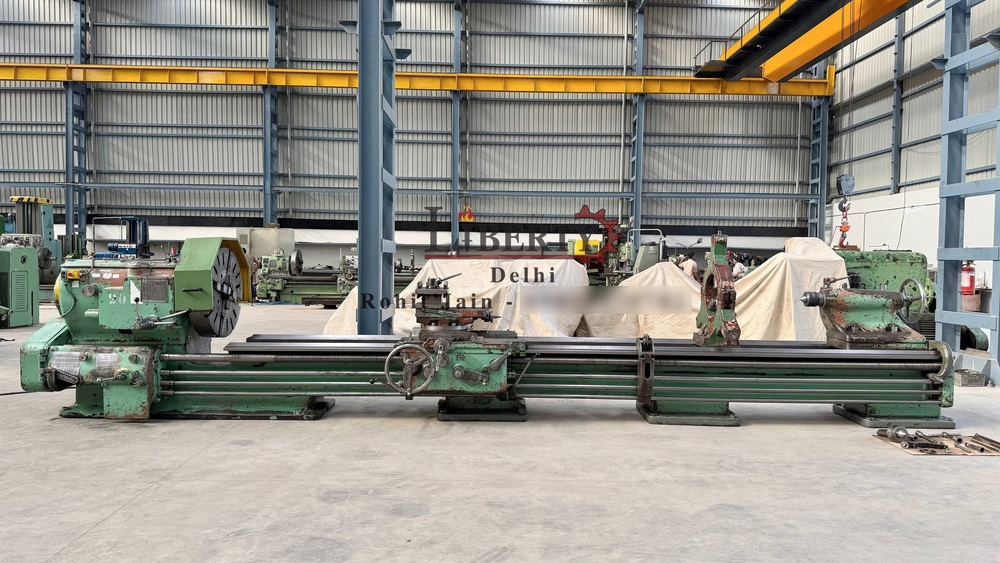

Poreba TR-90 x 5 meter Heavy Duty Lathe Machine

Name: Poreba TR-90 x 5 meter Heavy Duty Lathe Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Poreba TR-90 x 5 meter Heavy Duty Lathe Machine Specification

Product Type
Heavy Duty Lathe Machine

Material
Cast Iron Body, Hardened & Ground Bed

Cutting Thickness
Up to 90 mm swing over bed

Cutting Speed
Variable, up to 600 RPM

CNC Or Not
Not CNC, Conventional

Automatic Grade
Semi-Automatic

Control System
Manual

Max. Swing Diameter
900 mm

Voltage
400 V, 3 Phase

Weight (kg)
Approximately 9000 kg

Dimension (L*W*H)
5000 mm x 1600 mm x 1700 mm

Capacity
5 Meter Between Centers

Feature
Robust Construction, High Torque, Precision Turning

Color
Shop Grey

Chuck Size
400 mm

Spindle Bore
105 mm

Standard Accessories
Chuck, Centers, Tool Post, Coolant Pump

Headstock Type
Geared Head

Bed Width
900 mm

Suitable For
Heavy Turning, Machining of Large Shaft and Roll components

Maximum Turning Length
5000 mm

Lead Screw Diameter
50 mm

Coolant System
Integrated Coolant Pump

Distance Between Centers
5000 mm

Tool Post Type
4-Way

Spindle Nose
D1-8

Tailstock Quill Diameter
100 mm

Power of Main Motor
15 kW

Poreba TR-90 x 5 meter Heavy Duty Lathe Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Poreba TR-90 x 5 meter Heavy Duty Lathe Machine

Make - Poreba (Poland)

Model - TR-90

Center Height - 450 mm

Max. Length of Job - 5000 mm

Max. Job Diameter over Bed - 900 mm

Max. Job Diameter over Cross-Slide - 620 mm

Max. Job Diameter in Gap - 1225 mm

Chuck Diameter - 800 mm

Bed Width - 660 mm

Spindle Speeds - 7.5 rpm to 380 rpm

Spindle Bore - 105 mm

Max. Job Length in Gap - 400 mm

- Complete with Job Steady etc.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/W3g19DSWfP0

Engineered for Heavy Turning Precision

The Poreba TR-90 lathe is designed for rigorous applications in machining large shafts and rolls. Its substantial 900 mm bed width, 5-meter turning capacity, and hardened surfaces provide strong support for oversized workpieces, fulfilling the requirements of demanding manufacturing environments.

Reliable Operation & Robust Construction

Built with a high-torque 15 kW main motor and a durable geared headstock, this lathe delivers consistent power and smooth operation. The integrated coolant system prevents overheating, while precision-ground components ensure reliable, accurate turning every cycle.

Versatile Manual Turning Capabilities

With a user-friendly manual control system and a 4-way tool post, operators have extensive flexibility to perform detailed turning, facing, and threading tasks. This semi-automatic lathe adapts well to various heavy-duty industrial applications, providing high efficiency and cost-effective results.

FAQ's of Poreba TR-90 x 5 meter Heavy Duty Lathe Machine:

Q: How is the Poreba TR-90 x 5 meter Heavy Duty Lathe suitable for heavy turning operations?

A: The TR-90 lathe boasts a robust cast iron body, a 900 mm wide hardened bed, and a high-torque 15 kW main motor. Its sturdy construction and ample swing over bed (900 mm) make it well-suited for machining large and heavy workpieces such as shafts and rolls.

Q: What processes can be performed on this conventional lathe machine?

A: This lathe handles a variety of manual machining processes including straight turning, facing, threading, parting, and boring. Its 4-way tool post facilitates rapid tool changes, enabling flexible operations for complex component production.

Q: When is the ideal use case for this lathe's 5-meter distance between centers?

A: The 5-meter distance between centers is ideal when working with long workpieces, such as industrial shafts or cylindrical rolls, where both stability and support across the length of the component are crucial for accurate machining.

Q: Where can the TR-90 lathe be installed and operated?

A: With its substantial dimensions (5000 mm x 1600 mm x 1700 mm) and weight (approx. 9000 kg), the TR-90 is best suited for installation in heavy-duty machine shops or manufacturing facilities with adequate space and floor load capacity.

Q: What benefits does the integrated coolant pump offer during extended machining?

A: The integrated coolant system cools both the tool and workpiece during prolonged machining, minimizing heat build-up, maintaining dimensional accuracy, extending tool life, and enhancing overall machining efficiency.

Q: How does the geared headstock contribute to the lathe's performance?

A: The geared headstock enables reliable torque transmission and variable spindle speeds up to 600 RPM, ensuring smooth, adaptable turning performance for a wide range of heavy and precise machining operations.
