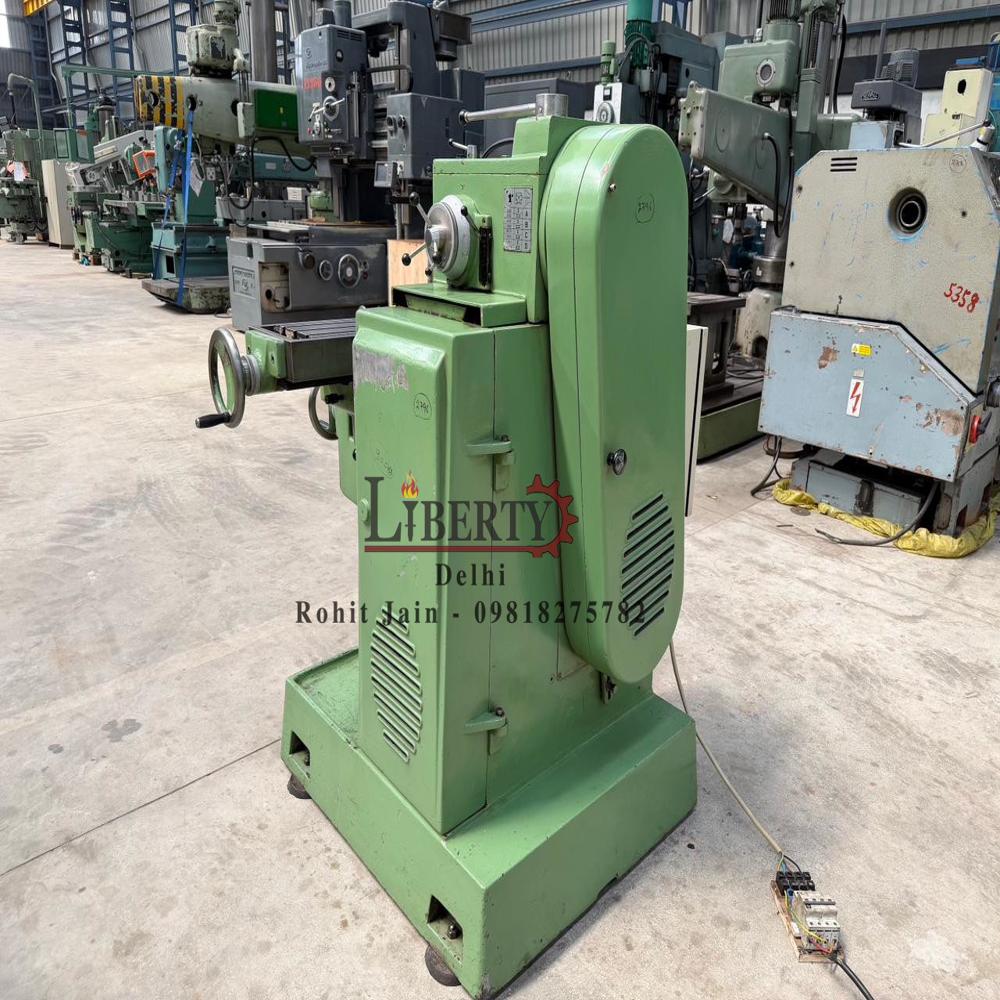

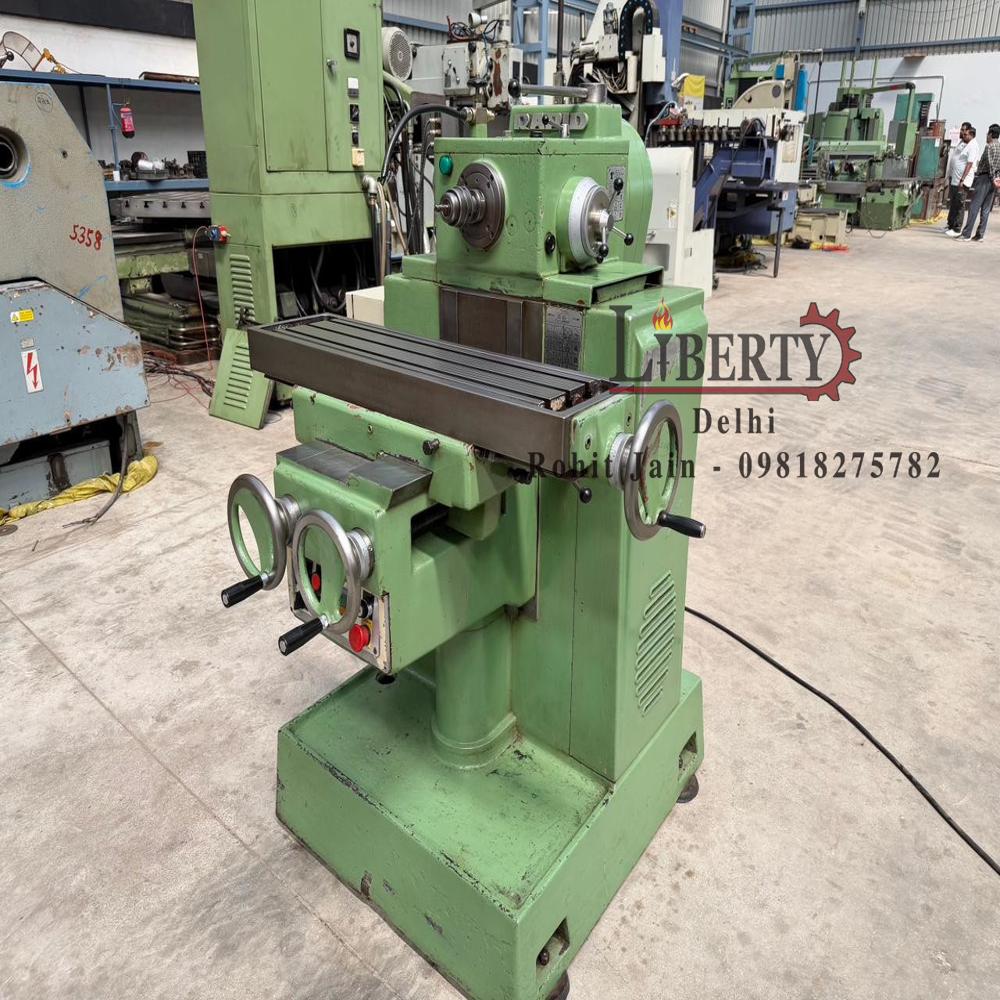

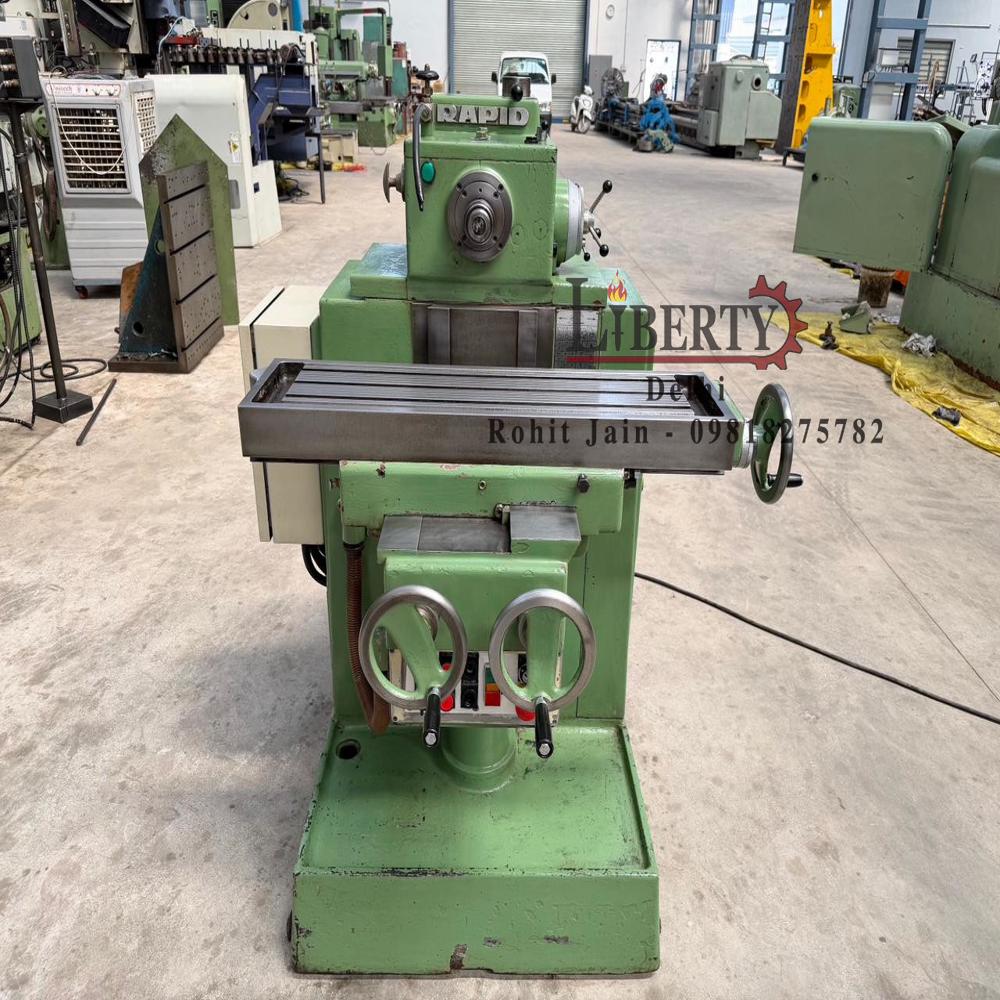

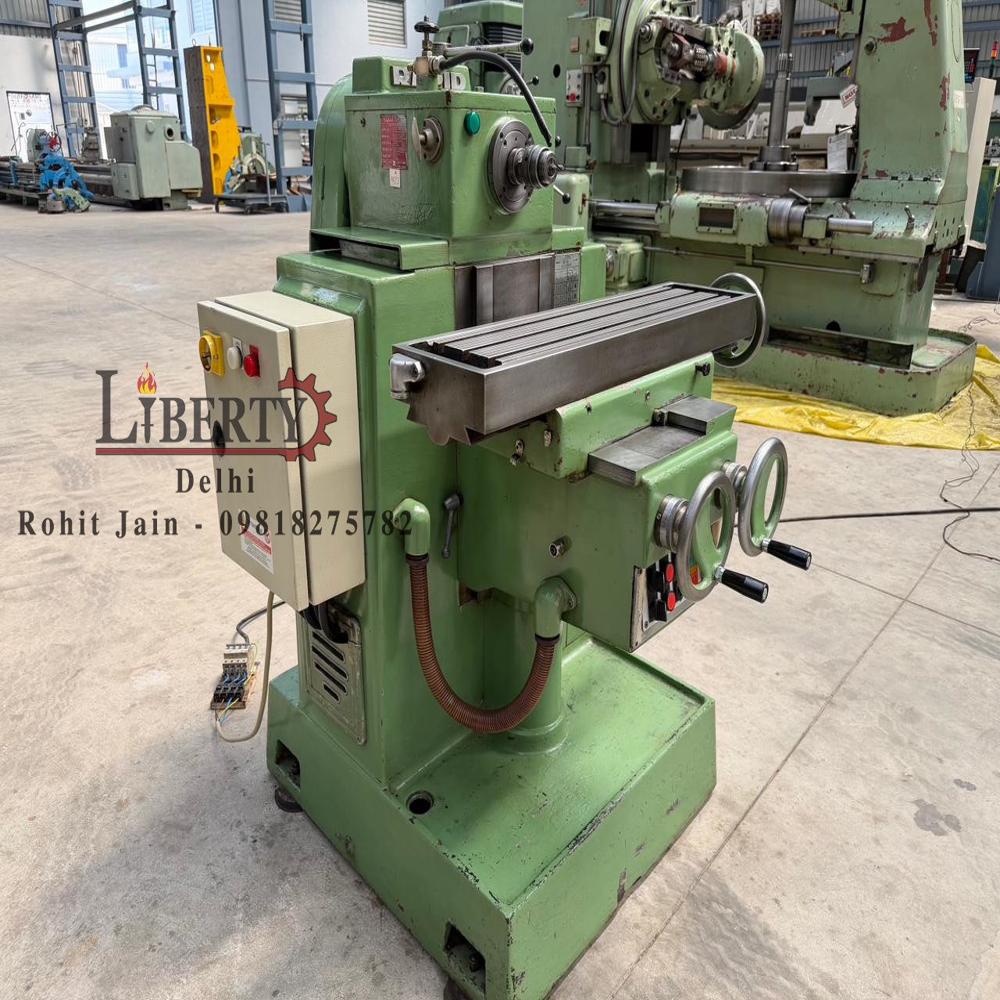

Rapid Italy Auto-Cycle Horizontal Slot Milling Machine

Name: Rapid Italy Auto-Cycle Horizontal Slot Milling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Rapid Italy Auto-Cycle Horizontal Slot Milling Machine Specification

Rotation
Horizontal spindle

Model
Rapid Italy Auto-Cycle

Product Type
Horizontal Slot Milling Machine

General Use
Automatic Horizontal Slot Milling Machine made by Rapid (Italy) in excellent working condition. It is an Auto-Cycle Machine which can be used for Automatic Horizontal Milling of Keyways, Slots, Notches and Groves. The technical details are as follows -

Material
Cast iron, steel, alloy steel

Type
Auto-cycle horizontal, slot/autofeed milling

Capacity
Medium duty

Weight (kg)
Approx. 900-1200 kg

Computerized
No

Automatic
Auto-cycle feature with manual controls

CNC Or Not
Not CNC - Conventional

Control System
Manual with auto-cycle feed

Table Size
Approx. 800 x 200 mm

Table Slide Way
Box type with manual handles

Floor Space
Approx. 1200 x 900 mm

Spindle Speed
Variable mechanical, estimated range 63-1000 RPM

Power
2-3 HP (estimate, based on size)

Voltage
AC 415V, 3-Phase (standard for industrial machines)

Dimension (L*W*H)
Approx. 1200 x 900 x 1500 mm

Feature
Auto-cycle feed, robust build, dual handwheel for precision

Color
Industrial Green

Table Movement
Longitudinal and Cross feed-manual and auto

Working Speed
Up to 600 mm/min (feed adjustable)

Table Travel
Approx. 450 mm longitudinal, 200 mm cross

Slotting Capacity
Up to 120 mm width (depends on cutter/tool)

Application
Slotting, keyway milling, groove machining

Machine Condition
Pre-owned, excellent working

Spindle Taper
ISO/BT40 or compatible (confirm with supplier)

Accessories Included
Standard handwheels, guards, cycle levers

Build Quality
Robust cast construction for vibration damping

Rapid Italy Auto-Cycle Horizontal Slot Milling Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
7 Days

About Rapid Italy Auto-Cycle Horizontal Slot Milling Machine

Make - Rapid (Italy)

Model - 200N

Max. Width of Slot - 25 mm

Max. Length of Slot - 200 mm + Tool Diameter

Max. Depth of Slot - 50 mm

Max. Slot Length using Table Travels - 600 mm

Table Size - 850 mm x 220 mm

XYZ Travel of Table - 400 mm x 175 mm x 250 mm

Spindle Speeds - 250 rpm to 2000 rpm

Spindle Taper - MT-3

Quill Diameter - 100 mm

Milling Head Travel Rates - 2 Strokes/min to 28 strokes/min

- Auto-Cycle Working with Automatic Depth Increase.

- Very Suitable for Milling of Keyways, Slots, Notches, Groves, etc.

- Machine is in excellent working condition.

Video of the machine -

https://youtu.be/Qmx0Ce8qdN0

Superior Performance for Slot Milling Applications

Engineered in Italy, this auto-cycle horizontal slot milling machine excels in medium-duty applications such as keyway, notch, and groove production. Its versatile table travel and precision handwheels enable consistent, high-quality slotting, while the robust construction ensures longevity and stability during operation.

Integrated Automation with Manual Precision

The machine combines auto-cycle feeding and manual handwheel control, providing both automatic efficiency and exacting accuracy. Operators benefit from dual graduated precision handwheels, an intuitive mechanical/manual feed system, and a centralized lubrication setup for smoother operation and easier maintenance.

FAQ's of Rapid Italy Auto-Cycle Horizontal Slot Milling Machine:

Q: How does the auto-cycle feed feature enhance productivity?

A: The auto-cycle feed enables continuous, automatic operation of the milling table, significantly reducing manual effort and increasing throughput, especially during repetitive slot milling tasks in engineering and automotive applications.

Q: What types of machining tasks is this machine suitable for?

A: This machine is ideal for horizontal milling of keyways, slots, notches, and grooves in medium-duty automotive parts, engineering components, and various toolroom jobs requiring precision and repeatability.

Q: When should manual controls be used instead of the auto-cycle mode?

A: Manual controls are particularly useful during setup, fine adjustment, or when performing non-standard machining operations that require more precise intervention than standard auto-cycling allows.

Q: Where can this milling machine be installed, considering its dimensions and power requirements?

A: Designed for industrial environments, the machine occupies about 1200 x 900 mm floor space and requires a 415V, 3-phase power supply, making it suitable for workshops, manufacturing plants, and toolrooms with adequate space and electrical infrastructure.

Q: What is the process for milling a slot using this machine?

A: Begin by securely mounting the workpiece on the table and selecting the appropriate tool. Set spindle speed and table feed as needed. Use the auto-cycle feed for consistent milling or the manual handwheels for precision adjustments, while the integrated coolant system keeps the tool and workpiece cool.

Q: What benefits does the dual graduated handwheel provide?

A: The dual graduated precision handwheels allow for exact manual advancements and fine-tuning, leading to high machining accuracy-particularly valuable for achieving tight engineering tolerances on slots and keyways.
