Arno-Nomo Italy 1550 mm x 350 mm Universal Milling Machine

Send Inquiry

Request To Call Back

Arno-Nomo Italy 1550 mm x 350 mm Universal Milling Machine

Name: Arno-Nomo Italy 1550 mm x 350 mm Universal Milling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Arno-Nomo Italy 1550 mm x 350 mm Universal Milling Machine Specification

Model
Arno-Nomo Universal, 1550 mm x 350 mm

Rotation
Both horizontal and vertical spindle rotation

Product Type
Universal Milling Machine

General Use

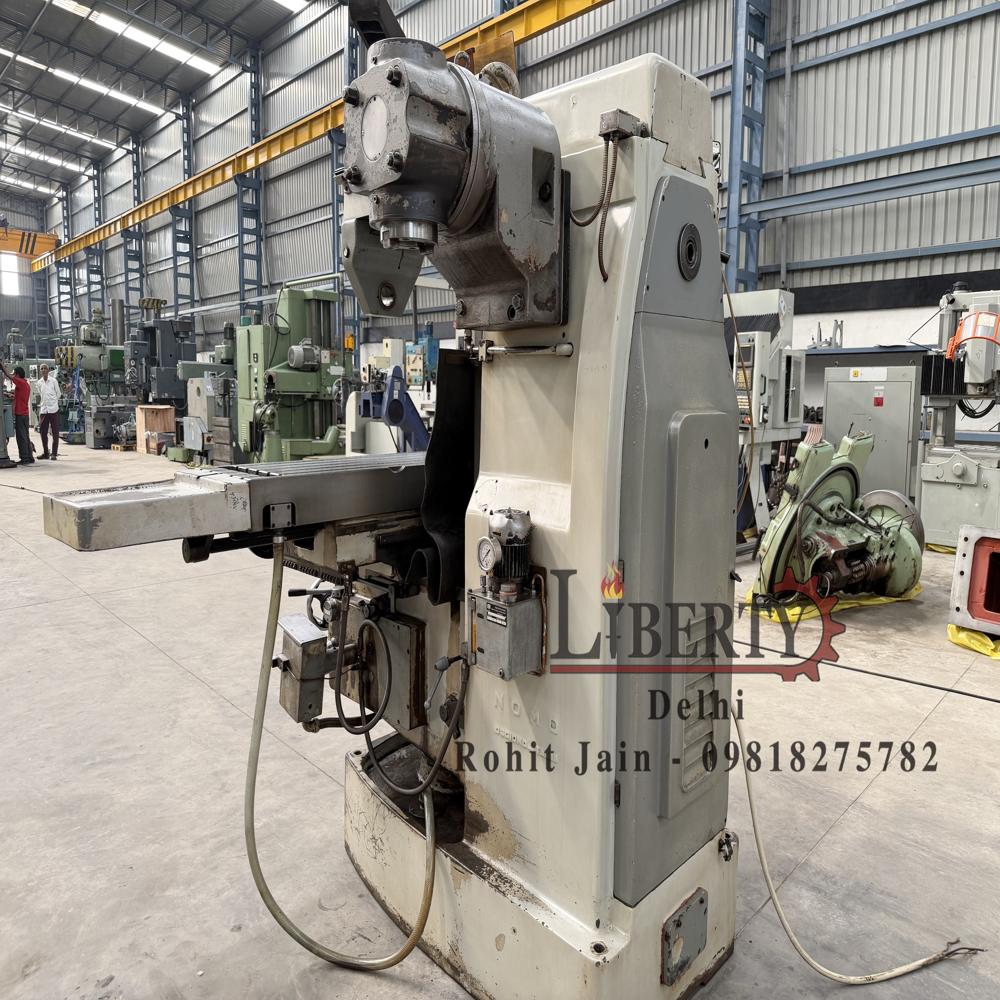

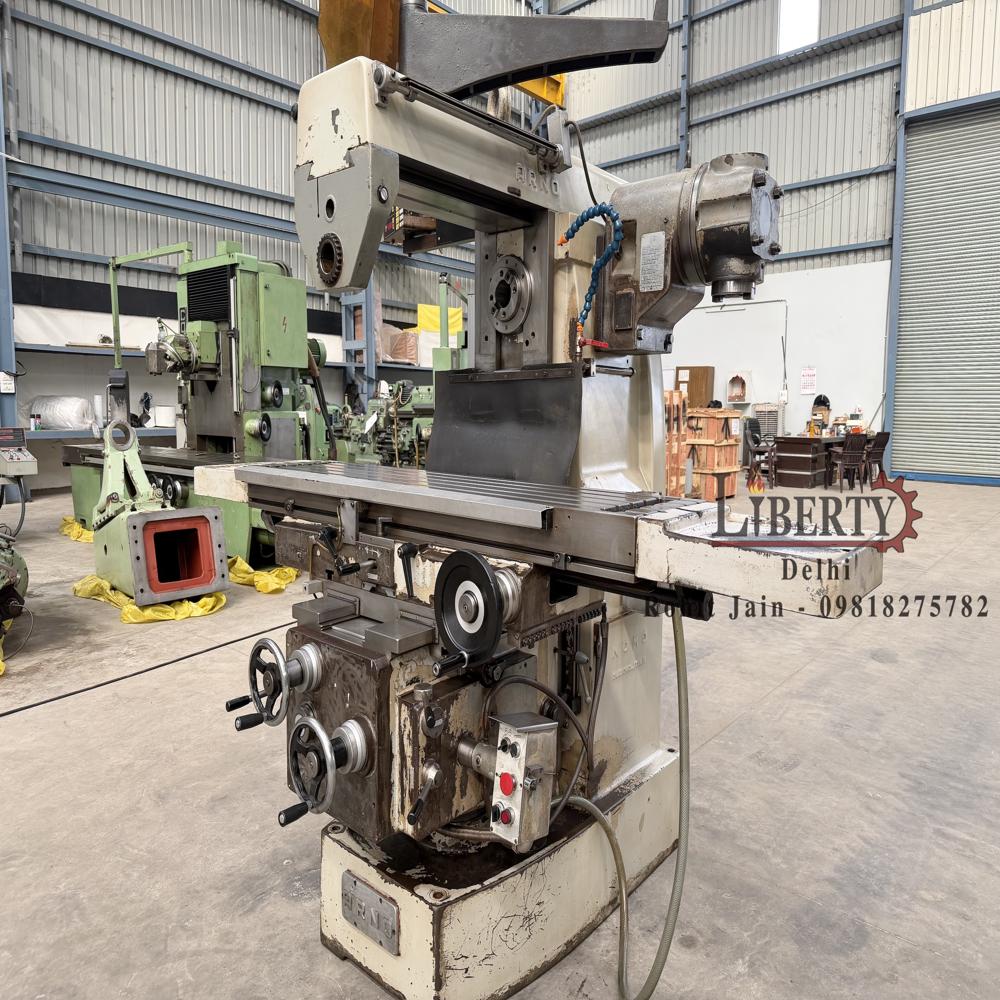

Arno Nomo (Italy) make Universal Milling Machine in excellent working condition. The Table Size of the machine is 1550 mm x 350 mm. The machine is complete with its Arbour and Bracket for Horizontal Milling Operations. It also includes a parking-type vertical milling head for vertical milling operations. The machine is equipped with a 3-Axis DRO and includes many Boring Bars, Tool Holders etc. The technical details are as follows -

Material
Cast Iron & Steel

Type
Horizontal & Vertical Universal

Capacity
Heavy-duty, up to 500 kg table load

Weight (kg)
Approx. 2800 kg

Computerized
No

Automatic
No (manual and semi-automatic feed only)

CNC Or Not
Not CNC (Manual Operation)

Control System
Handwheel & Levers

Table Size
1550 mm x 350 mm

Table Slide Way
V and flat guideways

Floor Space
Approx. 2300 mm x 1800 mm

Spindle Speed
Variable, typically 45 - 1800 rpm

Power
Approx. 5 - 7.5 HP

Voltage
415 V, 3 Phase

Dimension (L*W*H)
Approx. 2300 mm x 1800 mm x 2000 mm

Feature
Swiveling universal table, both horizontal and vertical milling spindles

Color
White/Off-white with metallic components

Table Load Capacity
Up to 500 kg

Working Speed
Variable (dependent on gear selection)

Lubrication
Centralized lubrication system

Cross Travel (Y)
Approx. 350 mm

Vertical Travel (Z)
Approx. 420 mm

Spindle Taper
ISO 50

Coolant System
Fitted with pump and distribution

Condition
Used, tested good working order

Main Motor
5.5 kW

Feed Rates
Variable, mechanical feed system

Longitudinal Travel (X)
Approx. 1200 mm

Arno-Nomo Italy 1550 mm x 350 mm Universal Milling Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
7 Days

About Arno-Nomo Italy 1550 mm x 350 mm Universal Milling Machine

Make - Arno Nomo (Italy)

Table Size - 1550 mm x 350 mm

XYZ Travels - 1125 mm x 320 mm x 450 mm

Spindle Taper - ISO-50

Spindle Speeds - 40 rpm to 1700 rpm

Table Feed Travel Rates - 10 mm/min to 880 mm/min

- Universal type Rotating Table.

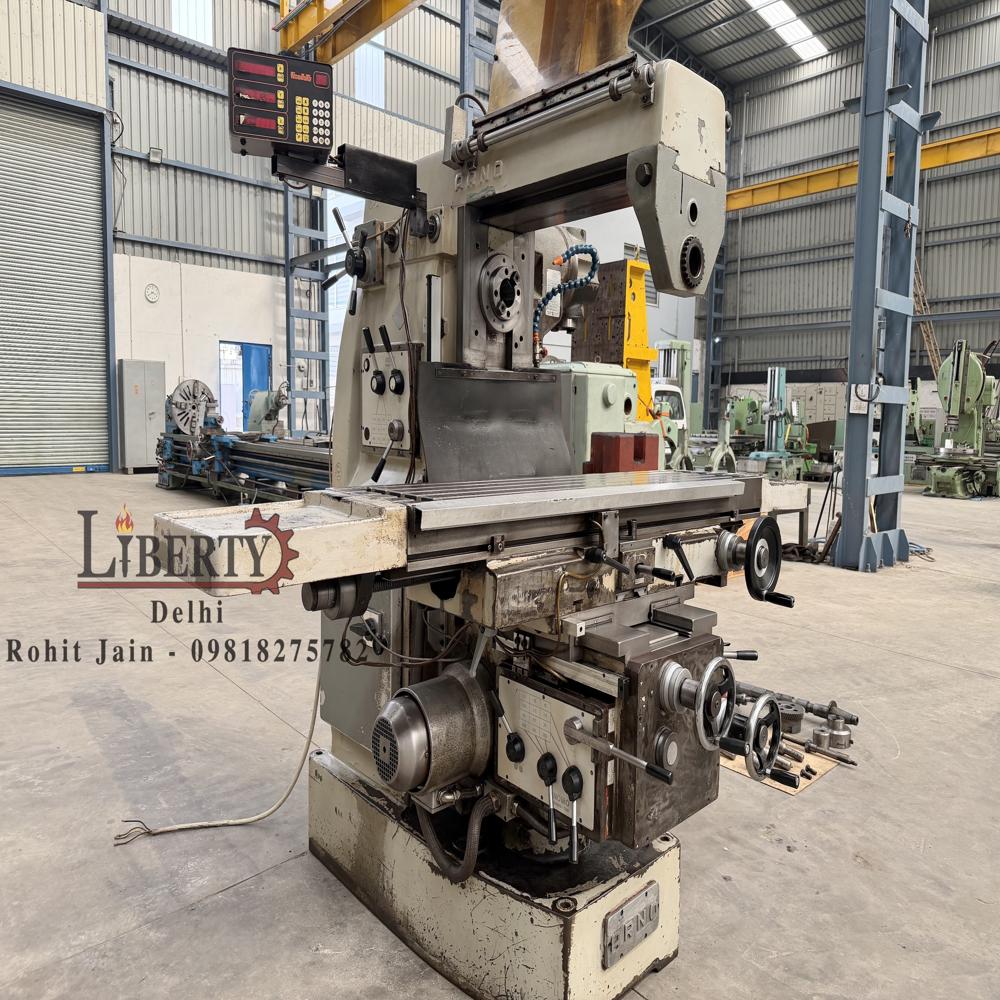

- Equipped with a 3-Axis DRO.

- Equipped with a Parking type Vertical Milling Head.

- Complete with Arbour & Bracket for Horizontal Milling Operations.

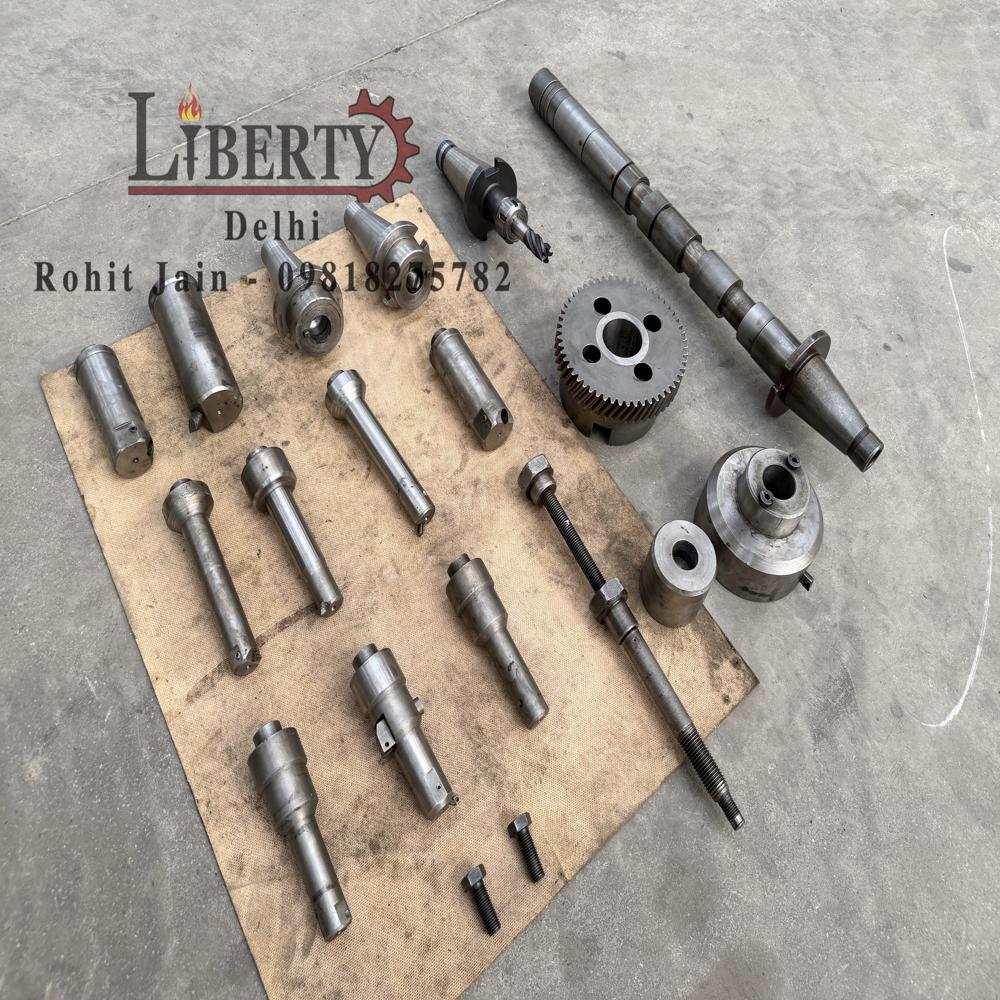

- Complete with many Boring Bars, Tool Holders etc.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/BCRU5EqcKtY

Versatility in Machining Operations

Designed for flexibility, the Arno-Nomo Universal Milling Machine allows operators to efficiently switch between horizontal and vertical milling tasks using its swiveling table and dual spindle system. Whether handling large or complex workpieces, this machine streamlines different machining processes with ease.

Robust Construction and Capacity

Built from durable cast iron and steel, this milling machine can handle table loads up to 500 kg. Its V and flat guideways, combined with a semi-automatic central lubrication system, provide reliable longevity and minimize wear-making it ideal for heavy-duty, daily industrial use.

Precision and Convenience Features

Fitted with a 3-Axis DRO and variable mechanical feeds, the Arno-Nomo Universal ensures precise material removal and easy setup adjustments. Rapid traverse, power longitudinal feed, and a fitted coolant system further enhance productivity and user comfort during operation.

FAQ's of Arno-Nomo Italy 1550 mm x 350 mm Universal Milling Machine:

Q: How does the Arno-Nomo Universal Milling Machine facilitate both horizontal and vertical milling?

A: The machine features interchangeable horizontal and parking-type vertical milling heads, along with ISO 50 spindle tapers for both orientations. This design, complemented by its swiveling universal table, enables efficient transitions between horizontal and vertical machining without extensive reconfiguration.

Q: What are the main advantages of the variable feed rates and rapid traverse on all axes?

A: Variable feed rates allow operators to adjust cutting speeds based on material and operation type, optimizing efficiency and finish quality. Rapid traverse on all axes significantly reduces setup and positioning time, increasing overall productivity in diverse milling tasks.

Q: In what applications is this universal milling machine especially beneficial?

A: Due to its heavy-duty capability, large table travel ranges, and robust construction, the Arno-Nomo Universal is well-suited for manufacturing, tooling, repair workshops, and small- to medium-scale production where flexibility and reliability are paramount.

Q: What operator controls are used for this machine?

A: Control is fully manual via handwheels and levers, offering precise adjustments for all movements. Feed rates are mechanically variable, and power longitudinal feed assists with longer passes, making it user-friendly for experienced machinists.

Q: How is lubrication managed in this milling machine?

A: A semi-automatic central lubrication system ensures that all key sliding and rotating points receive consistent lubrication, minimizing friction and wear. This feature extends machine lifespan and maintains smooth operational performance.

Q: What accessories are included with the Arno-Nomo Universal Milling Machine?

A: The machine is supplied with an arbour and bracket for horizontal operations, a parking-type vertical head, a 3-Axis DRO, various boring bars, tool holders, and a fitted coolant system, providing a comprehensive setup for immediate use.
