Vernier France DB-520 1600 mm x 500 mm Bed type Milling Machine

Send Inquiry

Request To Call Back

Vernier France DB-520 1600 mm x 500 mm Bed type Milling Machine

Name: Vernier France DB-520 1600 mm x 500 mm Bed type Milling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Vernier France DB-520 1600 mm x 500 mm Bed type Milling Machine Specification

Model
DB-520

Rotation
Spindle bi-directional

Product Type
Bed Type Milling Machine

General Use

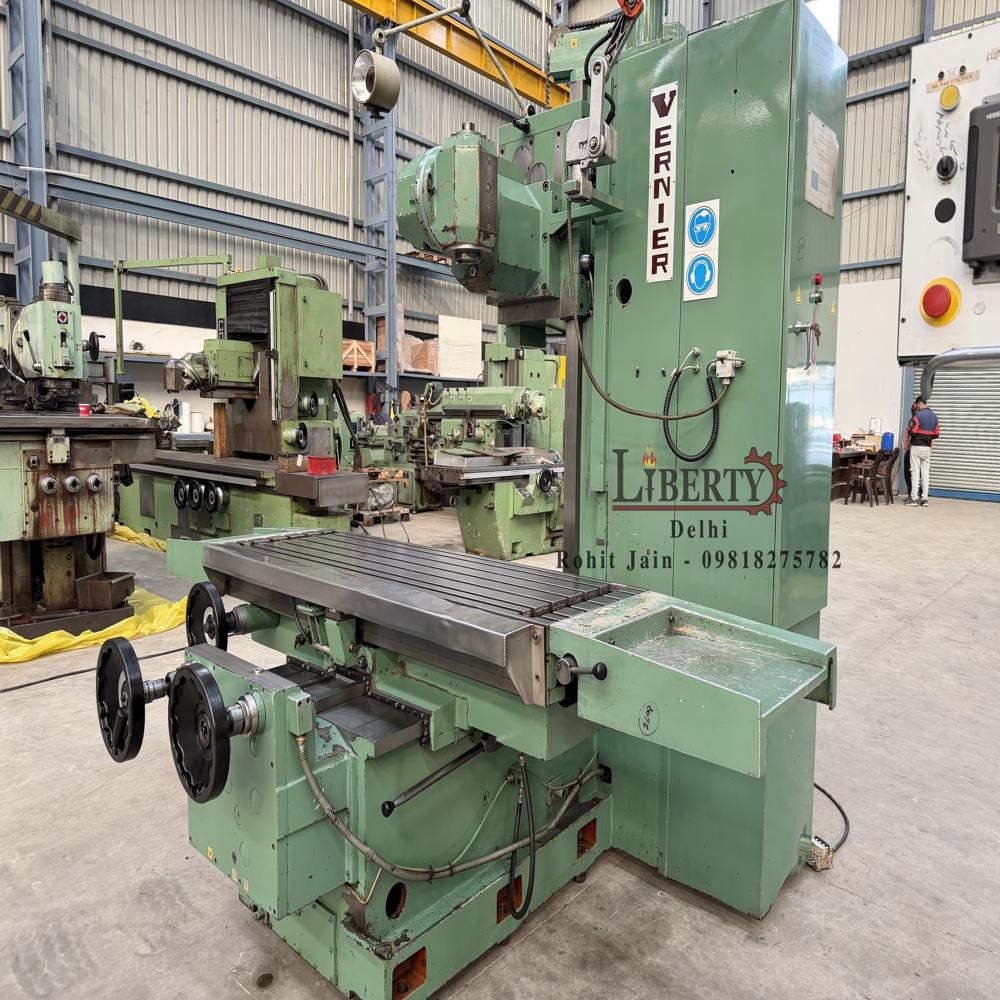

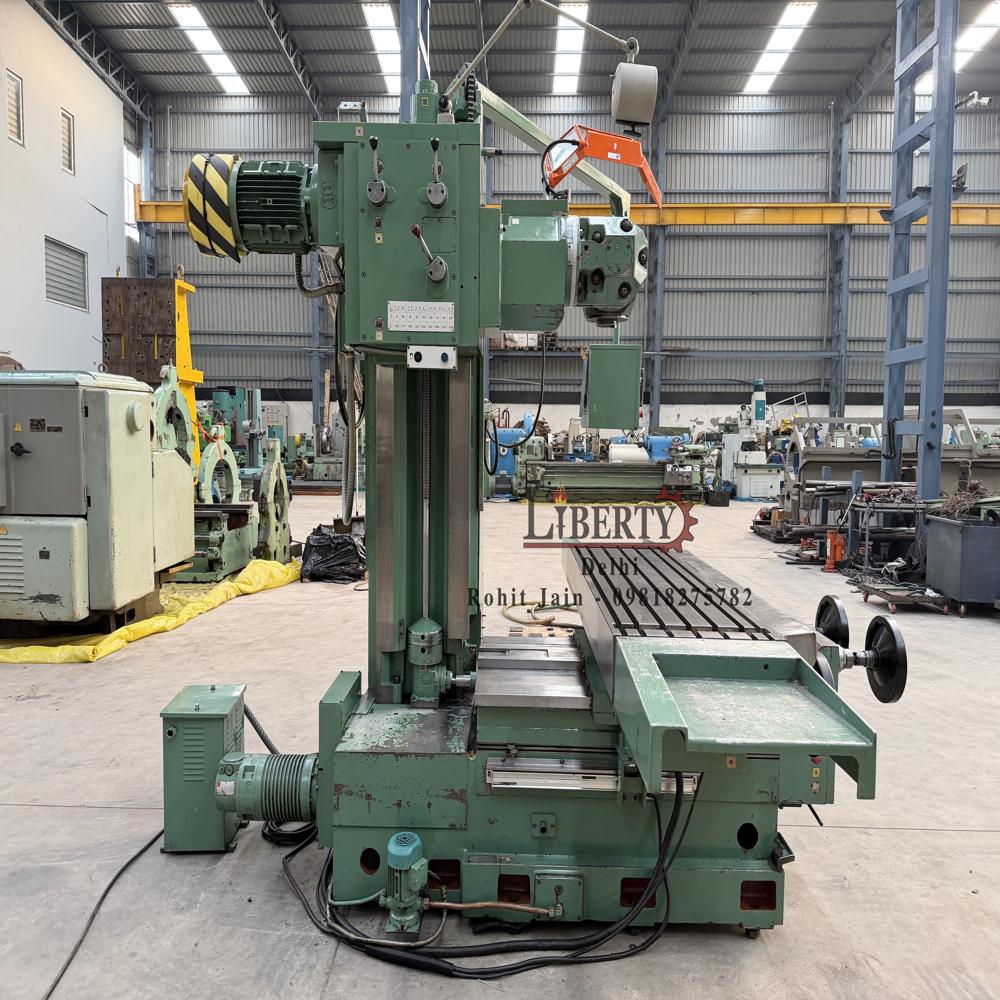

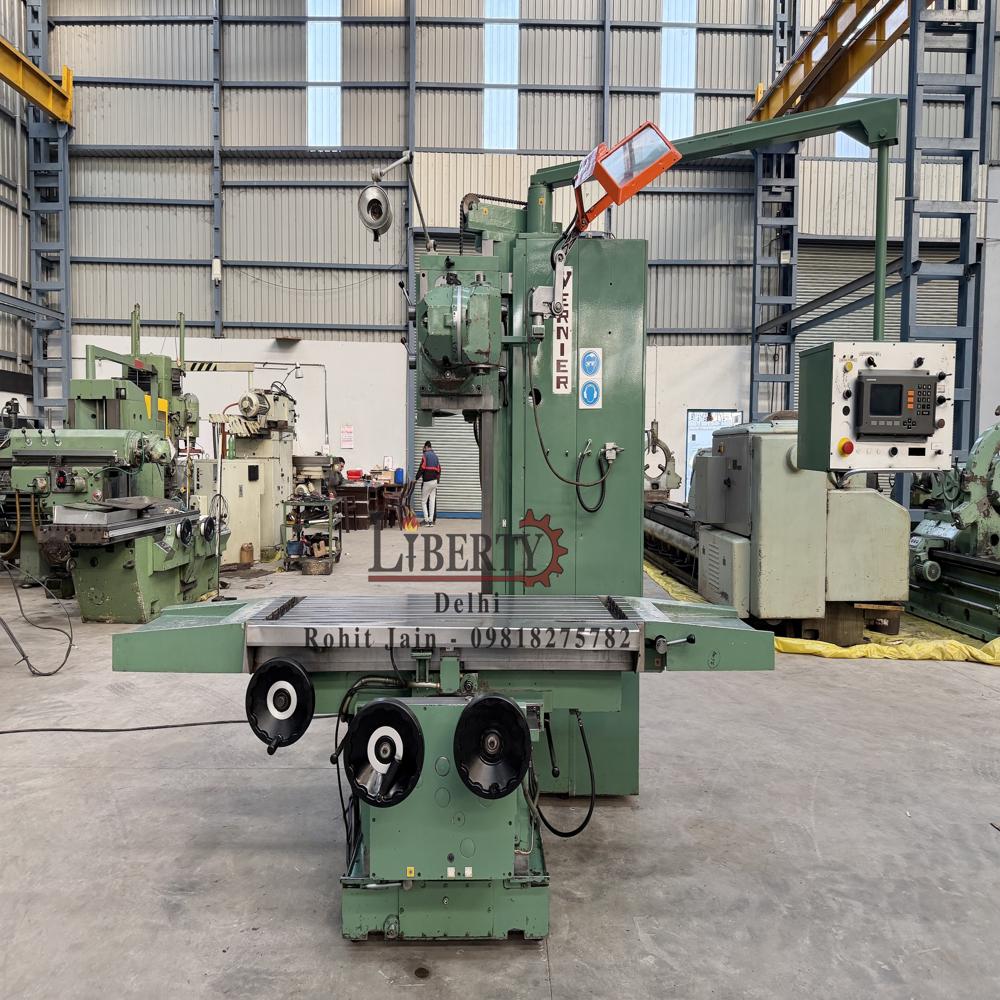

Bed type Milling Machine made by Vernier (France) in excellent working condition. The model of the machine is DB 520 and the Table Size is 1600 mm x 500 mm. The machine is complete with a Double Swivel Type Milling Head and also equipped with a 3-Axis DRO. The Vertical Milling Head can be removed to do Horizontal Milling Operations. The technical details are as follows -

Material
Cast Iron Body

Type
Horizontal & Vertical Milling

Capacity
Heavy Duty Industrial

Weight (kg)
Approx. 3500-4000 kg

Computerized
No

Automatic
No

CNC Or Not
Not CNC (Conventional)

Control System
Manual

Table Size
1600 mm x 500 mm

Table Slide Way
Hardened & Ground

Floor Space
Approx. 2500 mm x 2200 mm

Spindle Speed
Variable, up to 1500 RPM

Power
5-7.5 HP

Voltage
380/415 V, 3 Phase

Dimension (L*W*H)
Approx. 2500 mm x 2200 mm x 2200 mm

Feature
Rigid structure, versatility, multiple spindle speeds

Color
Green

Automatic Feed
Yes, on all axes

Coolant System
Fitted

Machine Condition
Used, Good Working Condition

Table Cross Travel
400 mm

Installation
On-Site, Floor Mounted

Rapid Traverse
Equipped

Spindle Taper
ISO 50

Working Speed
Feed: Variable, up to 1200 mm/min

Swiveling Milling Head
Yes

Table Vertical Travel
450 mm

Table Longitudinal Travel
1400 mm

Main Motor
7.5 HP

Make
Vernier

Vernier France DB-520 1600 mm x 500 mm Bed type Milling Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
7 Days

About Vernier France DB-520 1600 mm x 500 mm Bed type Milling Machine

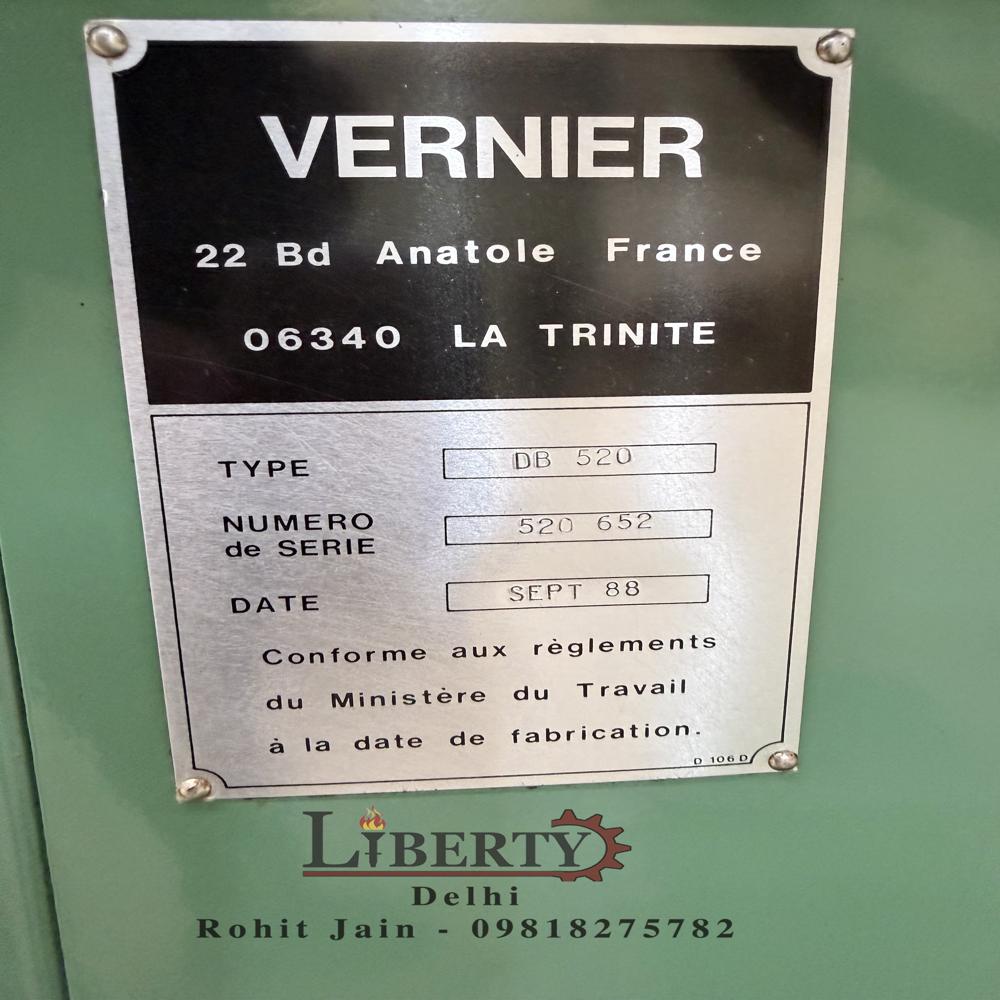

Make - Vernier (France)

Model - DB 520

Table Size - 1600 mm x 500 mm

XYZ Travel - 1100 mm x 575 mm x 900 mm

Spindle Speeds - 32 rpm to 1600 rpm

Spindle Taper - ISO 40

Feed Rates of Travel - 15 mm/min to 1100 mm/min

Max. Height between Table to Vertical Spindle - 850 mm

Spindle Motor Power - 7.5 kW

Weight of the Machine - 5.60 Tons (Approximately)

- Equipped with a 3-Axis DRO.

- Complete with a Double-Swivel type Vertical Milling Head.

- Vertical Milling Head can be removed to do Horizontal Milling operations.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/A_ax1r8qRJc

Versatile Milling Capabilities

With both horizontal and vertical milling options, the DB-520 adapts seamlessly to varied machining tasks. The double swivel type head provides flexibility in operation, while the 3-axis DRO enhances precision. Its robust structure ensures stable, accurate results across a range of demanding jobs.

Designed for Efficiency and Durability

Constructed from sturdy cast iron and equipped with hardened table slide ways, the machine endures rigorous, long-term use. The integrated coolant system and centralized manual lubrication minimize maintenance, while a rapid feed mechanism streamlines workflow and boosts productivity.

User-Friendly Manual Operation

As a conventional milling machine, the DB-520 features a clear, manually operated control system. It includes standard handles, a drawbar, and easy-to-read spindle speed settings, making it straightforward for skilled operators to achieve precise results without CNC programming.

FAQ's of Vernier France DB-520 1600 mm x 500 mm Bed type Milling Machine:

Q: How do I transition between horizontal and vertical milling operations on the Vernier DB-520?

A: To switch from vertical to horizontal milling, simply remove the vertical milling head from the machine. This allows you to perform horizontal operations, giving added versatility without the need for an entirely separate machine.

Q: What types of machining tasks can this bed type milling machine handle?

A: The Vernier DB-520 is suitable for precise machining, slot cutting, drilling, face milling, and other complex shaping tasks, thanks to its adaptable milling head, stable bed structure, and bi-directional spindle rotation.

Q: When should centralized manual lubrication and coolant system maintenance be performed?

A: Regular maintenance is recommended, typically before each shift for lubrication to ensure all moving parts remain in optimal condition, and periodic checks on the integrated coolant tank and pump to guarantee effective cooling during prolonged operations.

Q: Where is the optimal installation location for this milling machine?

A: Install the DB-520 on a level concrete floor within a well-ventilated industrial workspace, ensuring enough clearance for the machine's full operational dimensions (approximately 2500 mm x 2200 mm) and secure access to 380/415 V, 3-phase power supply.

Q: What process does the rapid feed mechanism facilitate?

A: The rapid feed mechanism expedites table movements during setup or when traversing non-cutting positions, minimizing downtime and improving workflow efficiency, especially during large or repetitive machining projects.

Q: How does the 3-axis Digital Readout (DRO) benefit machine operators?

A: The 3-axis DRO provides precise digital feedback on X, Y, and Z table positions, greatly increasing accuracy during machining operations and reducing the likelihood of manual measurement errors.
