SASS Italy 60 mm x 1430 mm Radial Drilling Machine

Name: SASS Italy 60 mm x 1430 mm Radial Drilling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SASS Italy 60 mm x 1430 mm Radial Drilling Machine Specification

Table Size
600 x 550 mm

Dimension (L*W*H)
2550 x 1100 x 2800 mm

Machine Type
Radial Arm Drilling Machine

Spindle Speed
18 Speeds (40 - 2000 RPM)

Cutting Area
1430 mm Arm Length

Noise Level
Low

Motor Power
5 HP

Diameter
Maximum Drill Diameter 60 mm

Features
Wide Working Range, Precision Ground Gears, Heavy Base Plate, Smooth Operation, Adjustable Arm Height

Frequency
50 Hz

Condition
Used, Good Working Condition

Product Type

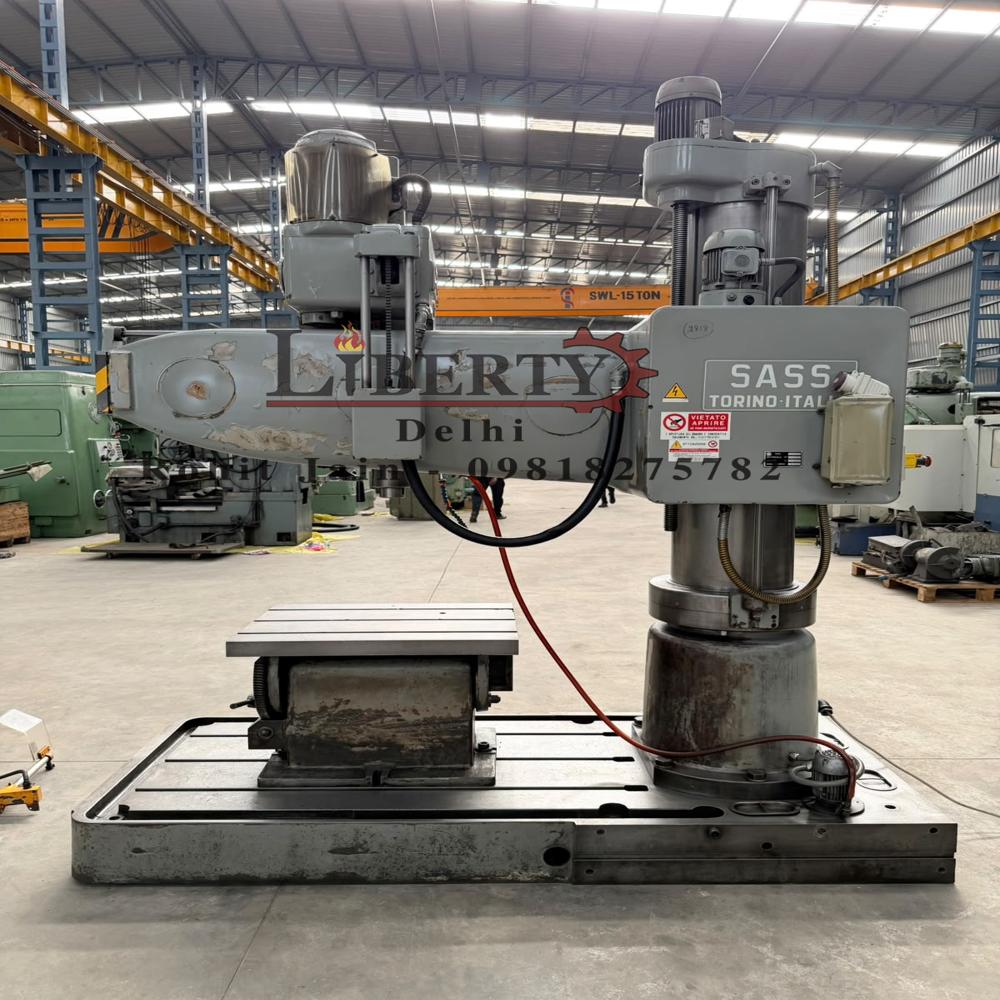

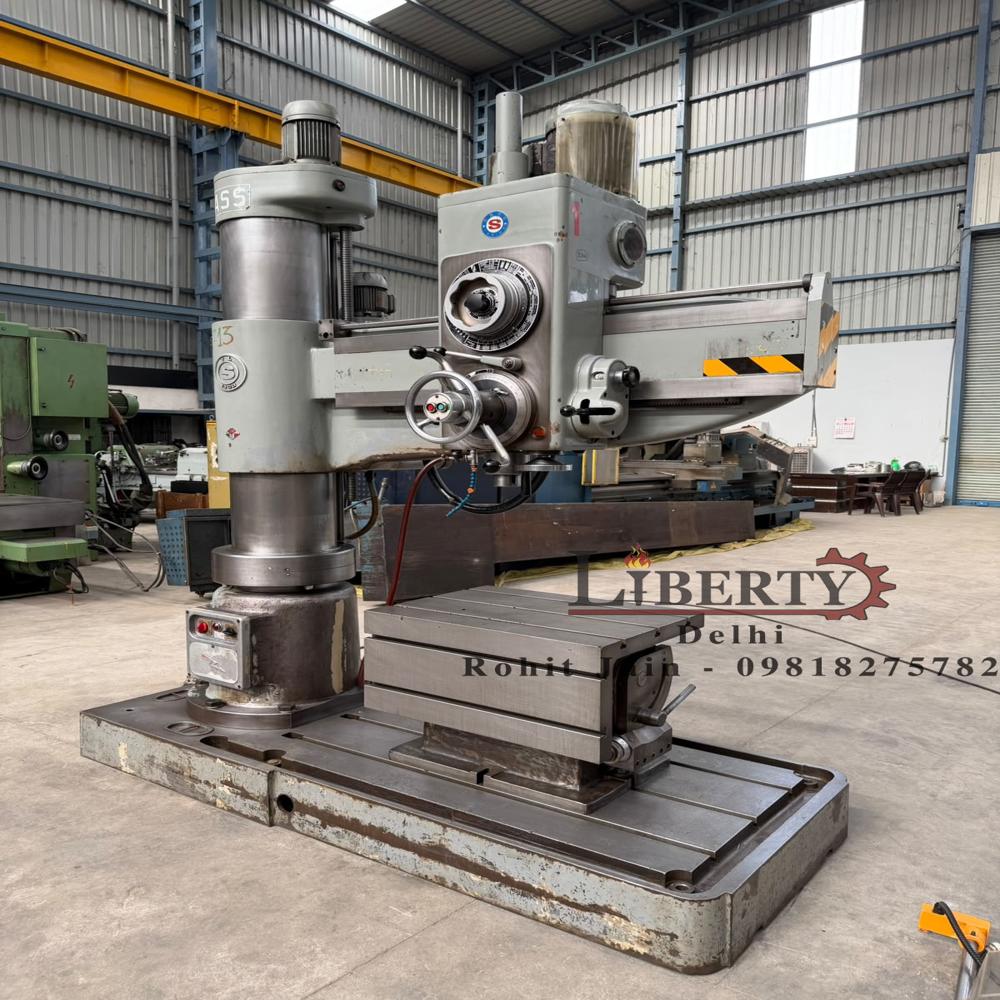

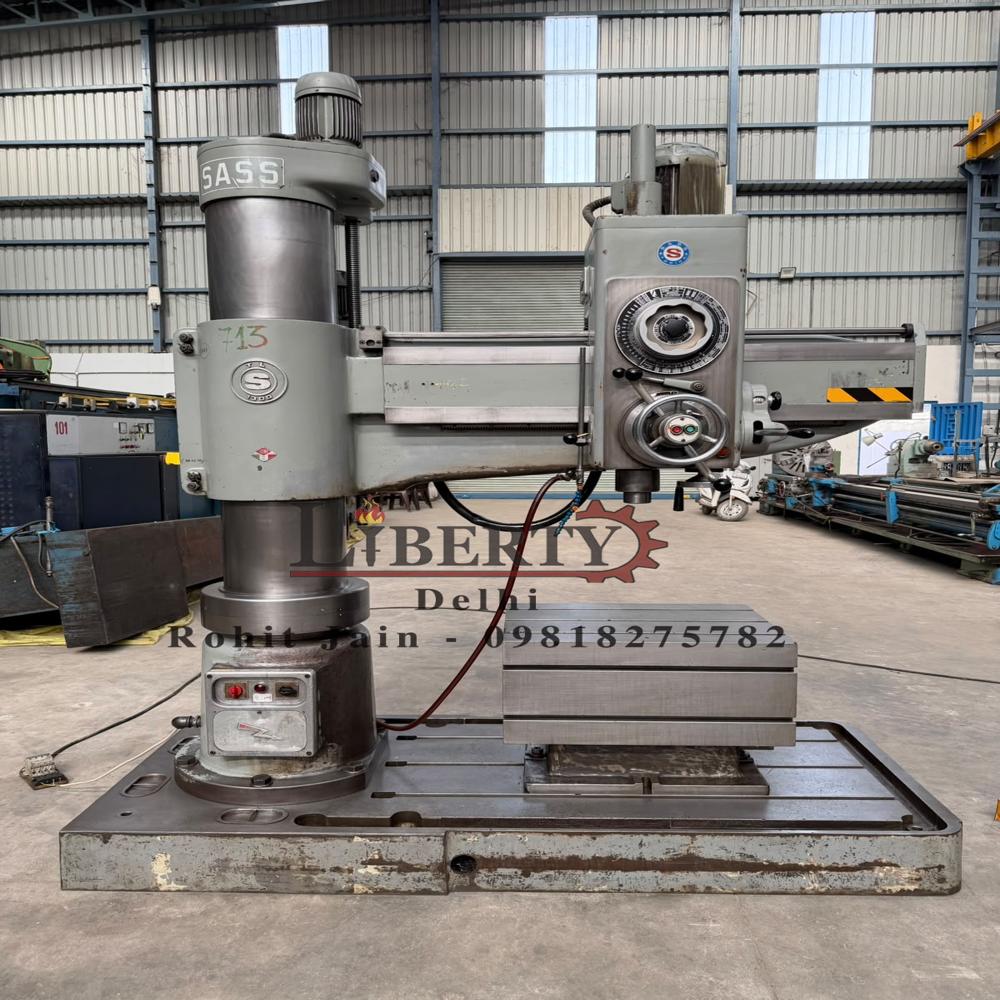

SASS (Italy) make Heavy Duty Radial Drilling Machine, Model TL-1300, available in excellent working condition. The machine has a Drilling Capacity of 60 mm and a Radial Arm Length of 1430 mm, making it suitable for medium to heavy-duty drilling, tapping and boring applications. The machine is equipped with a Tilting Cube Table, making it suitable for angular drilling, taper drilling and tapping operations. It features Hydraulic Automatic Clamping for both the Drilling Head and Radial Arm, ensuring quick positioning and rigid locking during operation. The technical details are as follows -

Material
High-grade Cast Iron and Steel

Computerized
No

Automatic Grade
Semi-Automatic

CNC Or Not
No

Control System
Manual

Voltage
415 V

Power
4 kW

Power Source
Electric

Weight (kg)
Approx. 3500 kg

Capacity
60 mm Drilling Capacity

Color
Industrial Grey

Usage & Applications
Heavy Duty Drilling, Tapping and Boring operations in Workshops and Fabrication Units

Column Diameter
350 mm

Model
60 x 1430 mm

Spindle Travel
310 mm

Min Distance Spindle to Column
365 mm

Min Distance Spindle to Base
300 mm

Base Size
1970 x 950 mm

Max Distance Spindle to Column
1430 mm

Spindle Taper
Morse Taper #5

Table Type
Box Type Work Table Included

Coolant System
Yes

Max Distance Spindle to Base
1280 mm

Arm Travel
1430 mm

Clamping Type
Manual & Hydraulic

About SASS Italy 60 mm x 1430 mm Radial Drilling Machine

Make - SASS (Italy)

Model - TL-1300

Drilling Capacity - 60 mm

Spindle Diameter - 85 mm

Arm Length - 1430 mm

Spindle Speeds - 32 rpm to 1945 rpm

Spindle Taper - MT-5

Spindle Feed Travel - 400 mm

Spindle Feed Rates - 0.09 mm/rev to 1.50 mm/rev

Vertical Travel of Arm - 700 mm

Max. Height between Spindle to Top of Base - 1400 mm

Tilting Cube Table Size - 750 mm x 555 mm

Tilting Angle of Cube Table - 0 to 90 degree

Machine Weight - 3.85 Tons (Approx.)

Clamping Type - Automatic ; Hydraulic

- Operating Manual & Electrical Drawings are available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/RRVBjv1Ty_Q

Versatile Industrial Performance

Designed to meet the demands of heavy-duty drilling, tapping, and boring, the SASS Italy Radial Drilling Machine excels in workshops and fabrication units. Its wide working range and sturdy construction allow for precision and reliability across diverse application requirements. With a spindle travel of 310 mm and an arm length of 1430 mm, operators can tackle large workpieces effortlessly.

Precision Engineering and Ease of Operation

This machine features precision ground gears, a heavy base plate, and a low noise design, ensuring both accuracy and comfort during operation. The manual and hydraulic clamping options provide flexibility, while the adjustable arm height enhances user control, allowing for efficient setup and transition between tasks.

Durable Build and Advanced Features

Constructed with high-grade cast iron and steel, this model is designed for longevity and consistent performance. An integrated coolant system keeps the workspace optimal, while the box-type work table supports varied workpiece sizes. Its semi-automatic functionality streamlines repetitive tasks, making it a reliable addition to any industrial setting.

FAQ's of SASS Italy 60 mm x 1430 mm Radial Drilling Machine:

Q: How is the SASS Italy 60 mm x 1430 mm Radial Drilling Machine operated?

A: The machine functions through a manual control system, with the option of manual or hydraulic clamping, enabling precise adjustments and secure workpiece fixation during drilling, tapping, and boring tasks.

Q: What applications is this radial drilling machine best suited for?

A: This radial arm drilling machine is ideal for heavy-duty operations in industrial workshops and fabrication units, including precise drilling, tapping, and boring of large and complex workpieces.

Q: When should I use the manual versus the hydraulic clamping system?

A: Manual clamping is suitable for quick and straightforward setups, while the hydraulic system is advantageous for larger or heavier workpieces that require reliable, high-force securing, enhancing operational efficiency and safety.

Q: Where can the SASS Italy radial drilling machine be installed?

A: It can be installed in any industrial workshop, manufacturing facility, or fabrication unit that requires heavy-duty drilling capabilities. Sufficient floor space (minimum dimensions: 2550 x 1100 mm) and an electric supply of 415 V are essential.

Q: What is the process for adjusting the arm and spindle for different drilling operations?

A: The adjustable arm height and variable spindle travel (up to 310 mm) allow you to configure the machine for different workpiece sizes and drilling depths. Select the appropriate spindle speed (out of 18 options) and adjust the arm to align with your application's requirements.

Q: How does using this machine benefit my operations?

A: This semi-automatic radial drilling machine enhances productivity with its wide working range, reliable clamping systems, and adjustable features. Its robust build ensures durability, and the integrated coolant system and low noise design enhance both performance and operator comfort.
