Stanko Russia 800 mm Heavy Duty Vertical Spindle Rotary Surface Grinder
Stanko Russia 800 mm Heavy Duty Vertical Spindle Rotary Surface Grinder
Stanko Russia 800 mm Heavy Duty Vertical Spindle Rotary Surface Grinder
Stanko Russia 800 mm Heavy Duty Vertical Spindle Rotary Surface Grinder
Stanko Russia 800 mm Heavy Duty Vertical Spindle Rotary Surface Grinder
Stanko Russia 800 mm Heavy Duty Vertical Spindle Rotary Surface Grinder
Stanko Russia 800 mm Heavy Duty Vertical Spindle Rotary Surface Grinder
Stanko Russia 800 mm Heavy Duty Vertical Spindle Rotary Surface Grinder

Stanko Russia 800 mm Heavy Duty Vertical Spindle Rotary Surface Grinder

Price 100000.0 INR/ Piece

MOQ : 1 Piece

Stanko Russia 800 mm Heavy Duty Vertical Spindle Rotary Surface Grinder Specification

  • General Use

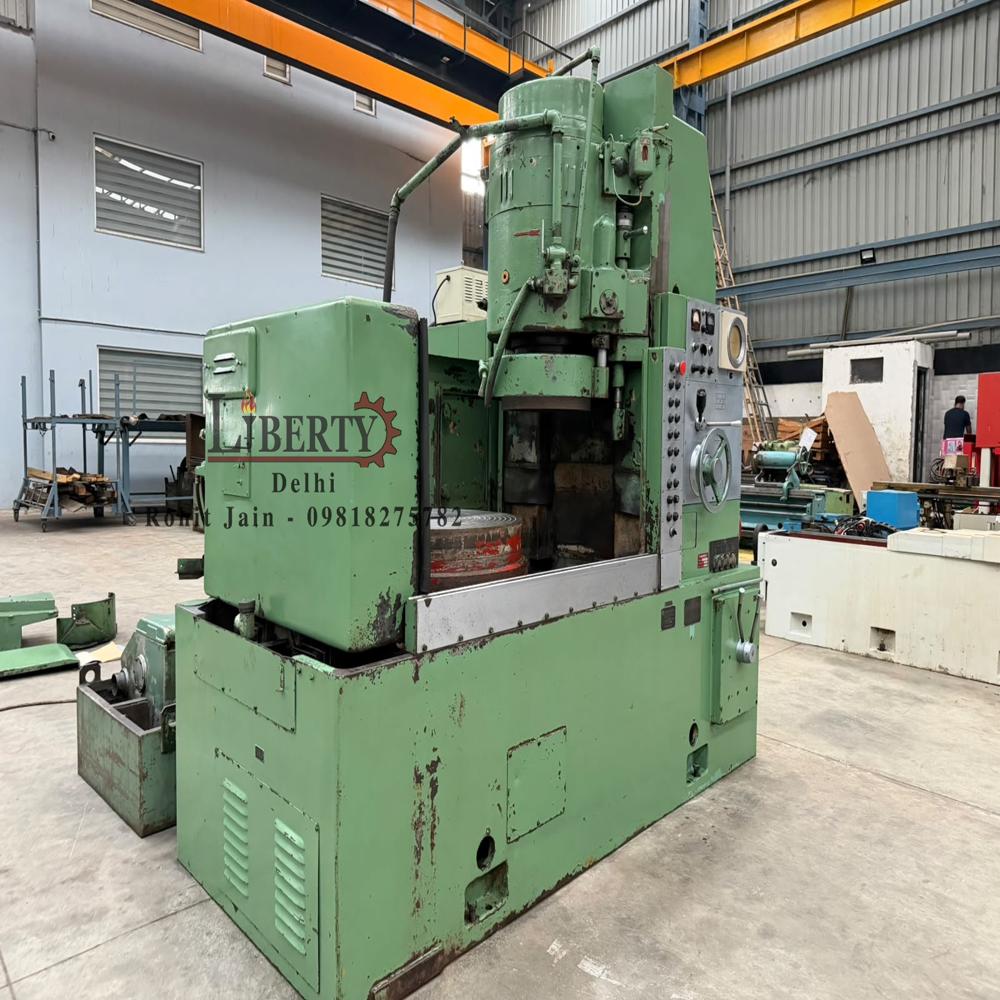

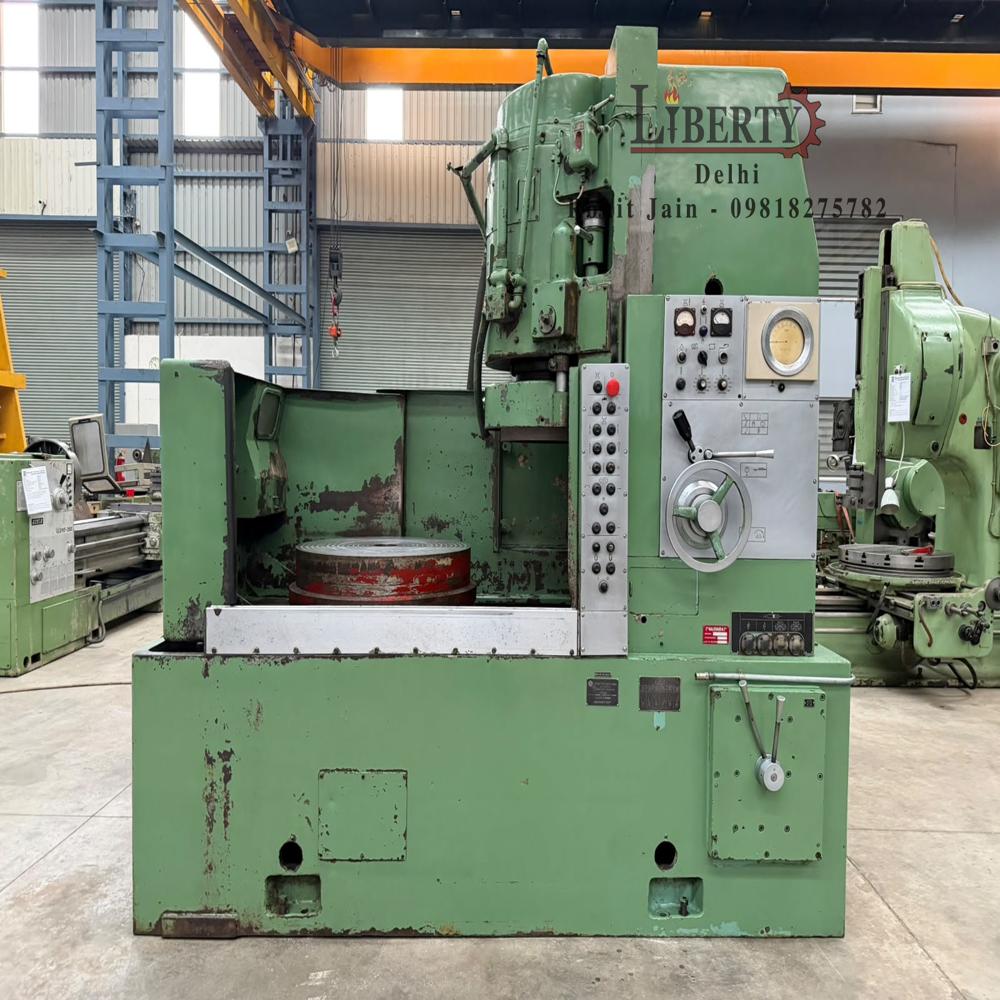

  • Heavy Duty Vertical Spindle Rotary Surface Grinding Machine made by Stanko (Russia), Model 3A756, available in excellent working condition. The machine has a Magnetic Table Diameter of 800 mm, a Maximum Swing Diameter of 1000 mm, and a Maximum Job Height of 360 mm. It comes with both types of wheel flanges segmented cup wheel and standard cup wheel. It is complete with Operating Manual, Electrical Drawings, multiple spare Segmented Grinding Wheels, Magnetic Coolant Filtration Unit, Coolant Tank and Coolant Pump. The machine is suitable for heavy stock removal and precision grinding of large flat surfaces like die plates, mould bases, machine beds, and other similar jobs. The technical details are as follows -



About Stanko Russia 800 mm Heavy Duty Vertical Spindle Rotary Surface Grinder

Make - Stanko (Russia)
Model - 3A756
Magnetic Table Diameter - 800 mm
Max. Job Height - 360 mm
Max. Swing Diameter - 1000 mm
Segmented Cup Wheel Diameter - 510 mm
Standard Cup Wheel Diameter - 455 mm
Table Rotation Speeds - 5 rpm to 30 rpm
Number of Segments in Grinding Wheel - 10 pcs.
Grinding Wheel Spindle Motor - 30 kW
Table Forward / Backward Travel - 530 mm
Least Count - 5 Microns (0.005 mm)
Machine Weight - Approx. 10 Tons
- Motorised Rapid Vertical Travel of Wheel-Head.
- Motorised Rapid Forward / Backward Movement of Table.
- Feature of Automatic Depth Adjustment "Auto-Cut".
- Equipped with Wheel Dressing Attachment.
- Both types of wheel flanges - segmented cup wheel and standard cup wheel - available.

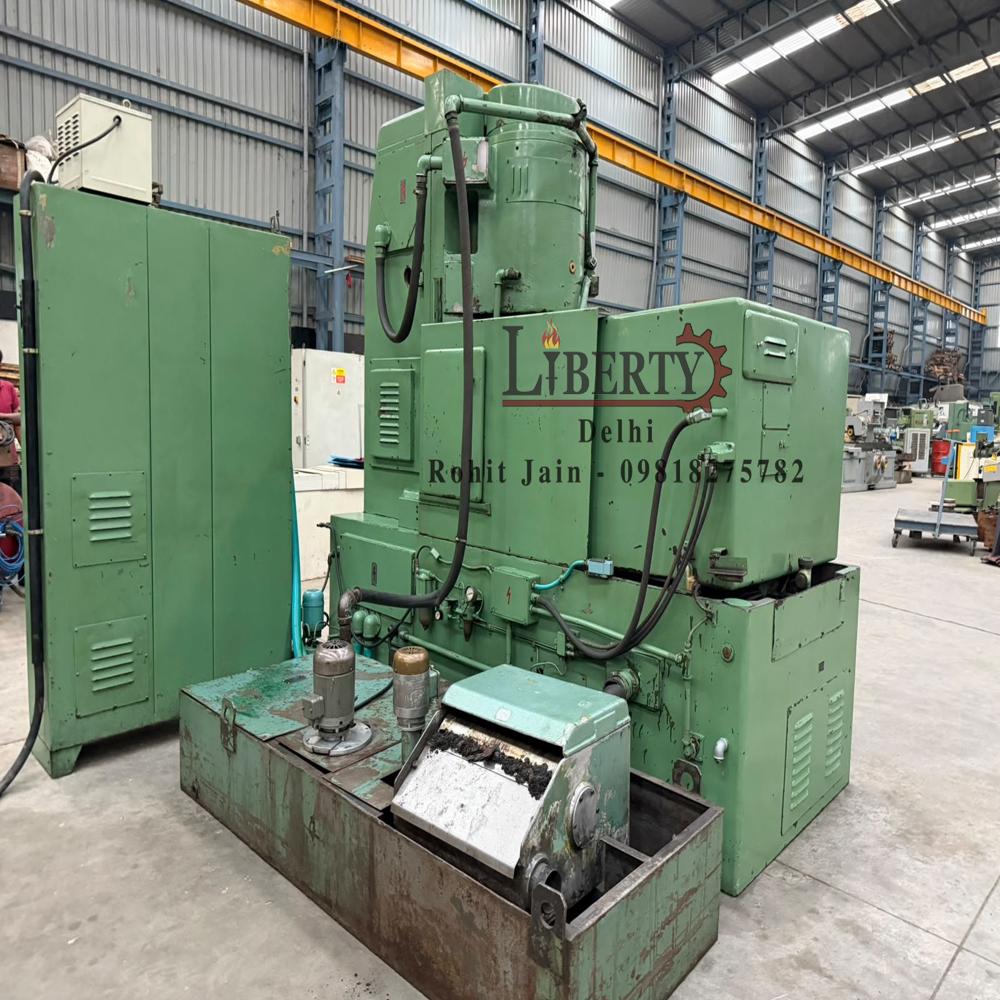

- Complete with Magnetic Coolant Filtration Unit, Coolant Pump & Coolant Tank.

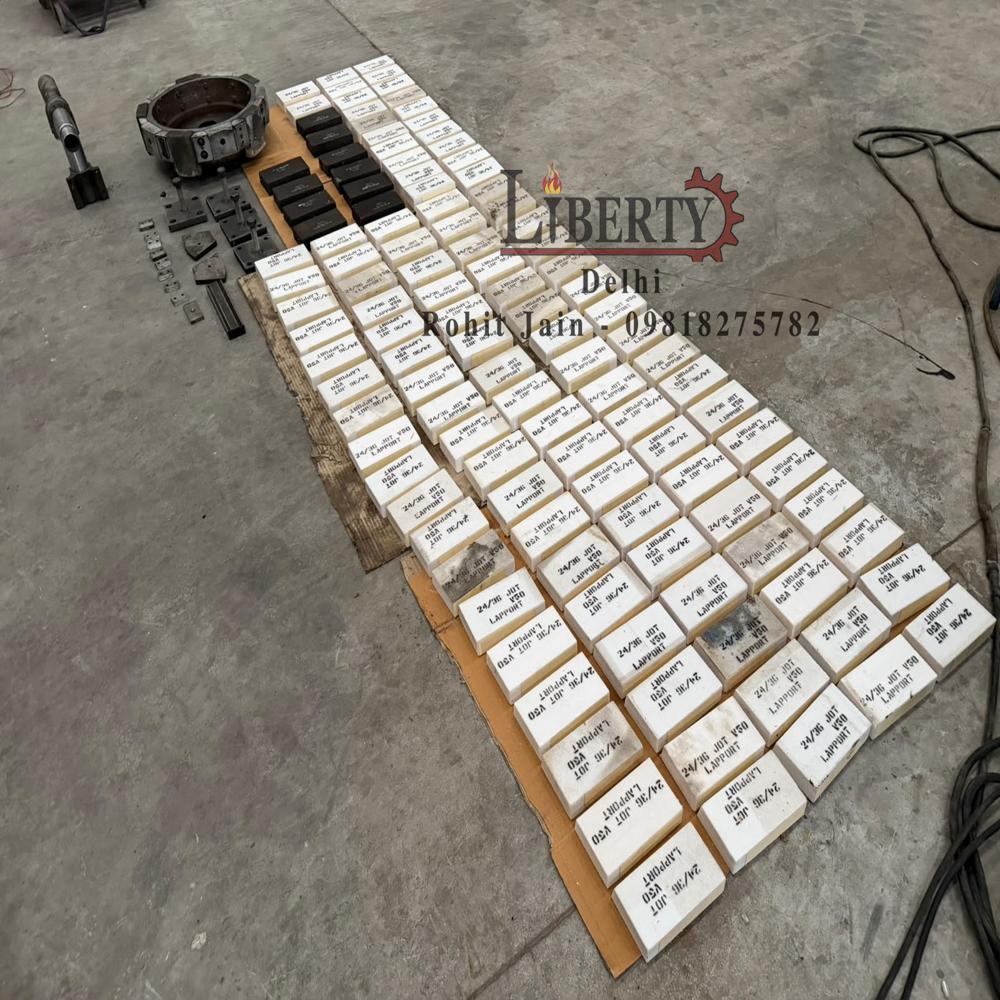

- Complete with multiple spare Segmented Grinding Wheels.
- Operating Manuals & Electrical Drawings are available.
- Machine is in excellent working condition.

Video of The Machine -
