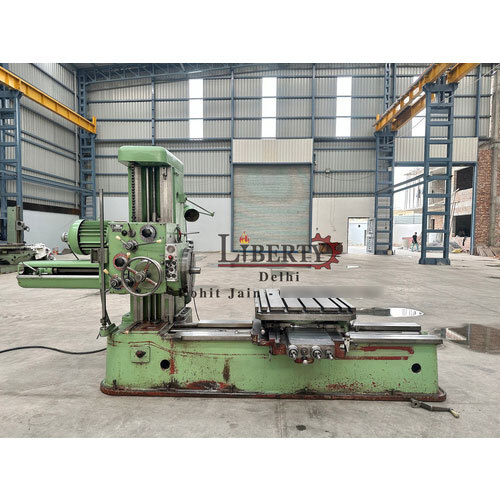

TOS Czech 63 mm Horizontal Boring Machine
TOS Czech 63 mm Horizontal Boring Machine

TOS Czech 63 mm Horizontal Boring Machine

Price 100000 INR/ Piece

MOQ : 1 Piece

TOS Czech 63 mm Horizontal Boring Machine Specification

  • Lubricating System
  • Centralized Lubrication
  • Control System
  • Manual & Electrical
  • Voltage
  • 415 V
  • Frequency
  • 50 Hz
  • Production Capacity
  • Multiple Shift Ready
  • Cooling System
  • Integrated Water Coolant
  • Connectivity Options
  • Standard Electrical Connectors
  • Model No
  • 63 mm
  • Noise Level
  • <75 dB
  • Power Rating
  • 7.5 kW
  • Accuracy
  • High Precision
  • Features
  • Sturdy Design, High Efficiency, Long Service Life
  • Machine Type
  • Boring Machine
  • Drive
  • Gear Driven
  • Operating Temperature
  • 5°C to 50°C
  • Frame Type
  • Heavy Duty Casting
  • Motor Power
  • 7.5 kW
  • Product Type
  • Horizontal Boring Machine
  • Technology
  • Conventional Mechanical
  • Power Source
  • Electric
  • Operating Type
  • Semi-Automatic
  • Power
  • 7.5 kW
  • Surface Treatment
  • Paint Coated
  • Dimension (L*W*H)
  • 3550 x 2700 x 2400 mm
  • Weight (kg)
  • 7500 kg
  • Color
  • Industrial Green
  • Usage & Applications
  • Metal Boring, Heavy Machining, Industrial Fabrication
  • Year of Manufacture
  • As per Availability
  • Rapid Traverse
  • 2000 mm/min
  • Table Size
  • 1120 x 1000 mm
  • Feed Range
  • 10-250 mm/min (auto-feed)
  • Vertical Travel
  • 900 mm
  • Main Spindle Speeds
  • 18 Steps
  • Max Boring Depth
  • Up to 710 mm
  • Spindle Travel
  • 710 mm
  • Spindle Diameter
  • 63 mm
  • Transverse Travel
  • 900 mm
  • Tool Clamping Type
  • Manual
  • Max Milling Diameter
  • Up to 250 mm
  • Safety Features
  • Overload Protection, Emergency Stop
  • Table Longitudinal Travel
  • 1000 mm
  • Table Load Capacity
  • 2000 kg
  • Electrical Requirement
  • 3 Phase AC
  • Spindle Taper
  • ISO 50


TOS Czech 63 mm Horizontal Boring Machine Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Main Domestic Market
  • All India


About TOS Czech 63 mm Horizontal Boring Machine

Make - TOS (Czech Republic)

Model - H-63

Spindle Diameter - 63 mm

Table Size - 905 mm x 710 mm

Cross Travel - 800 mm

Vertical Travel - 710 mm

Longitudinal Travel - 1100 mm

Spindle Travel - 600 mm

Facing Chuck Diameter - 410 mm

Spindle Taper - MT 4

Spindle Speeds - 8 rpm to 1400 rpm

Chuck Speeds - 8 rpm to 180 rpm

- Complete with Facing Chuck and Tail-Stock.

- Machine is in excellent working condition.


Video of The Machine -

https://youtu.be/m68YZgLehNg



Versatile Performance for Industrial Applications

Designed for metal boring, milling, and fabrication, the TOS Czech 63 mm Horizontal Boring Machine meets the demanding requirements of heavy industry. Its high-precision capabilities and extensive table travel ranges enable accurate machining of large workpieces, while the machine's multi-shift ready design maximizes productivity for exporters, manufacturers, and suppliers alike.


Sturdy Construction and Advanced Safety

Constructed from heavy-duty casting, the machine ensures high stability during operation. Enhanced safety features such as overload protection and an emergency stop safeguard both the operator and equipment, making it suitable for intensive use in industrial environments.

FAQ's of TOS Czech 63 mm Horizontal Boring Machine:


Q: How is the TOS Czech 63 mm Horizontal Boring Machine operated?

A: The machine utilizes both manual and electrical control systems. With semi-automatic operation, users can adjust feeds automatically or manually, making it flexible for a range of machining tasks.

Q: What are the main applications of this boring machine?

A: It is primarily used for metal boring, heavy machining, and industrial fabrication. Its robust design and high-precision capabilities suit large-scale manufacturing, especially where high accuracy and load capacity are required.

Q: When is routine maintenance required for this machine?

A: Routine maintenance should follow the manufacturer's guidelines, typically involving inspection of lubrication, cooling systems, and mechanical components after each operating shift to ensure continued efficiency and machine longevity.

Q: Where is the TOS Czech 63 mm Horizontal Boring Machine manufactured?

A: This model is manufactured in the Czech Republic and is available through exporters, importers, and suppliers worldwide.

Q: What is the process for changing tools on the spindle?

A: The machine features a manual tool clamping system with an ISO 50 spindle taper, allowing the operator to quickly swap out tools as required for different machining operations.

Q: How does the integrated cooling system benefit the operation?

A: The built-in water coolant system maintains optimal operating temperature, minimizes thermal deformation, and improves cutting tool life, ensuring consistent machining accuracy during extended use.

Q: What safety features are included with this model?

A: Key safety features include overload protection, an emergency stop button, and a sturdy frame design-helping to protect the operator and maintain safe working conditions.
