TOS Czech ST-250 Vertical Slotting Machine

Name: TOS Czech ST-250 Vertical Slotting Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

TOS Czech ST-250 Vertical Slotting Machine Specification

Model No
ST-250

Control System
Manual/Hand Wheel with Motorized Drive

Frequency
50 Hz

Drive
Gear Driven

Motor Power
3.5 kW

Machine Type
Slotting Machine

Voltage
400 V

Operating Temperature
5C to 45C

Features
Robust Structure, Adjustable Ram Stroke, Precision Work Table

Accuracy
0.05 mm

Power Rating
3.5 kW

Cooling System
Integrated Coolant Pump

Frame Type
Rigid Cast Iron Frame

Lubricating System
Centralized Lubrication

Production Capacity
Up to 10 pieces/hour depending on work size

Noise Level
75 dB

Product Type
Vertical Slotting Machine

Technology
Conventional Mechanical

Power Source
Electric

Operating Type
Semi Automatic

Power
3.5 kW

Pressure
Standard

Surface Treatment
Paint Coated

Dimension (L*W*H)
1450 x 980 x 2400 mm

Weight (kg)
2650 kg

Color
Green

Usage & Applications
Keyway Slotting, Internal Gear Cutting, Spline Cutting

Standard Accessories
Electricals, Coolant System, Instruction Manual

Optional Accessories
Dividing Attachment, Extra Tool Holders

Manual Table Rotary Index
Yes, Graduation 360

Packing Type
Wooden Case or As requested

Tool Shank Size
32 x 32 mm

Maximum Workpiece Diameter
630 mm

Ram Stroke Adjustment
20-250 mm

Table Diameter
560 mm

Main Shaft Speed Range
Variable, 36 ~ 180 RPM

Safety Features
Overload Protection, Emergency Stop Switch

Maximum Table Load Capacity
250 kg

Distance Between Table and Ram
370 mm

Maximum Slotting Length
250 mm

Working Speed
36 - 180 strokes/min

About TOS Czech ST-250 Vertical Slotting Machine

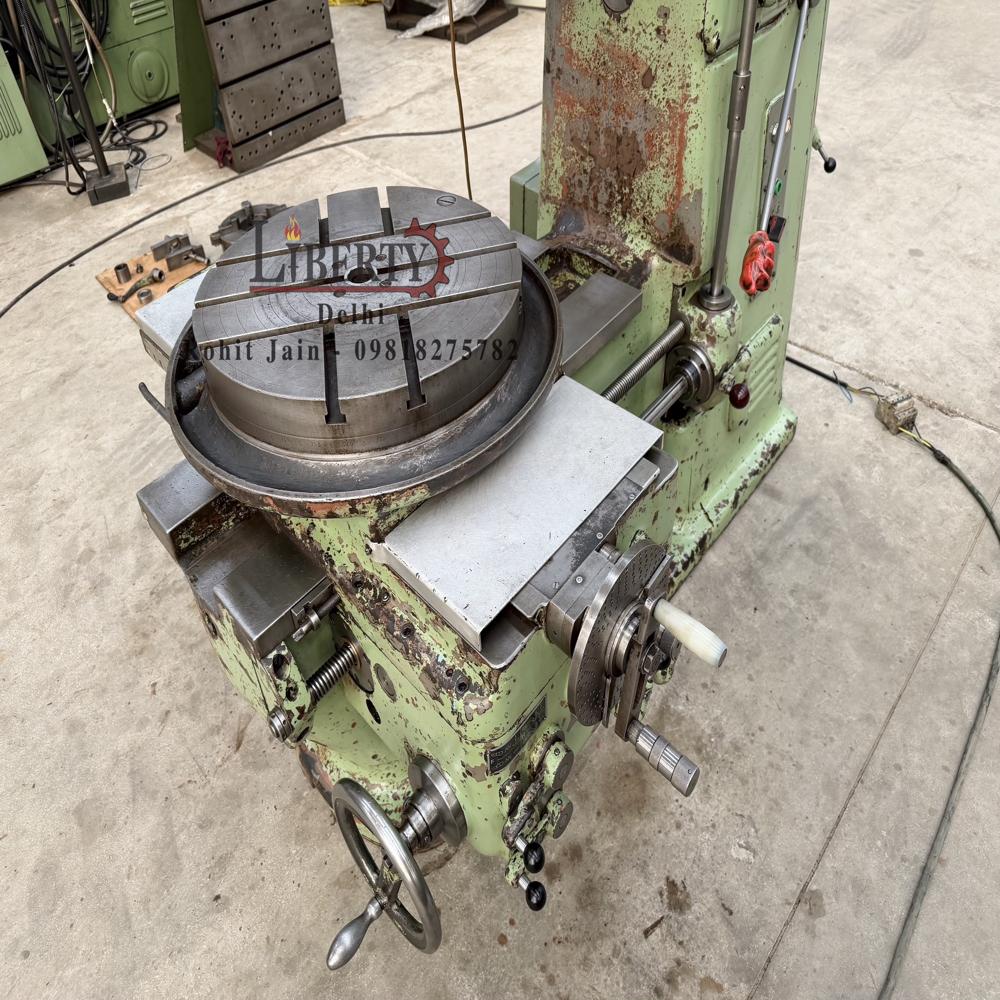

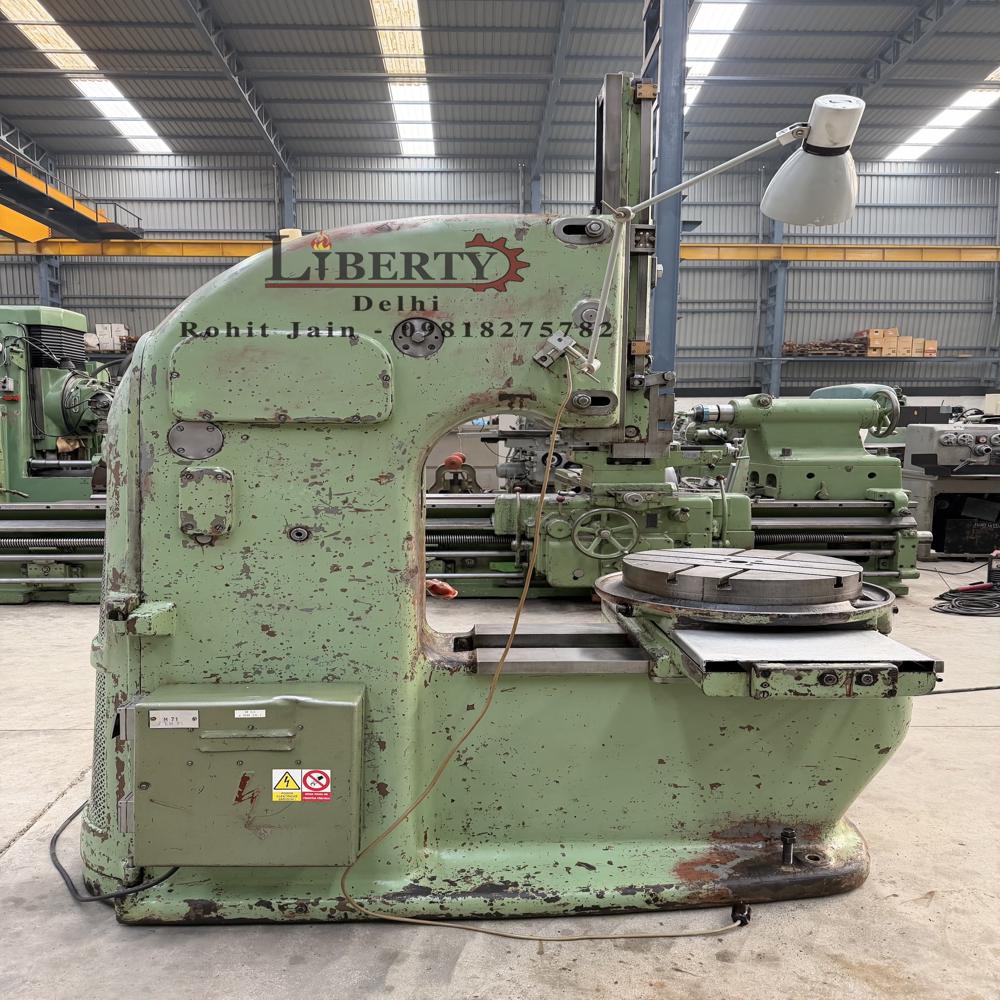

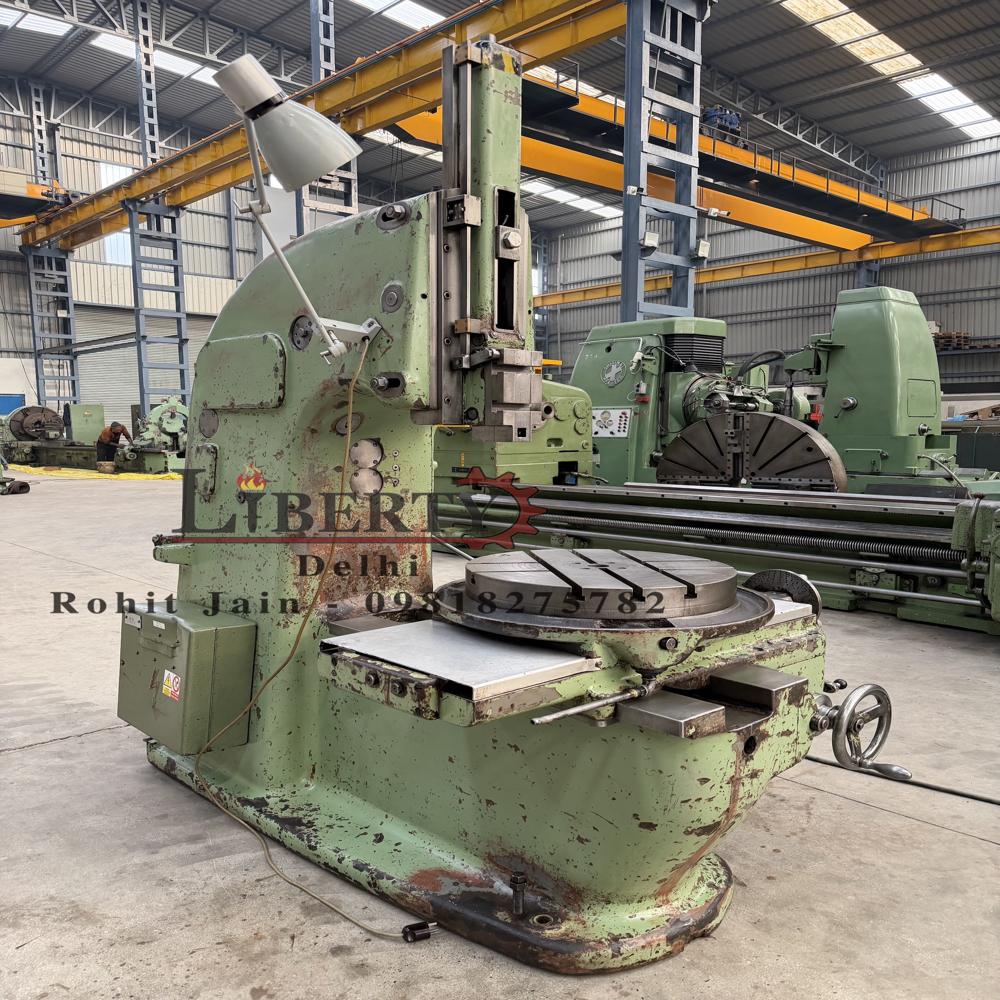

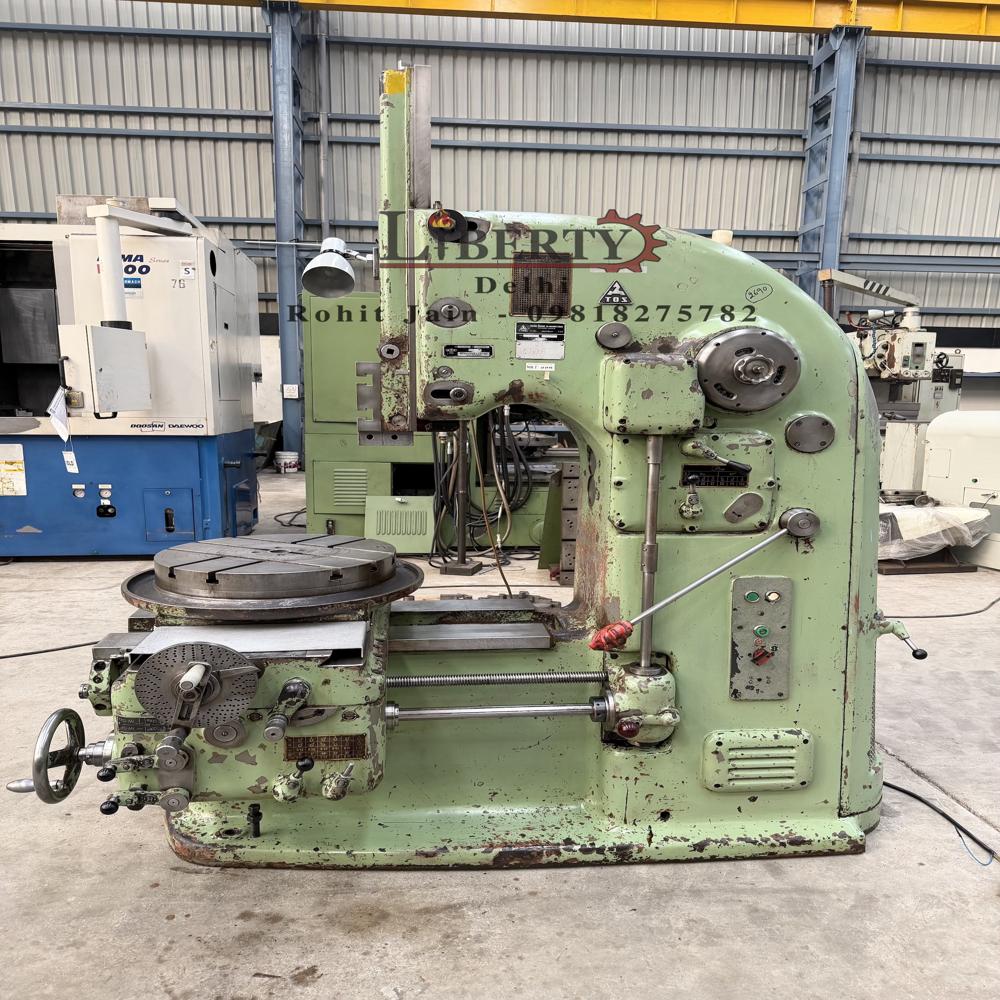

Vertical Slotting Machine made by TOS (Czech Republic) in excellent working condition. The model of the machine is ST250 and the Max. Stroke Length is 250 mm and the Table Diameter is 520 mm. The machine has automatic feed travels on Longitudinal Travel, Cross Travel and on Table Rotation. The technical details are as follows -

Make - TOS (Czech Republic)

Model - ST250

Max. Stroke Length - 250 mm

Table Diameter - 520 mm

Cross Travel of Table - 400 mm

Longitudinal Travel of Table - 450 mm

Height between Table Top to Machine Body - 365 mm

Distance between Tool-head edge to Column - 530 mm

Max. Distance between Table Center to Column - 800 mm

Stroke Rate - 18 strokes/min to 104 strokes/min

Feed Rate of Travel - 0.13 mm/stroke to 1.20 mm/stroke

Rotation of Head - 0 degree to 10 degrees

Weight of the Machine - 2.32 Tons (approximately)

- Automatic Feed Travel on Cross, Longitudinal & Rotation of Table.

- Complete with Chuck (Diameter 400 mm) & other accessories.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/iwCBiQvOYpI

High-Precision Slotting for Diverse Applications

The ST-250 is designed for versatile applications, excelling in keyway slotting, cutting internal gears, and machining splines. Its 0.05 mm accuracy ensures meticulous results, making it ideal for workshops requiring consistent, high-precision work. The machine's sturdy build and precision worktable support efficient operations even under demanding workloads.

User-Friendly Operation and Safety Features

This slotting machine offers ease of use with manual handwheel control and a motorized drive, allowing operators flexibility and precision. Integrated overload protection, an emergency stop switch, and a wooden packing case enhance safety and machine protection, while centralized lubrication and an integrated coolant pump optimize machine longevity and performance.

FAQ's of TOS Czech ST-250 Vertical Slotting Machine:

Q: How does the TOS Czech ST-250 slotting machine facilitate keyway and internal gear slotting?

A: The ST-250 is engineered with a robust vertical ram and precision table, enabling accurate keyway and internal gear slotting. Its adjustable ram stroke (20-250 mm) and manual rotary table with 360-degree graduation ensure precise alignment and cutting, suitable for a variety of slotting needs.

Q: What is the process for adjusting the stroke and table on the ST-250 slotting machine?

A: To adjust the stroke, operators can use the ram stroke adjustment mechanism, setting the desired range between 20 and 250 mm. The table can be manually indexed for rotary positioning, making it easier to access different slots or cut profiles accurately with the handwheel or motorized drive.

Q: When is routine maintenance required on the ST-250, and what systems assist with upkeep?

A: Routine maintenance should follow the intervals detailed in the included instruction manual. The centralized lubrication system ensures all moving parts are properly maintained, while the integrated coolant pump aids in managing cutting heat, reducing wear and tear for optimal machine performance.

Q: Where can the ST-250 slotting machine be used most effectively?

A: The ST-250 finds its best use in machine shops, manufacturing plants, and repair facilities across the engineering and automotive sectors. Its versatility in cutting keyways, splines, and internal gears makes it a valuable addition to both large production lines and smaller specialized workshops.

Q: What safety and ergonomic features does the TOS Czech ST-250 provide?

A: The machine offers overload protection and an emergency stop switch to ensure operator safety. Ergonomic controls, centralized lubrication, and noise levels kept around 75 dB further enhance usability, providing a safer and more comfortable working environment.

Q: How does the ST-250 accommodate various workpiece sizes and production requirements?

A: With a maximum workpiece diameter of 630 mm, table load capacity of 250 kg, and adjustable ram stroke, the machine is built to handle a wide range of parts. Its production capacity of up to 10 pieces per hour (dependent on work size) allows users to meet differing production demands efficiently.
