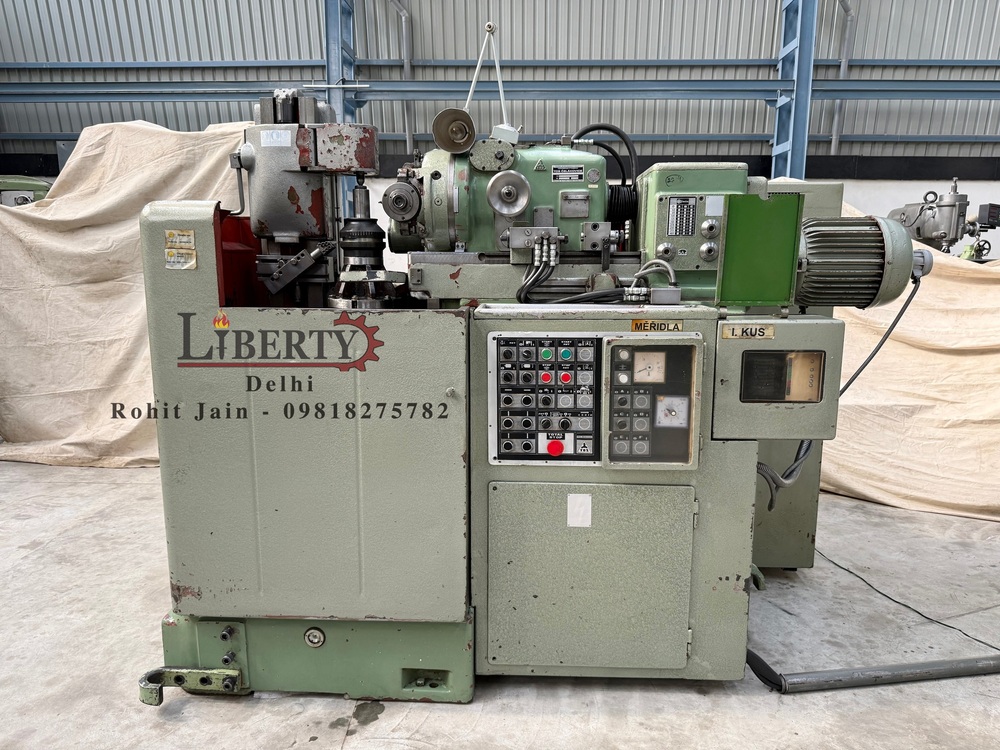

TOS OFP-20 Hydraulic Gear Hobbing Machine

Name: TOS OFP-20 Hydraulic Gear Hobbing Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS OFP-20 Hydraulic Gear Hobbing Machine Specification

Output
High precision gears

Weight
Approx. 2200 kg

Capacity
Max gear diameter: 200 mm, Max module: 4 mm

Dimension (L*W*H)
1980 x 1150 x 1750 mm

Power
3.3 kW

Machine Type
Hydraulic Gear Hobbing Machine

Color
Standard industrial green

Condition
Used

Voltage
400 V

Used For
Hobbing spur, helical, and worm gears

Feature
Hydraulically operated, precision gear cutting, robust construction

Spindle Speeds
110 - 540 rpm

Control Type
Manual / Hydraulic

Table Speeds
Variable, hydraulic drive

Max Distance Between Centers
250 mm

Min/Max Distance Hob-Table
50 - 250 mm

Max Hob Diameter
125 mm

Max Table Travel
250 mm

Max Hob Length
160 mm

Coolant System
Integrated

Table Bore Diameter
50 mm

Lubrication
Centralized automatic lubrication

TOS OFP-20 Hydraulic Gear Hobbing Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About TOS OFP-20 Hydraulic Gear Hobbing Machine

Make - TOS (Czech Republic)

Model - OFP-20

Max. Module - 5 Module

Max. Diameter of the Gear - 200 mm

Max. Width of Gear - 200 mm

Table Diameter - 250 mm

Max. Hob Cutter Size - Diameter 134 mm x 140 mm Length

Max. Hob Shifting - 50 mm

Table Bore Diameter - 80 mm

Hob Cutter Speeds - 63 rpm to 400 rpm

- It is an Auto-Cycle type High Production Hydraulic Gear Hobbing Machine.

- Complete with Change Gears, Arbours, Mandrels, etc.

- Complete with Chip Conveyor, Splash Guards, & many other accessories.

- Operating Manual, Electrical Drawings, & all other manuals are available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/mrPqqzggc2E

Precision Gear Cutting Made Simple

TOS OFP-20 excels in manufacturing spur, helical, and worm gears with exceptional accuracy. The hydraulically operated system allows for consistent results with minimal manual intervention, making gear production efficient and reliable. Its robust construction ensures durability, and its automatic lubrication further enhances operational continuity during demanding usage.

Versatile, User-Friendly Controls

With manual and hydraulic control options, operators benefit from flexible adjustment over cutting parameters and machine functions. The variable table speed and spindle range provide adaptability across different gear sizes and types. Integrated coolant ensures safe, smooth operation even during continuous or intensive runs.

Designed for Industrial Demands

Supporting gear diameters up to 200 mm and modules up to 4 mm, the OFP-20 is perfectly suited for medium-scale manufacturing environments. The standard industrial green finish, centralized lubrication, and compact design combine usability with aesthetics. Its 3.3 kW power capacity runs safely on 400 V, making it an efficient choice for workshops.

FAQ's of TOS OFP-20 Hydraulic Gear Hobbing Machine:

Q: How does the TOS OFP-20 Hydraulic Gear Hobbing Machine operate?

A: The machine utilizes a hydraulic drive system for smooth, powerful operation. Gear cutting is performed through rotating hobs, with the operator controlling parameters either manually or hydraulically, depending on requirements.

Q: What types of gears can this hobbing machine produce?

A: The OFP-20 is designed for hobbing spur, helical, and worm gears, accommodating gear diameters up to 200 mm and modules up to 4 mm, making it suitable for a variety of industrial gear manufacturing tasks.

Q: Where is the TOS OFP-20 Hobbing Machine typically used?

A: This machine is commonly found in manufacturing workshops, supplier facilities, and gear production units. It is valued by exporters, importers, manufacturers, and traders for its reliability and precision.

Q: When should integrated coolant and lubrication systems be utilized during operation?

A: The integrated coolant system should be used whenever the machine is running to optimize cutting performance and prevent overheating. The centralized automatic lubrication operates continuously, reducing friction and wear during all production phases.

Q: What are the benefits of the hydraulic operation in this gear hobbing machine?

A: Hydraulically operated mechanisms deliver consistent force and movement, ensuring precise gear cutting. They also enhance machine longevity by reducing wear on components compared to manual systems.

Q: How does the OFP-20 ensure high precision in gear cutting?

A: High spindle accuracy, variable table speeds, and the robust hydraulic drive work in combination with precision hobs and centralized lubrication, resulting in consistently high-quality, precise gear outputs.
