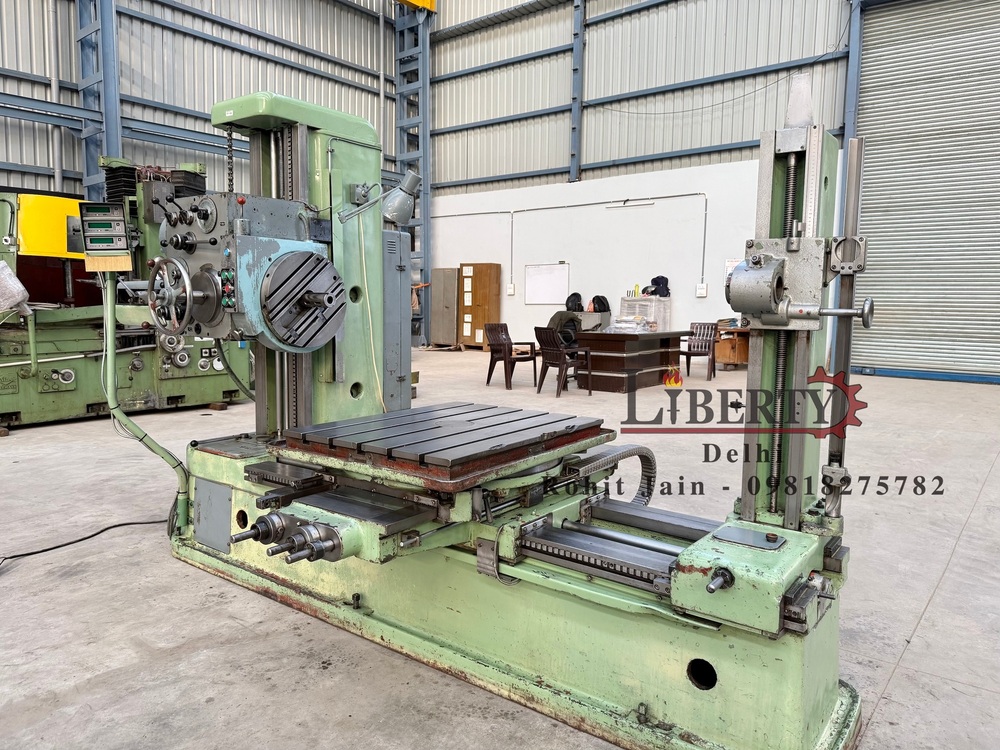

TOS W100A H-Boring Machine

Name: TOS W100A H-Boring Machine
Brand: Liberty Metal & Machines Private Limited
Price: 21000 INR
Availability: InStock

Price 21000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS W100A H-Boring Machine Specification

Production Capacity
Depend on Operation

Power Rating
15 HP

Cooling System
Flood Coolant System

Drive
Geared Head

Accuracy
High Precision (Standard TOS)

Frame Type
Heavy Duty Cast Iron

Motor Power
11 kW

Operating Temperature
0°C to 45°C

Machine Type
Horizontal Boring

Frequency
50/60 Hz

Noise Level
Low

Voltage
415 V

Control System
Manual

Model No
W100A

Features
Robust Construction, High Accuracy, Versatile Use

Lubricating System
Automatic & Manual

Product Type
Horizontal Boring Machine

Technology
Conventional

Power Source
Electric

Operating Type
Semi-Automatic

Power
11 kW

Surface Treatment
Painted

Dimension (L*W*H)
4000 x 2000 x 2500 mm

Weight (kg)
8500 kg

Color
Blue & White

Usage & Applications
Heavy Duty Boring, Milling, Drilling, Reaming

Max Milling Diameter
1000 mm

Table Size
1250 x 1120 mm

Max Boring Diameter
320 mm

Spindle Diameter
100 mm

Main Spindle Speed Range
11-1400 RPM

Table Load Capacity
3000 kg

Coolant Pump Power
0.09 kW

Rotary Table Swivel
360°

Manuals Included
Operation and Maintenance Manual Provided

Electricals
As per IS Standard

Feed Range
4-2000 mm/min

Installation Service
Available on Request

Spindle Travel (Z-axis)
900 mm

Rapid Traverse
4 m/min

Spindle Taper
Morse 5

Table Transverse Travel (X-axis)
1250 mm

Headstock Vertical Travel (Y-axis)
1120 mm

Max Distance Between Spindle End and Table Top
1250 mm

Floor Space Required
5300 x 4500 mm

About TOS W100A H-Boring Machine

Make - TOS (Czech Republic)

Model - W100A

Spindle Diameter - 100 mm

Table Size - 1250 mm x 1250 mm

Cross Travel - 1600 mm

Vertical Travel - 1120 mm

Longitudinal Travel - 1250 mm (with Tail-Stock equipped)

Spindle Travel - 900 mm

Facing Chuck Diameter - 600 mm

Spindle Taper - MT 6

Spindle Speeds - 7 rpm to 1120 rpm

- Complete with Facing Chuck & Tailstock.

- With some tools & other accessories etc.

- Machine is in excellent working condition.

Video link - https://youtu.be/Z9vo29Q7OrM

Versatile Precision Engineering

The TOS W100A is designed to handle a diverse array of machining operationsboring, milling, drilling, and reamingwith accuracy and adaptability. Its robust structure, coupled with high-precision standards, ensures consistent results even under the most demanding workloads.

Robust Construction and High Load Capacity

With its heavy-duty cast iron frame and large table size that supports up to 3000 kg, the W100A is perfect for handling massive components used in industrial applications. Its build ensures both longevity and vibration resistance, securing precise results.

User-Friendly Semi-Automatic Operation

Equipped with both manual and semi-automatic controls, the W100A allows operators to easily switch modes depending on production needs. The clear operation panel, comprehensive manuals, and efficient flood coolant system guarantee an optimal balance between productivity and ease of use.

FAQs of TOS W100A H-Boring Machine:

Q: How is the TOS W100A H-Boring Machine installed, and what are the space requirements?

A: Installation for the TOS W100A can be arranged upon request. This machine requires a floor space of 5300 x 4500 mm, ensuring enough room for operation, component handling, and service access.

Q: What types of materials and components can be machined on the W100A?

A: The W100A is built for heavy-duty operations like boring, milling, drilling, and reaming on a broad spectrum of metal components, including large-and-heavy industrial parts, owing to its 3000 kg table load capacity and 100 mm spindle diameter.

Q: When should I use semi-automatic versus manual operation?

A: Semi-automatic mode is ideal for repetitive or precise operations to maximize efficiency and minimize errors. Manual mode provides full control during setup, adjustments, or custom machining requirements, supporting operator flexibility.

Q: Where is the TOS W100A most advantageously deployed?

A: This machine is best utilized in heavy engineering workshops, manufacturing plants, and factories where accurate, large-scale boring and milling tasks are frequent and high precision is essential.

Q: What are the benefits of the TOS W100As automatic lubrication and flood coolant systems?

A: Automatic lubrication ensures smooth operation and reduces wear, prolonging machine life, while the flood coolant system efficiently removes heat, maintaining workpiece integrity and tool accuracy during prolonged machining.

Q: How does the rotary table enhance machining capabilities?

A: The 360 rotary table allows for multi-angle machining without repositioning heavy workpieces, vastly improving productivity and versatility in handling complex geometries.

Q: What documentation and support are provided with the machine?

A: Each TOS W100A comes with comprehensive operation and maintenance manuals, and professional installation services are available upon request to ensure smooth setup and ongoing operation.
