Viking 950 mm x 230 mm Universal Milling Machine

Send Inquiry

Request To Call Back

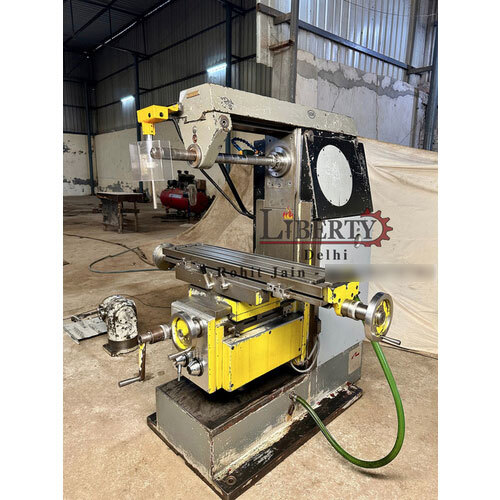

Viking 950 mm x 230 mm Universal Milling Machine

Name: Viking 950 mm x 230 mm Universal Milling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Viking 950 mm x 230 mm Universal Milling Machine Specification

Rotation
360 swiveling milling head

Model
Viking Universal

Product Type
Universal Milling Machine

General Use
Industrial milling operations

Material
Cast iron, steel

Type
Horizontal & Vertical Universal

Capacity
Standard (based on table size)

Weight (kg)
Approx. 1200 kg

Computerized
No

Automatic
No

CNC Or Not
No

Control System
Manual

Table Size
950 mm x 230 mm

Table Slide Way
Precision ground

Floor Space
Approx. 1700 mm x 1450 mm

Spindle Speed
451800 rpm (variable)

Power
2.2 kW (approx.)

Voltage
415 V, 3 Phase

Dimension (L*W*H)
Approx. 1700 mm x 1450 mm x 1650 mm

Feature
Rigid construction, precise feed, heavy-duty

Color
Grey

Feed Mechanism
Manual and power feed

Working Speed
Variable, as per spindle setting

Cross Table Travel
230 mm

Lubrication System
Centralized

Main Drive Motor
2.2 kW (3 HP)

Spindle Taper
ISO 40

Coolant Pump
Optional

Vertical Travel
380 mm

Table T-Slot
3 slots, 14 mm

Max. Distance Spindle to Table
420 mm

Longitudinal Table Travel
600 mm

Rapid Traverse
Available

Viking 950 mm x 230 mm Universal Milling Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Viking 950 mm x 230 mm Universal Milling Machine

Make - Viking (Belgium)

Model - 1-MA

Table Size - 950 mm x 230 mm

Longitudinal Travel - 600 mm

Cross Travel - 210 mm

Vertical Travel - 425 mm

Spindle Speeds - 31.5 rpm to 1000 rpm

Spindle Taper - ISO 40

Feed Rates of Travel - 8 mm/min to 200 mm/min

Table Rotation - +45 degree to -45 degree

- Automatic Feed & Rapid Travels on the Longitudinal Travel.

- Complete with Universal type Double-Swivel Milling Head.

- Machine can do Horizontal, Vertical and Angular Milling Operations.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/Gn7EoxVG2ug

Versatile Milling Capabilities

The Viking Universal Milling Machine supports both horizontal and vertical milling, expanding the types of jobs it can handle. Its 360 swiveling head and ISO 40 spindle taper enable users to perform complex milling operations with ease, making it ideal for workshops that require flexibility and precision.

Robust and Precise Engineering

Designed with a rigid cast iron and steel construction, the Viking milling machine ensures minimal vibration, improved accuracy, and a longer service life. The centralized lubrication system and precise feed mechanism further enhance performance, making it suitable for heavy-duty industrial use.

User-Focused Features

With both manual and power feeds, rapid traverse, and variable spindle speeds, operators can tailor the machine's performance to specific tasks. The machine's ergonomic design and optional coolant pump help boost productivity while maintaining consistent quality during extended operation.

FAQ's of Viking 950 mm x 230 mm Universal Milling Machine:

Q: How does the Viking Universal Milling Machine enhance milling operations?

A: The Viking Universal Milling Machine offers horizontal and vertical milling options, a swiveling head, variable spindle speeds, and a rugged build, enabling precise results in a variety of industrial applications, including complex component manufacturing and general-purpose milling.

Q: What types of materials can this milling machine process?

A: Engineered with a sturdy cast iron and steel structure, the machine is suitable for processing standard metals typically found in industrial environments, such as steel, cast iron, aluminum, and their alloys.

Q: When should I use the manual feed versus the power feed mechanism?

A: Manual feed is ideal for delicate procedures requiring operator control, while the power feed mechanism is recommended for repetitive, heavier, or longer cuts to increase efficiency and reduce physical effort during extended use.

Q: Where is the Viking Universal Milling Machine most commonly installed?

A: This milling machine is primarily used in industrial workshops, machinery manufacturing plants, repair shops, and training centers, where versatility, robust performance, and reliable precision are essential.

Q: What is the process for maintaining this milling machine?

A: Routine maintenance involves regularly checking and replenishing lubrication through the centralized system, inspecting the table slide way for wear, ensuring spindle speeds function smoothly, and keeping the working area clean. Optional features like the coolant pump should also be checked for optimal functionality.

Q: How is working speed adjusted on this machine?

A: Working speed is variable and set according to spindle requirements, adjustable via control levers or knobs, allowing operators to customize the speed from 45 to 1800 rpm depending on the project's material and machining needs.

Q: What benefits do the precision ground table and rapid traverse offer?

A: The precision ground table ensures stable, smooth workpiece movement and precise alignment, while rapid traverse allows for faster repositioning, contributing to improved workflow efficiency and greater overall productivity during milling operations.
