WMW Germany 200 mm x 600 mm Hydraulic Surface Grinder

Name: WMW Germany 200 mm x 600 mm Hydraulic Surface Grinder
Brand: Liberty Metal & Machines Private Limited
Price: 40000.00 INR
Availability: InStock

Price 40000.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

WMW Germany 200 mm x 600 mm Hydraulic Surface Grinder Specification

Model
WMW Germany

Rotation
Grinding head rotation

Product Type
Hydraulic Surface Grinder

General Use

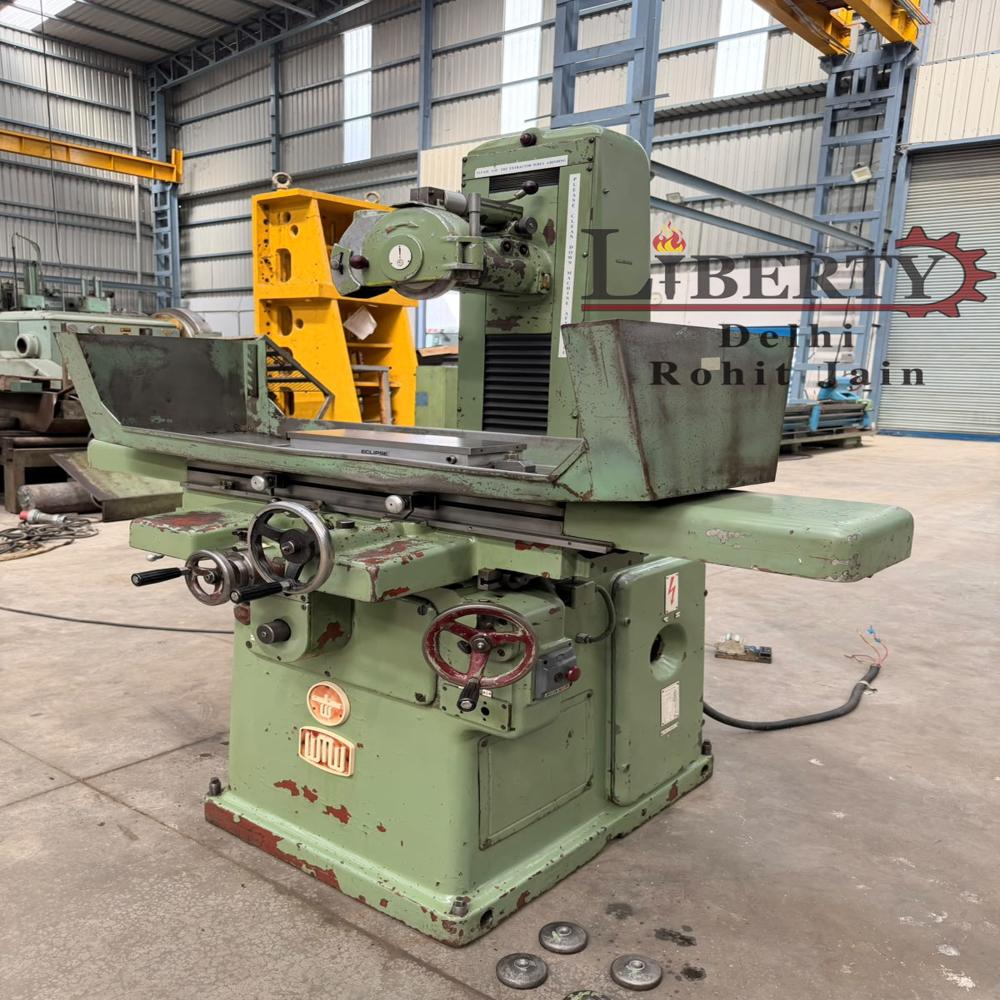

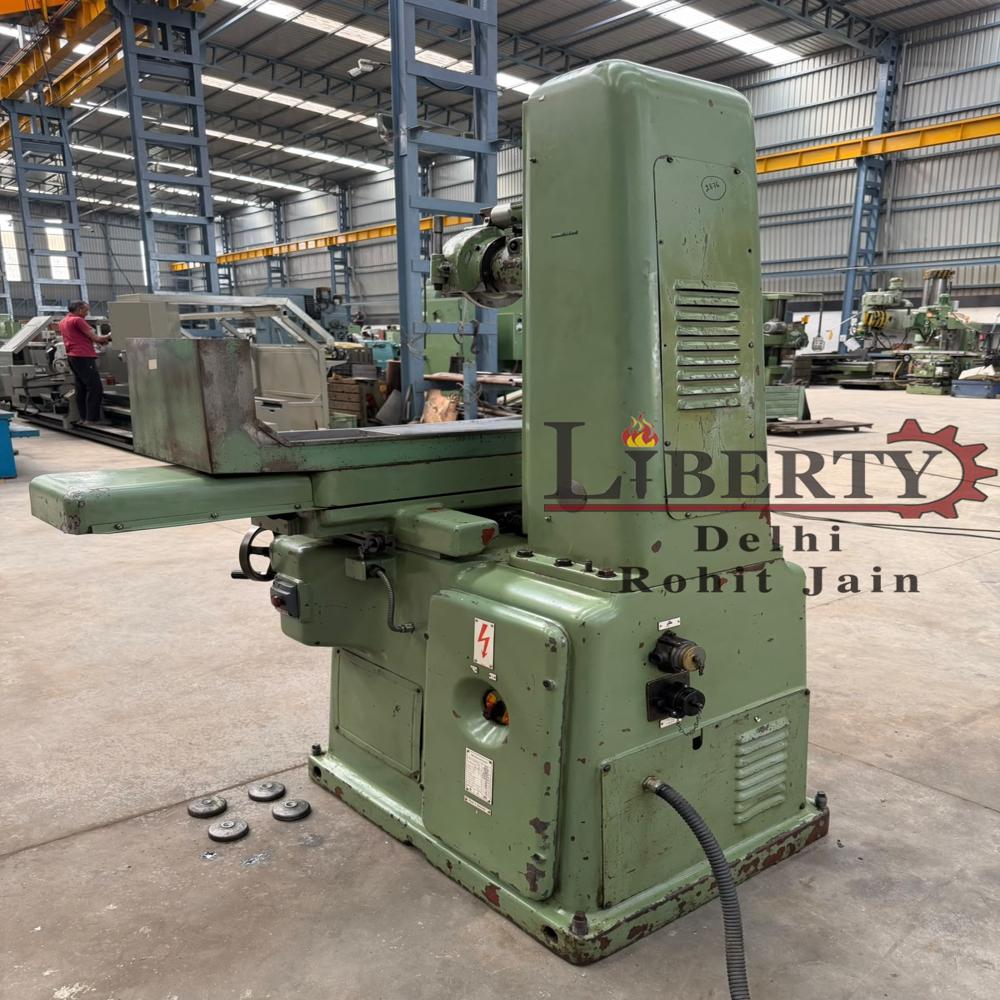

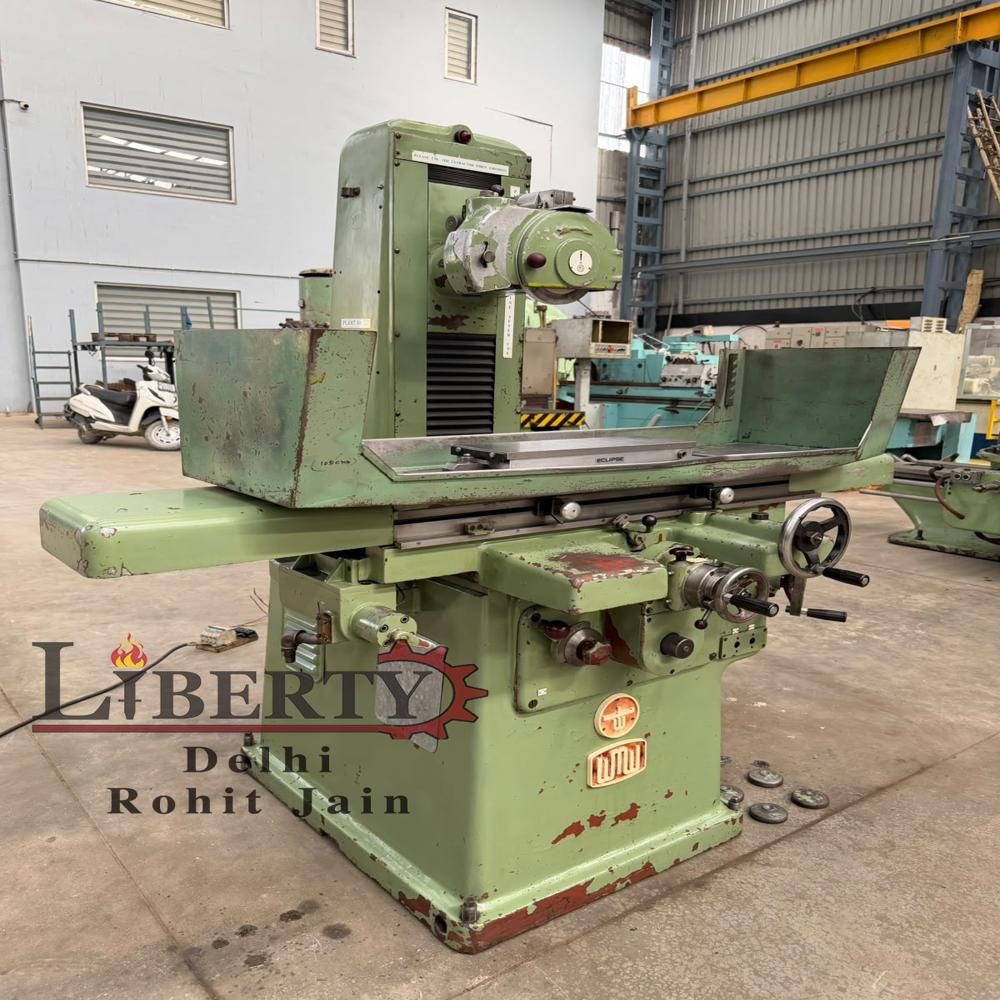

Hydraulic Surface Grinding Machine manufactured by WMW (Germany), Model SFW 200x600, available in excellent working condition. The machine has a Grinding Capacity of 200 mm x 600 mm and is equipped with a 150 mm 450 mm Magnetic Chuck. The technical details are as follows -

Material
Cast Iron Body

Type
Horizontal Surface Grinder

Capacity
200 mm x 600 mm job size

Weight (kg)
Approx. 1400 kg

Computerized
No

Automatic
Semi-Automatic

CNC Or Not
Not CNC

Control System
Hydraulic

Table Size
200 mm x 600 mm

Table Slide Way
V & Flat

Magnetic Chuck Size
200 mm x 600 mm

Grinding Wheel Size
Approx. 200 mm diameter

Grinding Wheel Speed
2800 RPM (Approximate)

Grinding Length
600 mm

Floor Space
Approx. 1.6 m x 1 m

Fuel Tank Capacity
Hydraulic oil tank: Approx. 50 liters

Spindle Speed
2800 RPM

Power
Main motor: 2-3 HP

Voltage
415V / 3 Phase

Dimension (L*W*H)
Approx. 1.6 m x 1 m x 1.7 m

Feature
High Precision, Sturdy Construction

Color
Industrial Green

Table Longitudinal Travel
620 mm

Table Cross Travel
220 mm

Lubrication System
Automatic centralized lubrication

Machine Condition
Used, Good Working

Coolant System
Provided

Surface Finish
High precision, suitable for toolroom and production work

Work Table Movement
Hydraulically powered, manual cross and vertical feed

Max Distance Center of Spindle to Table
300 mm

About WMW Germany 200 mm x 600 mm Hydraulic Surface Grinder

Make - WMW (Germany)

Model - SFW 200x600

Grinding Capacity - 200 mm x 600 mm

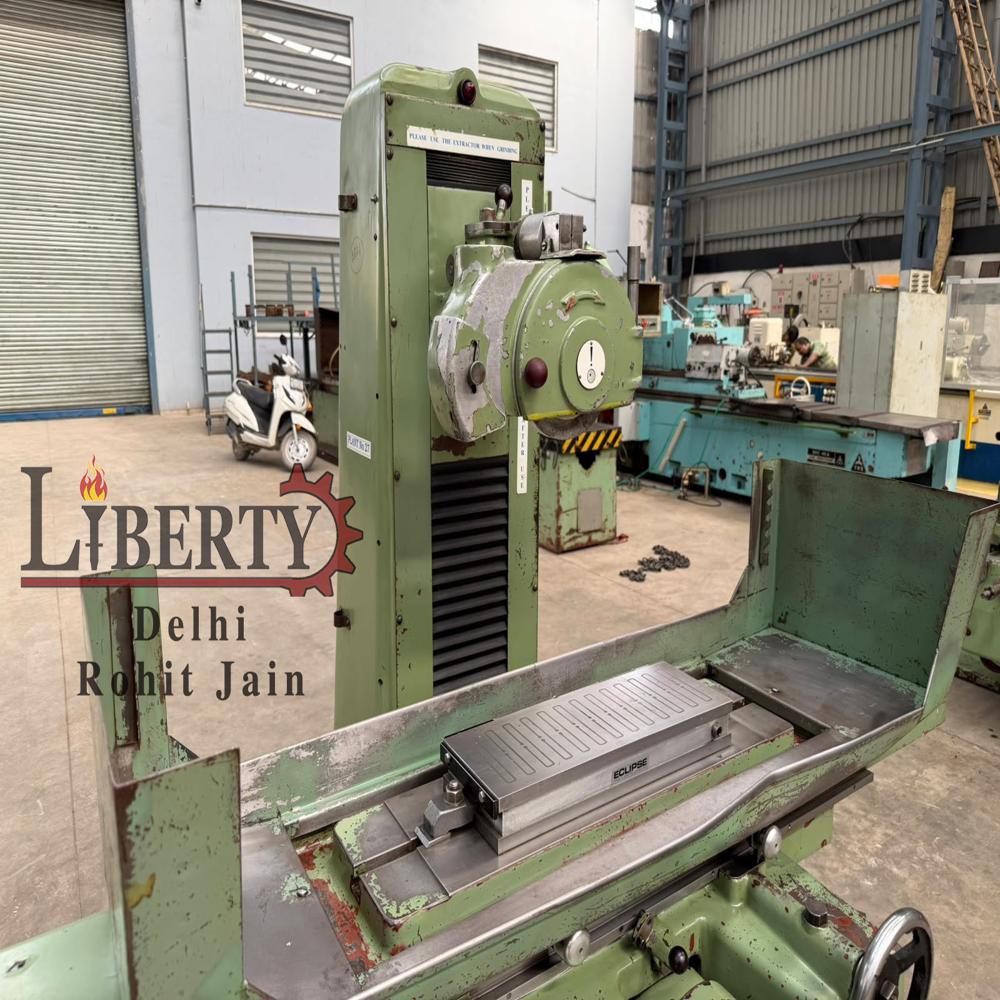

Magnetic Chuck Size - 150 mm x 450 mm

Grinding Wheel Size - 200 mm Diameter x 25 mm Width

Maximum Height between Table and Wheel Centre - 470 mm

Longitudinal Travel - 680 mm

Cross Travel - 225 mm

- Equipped with a Top-Mounted Wheel Dresser Arrangement.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/qe8UpPFPpFg

Versatile Surface Grinding for Precision Needs

This hydraulic surface grinder by WMW Germany offers both toolroom and production shops a reliable solution for high-precision grinding. Its generous 200 mm x 600 mm work table, automatic lubrication, and powerful main motor make it suitable for a wide range of flat grinding tasks. Manual cross and vertical feeds give operators control, while hydraulic movement ensures smooth longitudinal operation on large and small parts alike.

Durable Construction, High Performance

Engineered with a rigid cast iron body and V & flat table slideways, the grinder delivers stability and reduced vibration during high-speed operation. The inclusion of a 150 mm x 450 mm magnetic chuck and a 50-liter hydraulic oil tank ensures consistent, efficient workflow for all-day operation. Its industrial green finish and robust design underline its commitment to longevity and professional-level output.

FAQ's of WMW Germany 200 mm x 600 mm Hydraulic Surface Grinder:

Q: How do you operate the WMW Germany 200x600 mm Hydraulic Surface Grinder?

A: To operate the WMW 200x600 mm grinder, use the hydraulic-powered control for table longitudinal movement and manual levers for adjusting cross and vertical feeds. Ensure the machine is properly lubricated and the coolant system is filled before starting grinding tasks. Activate the magnetic chuck to secure the workpiece and adjust spindle and grinding wheel settings as needed.

Q: What is the maximum workpiece size the surface grinder can accommodate?

A: This machine can handle jobs up to 200 mm x 600 mm in size, with a table longitudinal travel of 620 mm and cross travel of 220 mm, making it suitable for a range of flat parts in both toolroom and production settings.

Q: Where is this hydraulic surface grinder most effectively used?

A: The WMW 200x600 mm Hydraulic Surface Grinder is ideal for precision grinding tasks in toolrooms, workshops, and light-to-medium production floors. Its high accuracy and sturdy construction make it well-suited for manufacturing, repair work, and tool or die preparation.

Q: What is the process for maintaining the grinder in good working condition?

A: Routine maintenance includes checking the centralized lubrication system, regularly refilling hydraulic oil (approximately 50 liters capacity), ensuring all slides are clean, inspecting the grinding wheel for wear, and confirming coolant levels. Scheduled checks maintain high precision and extend machine life.

Q: How does the automatic centralized lubrication system benefit the operation?

A: The automatic centralized lubrication system ensures all critical moving parts receive consistent lubrication, reducing wear and the risk of breakdown. This leads to smoother movement, better grinding accuracy, and less manual intervention.

Q: What are the main advantages of this WMW surface grinder compared to manual-only machines?

A: Hydraulically powered table movement delivers more uniform and controlled longitudinal motion versus fully manual grinders, improving surface finish and productivity. The semi-automatic setup combines ease of use with operator control over detailed work.
