Zocca Italy 400 mm x 800 mm Heavy-Duty Hydraulic Surface Grinder

Name: Zocca Italy 400 mm x 800 mm Heavy-Duty Hydraulic Surface Grinder
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Zocca Italy 400 mm x 800 mm Heavy-Duty Hydraulic Surface Grinder Specification

General Use

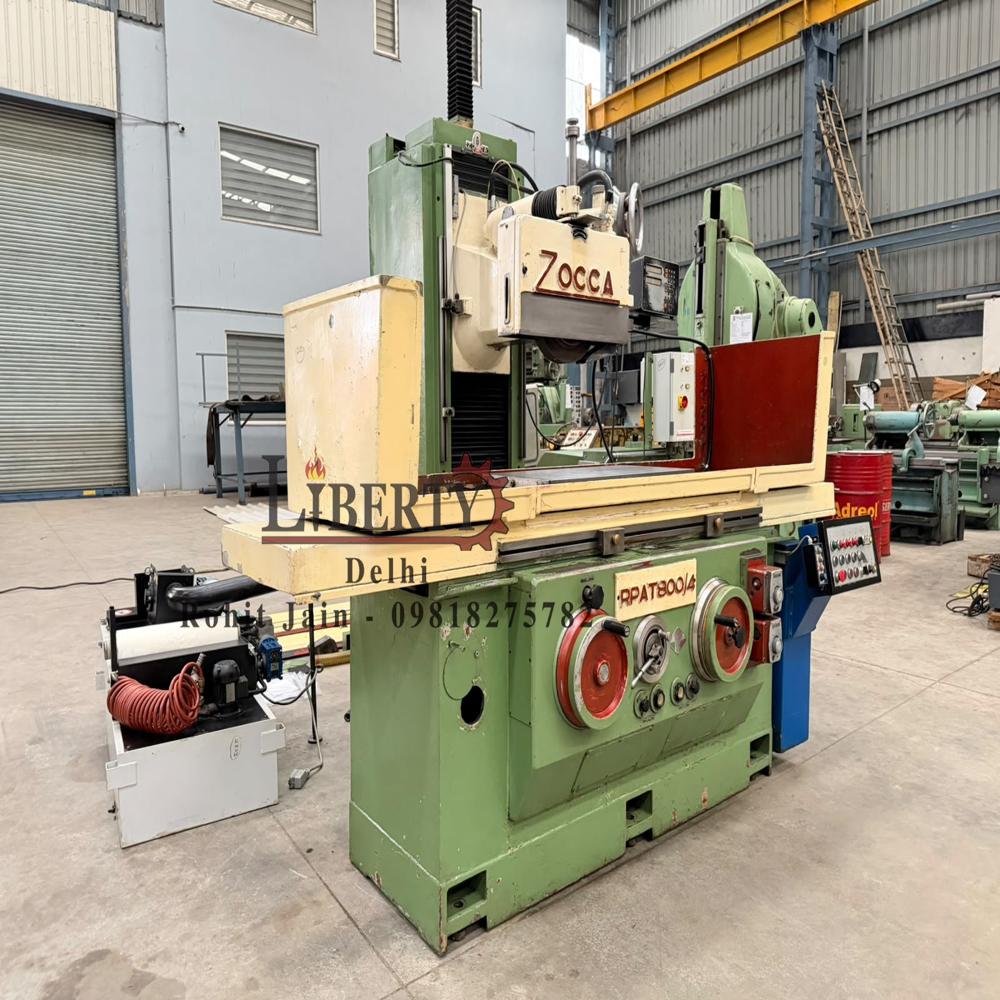

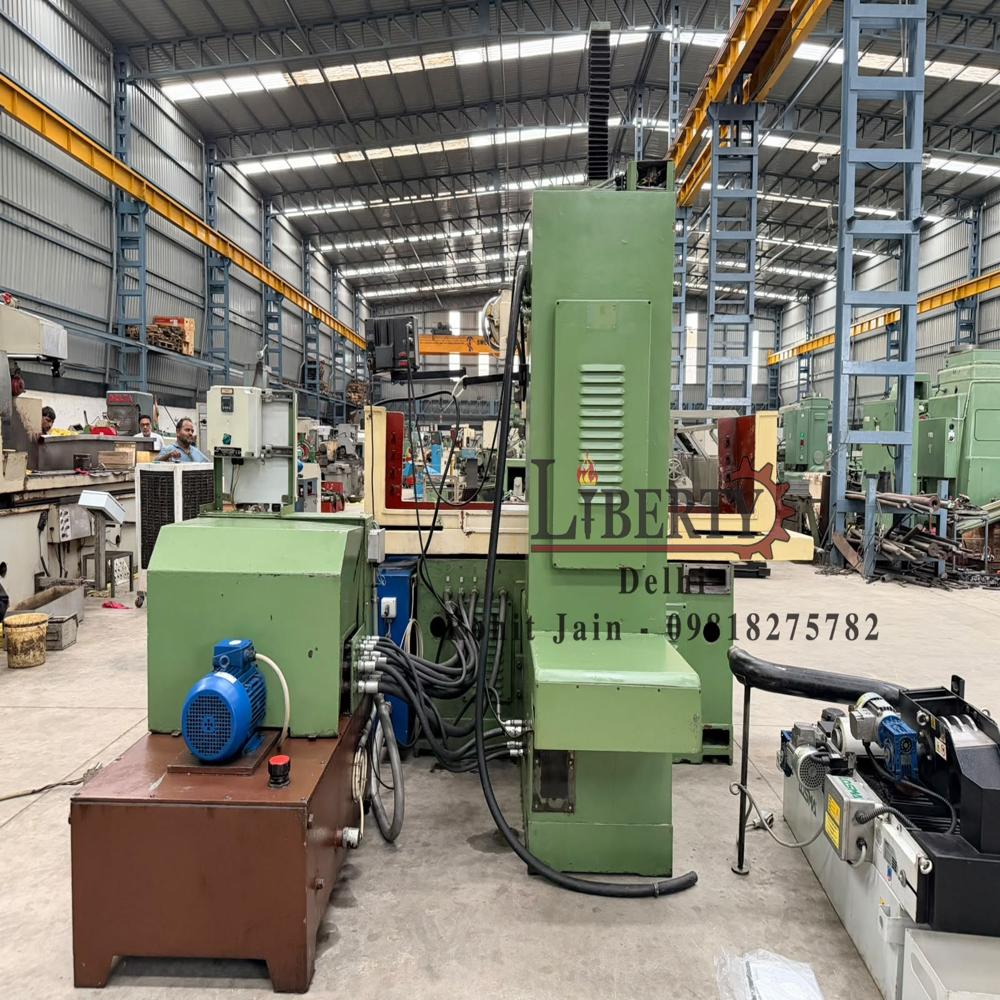

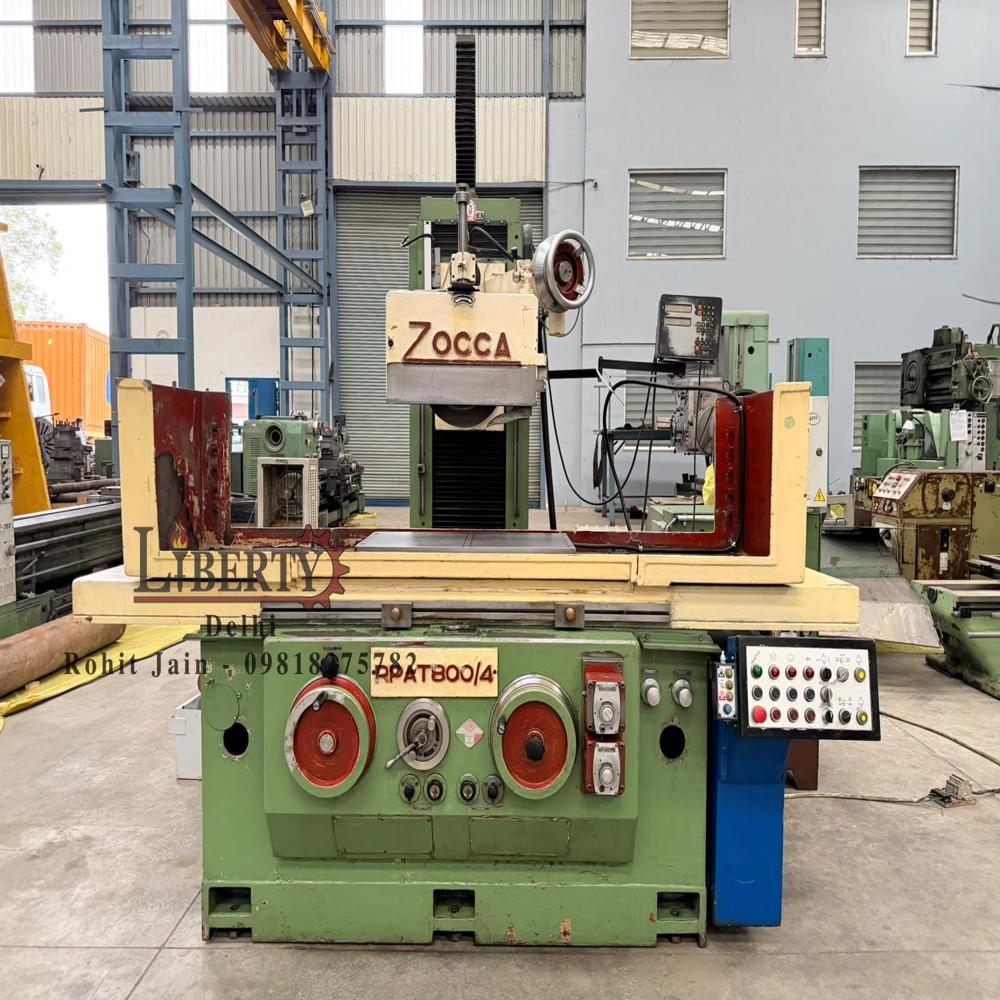

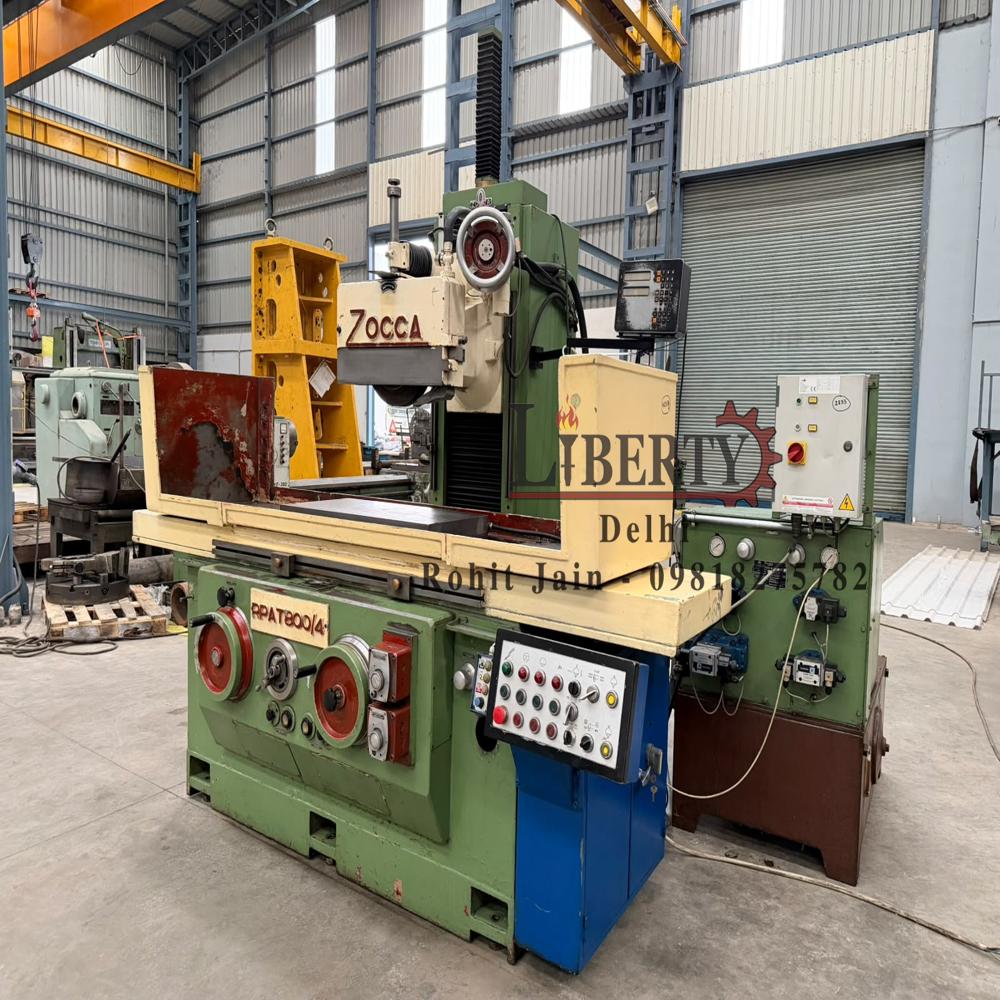

Zocca (Italy) make Heavy-Duty Hydraulic Surface Grinding Machine, Model RPAT 800/4, available in excellent working condition. The machine is equipped with a 400 mm 800 mm Magnetic Chuck and features a column-moving cross-travel design, where the complete vertical column traverses across the table, providing superior rigidity and accuracy for heavy-duty precision grinding applications. It is a Heavy-Duty Hydraulic Surface Grinder equipped with a 400 mm Diameter 75 mm Wide Grinding Wheel and designed for precision surface grinding applications. The machine is equipped with 2-Axis DRO and is complete with Hydraulic Wheel Dresser, Coolant Filtration Unit, Coolant Tank, Pump and Splash Guards. It is a Fully Automatic machine featuring Automatic Depth Adjustment (Auto-Cut) and Automatic Plunge Grinding Cycles. The technical details are as follows -

About Zocca Italy 400 mm x 800 mm Heavy-Duty Hydraulic Surface Grinder

Make - Zocca (Italy)

Model - RPAT 800/4

Magnet Size - 400 mm x 800 mm

Grinding Wheel Size - Diameter 400 mm x 75 mm Width

Max. Height between Magnet to Wheel Centre - 505 mm

Longitudinal Travel - 900 mm

Cross Travel - 400 mm

Least Count of Vertical Travel - 5 Microns (0.005 mm)

- Equipped with a Wheel-Top Mounted Hydraulic Wheel Dresser.

- Features Automatic Depth Adjustment (Auto-Cut) and Automatic Plunge Grinding Cycles.

- Rigid Column-Moving Design for Heavy-Duty Precision Grinding Applications.

- Equipped with 2-Axis DRO on Cross & Vertical Travels.

- Complete with Coolant Filtration Unit, Coolant tank & Coolant Pump and Splash Guards.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/RHMkCMzq0g4

Superior Rigidity and Performance

Designed with a moving column cross-travel mechanism, the Zocca RPAT 800/4 ensures unmatched rigidity during operation. This unique design allows the vertical column to traverse across the table, providing enhanced stability and precision even when handling heavy workpieces and demanding grinding applications.

Comprehensive Automation and Features

Equipped with full automation including automatic depth adjustment (Auto-Cut) and plunge grinding cycles, this surface grinder streamlines your workflow. The inclusion of a 2-axis DRO, hydraulic wheel dresser, coolant filtration unit, and robust splash guards ensures accuracy, clean operation, and operator safety in every cycle.

FAQ's of Zocca Italy 400 mm x 800 mm Heavy-Duty Hydraulic Surface Grinder:

Q: How is the Zocca 400 mm x 800 mm Heavy-Duty Surface Grinder operated?

A: The surface grinder is fully automatic and features both automatic depth adjustment (Auto-Cut) and automatic plunge grinding cycles. Operators can program the required parameters, and the machine will then execute precision grinding with minimal manual input.

Q: What are the main advantages of the column-moving cross-travel design in this machine?

A: The column-moving cross-travel design allows the entire vertical column to traverse the table, greatly increasing machine rigidity and accuracy. This results in stable, precise grinding even during heavy-duty or high-precision workpiece machining.

Q: When is this Zocca hydraulic surface grinder most effectively used?

A: This machine is best suited for applications requiring high-precision surface finishing on large or heavy workpieces, especially where consistent accuracy and efficiency are necessary for production or toolroom operations.

Q: Where can the Zocca RPAT 800/4 be installed or applied?

A: The Zocca surface grinder is ideal for use in industrial workshops, manufacturing plants, toolrooms, and metalworking facilities that require reliable surface finishing on sizable components.

Q: What are the key components included with this surface grinder?

A: Key components include the 400 mm x 800 mm magnetic chuck, 400 mm diameter grinding wheel, 2-axis DRO, hydraulic wheel dresser, coolant filtration unit, coolant tank, pump, and splash guards. These enhance efficiency, accuracy, and safety during operation.

Q: How does the coolant filtration unit benefit the grinding process?

A: The coolant filtration unit ensures that the grinding fluid remains clean by removing debris and particles, thus improving wheel performance, extending both machine and component lifespan, and delivering superior surface finish quality.
