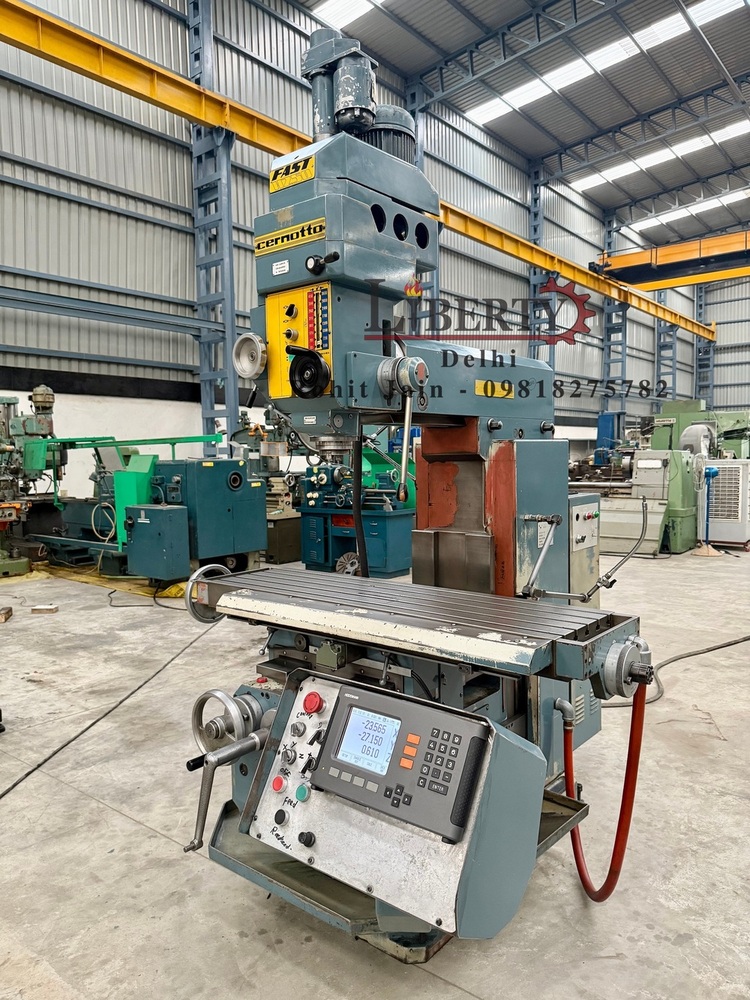

Cernotto Italy 1250 mm x 350 mm Vertical Turret Milling Machine

Name: Cernotto Italy 1250 mm x 350 mm Vertical Turret Milling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cernotto Italy 1250 mm x 350 mm Vertical Turret Milling Machine Specification

Rotation
360° turret head rotation

Model
Cernotto Italy

Product Type
Vertical Turret Milling Machine

General Use
Milling operations, Metalworking

Material
Heavy duty cast iron

Type
Vertical turret

Capacity
Heavy duty

Weight (kg)
2500 kg (approx.)

Computerized
No

Automatic
No

CNC Or Not
Not CNC

Control System
Manual lever controls

Table Size
1250 mm x 350 mm

Table Slide Way
Box type

Floor Space
Approx. 2200 mm x 1850 mm

Spindle Speed
60 ~ 4200 rpm (Variable) manual selection

Power
4 HP (Approx.)

Voltage
415 V

Dimension (L*W*H)
Approx. 2200 mm x 1850 mm x 2050 mm

Feature
Turret head swivel, precision ground table

Color
Industrial grey

Working Speed
Variable via spindle pulley

Table Surface
Precision ground & hardened

Ram Travel
450 mm

Longitudinal Table Travel
900 mm

Number of Feed Speeds
12

Feed Motor Power
0.75 HP

Spindle Taper
ISO 40

Vertical Table Travel
400 mm

Max Distance Spindle to Column
450 mm

Coolant Supply
Provided

Max Distance Spindle to Table
500 mm

Cross Table Travel
350 mm

Max Table Load
400 kg

Head Swivel
Left/Right 45°, Up/Down 45°

Lubrication System
Automatic central lubrication

Quill Travel
130 mm

Cernotto Italy 1250 mm x 350 mm Vertical Turret Milling Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Cernotto Italy 1250 mm x 350 mm Vertical Turret Milling Machine

Make - Cernotto (Italy)

Model - Fast H250

Table Size - 1250 mm x 350 mm

XYZ Travels - 720 mm x 305 mm x 420 mm

Spindle Taper - ISO 40

Spindle Speeds - 65 rpm to 3600 rpm

Spindle Travels - 140 mm

Spindle Diameter - 110 mm

Spindle Feed Rates of Travels - 0.035 mm/rev to 0.14 mm/rev

Feed Rates of Table Travels - 0 mm/min to 1050 mm/min (Infinitely Variable)

- Equipped with 3-Axis DRO.

- Feature of Automatic Tool Clamping.

- Complete with Vice, Tool Holders, Operating Manuals etc.

- Feed & Rapid Travels on all the 3 Axis Movements of the Table.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/9fLHeiPQRZQ

Engineered for High-Precision Metalworking

Designed with meticulous attention to detail, the Cernotto Italy Vertical Turret Milling Machine guarantees reliable precision for demanding metal fabrication. Its hardened table surface, ISO 40 spindle taper, and adjustable feed speeds allow machinists to perform fine, accurate milling operations on a broad range of workpieces, supporting both light and heavy-duty tasks.

Versatile and Robust Construction

This vertical turret milling machine boasts heavy-duty cast iron construction, supporting a maximum table load of 400 kg. The 360 rotating turret and multi-directional head swivel provide exceptional versatility, making the machine adaptable for various milling processes, including slotting, drilling, and contouring. Automatic central lubrication and a reliable coolant system ensure optimal maintenance and smooth operation.

User-Friendly Manual Controls

Operating the Cernotto Italy milling machine is intuitive, thanks to its manual lever controls and variable spindle speed adjustment via spindle pulley. The non-CNC setup simplifies machine handling for experienced operators, making it ideal for workshops prioritizing hands-on machining without computer intervention.

FAQ's of Cernotto Italy 1250 mm x 350 mm Vertical Turret Milling Machine:

Q: How does the Cernotto Italy Vertical Turret Milling Machine enhance milling precision?

A: This machine features a precision-ground and hardened table surface, ISO 40 spindle taper, and variable spindle speeds, enabling accurate and reliable milling on diverse workpieces. The rigid cast iron frame minimizes vibration, further improving milling precision.

Q: What types of materials can be processed with this milling machine?

A: Primarily designed for metalworking, the Cernotto Italy vertical turret milling machine can process metals like steel, aluminum, and cast iron, accommodating both light and heavy-duty jobs thanks to its robust capacity and high table load.

Q: Where is the Cernotto Italy Vertical Turret Milling Machine typically used?

A: This machine is widely used in industrial workshops, tool rooms, fabrication facilities, and metalworking plants. It is well-suited for exporters, manufacturers, suppliers, and traders requiring precise, manual milling operations.

Q: How is the head swivel and turret rotation beneficial during operation?

A: With a 45 left/right and up/down head swivel, plus a 360 turret head rotation, operators gain exceptional flexibility, allowing for easy positioning and complex milling angles without repositioning the workpiece.

Q: What maintenance features does the machine include?

A: The machine comes equipped with automatic central lubrication, which ensures that all moving parts receive consistent lubrication, reducing wear and maintenance downtime. A built-in coolant supply further prolongs tool life and contributes to smoother machining processes.

Q: Is this machine suitable for automated production lines?

A: No, this milling machine is manually controlled and is not designed for automated or CNC applications. It is best suited for operations requiring hands-on machining and skilled operator input.
