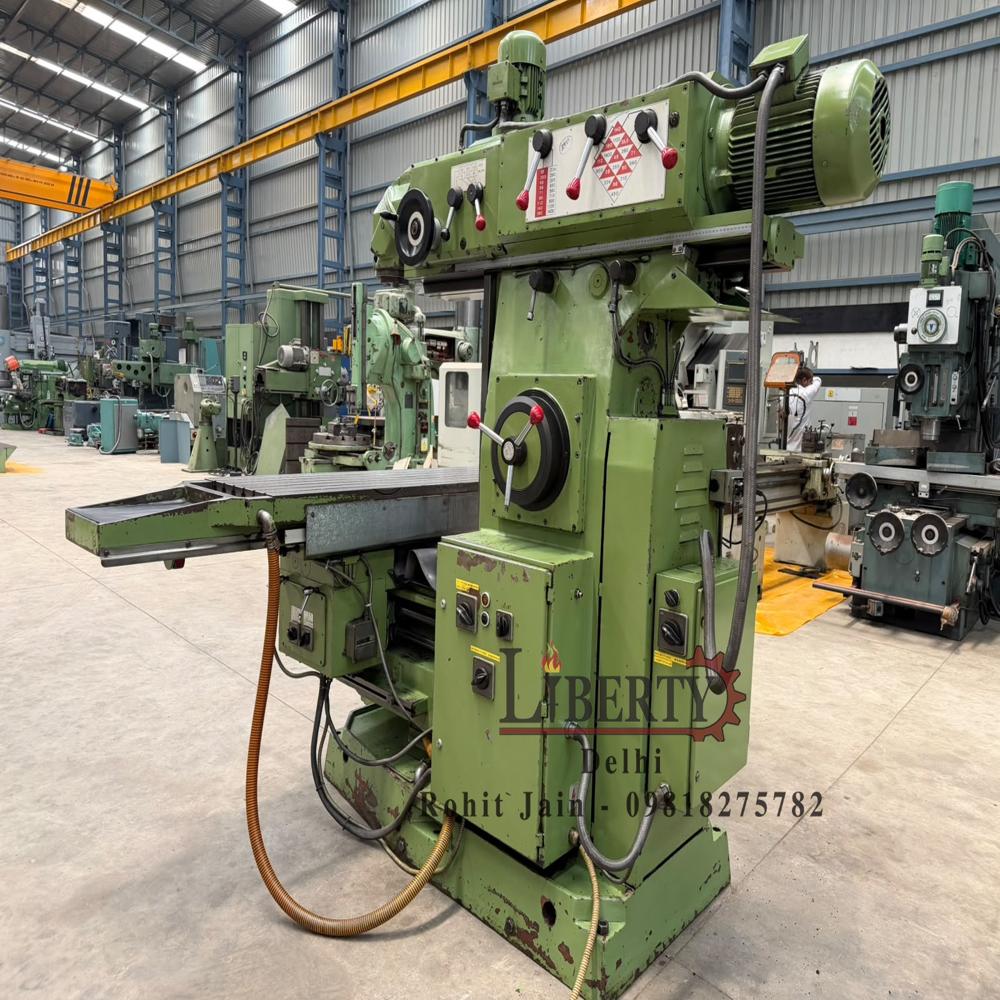

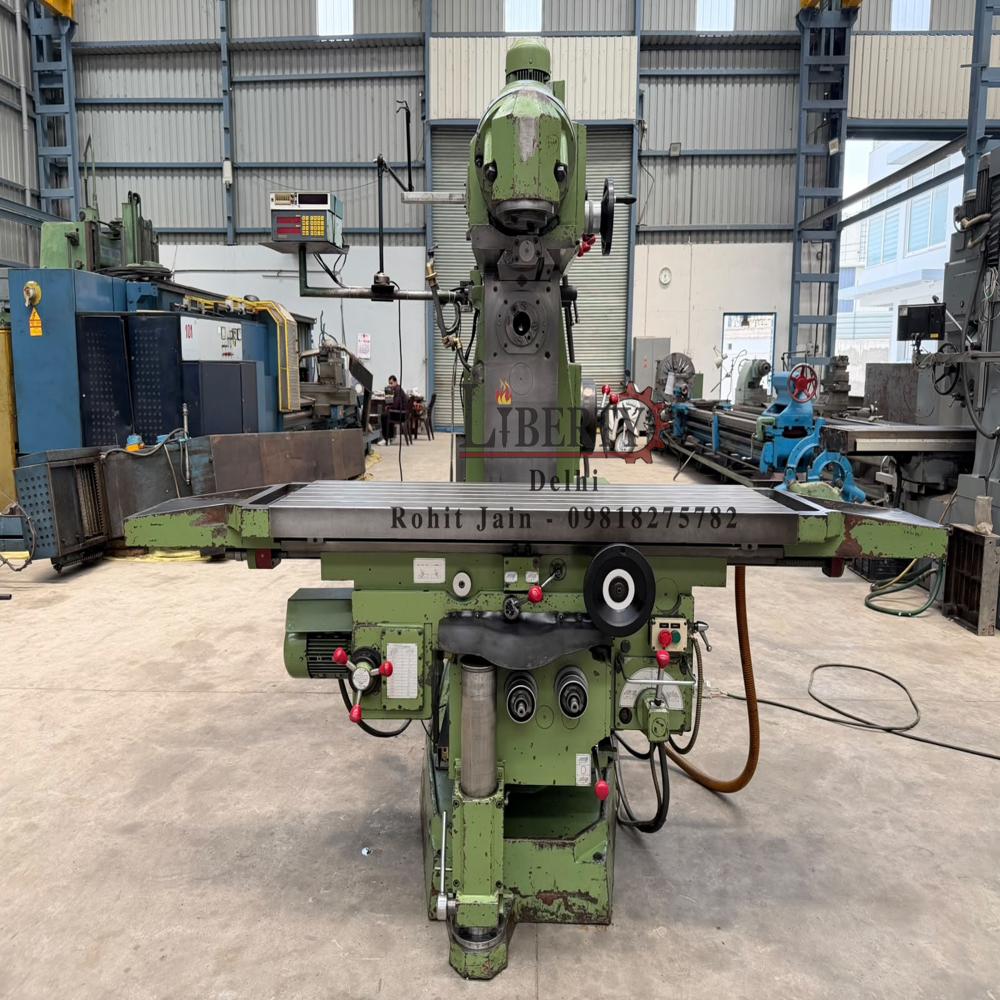

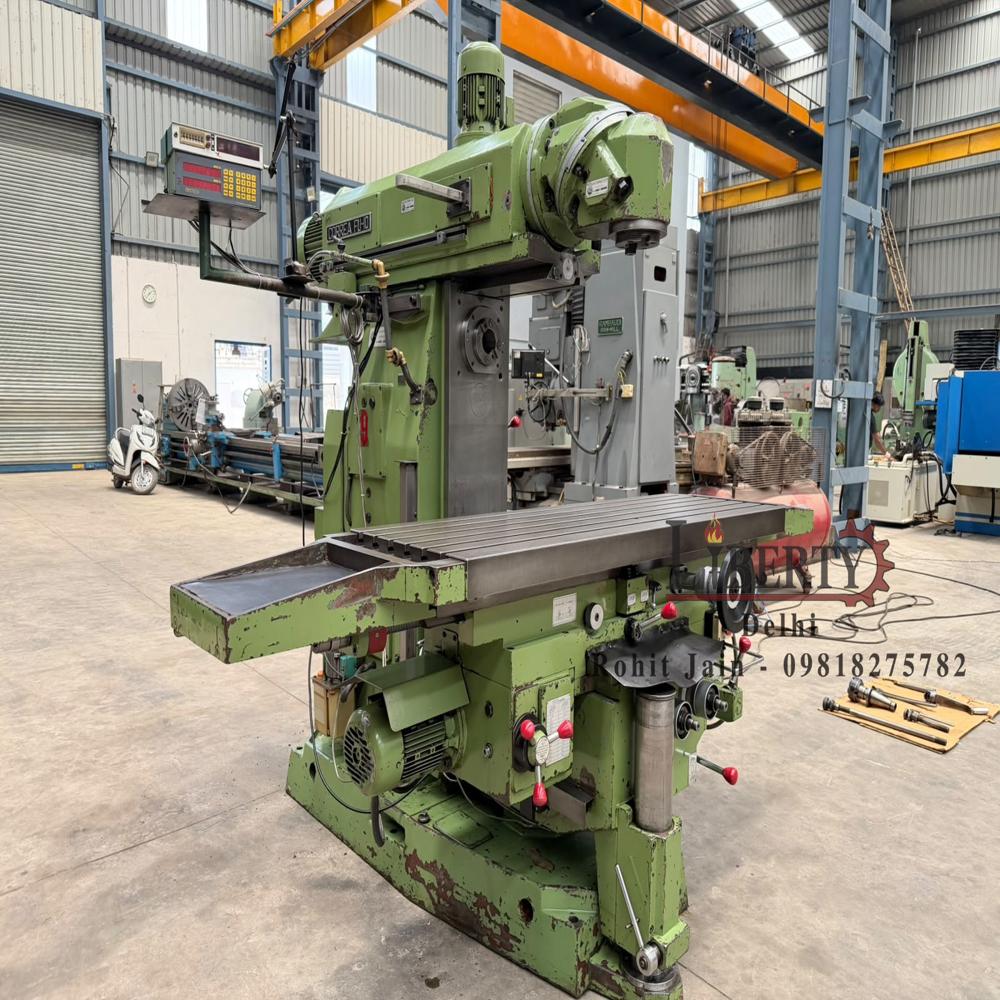

Correa Spain FU-10 Double Spindle Universal Milling Machine

Name: Correa Spain FU-10 Double Spindle Universal Milling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Correa Spain FU-10 Double Spindle Universal Milling Machine Specification

General Use
Double Spindle Universal Milling Machine made by Correa (Spain), Model FU-10, available in excellent working condition. This is a heavy-duty universal milling machine equipped with separate Horizontal and Vertical spindles, allowing both Horizontal and Vertical milling operations without the need to mount or remove the Vertical Milling Head. The Double-Swivel Universal Vertical Milling Head also enables Angular Milling operations. The machine features a unique motorised Over-Arm with 800 mm Feed & Rapid Travel, allowing machining of wider workpieces without repositioning the setup. It is also equipped with a 3-Axis DRO for accurate positioning. The technical details are as follows -

Correa Spain FU-10 Double Spindle Universal Milling Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
7 Days

About Correa Spain FU-10 Double Spindle Universal Milling Machine

Make - Correa (Spain)

Model - FU-10

Table Size - 1550 mm 500 mm

XYZ Table Travels - 1250 mm 350 mm 500 mm

Over-Arm Forward / Backward Travel - 800 mm

Horizontal Spindle Speed Range - 28 to 1400 RPM

Horizontal Spindle Taper - ISO-50

Vertical Spindle Speed Range - 28 to 1400 RPM

Vertical Spindle Taper - ISO-50

Table Feed Rates - 11.2 to 710 mm/min

Over-Arm Feed Rates - 16 to 500 mm/min

Maximum / Minimum Height between Table and Vertical Spindle - 635 mm / 135 mm

Maximum / Minimum Height between Table and Horizontal Spindle Centre - 450 mm / -50 mm

Approx. Machine Weight - 3.92 Tons

- Separate Horizontal and Vertical Spindles allow instant changeover between Horizontal and Vertical milling without mounting or removing the Vertical Milling Head.

- Double-Swivel Universal Vertical Milling Head suitable for Angular & Compound Angle Milling operations.

- Motorised Over-Arm with 800 mm Feed & Rapid Travel.

- Suitable for Horizontal, Vertical, Angular & Compound Angle Milling operations.

- Equipped with a 3-Axis DRO.

- Machine is in excellent working condition.

video of The Machine -

https://youtu.be/X2FR_Un7cJ8

Efficient Dual-Spindle Design

The unique configuration of the Correa FU-10 allows operators to perform horizontal and vertical milling operations simultaneously or independently. Operators do not need to remove or re-mount any milling heads, thus enhancing workflow and minimizing downtime during tasks requiring different spindle orientations.

Expanded Machining Capabilities

With its motorised over-arm travelling up to 800 mm, this machine makes it possible to handle wider or unusually shaped workpieces without the need for frequent repositioning. The double-swivel universal head further broadens the operational range, making it adept at angular milling and intricate components.

FAQ's of Correa Spain FU-10 Double Spindle Universal Milling Machine:

Q: How do I switch between horizontal and vertical milling operations on the Correa FU-10?

A: Switching between horizontal and vertical milling is straightforward as the FU-10 features dedicated spindles for each orientation. You can move between tasks without detaching or attaching any heads, enabling a seamless transition during complex or varied jobs.

Q: What are the benefits of the double-swivel universal vertical milling head?

A: The double-swivel universal head on the FU-10 allows for angular milling, which means you can tilt or rotate the head to achieve precise, angled cuts, expanding the machine's versatility beyond standard horizontal and vertical operations.

Q: When should the motorised over-arm be used?

A: The motorised over-arm, offering 800 mm of feed and rapid travel, is especially useful when machining large or wide workpieces. This feature helps in extending the range of the spindle, supporting stable and accurate milling without needing to reposition your setup repeatedly.

Q: Where is this milling machine suitable for use?

A: The Correa FU-10 is well-suited for use in manufacturing plants, workshops, metal fabrication centers, and facilities involved in heavy-duty or precision machining. Its design is ideal for exporters, manufacturers, and traders seeking robust and flexible production solutions.

Q: What process controls or accuracy features does the FU-10 include?

A: This machine is equipped with a 3-axis Digital Readout (DRO), providing real-time, precise feedback on positioning, improving accuracy, and simplifying complex machining operations for users.

Q: How does the FU-10 benefit my manufacturing workflow?

A: The FU-10 enhances productivity through quick transitions between milling types, reduces setup time for wide workpieces, and ensures accurate tool positioning. These features collectively streamline operations and increase output without compromising on quality or precision.
