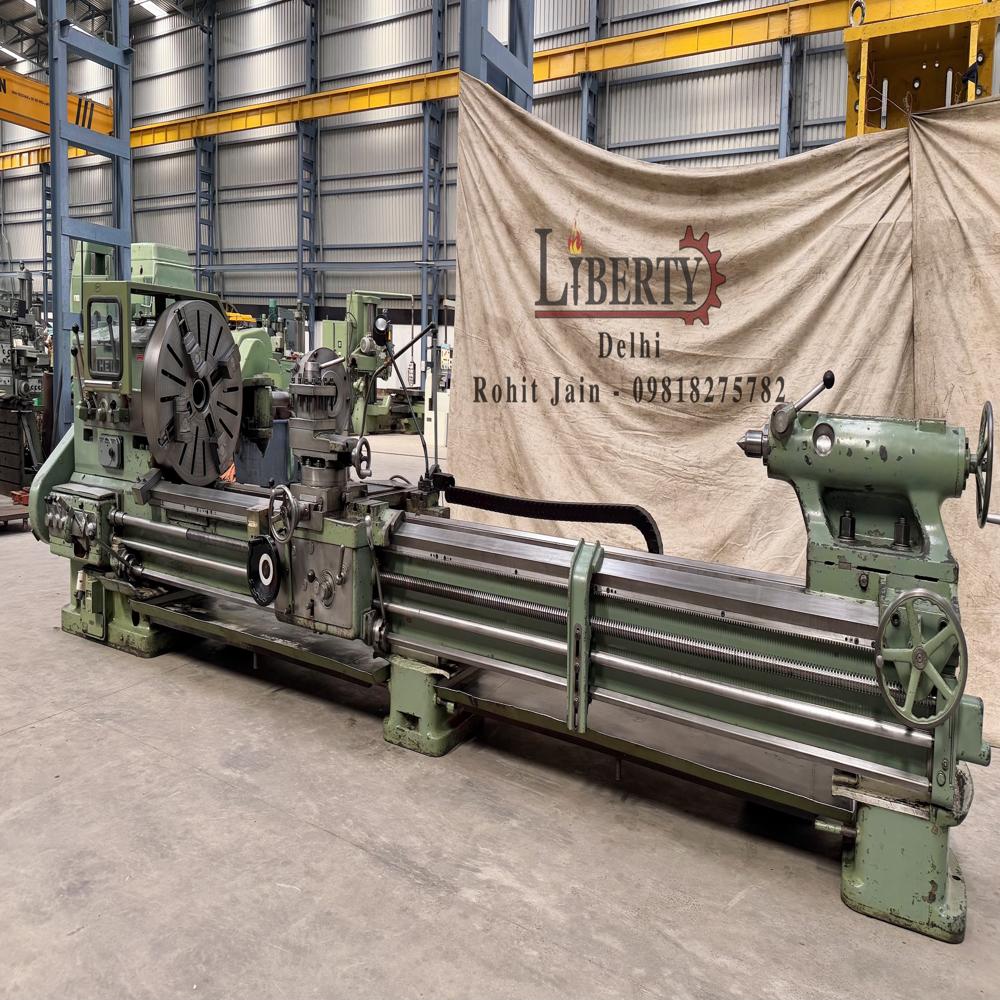

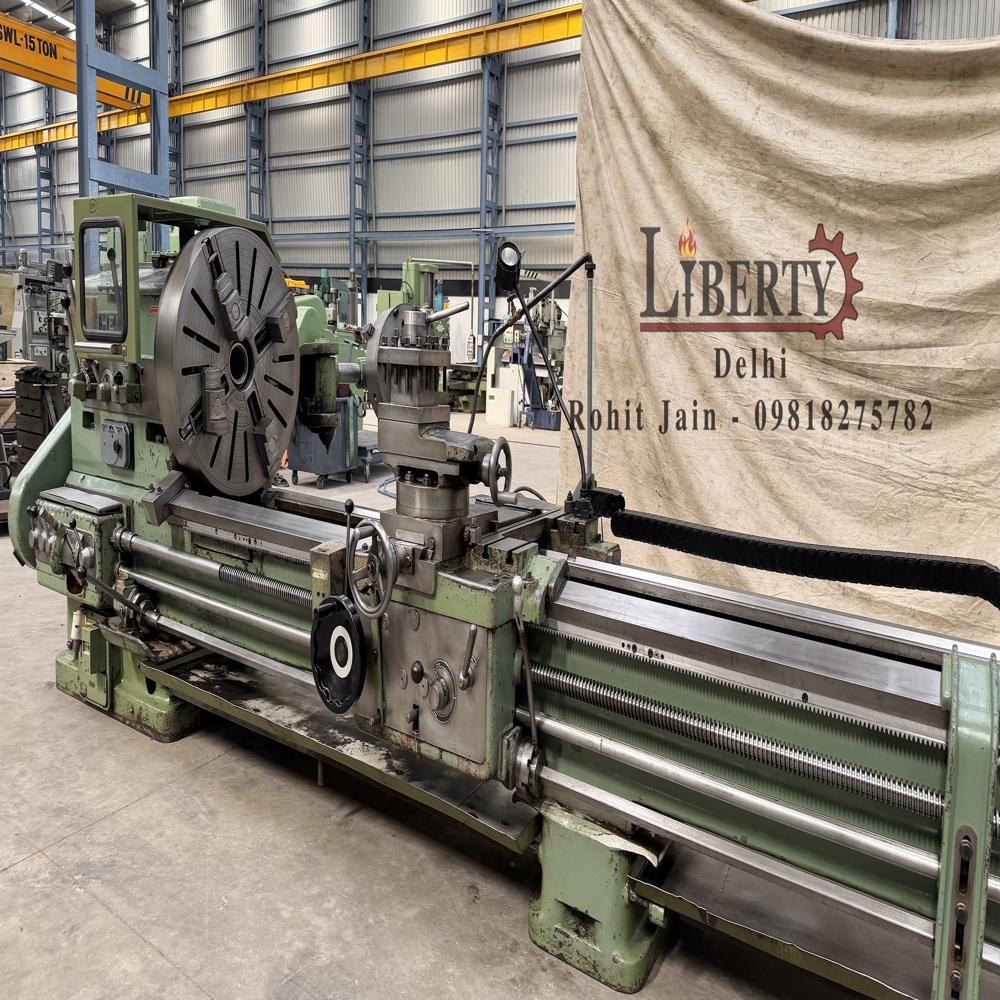

Heid Austria 4000 mm Length Heavy Duty Lathe Machine

Name: Heid Austria 4000 mm Length Heavy Duty Lathe Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Heid Austria 4000 mm Length Heavy Duty Lathe Machine Specification

Product Type
Heavy Duty Centre Lathe Machine

Material
Heid (Austria) make Heavy-Duty Lathe Machine in excellent working condition. The Center Height of the machine is 410 mm and the Max. Length of Job is 4000 mm. It is a Heavy Duty Gap-Bed type Lathe Machine having a Bed Width of 640 mm and Maximum Swing Diameter in Gap of 1050 mm. The technical details are as follows -

Cutting Thickness
Up to 20 mm (depending on tool and material)

Cutting Speed
15 - 1000 RPM (variable, depending on settings)

CNC Or Not
No, Conventional Lathe

Automatic Grade
Manual

Control System
Manual Gearbox Control

Max. Swing Diameter
Approx. 900 mm

Voltage
415 V, 3 Phase, 50 Hz

Weight (kg)
Approx. 6000 - 7000 kg

Dimension (L*W*H)
Approx. 5700 mm x 1500 mm x 1800 mm

Capacity
Up to 4000 mm between centers

Feature
Robust Structure, High Precision, Heavy Load Capability

Color
Industrial Green with Metallic Highlights

Chuck Type
Independent 4-jaw chuck

Application
Turning, Threading, Facing Heavy Industrial Jobs

Spindle Bore Diameter
Approx. 100-125 mm

Bed Width
Approx. 600 mm

Bed Type
Double/Single wall bed with robust ribbing (heavy duty)

Tail Stock
Manually operated

Number of Spindle Speeds
Multiple (typically 12-18 steps)

Chuck Diameter
800-1000 mm (approx., supplied with plate chuck)

Distance Between Centers
4000 mm

Surface Finish
Precision ground and hardened ways

Machine Condition
Imported, Used/Refurbished

Carriage Travel
3800 mm (approx.)

Cross Slide Travel
Approx. 400 mm

Coolant System
Provision Available

Main Motor Power
10-15 HP (approx.)

Lead Screw Diameter
Approx. 50 mm

Heid Austria 4000 mm Length Heavy Duty Lathe Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
7 Days

About Heid Austria 4000 mm Length Heavy Duty Lathe Machine

Make - Heid (Austria)

Center Height - 410 mm

Max. Length of Job - 4000 mm

Max. Job Diameter over Bed - 820 mm

Max. Job Diameter over Cross-Slide - 590 mm

Max. Job Diameter in Gap - 1050 mm

4-Jaw Chuck Diameter - 800 mm

3-Jaw Chuck Diameter - 500 mm

Bed Width - 640 mm

Spindle Speeds - 9.5 rpm to 487 rpm

Job Length in the Gap - 465 mm

Spindle Bore - 80 mm

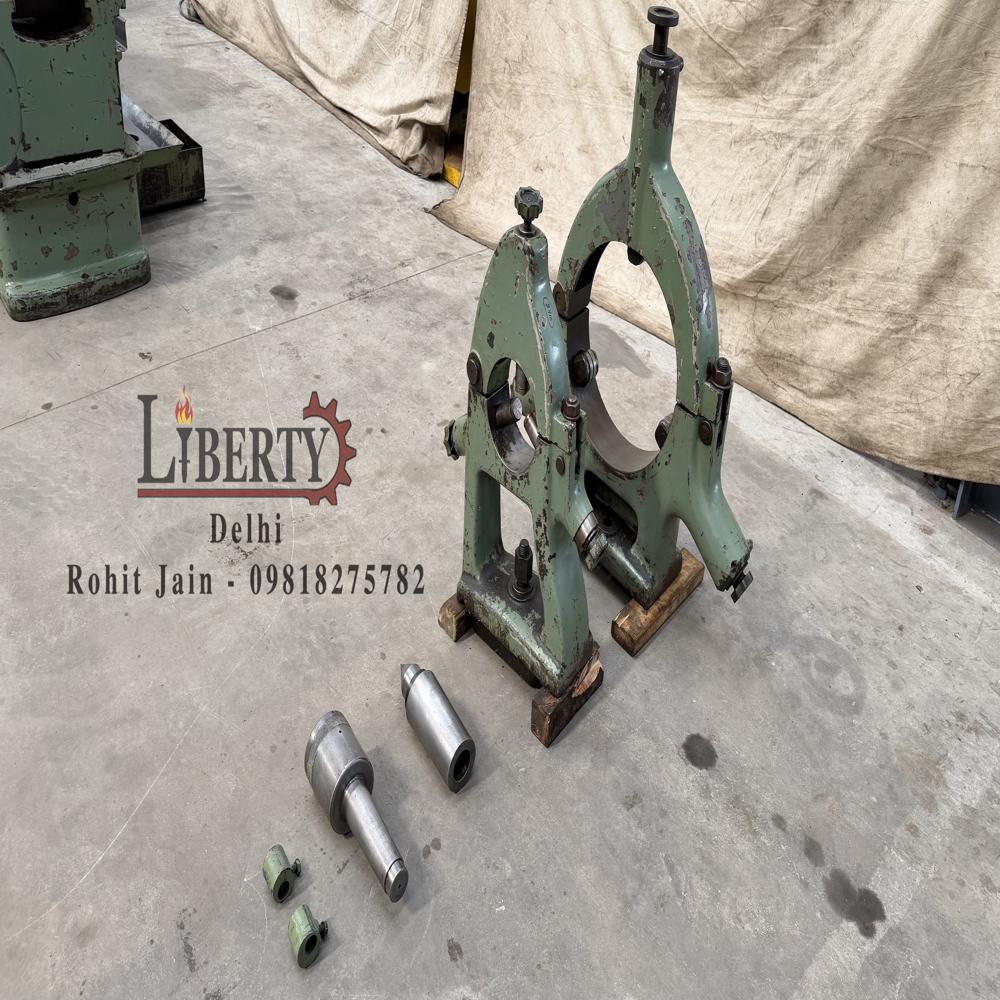

- Complete with 2 x Job Steady, Coolant Tank & Pump.

- It is a Heavy-Duty Gap-Bed type Lathe Machine.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/jQ-HEgMhVxI

Robust Design for Heavy-Duty Applications

Built with a solid cast-iron construction, this lathe is capable of handling large, heavy workpieces with ease. Its 640 mm wide bed delivers superior rigidity, minimizing vibration during machining operations. With heavy-duty features, it's suitable for industrial-scale turning, shaft making, and repair services.

Precision and Versatility Combined

The manual gearbox allows precise control of spindle speed, offering 15-1000 RPM for a wide range of cutting tasks. Multiple chuck options enable flexibility in clamping workpieces, while the 4000 mm distance between centers supports long and oversized jobs. This makes the machine highly adaptable to various metalworking needs.

Easy Operation and Low Maintenance

The user-friendly manual controls are matched with low-maintenance, durable components. The integrated coolant system prevents overheating during prolonged operations, while the recirculating feature ensures clean, efficient cooling for both light and heavy-duty tasks.

FAQ's of Heid Austria 4000 mm Length Heavy Duty Lathe Machine:

Q: How does the Heid Austria 4000 mm Lathe Machine benefit heavy turning applications?

A: This lathe's heavy-duty gap-bed design, wide 640 mm bed, and up to 1050 mm maximum swing diameter offer robust support for large, heavy workpieces, ensuring stable and precise turning, even in extended machining operations.

Q: What materials and job types is this lathe best suited for?

A: The machine is designed for metalworking tasks such as shaft manufacturing and component repairs. It excels in industrial workshops and repair shops, especially when handling long or heavy materials requiring high precision.

Q: When should you use the gap-bed feature?

A: The gap-bed is ideal when working with oversized parts, as it allows for a maximum swing diameter of up to 1050 mm in the gap. Use this feature for turning wide or irregularly shaped workpieces that exceed the normal swing over the bed.

Q: Where is this lathe typically installed?

A: Due to its size and weight (approx. 6000-7000 kg), the lathe is best suited for installation in large industrial spaces, workshops, or manufacturing units with robust flooring to support heavy machinery.

Q: What is the process for adjusting spindle speeds on this lathe?

A: Spindle speed is set manually via the gearbox control. Operators can choose from 15 to 1000 RPM in stepped gear changes, allowing the flexibility needed for various cutting conditions and material types.

Q: How is cooling managed during prolonged turning operations?

A: The lathe includes a fitted recirculating coolant system, which ensures continuous cooling of both the workpiece and cutting tool. This prevents thermal distortion and extends tool life during sustained machining.
